Model Whirlpool KTRP20MDAL05 – Common Parts & Diagrams

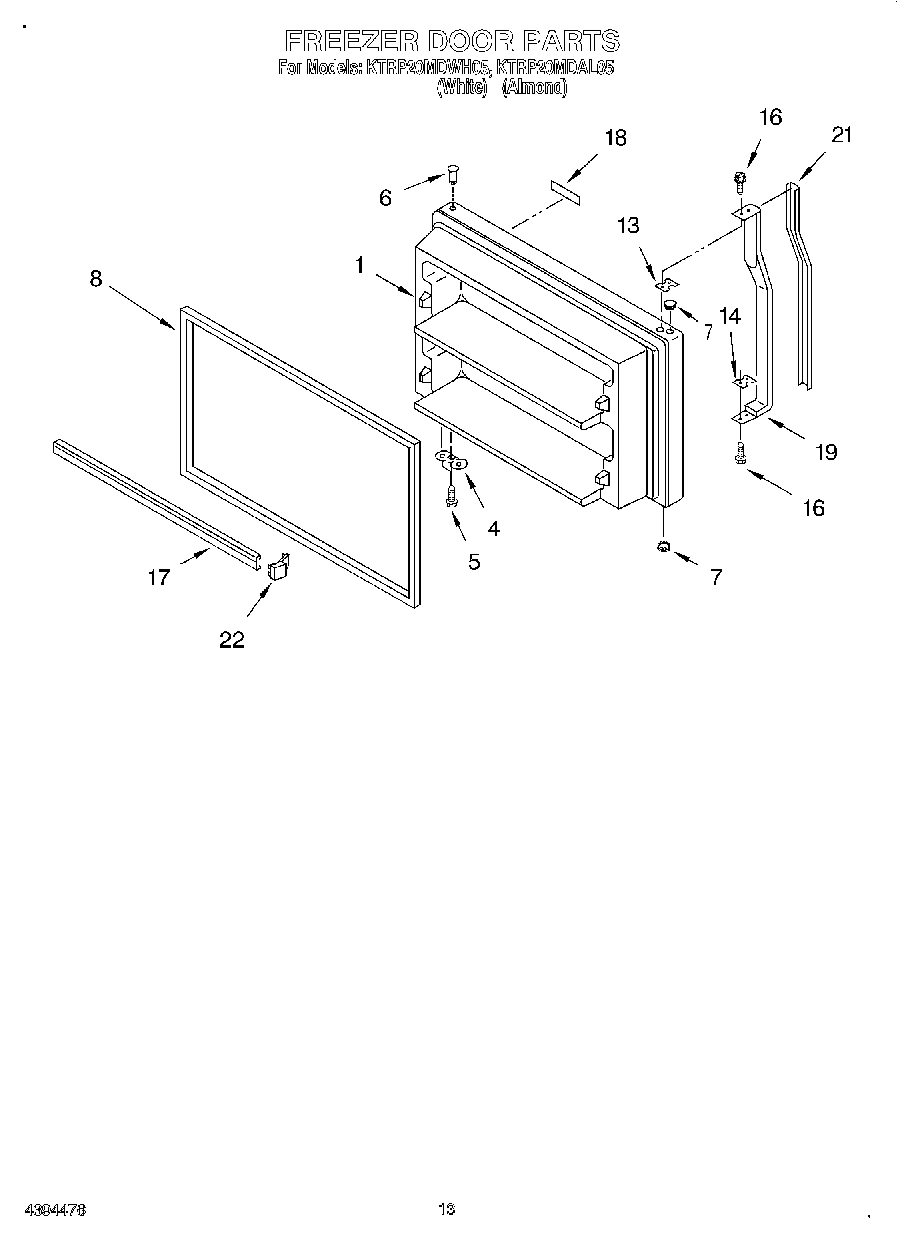

07 - FREEZER DOOR, LIT/OPTIONAL

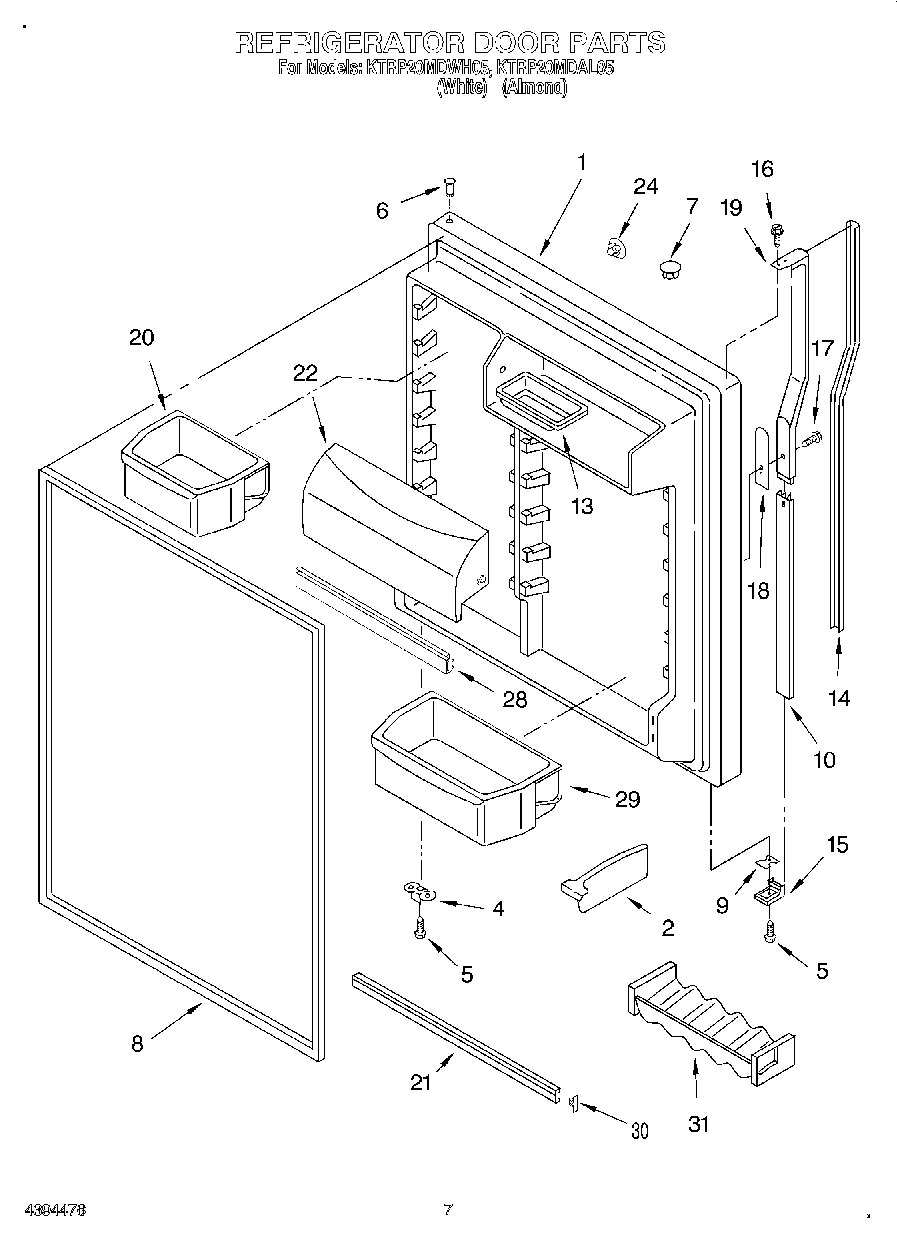

04 - REFRIGERATOR DOOR
06 - ICEMAKER
01 - CABINET
02 - LINER
05 - UNIT
03 - SHELF
Common parts from model Whirlpool KTRP20MDAL05
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI111009A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI111012A Contact Us For Availability
1
Plate, Unit Mounting WPL 2189103 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2163756 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
2
Shelf, Ladder Center WPL 2163826 Contact Us For Availability
3
Condenser WPL 2183849 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
5
Evaporator Assy. WPL 2166209 Contact Us For Availability
6
Screw WPL 489459 Contact Us For Availability
7
Spacer WPL 2172745 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
7
Drain Pan WPL 2172620 Contact Us For Availability
8
Screw WPL 489436 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
8
Roller & Tread Assembly WPL 2174388 Contact Us For Availability
9
Damper, Air WPL 2179855 Contact Us For Availability
9
Crisper Cover (Includes Rollers) WPL 2174128 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Fan Motor WPL 2183833 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174141 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
11
Clamp (Production) WPL 2162400 Contact Us For Availability
11
Clamp (Service) WPL 2169464 Contact Us For Availability
12
Control Box WPL 2174632 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
13
Thermostat Assembly (Includes Items 5, 18, & WPL 2190663 Contact Us For Availability
13
Overload (Production) WPL 2169406 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
14
Cap, Crisper (Left Side) WPL 2174258 Contact Us For Availability
14
Cap, Crisper (Right Side) WPL 2174259 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
Module WPL 2169337 Contact Us For Availability
16
Cover, Evaporator WPL 2183153 Contact Us For Availability
16
Screw WPL 489473 Contact Us For Availability
16
Shelf Assembly, Spillguard (3) WPL 2174030 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
17
Shelf, Freezer WPL 2184566 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip WPL 2182338 Contact Us For Availability
19
Pan, Crisper (Includes 8, 10, 14, 22, 29) WPL 2175433 Contact Us For Availability
20
Hinge, Butt WPL 2179829 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2174610 Contact Us For Availability
20
Protector WPL 2183803 Contact Us For Availability
20
Pan, Meat (Includes 8, 10, 24, 29) WPL 2175448 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI111013A Contact Us For Availability
21
Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability
22
KIT, FOAM SLAB (30`` X 32 1/2`` X WPL 876029 Contact Us For Availability
22
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
22
Slide, Knob (2) WPL 2174633 Contact Us For Availability
22
Window, Crisper WPL 2175373 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Gasket, Crisper Cover (Rear) (2) WPL 2179216 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI111010A Contact Us For Availability
24
Window, Meat Pan WPL 2175445 Contact Us For Availability
25
Freezer Floor WPL 2163825 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
30
Plug-Trim WPL 2159300 Contact Us For Availability
32
Capacitor (Service) WPL 2169137 Contact Us For Availability
32
Slide, Humidity WPL 2174257 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
36
Grille (White) WPL 2182432 Contact Us For Availability
36
Grille (Almond) WPL 2182433 Contact Us For Availability
36
Button, Humidity Control WPL 2174253 Contact Us For Availability
37
Cover WPL 2169935 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
39
Housing Base WPL 2182382 Contact Us For Availability
39
Air Baffle WPL 2182395 Contact Us For Availability
39
Gasket, Front WPL 2174396 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI111011A Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2193096 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2182384 Contact Us For Availability
42
Wire Assy. Unit WPL 2184587 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
44
Cover, Unit WPL 2183159 Contact Us For Availability
45
Shelf Assembly, Spillguard (Incl. No.39 & No. WPL 2190504 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
47
Tube, Suction WPL 2182475 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2176276 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
59
Light Fiber (2) WPL 2179921 Contact Us For Availability
60
Grommet, Light Fiber (2) WPL 2172906 Contact Us For Availability
61
Cover, Control Box Front WPL 2179719 Contact Us For Availability
62
Window WPL 2176274 Contact Us For Availability
× ![]()
