Model Whirlpool KTRI18KBAL00 – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT1126160 WPL LIT1126160 Contact Us For Availability

WPL LIT2162463 WPL LIT2162463 Contact Us For Availability

WPL LIT2168910 WPL LIT2168910 Contact Us For Availability

1

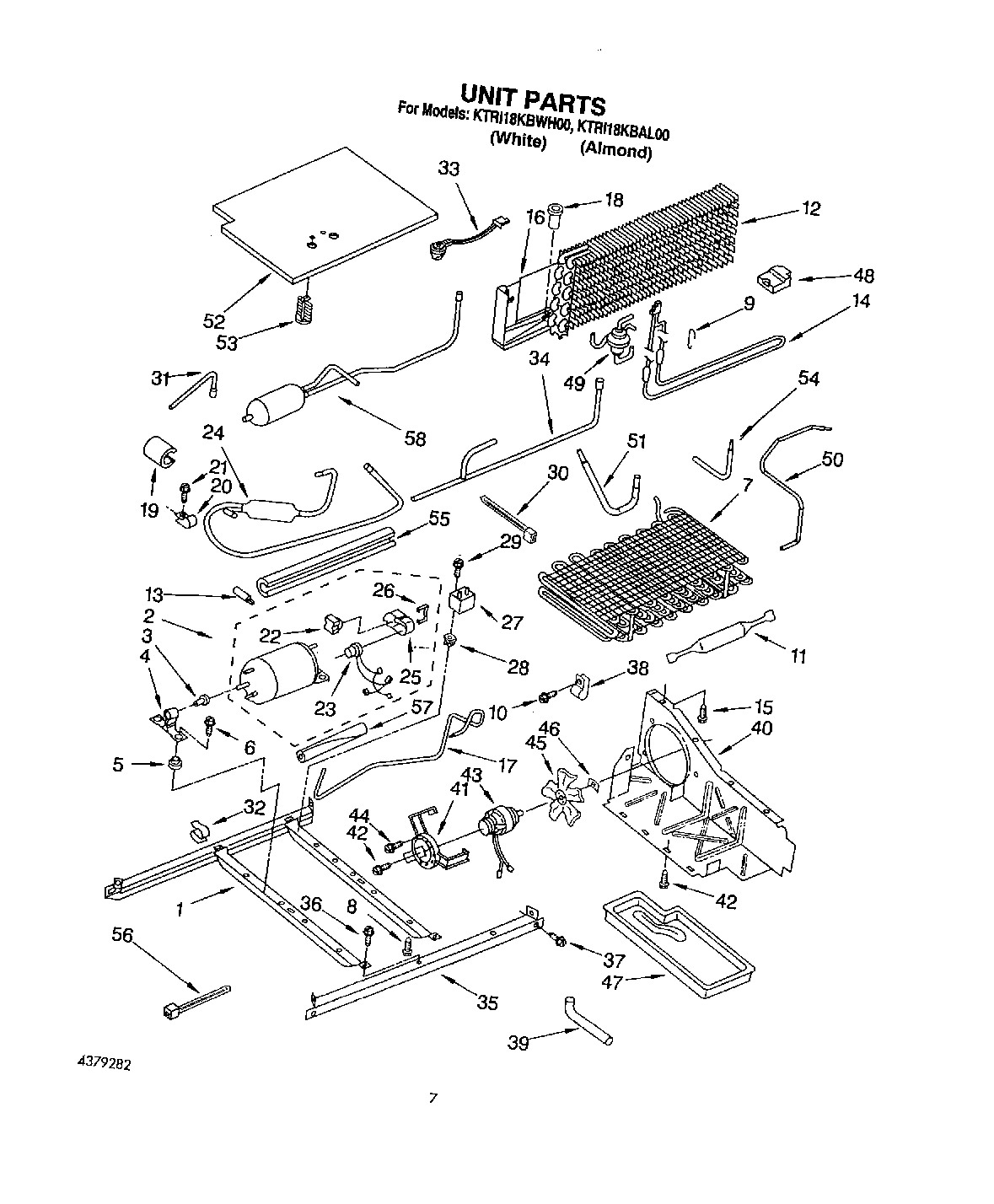

Unit, Frame WPL 2159747 Contact Us For Availability

1

Bottom, Compartment Separator WPL 2172814 Contact Us For Availability

1

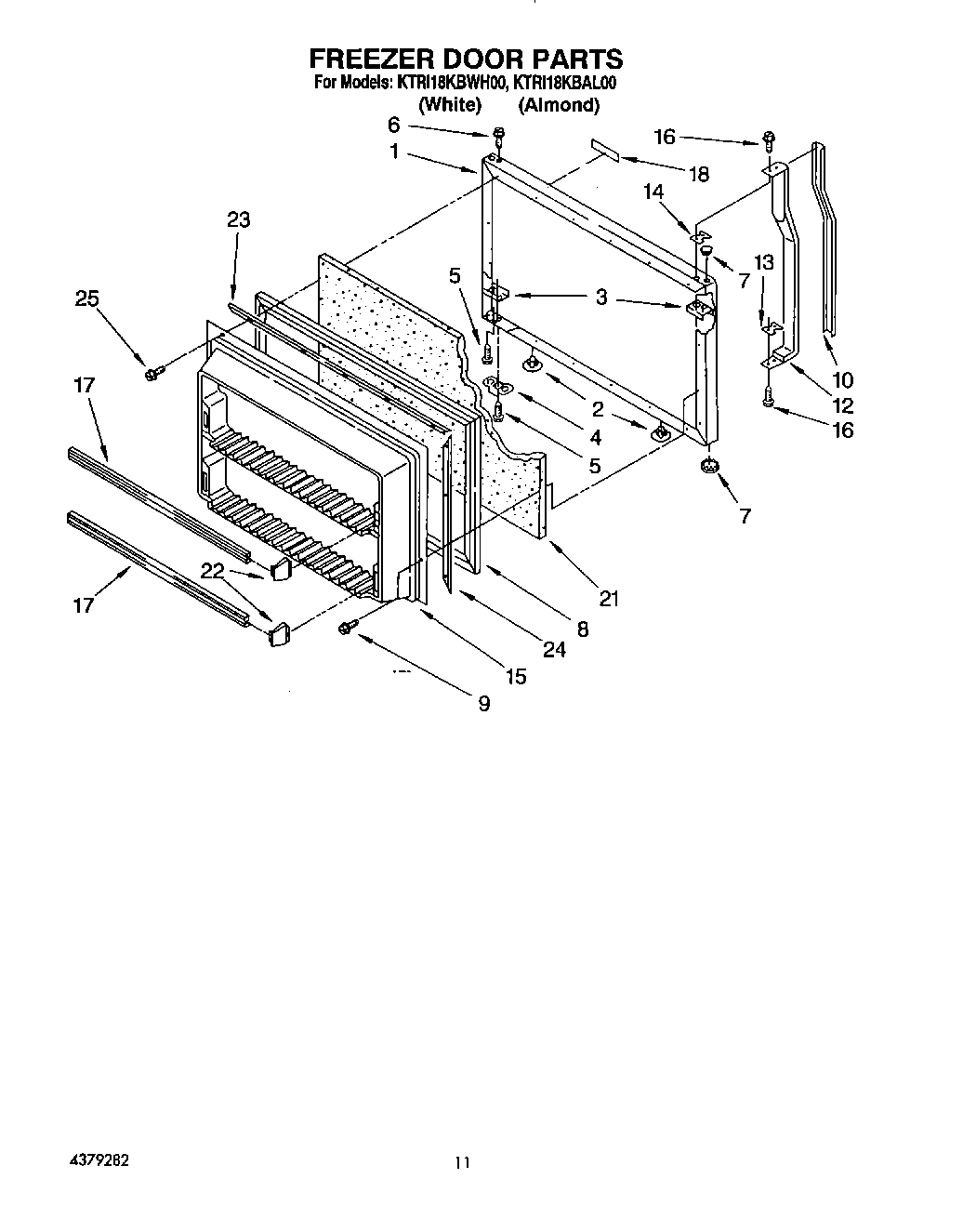

Panel, Freezer Door (Also Order Item 21) (Whi WPL 2157708 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 2157711 Contact Us For Availability

1

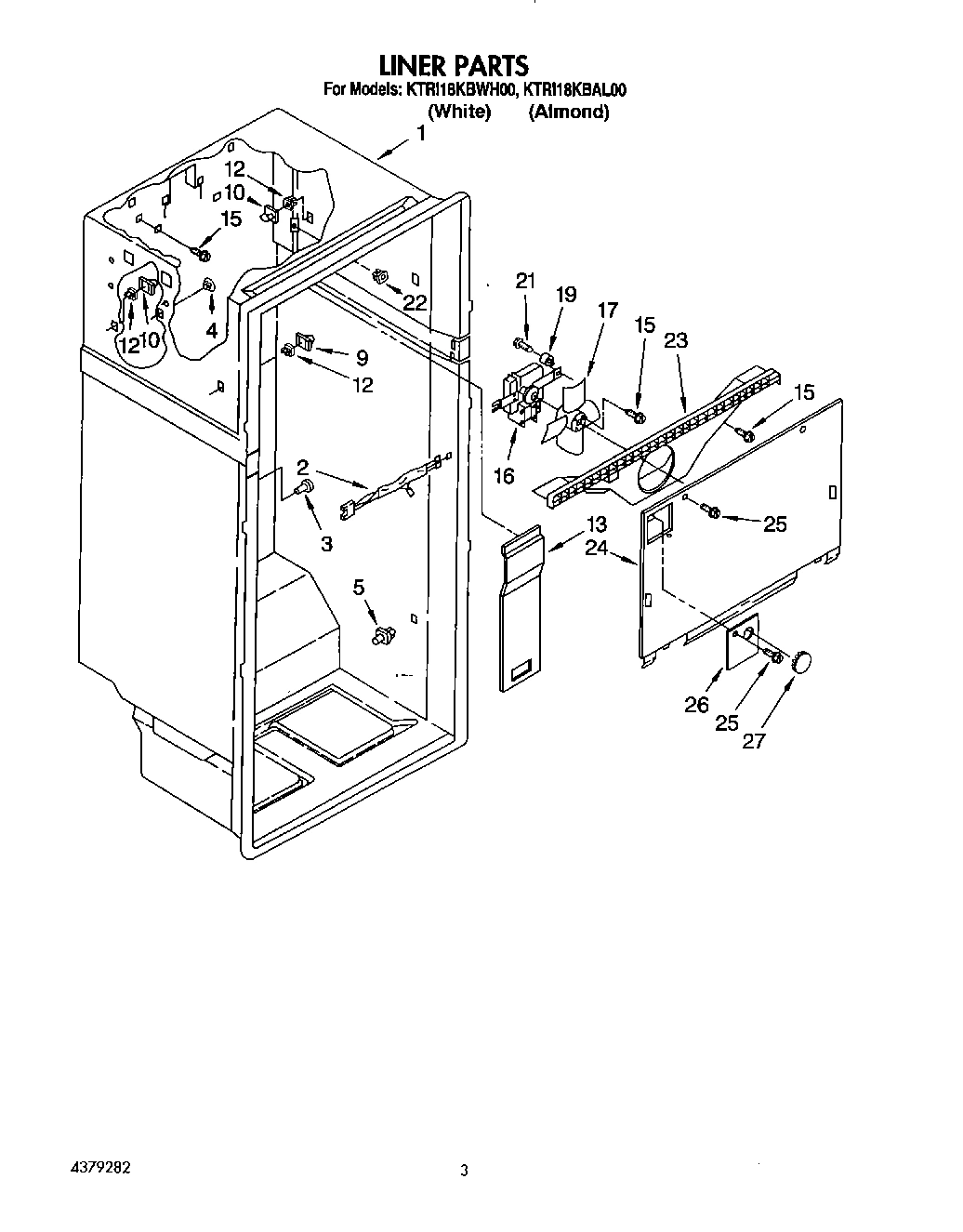

Liner (Not A Serviceable Part) WPL ARI110730A Contact Us For Availability

1

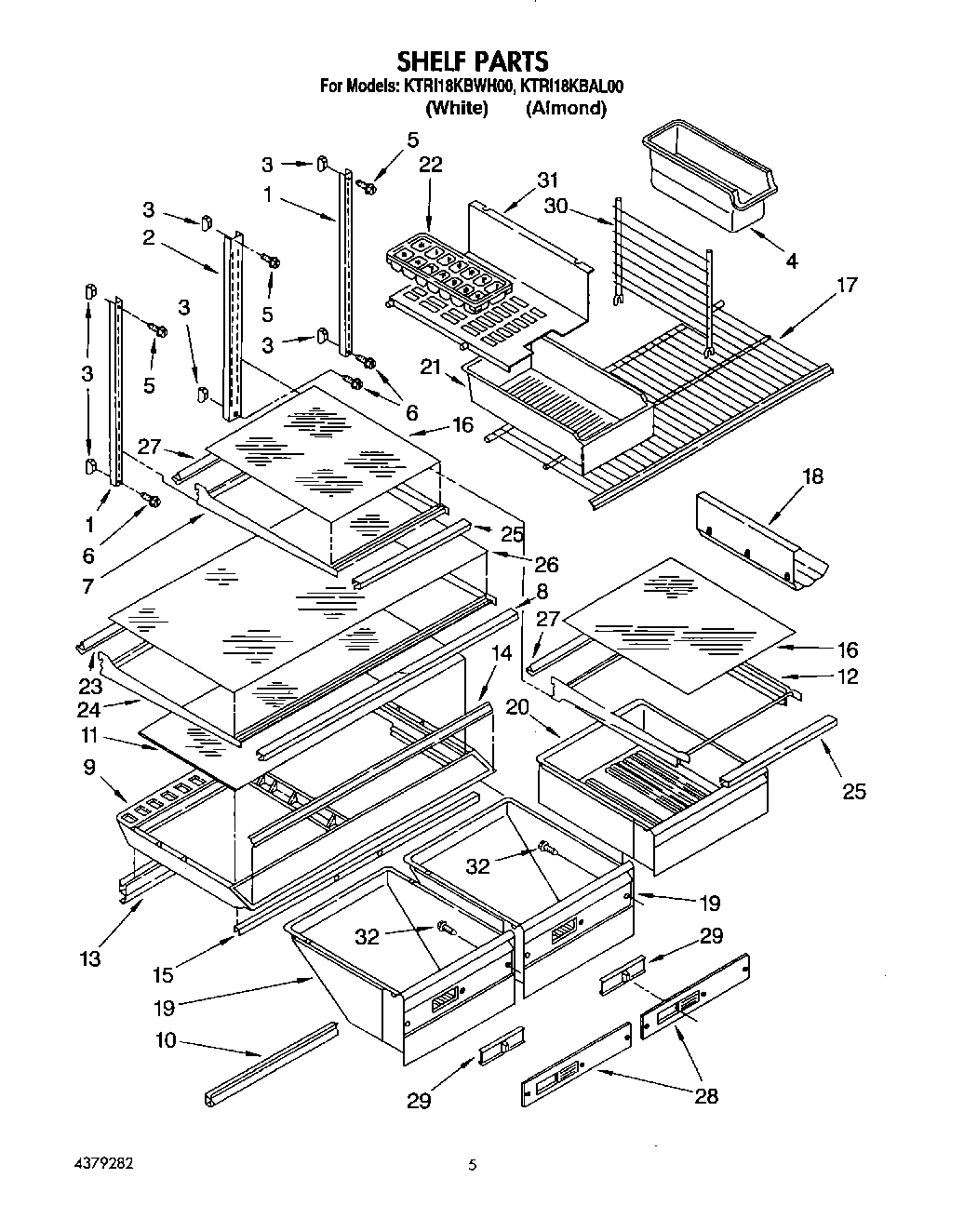

Shelf, Ladder (2) WPL 1114466 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Compressor Kit (Includes Item 22, 23, 25, 26 WPL 2154564 Contact Us For Availability

2

Box, Control WPL 2162826 Contact Us For Availability

2

Hole Plug (2) (White) WPL 534927 Contact Us For Availability

2

Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability

2

Shelf, Ladder Center WPL 1114465 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

3

Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability

3

Grommet (4) WPL 1110779 Contact Us For Availability

4

4388931 Whirlpool Defrost Timer In Stock WPL 4388931 $140.53

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

4

Bracket, Mounting WPL 1105220 Contact Us For Availability

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

5

W10854959 Whirlpool Refrigerator Shelf Stud Backorder WPL W10854959 $4.23

5

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Screw, WPL 488454 Contact Us For Availability

5

Grommet, Compressor WPL 1105200 Contact Us For Availability

5

Screw, WPL 489345 Contact Us For Availability

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

6

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

6

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

6

Screw WPL 489334 Contact Us For Availability

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

Condenser Assembly WPL 2154008 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

Shelf, Cantilever WPL 1126187 Contact Us For Availability

8

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

8

Door Gasket, Magnetic WPL 1125888 Contact Us For Availability

8

Gasket, Shelf WPL 1126191 Contact Us For Availability

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

Control, Front Cover WPL 1125834 Contact Us For Availability

9

Support, Heater WPL 2149120 Contact Us For Availability

9

Stud, Front (2) WPL 946356 Contact Us For Availability

9

Crisper Cover WPL 1125843 Contact Us For Availability

1123394 Whirlpool Refrigerator Cold Control T Backorder WPL 1123394 $89.70

819091 Whirlpool Refrigerator Shelf Stud Backorder WPL 819091 $13.89

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Heater, Mullion WPL 2154064 Contact Us For Availability

Insert, Handle (White) WPL 2161540 Contact Us For Availability

Insert, Handle (Almond) WPL 2161541 Contact Us For Availability

Gasket, Cover (Front) (2) WPL 1116713 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

Clip, Center Rail (3) WPL 1129018 Contact Us For Availability

Knob, Thermostat WPL 1125831 Contact Us For Availability

Glass, Cover WPL 1125844 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Spacer (3) WPL 2149077 Contact Us For Availability

Evaporator Assembly WPL 2153977 Contact Us For Availability

Handle Assembly WPL 2161517 Contact Us For Availability

Support Stud (4) WPL 946355 Contact Us For Availability

Pan Shelf, Cantilever WPL 1126189 Contact Us For Availability

Center Rail WPL 2172701 Contact Us For Availability

Capacitor, Start WPL 1108065 Contact Us For Availability

Light, Bar WPL 1105475 Contact Us For Availability

Shim, Handle WPL 2151813 Contact Us For Availability

Cover, Air Duct WPL 2153966 Contact Us For Availability

Gasket, Cover (Rear) (2) WPL 1116714 Contact Us For Availability

Heater, Defrost WPL 2162020 Contact Us For Availability

Knob, Air Control WPL 1125832 Contact Us For Availability

Spacer, Handle WPL 1107628 Contact Us For Availability

Trim, Cover WPL 2172715 Contact Us For Availability

15

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $50.82

15

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

15

Interior Door Panel WPL 1116610 Contact Us For Availability

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

Drain Pan & Heat Shield WPL 2153973 Contact Us For Availability

Rod, Connecting WPL 1116565 Contact Us For Availability

Glass, Shelf WPL 1126194 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $27.58

WP2189412 Whirlpool Refrigerator Door Hinge Backorder WPL WP2189412 $37.95

Tube, Discharge WPL 2154028 Contact Us For Availability

Air Diffuser Assembly WPL 2157252 Contact Us For Availability

Trim, Door Shelf (2) WPL 1125866 Contact Us For Availability

Shelf, Freezer WPL 1125849 Contact Us For Availability

Shim, Hinge Top WPL 2157269 Contact Us For Availability

Drain Fitting WPL 2172811 Contact Us For Availability

Gasket, Air Diffuser WPL 2157255 Contact Us For Availability

Nameplate (White Model) WPL 2168800 Contact Us For Availability

Nameplate (Almond Model) WPL 2168801 Contact Us For Availability

Wine & Egg Rack WPL 1125913 Contact Us For Availability

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

Hinge Cover (Almond) WPL 2160404 Contact Us For Availability

Cover, Air Diffuser WPL 1108176 Contact Us For Availability

Grommet (2) WPL 531933 Contact Us For Availability

Pan, Crisper WPL 2168877 Contact Us For Availability

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Tube Clamp WPL 510716 Contact Us For Availability

Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability

Pan, Meat WPL 2168878 Contact Us For Availability

W11625904 Whirlpool Refrigerator Ice Pan In Stock WPL W11625904 $24.25

Hinge, Center WPL 2151453 Contact Us For Availability

Light, Bar WPL 1105476 Contact Us For Availability

Screw WPL 489168 Contact Us For Availability

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $6.84

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

Shim, Hinge Center WPL 836155 Contact Us For Availability

Relay (See Overload) WPL ARI110731A Contact Us For Availability

Wiring Assembly, Control Box WPL 2159536 Contact Us For Availability

Grommet WPL 983604 Contact Us For Availability

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

Overload (Service (Includes Relay)) WPL 2154945 Contact Us For Availability

Overload (Production (Includes Relay)) WPL 2159611 Contact Us For Availability

Gasket, Bottom Separator WPL 2159733 Contact Us For Availability

Retainer, Gasket Top & Bottom (2) WPL 1115137 Contact Us For Availability

Scroll, Fan WPL 1116598 Contact Us For Availability

Retainer, Shelf WPL 1126241 Contact Us For Availability

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

Muffler & Tube Assembly WPL 2169366 Contact Us For Availability

Retainer, Gasket Side (2) WPL 1115138 Contact Us For Availability

Evaporator Cover WPL 2151668 Contact Us For Availability

Shelf, Full Cantilever WPL 1126186 Contact Us For Availability

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Terminal Cover WPL 2154452 Contact Us For Availability

Gasket, Shelf WPL 1126192 Contact Us For Availability

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $15.98

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

Strap, Cover WPL 1105222 Contact Us For Availability

Insulation, Filler WPL 1108196 Contact Us For Availability

Glass, Full Shelf WPL 1126193 Contact Us For Availability

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Insulation, Compartment Separator WPL 1116569 Contact Us For Availability

Hole Plug WPL 1103725 Contact Us For Availability

Retainer, Shelf WPL 1118119 Contact Us For Availability

28

Screw Grommet WPL 509812 Contact Us For Availability

28

Wire Assembly WPL 2154921 Contact Us For Availability

28

Front, Pan WPL 2168724 Contact Us For Availability

29

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

29

Slide, Front WPL 1125853 Contact Us For Availability

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

30

Divider WPL 1125542 Contact Us For Availability

31

Spacer WPL 2172744 Contact Us For Availability

31

Tube, Process WPL 2154090 Contact Us For Availability

31

Shelf, Ice Tray WPL 1125543 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Clip, Wire WPL 548745 Contact Us For Availability

Door Reversal Instructions WPL 2172757 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

Screw WPL 489268 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WP1118001 Whirlpool Hinge Pin Backorder WPL WP1118001 $3.70

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $16.40

Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability

Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability

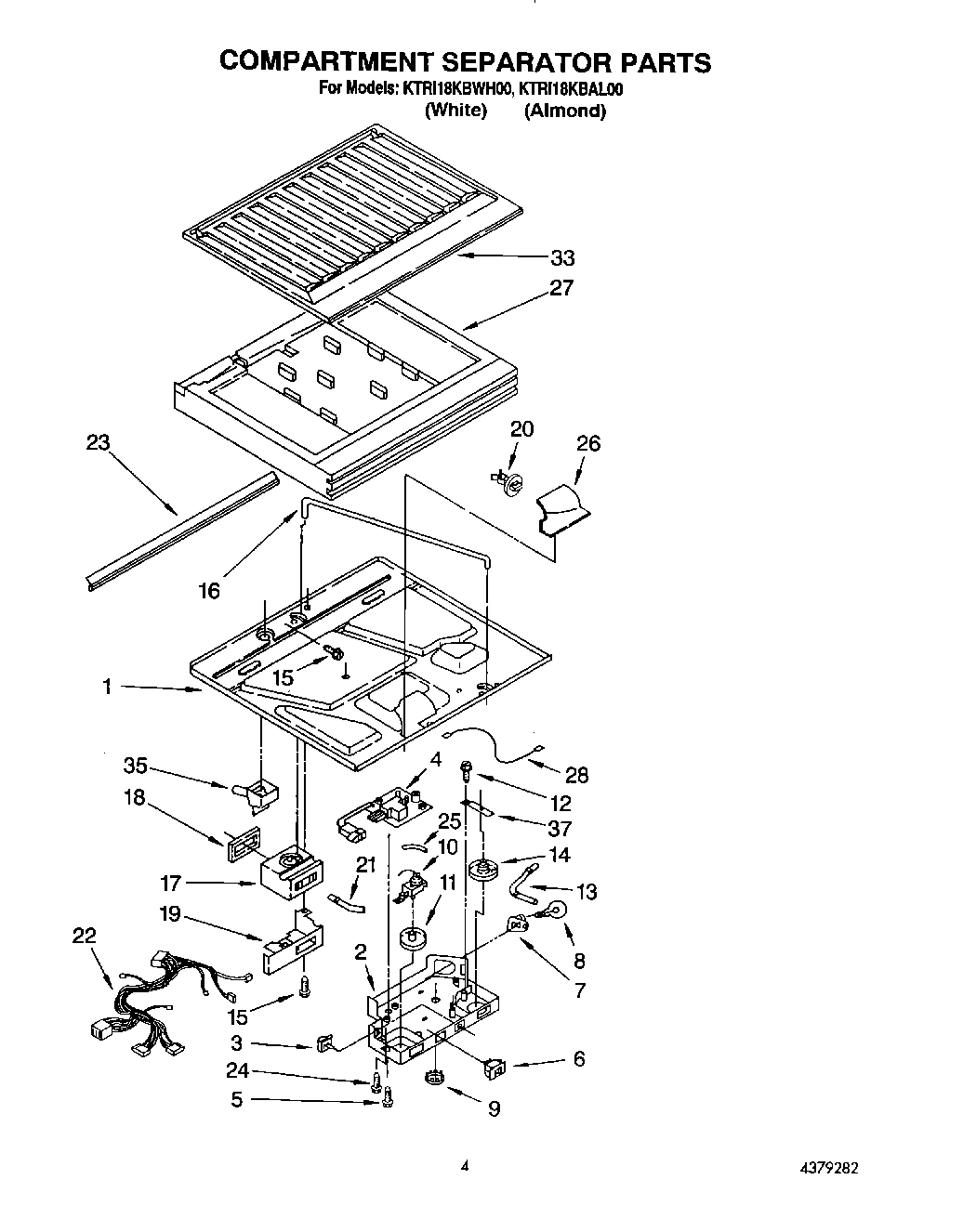

Separator, Compartment (Top) WPL 2157398 Contact Us For Availability

34

Filler, Wrapper Corner (4) (White) WPL 1118058 Contact Us For Availability

34

Filler, Wrapper Corner (4) (Almond) WPL 1118059 Contact Us For Availability

34

Tube Assembly, Suction Line WPL 2159689 Contact Us For Availability

Grille (White) WPL 1125664 Contact Us For Availability

Grille (Almond) WPL 1125669 Contact Us For Availability

Unit, Rail WPL 1116622 Contact Us For Availability

Cup, Drain WPL 937065 Contact Us For Availability

36

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

36

Hole Plug WPL 1129062 Contact Us For Availability

37

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

37

Wiring Assy. Intermediate WPL 2153994 Contact Us For Availability

37

Bracket, Control Knob WPL 1105457 Contact Us For Availability

38

Clamp WPL 1108033 Contact Us For Availability

39

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

39

Drain Extension WPL 2154118 Contact Us For Availability

40

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

40

Air, Baffle WPL 2154102 Contact Us For Availability

41

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

41

Hole Plug (12) (Almond) WPL 2151653 Contact Us For Availability

41

Fan, Mounting Bracket WPL 2162060 Contact Us For Availability

42

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

43

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

44

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

44

Cord, Service WPL 937360 Contact Us For Availability

45

Fan Blade WPL 1115135 Contact Us For Availability

46

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

47

Tray, Evaporator WPL 1116604 Contact Us For Availability

48

Cover, Unit WPL 2160514 Contact Us For Availability

48

Wedge, Air Baffle WPL 1118017 Contact Us For Availability

49

Valve, Fluid WPL 2169345 Contact Us For Availability

50

Tube-Condenser To Valve WPL 2159635 Contact Us For Availability

51

Tube-Heat Loop To Valve WPL 2159636 Contact Us For Availability

52

Cover, Unit Bottom WPL 2160517 Contact Us For Availability

53

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

54

Tube, Process WPL 2154040 Contact Us For Availability

55

WP2002171 Whirlpool Refrigerator Sleeve Backorder WPL WP2002171 $10.19

57

Sleeve WPL 2159751 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

WPL 978029 WPL 978029 Contact Us For Availability

Reservoir Assembly WPL 2169353 Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability

60

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

61

Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

68

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94
