Model Whirlpool KTRI18KAAL10 – Common Parts & Diagrams
01 - CABINET
04 - SHELF, LIT/OPTIONAL
02 - LINER

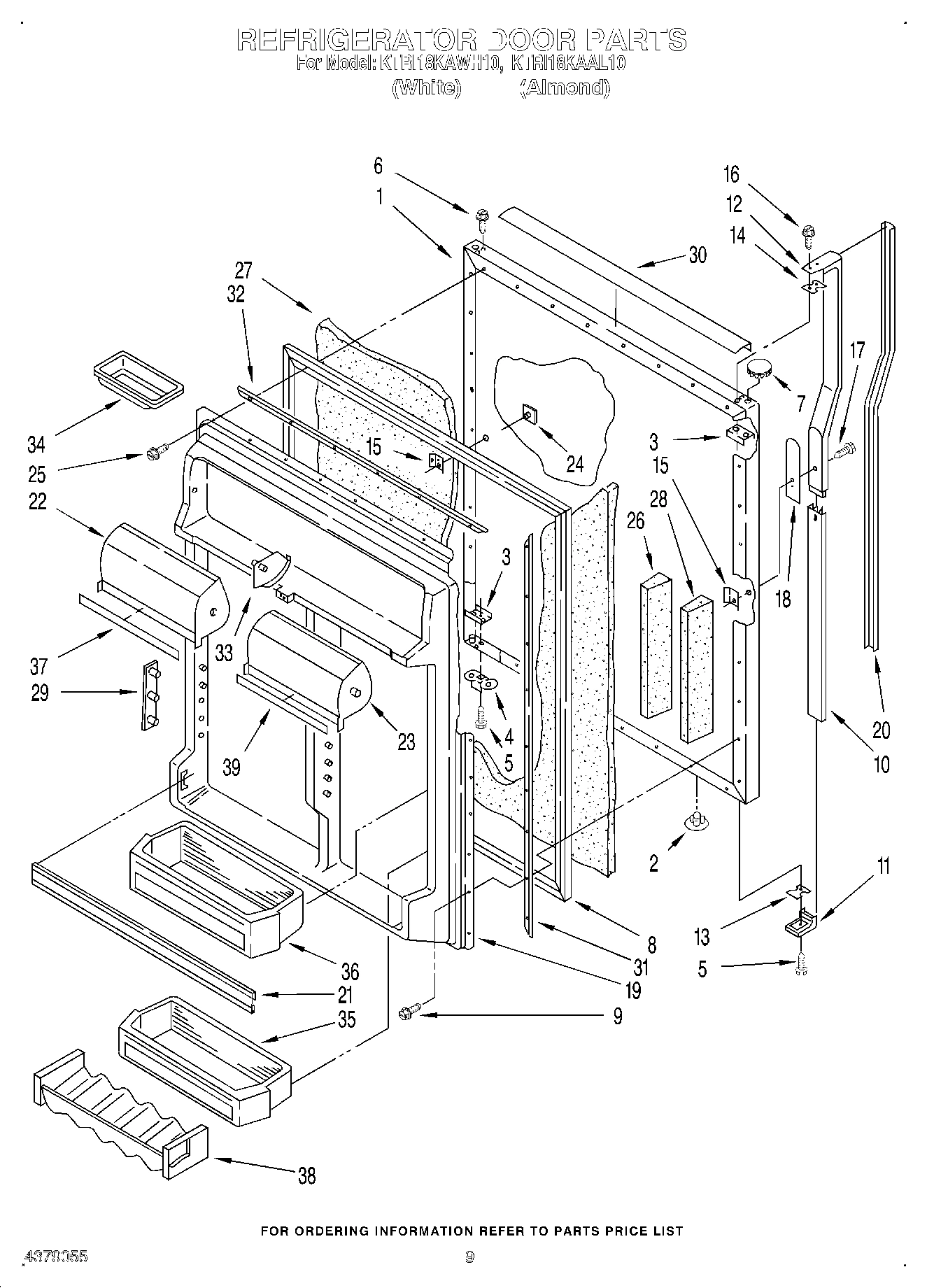

06 - REFRIGERATOR DOOR

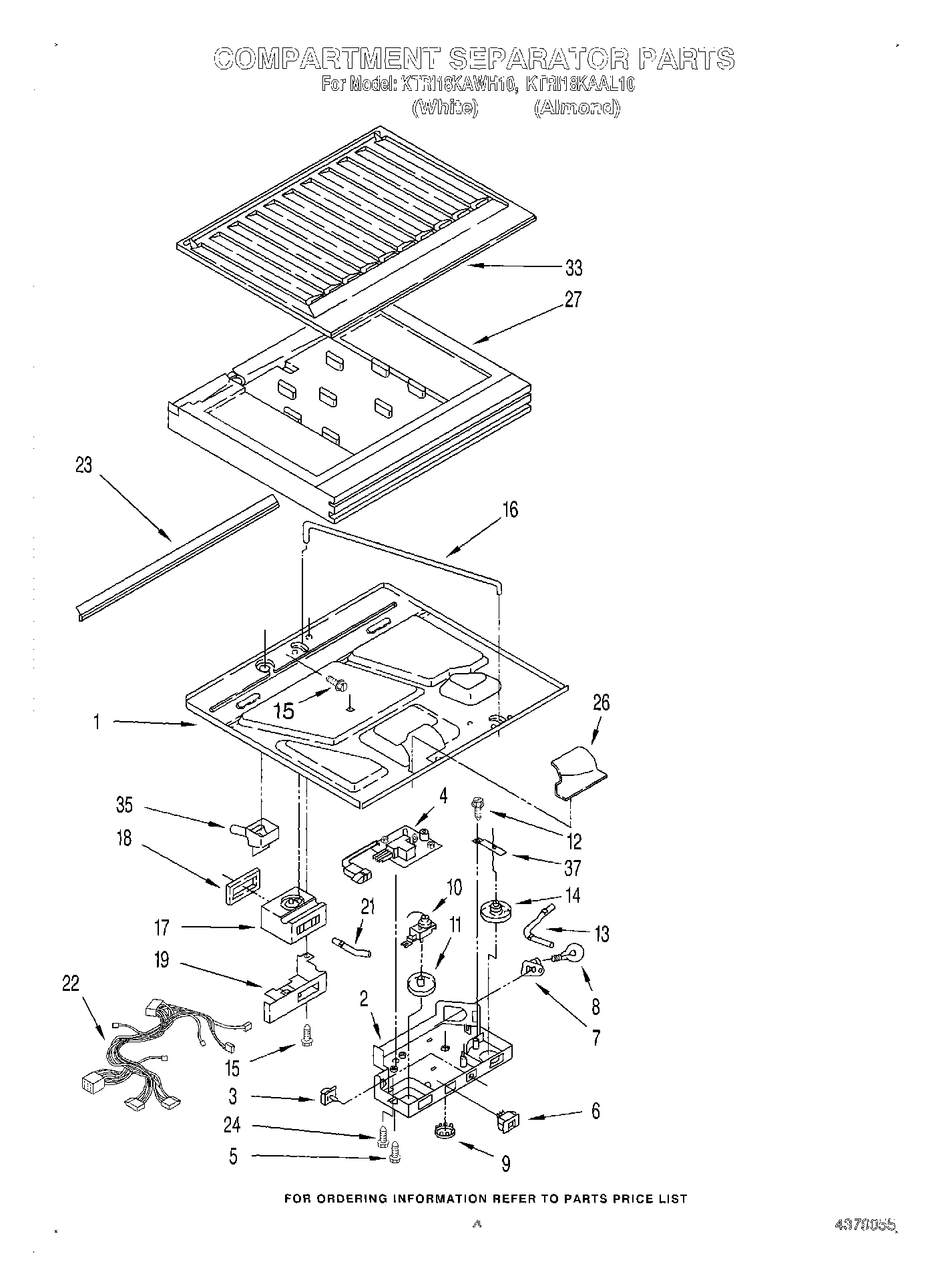

03 - COMPARTMENT SEPARATOR

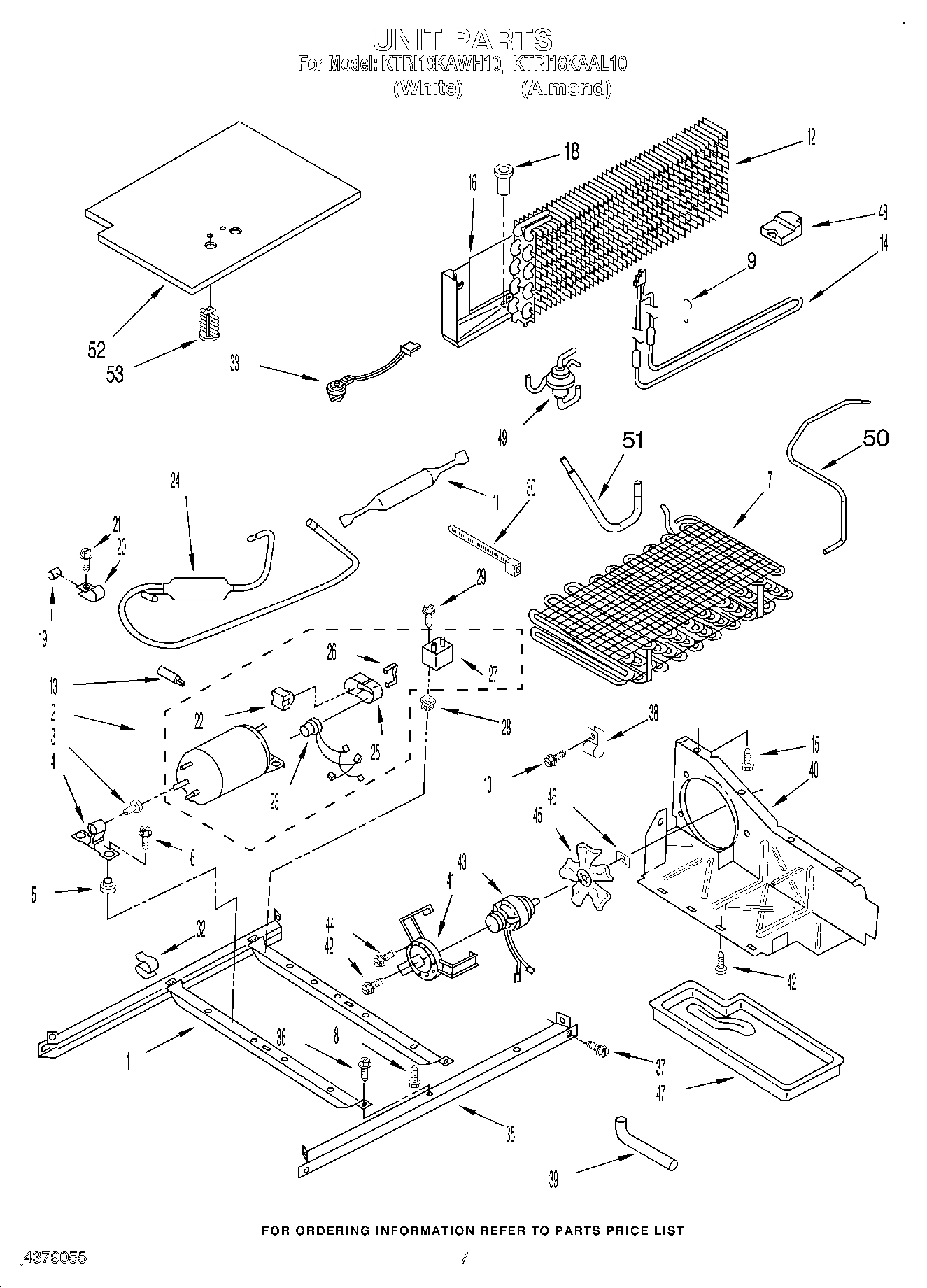

05 - UNIT

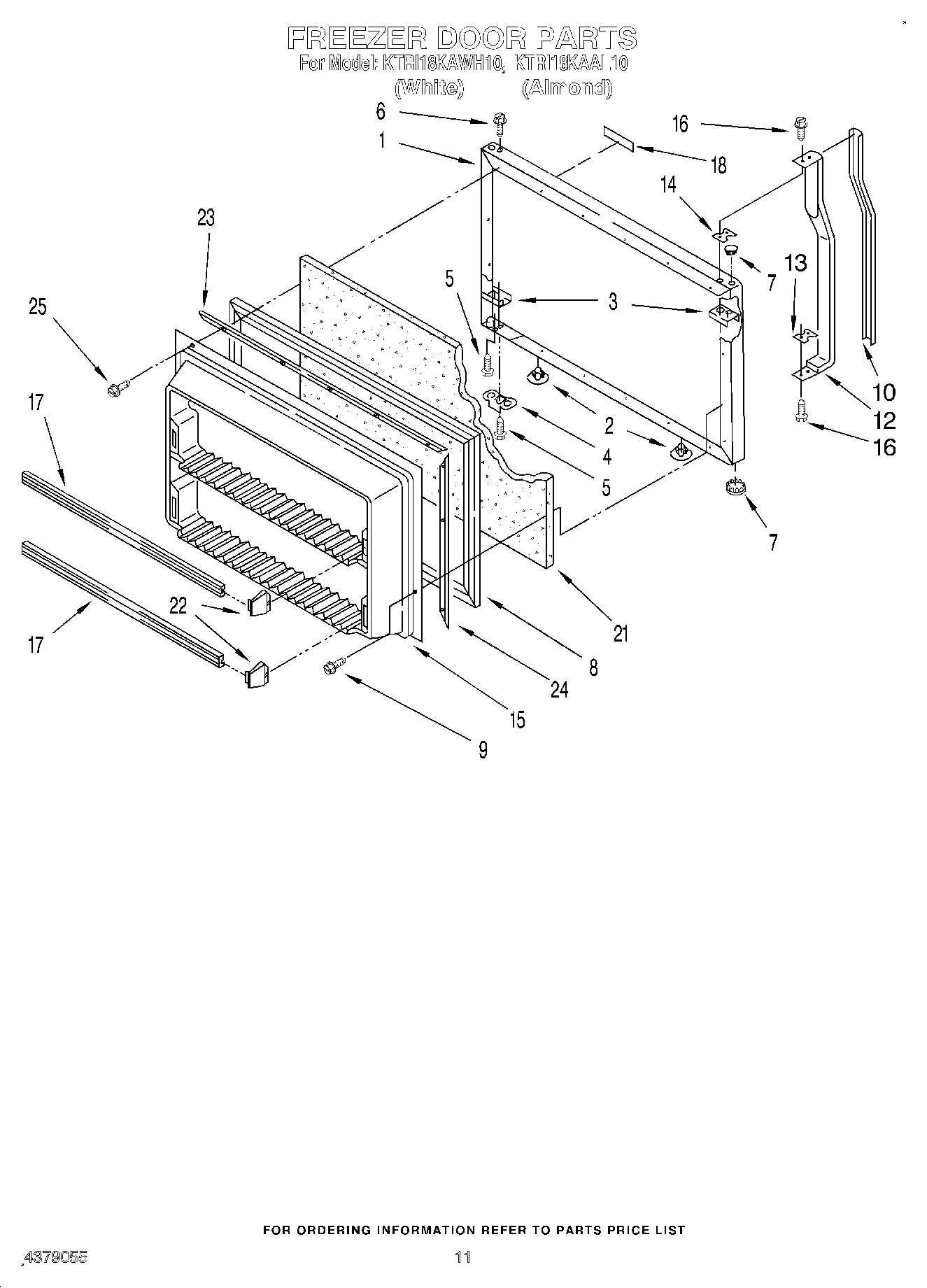

07 - FREEZER DOOR
Common parts from model Whirlpool KTRI18KAAL10
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1126160 WPL LIT1126160 Contact Us For Availability
WPL LIT2162463 WPL LIT2162463 Contact Us For Availability
WPL LIT2168662 WPL LIT2168662 Contact Us For Availability
WPL LIT4379055 WPL LIT4379055 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI110717A Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1116575 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1116578 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1116561 Contact Us For Availability
1
Unit, Frame WPL 2159747 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2157708 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2157711 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Box, Control WPL 2162826 Contact Us For Availability
2
Compressor KIt Includes Items 22 (23, 25, 26 WPL 2154564 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Grommet (4) WPL 1110779 Contact Us For Availability
3
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Screw (3) WPL 489345 Contact Us For Availability
5
Grommet, Compressor (4) WPL 1105200 Contact Us For Availability
6
Screw (4) WPL 489334 Contact Us For Availability
7
Shelf, Cantilever WPL 1126187 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Condenser Assembly WPL 2154008 Contact Us For Availability
8
Gasket, Shelf WPL 1126191 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125889 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125888 Contact Us For Availability
9
Crisper Cover WPL 1125843 Contact Us For Availability
9
Stud, Front (2) WPL 946356 Contact Us For Availability
9
Support, Heater WPL 2149120 Contact Us For Availability
10
Gasket, Cover (Front) (2) WPL 1116713 Contact Us For Availability
10
Retainer, Insert WPL 1125879 Contact Us For Availability
10
Insert, Handle (White) WPL 2161540 Contact Us For Availability
10
Insert, Handle (Almond) WPL 2161541 Contact Us For Availability
11
Glass, Cover WPL 1125844 Contact Us For Availability
11
Handle End Cap WPL 1107236 Contact Us For Availability
11
Knob, Thermostat WPL 1125831 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1126189 Contact Us For Availability
12
support stud (8) WPL 946355 Contact Us For Availability
12
Handle Assembly WPL 2161508 Contact Us For Availability
12
Evaporator Assembly WPL 2153977 Contact Us For Availability
12
Handle Assembly WPL 2161517 Contact Us For Availability
13
Gasket, Cover (Rear) (2) WPL 1116714 Contact Us For Availability
13
Cover, Air Duct WPL 2153966 Contact Us For Availability
13
Shim, End Cap WPL 1107229 Contact Us For Availability
13
Shim, Handle WPL 2151813 Contact Us For Availability
13
Light, Bar WPL 1105475 Contact Us For Availability
13
Capacitor, Start WPL 1108065 Contact Us For Availability
14
Trim, Cover WPL 1123002 Contact Us For Availability
14
Knob, Air Control WPL 1125832 Contact Us For Availability
14
Heater, Defrost WPL 2162020 Contact Us For Availability
14
Spacer, Handle WPL 1107628 Contact Us For Availability
15
Interior Door Panel WPL 1116610 Contact Us For Availability
16
Glass, Shelf WPL 1126194 Contact Us For Availability
16
Rod, Connecting WPL 1116565 Contact Us For Availability
16
Drain Pan & Heat Shield WPL 2153973 Contact Us For Availability
17
Shelf, Freezer WPL 1125849 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157252 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 1125866 Contact Us For Availability
18
Spacer, Handle WPL 1107650 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Drain Fitting WPL 981629 Contact Us For Availability
18
Nameplate (White) WPL 1125818 Contact Us For Availability
18
Nameplate (Almond) WPL 1125819 Contact Us For Availability
19
Pan, Crisper WPL 1125851 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Interior Door Panel WPL 1114792 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Dampener WPL 2149670 Contact Us For Availability
20
Pan, Meat WPL 1125854 Contact Us For Availability
20
Insert, Handle (White) WPL 2161511 Contact Us For Availability
20
Insert, Handle (Almond) WPL 2161512 Contact Us For Availability
20
Tube Clamp (2) WPL 510716 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Trim, Door Shelf WPL 1125857 Contact Us For Availability
21
Light, Bar WPL 1105476 Contact Us For Availability
22
Grommet WPL 983604 Contact Us For Availability
22
Compartment Door, Utility WPL 1126234 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2159536 Contact Us For Availability
22
Relay WPL 1108066 Contact Us For Availability
23
Retainer, Shelf WPL 1126241 Contact Us For Availability
23
Scroll, Fan WPL 1116598 Contact Us For Availability
23
Compartment Door, Butter WPL 1126233 Contact Us For Availability
23
Retainer, Gasket Top & Bottom WPL 1115137 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159733 Contact Us For Availability
23
Overload (Service) WPL 2149961 Contact Us For Availability
23
Overload (Production) WPL 2159611 Contact Us For Availability
24
Shelf, Full Cantilever WPL 1126186 Contact Us For Availability
24
Evaporator Cover WPL 2151668 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Muffler & Tube Assembly WPL 2159657 Contact Us For Availability
24
Retainer, Gasket Side (2) WPL 1115138 Contact Us For Availability
25
Gasket, Shelf WPL 1126192 Contact Us For Availability
25
Terminal Cover WPL 2154452 Contact Us For Availability
26
Glass, Full Shelf WPL 1126193 Contact Us For Availability
26
Door Dike, Center WPL 1118008 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Strap, Cover WPL 1105222 Contact Us For Availability
27
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Retainer, Shelf WPL 1118119 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1116569 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Front, Pan WPL 1125852 Contact Us For Availability
28
Door Dike, Side (2) WPL 1118007 Contact Us For Availability
28
Screw Grommet WPL 509812 Contact Us For Availability
29
Slide, Front WPL 1125853 Contact Us For Availability
29
Pin Plate (8) WPL 1116986 Contact Us For Availability
30
Divider WPL 1125542 Contact Us For Availability
30
Trim, Door WPL 1126013 Contact Us For Availability
31
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
31
Shelf, Ice Tray WPL 1125543 Contact Us For Availability
31
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
31
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
31
WPL 799833 WPL 799833 Contact Us For Availability
31
WPL 978883 WPL 978883 Contact Us For Availability
31
Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability
32
Clip, Wire (2) WPL 548745 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1116570 Contact Us For Availability
34
Butter, Tray WPL 1125936 Contact Us For Availability
35
Shelf Bin (2) WPL 1125862 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Unit, Rail WPL 1116622 Contact Us For Availability
36
Shelf Bin (2) WPL 1125863 Contact Us For Availability
37
Trim, Compartment WPL 1121186 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
38
Wine & Egg Rack WPL 1125913 Contact Us For Availability
38
Clamp WPL 1108033 Contact Us For Availability
39
Trim, Comp. Door Door WPL 2148588 Contact Us For Availability
39
Drain Extension WPL 2154118 Contact Us For Availability
40
Air, Baffle WPL 2154102 Contact Us For Availability
41
Fan, Mounting Bracket WPL 2162060 Contact Us For Availability
45
Fan Blade WPL 1115135 Contact Us For Availability
47
Tray, Evaporator WPL 1116604 Contact Us For Availability
48
Wedge, Air Baffle WPL 1118017 Contact Us For Availability
49
Valve, Fluid WPL 2159655 Contact Us For Availability
50
Tube-Condenser To Valve WPL 2159635 Contact Us For Availability
51
Tube-Heat Loop To Valve WPL 2159636 Contact Us For Availability
52
Cover, Unit Bottom WPL 2160517 Contact Us For Availability
53
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
53
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
