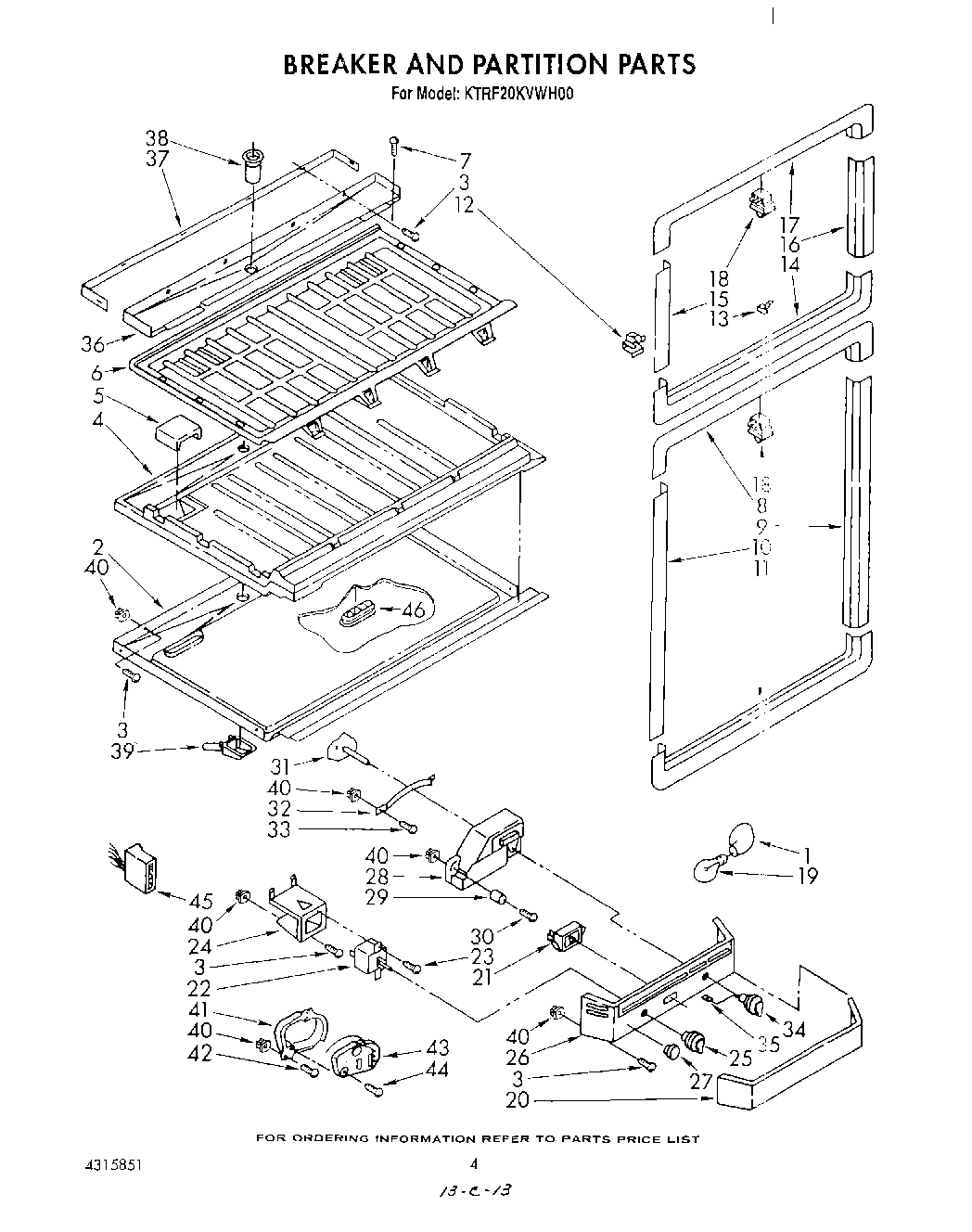

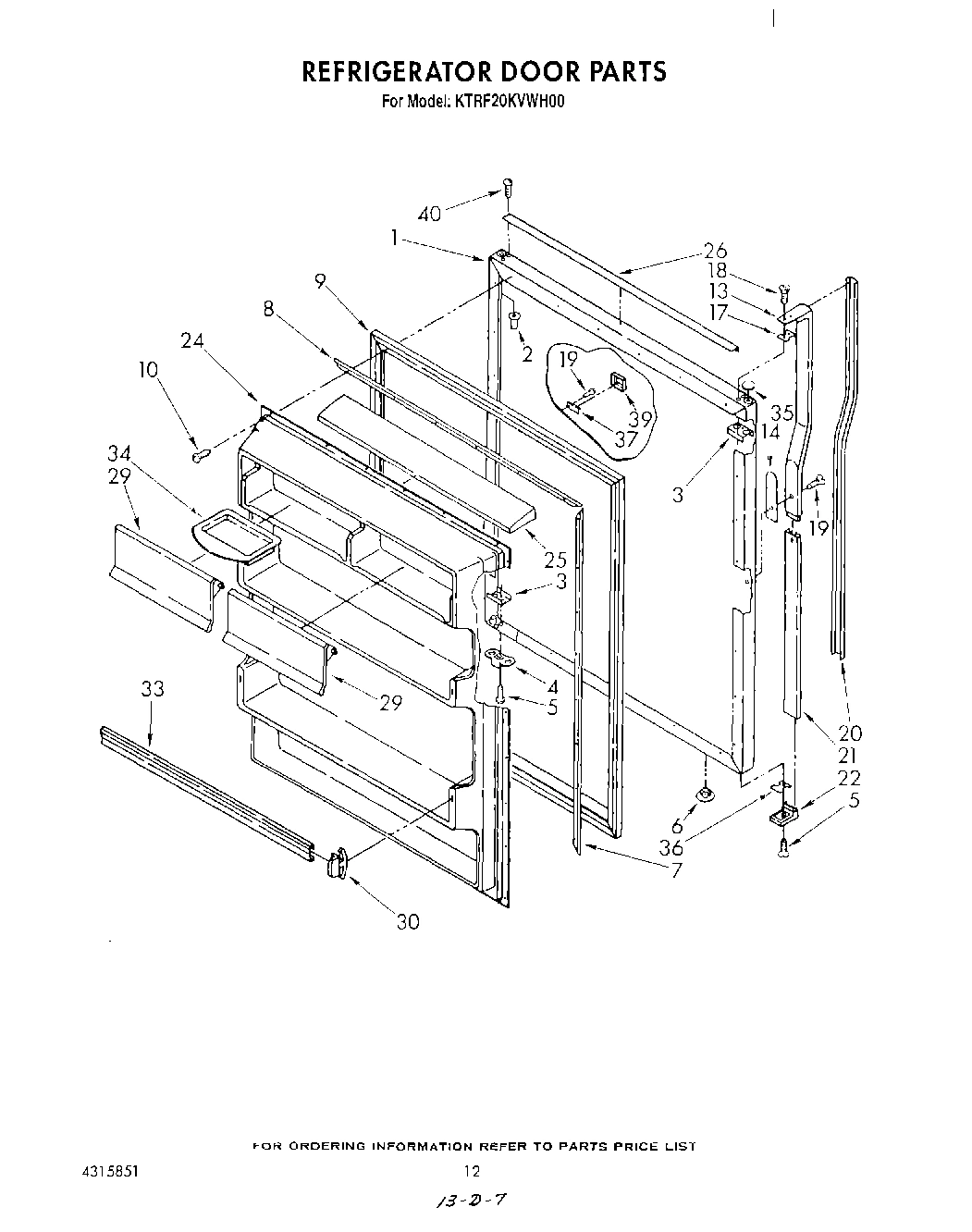

Model Whirlpool KTRF20KVWH00 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL LIT1117699 WPL LIT1117699 Contact Us For Availability

WPL LIT1117827 WPL LIT1117827 Contact Us For Availability

WPL LIT1117833 WPL LIT1117833 Contact Us For Availability

WPL LIT4315851 WPL LIT4315851 Contact Us For Availability

1

Grommet WPL 842339 Contact Us For Availability

1

Refrigerator Door Panel (Toast) WPL 1103191 Contact Us For Availability

1

Refrigerator Door Panel (Platinum) WPL 1103192 Contact Us For Availability

1

Refrigerator Door Panel (White) WPL 944308 Contact Us For Availability

1

Refrigerator Door Panel (Almond) WPL 944312 Contact Us For Availability

1

Cord, Service WPL 850626 Contact Us For Availability

1

Cabinet (Not A Serviceable Part) WPL ARI110679A Contact Us For Availability

1

Shelf Ladder (2) WPL 1107112 Contact Us For Availability

1

Freezer, Door Panel (Toast) WPL 1103193 Contact Us For Availability

1

Freezer, Door Panel (Platinum) (Also Order It WPL 1103194 Contact Us For Availability

1

Freezer, Door Panel (White) WPL 944314 Contact Us For Availability

1

Freezer, Door Panel (Almond) WPL 944318 Contact Us For Availability

2

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

2

Cap, Hinge Sleeve WPL 509929 Contact Us For Availability

2

Grommet WPL 848445 Contact Us For Availability

2

Roller, Front WPL 981127 Contact Us For Availability

2

Shelf, Ladder Center WPL 1107301 Contact Us For Availability

3

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

3

Hole Plug (Toast) WPL 1100188 Contact Us For Availability

3

Hole Plug (Platinum) WPL 1100189 Contact Us For Availability

3

Hole Plug (Almond) WPL 989196 Contact Us For Availability

3

Screw, Grommet WPL 845722 Contact Us For Availability

3

Grommet (2) WPL 533881 Contact Us For Availability

3

Screw, 5/16-24 x 1 WPL 488681 Contact Us For Availability

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Bracket, Door Stop WPL 1115910 Contact Us For Availability

4

Hole Plug (2) (Toast) WPL 1100196 Contact Us For Availability

4

Hole Plug (2) (Platinum) WPL 1100197 Contact Us For Availability

4

Hole Plug (2) (White) WPL 534927 Contact Us For Availability

4

Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability

4

Screw, 8-15 x 1 WPL 487547 Contact Us For Availability

4

Screw, 8 x 1-1/4 WPL 488357 Contact Us For Availability

5

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

5

Compressor (Includes Items 51, 52, 53, 54, 55 WPL 482981 Contact Us For Availability

5

Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability

5

Screw, 8-32 x 1-1/4 WPL 488960 Contact Us For Availability

5

Screw (Repair) WPL 488980 Contact Us For Availability

6

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

6

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

6

Stud WPL 526383 Contact Us For Availability

6

Center Rail (Toast) WPL 1100303 Contact Us For Availability

6

Center Rail (Platinum) WPL 1100304 Contact Us For Availability

6

Center Rail (White) WPL 836067 Contact Us For Availability

6

Center Rail (Almond) WPL 989911 Contact Us For Availability

6

Bracket, Door Stop WPL 944035 Contact Us For Availability

7

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

7

Grommet, Crisper Cover WPL 836409 Contact Us For Availability

7

Retainer, Gasket Side (2) WPL 836117 Contact Us For Availability

7

Guard, Fan WPL 850156 Contact Us For Availability

7

Heater, Mullion WPL 989256 Contact Us For Availability

7

Screw Support, Center Ladder WPL 520959 Contact Us For Availability

8

Baffle, Air WPL 850764 Contact Us For Availability

8

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

8

Screw (Repair) WPL 487470 Contact Us For Availability

8

Shelf, Stud WPL 529758 Contact Us For Availability

8

Retainer, Gasket Side (2) WPL 836119 Contact Us For Availability

9

2188450A Whirlpool Refrigerator Door Gasket Backorder WPL 2188450A $108.53

9

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

9

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

9

Retainer, Gasket Top & Bottom WPL 836118 Contact Us For Availability

9

Shelf, Ice Tray WPL 1117817 Contact Us For Availability

2188460A Whirlpool Refrigerator Door Gasket Backorder WPL 2188460A $89.09

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

Fan WPL 989524 Contact Us For Availability

Trim, Shelf WPL 1117819 Contact Us For Availability

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Strap WPL 851095 Contact Us For Availability

Shelf Stud (4) WPL 1117317 Contact Us For Availability

Shelf, Cantilever WPL 1107060 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

Trim, Shelf WPL 1107072 Contact Us For Availability

Handle Center WPL 1107238 Contact Us For Availability

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

Handle, Center WPL 1107230 Contact Us For Availability

Bracket, Motor WPL 548695 Contact Us For Availability

Screw Grommet WPL 538449 Contact Us For Availability

Reflector, Cantilever WPL 1107068 Contact Us For Availability

Insert, Handle WPL 1117544 Contact Us For Availability

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

Shim, Center Handle WPL 1107650 Contact Us For Availability

Hole Plug (2) WPL 659598 Contact Us For Availability

Glass, Cantilever WPL 1107064 Contact Us For Availability

Spacer, Handle WPL 1107609 Contact Us For Availability

15

Retainer, Stud (4) WPL 836374 Contact Us For Availability

15

Hinge, Top WPL 842039 Contact Us For Availability

15

Shelf, Freezer WPL 935204 Contact Us For Availability

Baffle, Evaporator WPL 981736 Contact Us For Availability

Hole, Plug WPL 519890 Contact Us For Availability

Shim, Hinge WPL 836192 Contact Us For Availability

Trim, Shelf WPL 1117541 Contact Us For Availability

Shim, Handle Top WPL 1107628 Contact Us For Availability

17

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

17

Screw, Anchor (3) WPL 983604 Contact Us For Availability

17

Shelf, Freezer WPL 1117810 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

Spacer Handle Door WPL 1107192 Contact Us For Availability

Overload WPL 1105163 Contact Us For Availability

Cap, Receptacle WPL 850738 Contact Us For Availability

Hinge Cover (Toast) WPL 1100172 Contact Us For Availability

Trim, Shelf WPL 1117807 Contact Us For Availability

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

Relay WPL 946615 Contact Us For Availability

Screw WPL 489218 Contact Us For Availability

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Screw (Repair) WPL 489250 Contact Us For Availability

Insert, Handle WPL 1117543 Contact Us For Availability

Case, Relay WPL 1108115 Contact Us For Availability

Screw (Repair) WPL 488949 Contact Us For Availability

Divider, Ice Compartment WPL 1117808 Contact Us For Availability

21

Retainer, Insert WPL 1107209 Contact Us For Availability

21

Hinge, Center WPL 836153 Contact Us For Availability

21

Shelf, Gasket WPL 1107265 Contact Us For Availability

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

W11625904 Whirlpool Refrigerator Ice Pan In Stock WPL W11625904 $24.25

End Cap WPL 1107236 Contact Us For Availability

Screw (Repair) WPL 489221 Contact Us For Availability

Screw WPL 488978 Contact Us For Availability

Shim, Hinge Center WPL 836155 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $27.58

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

Clip, Wire (2) WPL 548745 Contact Us For Availability

Met Pan, Shelf Cantilever WPL 1107080 Contact Us For Availability

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

Interior, Door Panel WPL 938745 Contact Us For Availability

Frame WPL 945457 Contact Us For Availability

Hinge, Bottom WPL 1115908 Contact Us For Availability

Interior Door Panel WPL 1103184 Contact Us For Availability

Door Dike WPL 849802 Contact Us For Availability

Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability

Grommet WPL 531933 Contact Us For Availability

Shim, Hinge WPL 836196 Contact Us For Availability

Trim, Frame WPL 1107136 Contact Us For Availability

Trim, Door Shelf (2) WPL 1117561 Contact Us For Availability

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP489200 Whirlpool Refrigerator Washer Backorder WPL WP489200 $4.61

WP849996 Whirlpool Refrigerator Endcap Trim In Stock WPL WP849996 $3.70

Trim Door (Top) WPL 1107199 Contact Us For Availability

Wire Connector WPL 227991 Contact Us For Availability

Glass, Meat Pan WPL 1107088 Contact Us For Availability

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

Baffle, Liner Top WPL 982582 Contact Us For Availability

Tap Plate WPL 836162 Contact Us For Availability

Retainer, Glass Shelf WPL 1107545 Contact Us For Availability

Nameplate WPL 1107915 Contact Us For Availability

Clip (2) WPL 548744 Contact Us For Availability

Hole Plug (Toast) WPL 1100174 Contact Us For Availability

Hole Plug (Platinum) WPL 1100175 Contact Us For Availability

Hole, Plug (White) WPL 835974 Contact Us For Availability

Hole, Plug (Almond) WPL 989193 Contact Us For Availability

Crisper Cover, Frame WPL 1117539 Contact Us For Availability

Door, Utility WPL 1107275 Contact Us For Availability

Rail, Front WPL 941697 Contact Us For Availability

Gasket, Sealing WPL 935068 Contact Us For Availability

Exterior, Grille WPL 1107194 Contact Us For Availability

Trim, Frame WPL 1107294 Contact Us For Availability

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

WP839904 Whirlpool Refrigerator Endcap Trim Backorder WPL WP839904 $3.70

Scroll, Fan WPL 935067 Contact Us For Availability

Bumper, Grille WPL 1107614 Contact Us For Availability

Glass, Crisper Cover WPL 1107353 Contact Us For Availability

Clamp WPL 548508 Contact Us For Availability

Cover, Evaporator WPL 934066 Contact Us For Availability

Corner, Filler Grille WPL 839178 Contact Us For Availability

Crisper Gasket, Rear WPL 1107479 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

Gasket, Evaporator Cover WPL 981750 Contact Us For Availability

Clip, Grille WPL 989068 Contact Us For Availability

Reflector, Glass Shelf WPL 1107248 Contact Us For Availability

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

Trim, Shelf (2) WPL 1117560 Contact Us For Availability

Condenser & Precooler WPL 943480 Contact Us For Availability

Shelf Gasket, Glass (2) WPL 1107580 Contact Us For Availability

34

Clamp (4) WPL 548738 Contact Us For Availability

34

Heater, Stile WPL 936075 Contact Us For Availability

34

Support, Crisper Cover WPL 1107730 Contact Us For Availability

35

Grommet (4) WPL 943447 Contact Us For Availability

35

Clip, Heater WPL 935663 Contact Us For Availability

35

Post, Crisper Cover WPL 937340 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

Drain Pan WPL 841686 Contact Us For Availability

Shim, End Cap WPL 1107229 Contact Us For Availability

Box, Junction WPL 549947 Contact Us For Availability

Crisper Pan (2) WPL 1107872 Contact Us For Availability

WP4387489 Whirlpool Refrigerator Bi-Metal Def Backorder WPL WP4387489 $32.15

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Gasket, Drain Pan WPL 843291 Contact Us For Availability

Clip, Medallion WPL 1107329 Contact Us For Availability

Front, Crisper WPL 1107155 Contact Us For Availability

38

Fitting, Drain Pan WPL 841770 Contact Us For Availability

38

Clamp WPL 513584 Contact Us For Availability

38

Drain Fitting WPL 841687 Contact Us For Availability

8316810 Whirlpool Refrigerator Drain Tube Backorder WPL 8316810 $36.64

Cup, Drain WPL 841708 Contact Us For Availability

Handle Plug (White) WPL 1107226 Contact Us For Availability

Handle Plug (Toast) WPL 1107720 Contact Us For Availability

Handle Plug (Platinum) WPL 1107721 Contact Us For Availability

Handle Plug (Almond) WPL 1107722 Contact Us For Availability

Support, Heater WPL 851358 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Tray, Evaporating WPL 842041 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

Tape, Vinyl (1/4`` x 108``) WPL 479502 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Pan Gasket WPL 1107304 Contact Us For Availability

41

Container Timer WPL 983079 Contact Us For Availability

41

Evaporator WPL 946507 Contact Us For Availability

41

Cover, Unit Compartment WPL 850459 Contact Us For Availability

42

Clip, Heater (2) WPL 850721 Contact Us For Availability

42

Pan, Meat WPL 1107874 Contact Us For Availability

Defrost Timer WPL 943428 Contact Us For Availability

Heater, Defrost WPL 989612 Contact Us For Availability

Clamp, Tube WPL 836077 Contact Us For Availability

Front, Meat Pan WPL 1107179 Contact Us For Availability

44

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

44

Screw, 8 x 1-3/8 WPL 488678 Contact Us For Availability

44

Liner (Not A Serviceable Part) WPL ARI110680A Contact Us For Availability

45

Defrost Wiring Harness WPL 481782 Contact Us For Availability

45

Exchanger, Heat WPL 1105238 Contact Us For Availability

45

Socket WPL 850654 Contact Us For Availability

Air Return, Grommet WPL 946683 Contact Us For Availability

Dampener (2) WPL 510769 Contact Us For Availability

Shelf Stud (L.S.) WPL 836492 Contact Us For Availability

Egg Container, Bottom WPL 1107384 Contact Us For Availability

47

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

47

Egg Container, Top WPL 1107388 Contact Us For Availability

48

Clamp (2) WPL 510716 Contact Us For Availability

49

Pan, Drip WPL 945572 Contact Us For Availability

49

Shelf Stud Saddle (R.S.) WPL 523263 Contact Us For Availability

Hole Plug, Evaporator Cover WPL 659776 Contact Us For Availability

Hole Plug (2) (Toast) WPL 1100176 Contact Us For Availability

Hole Plug (2) (Platinum) WPL 1100177 Contact Us For Availability

Hole Plug (2) (White) WPL 842031 Contact Us For Availability

Hole Plug (2) (Almond) WPL 989195 Contact Us For Availability

51

WP2262181 Whirlpool Refrigerator Start Relay In Stock WPL WP2262181 $50.51

52

Overload WPL 483037 Contact Us For Availability

52

Icemaker Harness WPL 481658 Contact Us For Availability

53

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

53

Cover, Terminal WPL 1105015 Contact Us For Availability

54

Cover, Spring WPL 938384 Contact Us For Availability

54

Light, Lens Freezer WPL 981365 Contact Us For Availability

54

Wire Assembly (Water Val WPL 548734 Contact Us For Availability

55

Spring, Overload WPL 1114190 Contact Us For Availability

55

WPL 1107443 WPL 1107443 Contact Us For Availability

56

WPL 1107444 WPL 1107444 Contact Us For Availability

57

Capacitor WPL 482996 Contact Us For Availability

58

Nut WPL 489142 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Washer WPL 489143 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
