Model Whirlpool KTRF18MSALY0 – Common Parts & Diagrams
Common parts from model Whirlpool KTRF18MSALY0

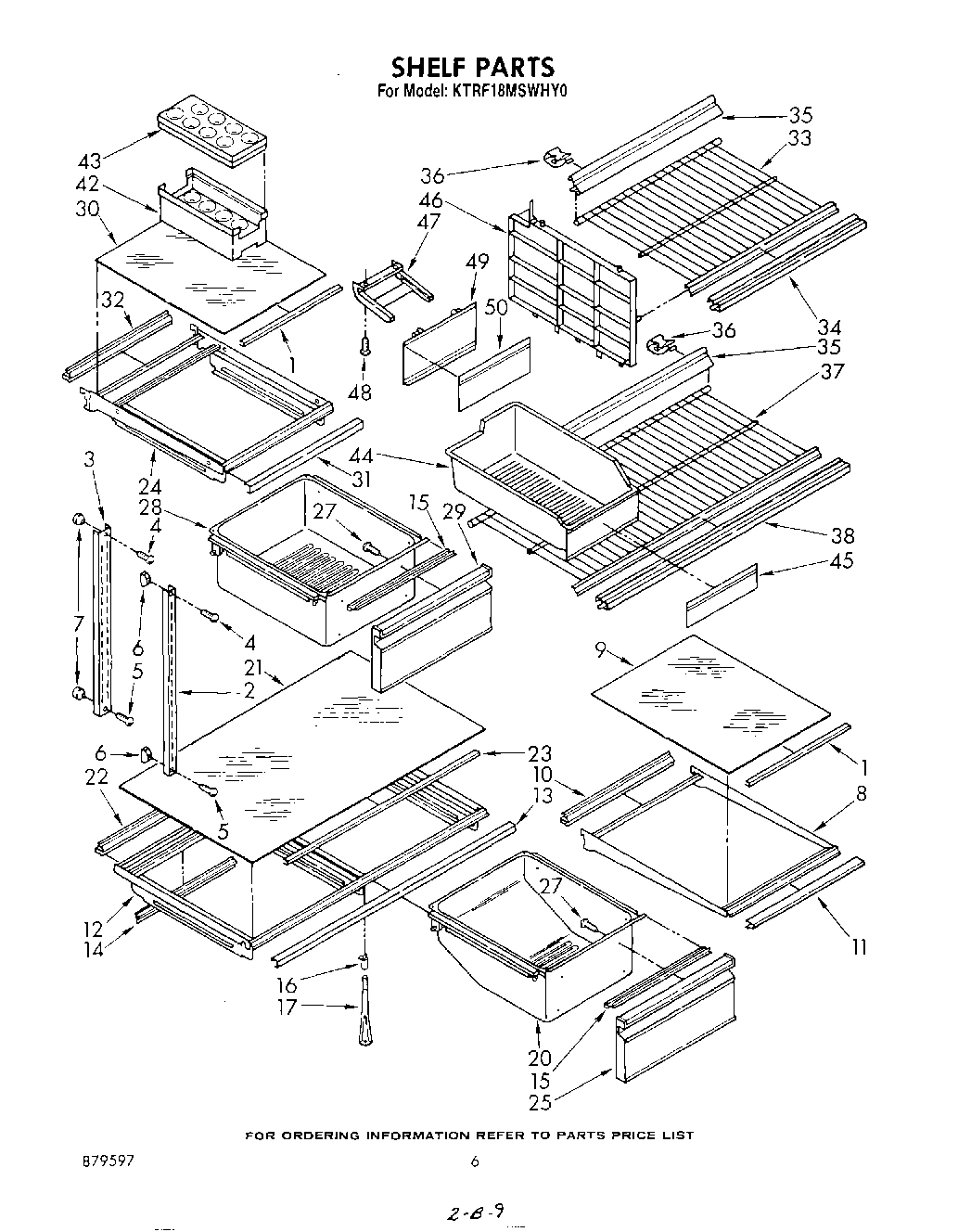

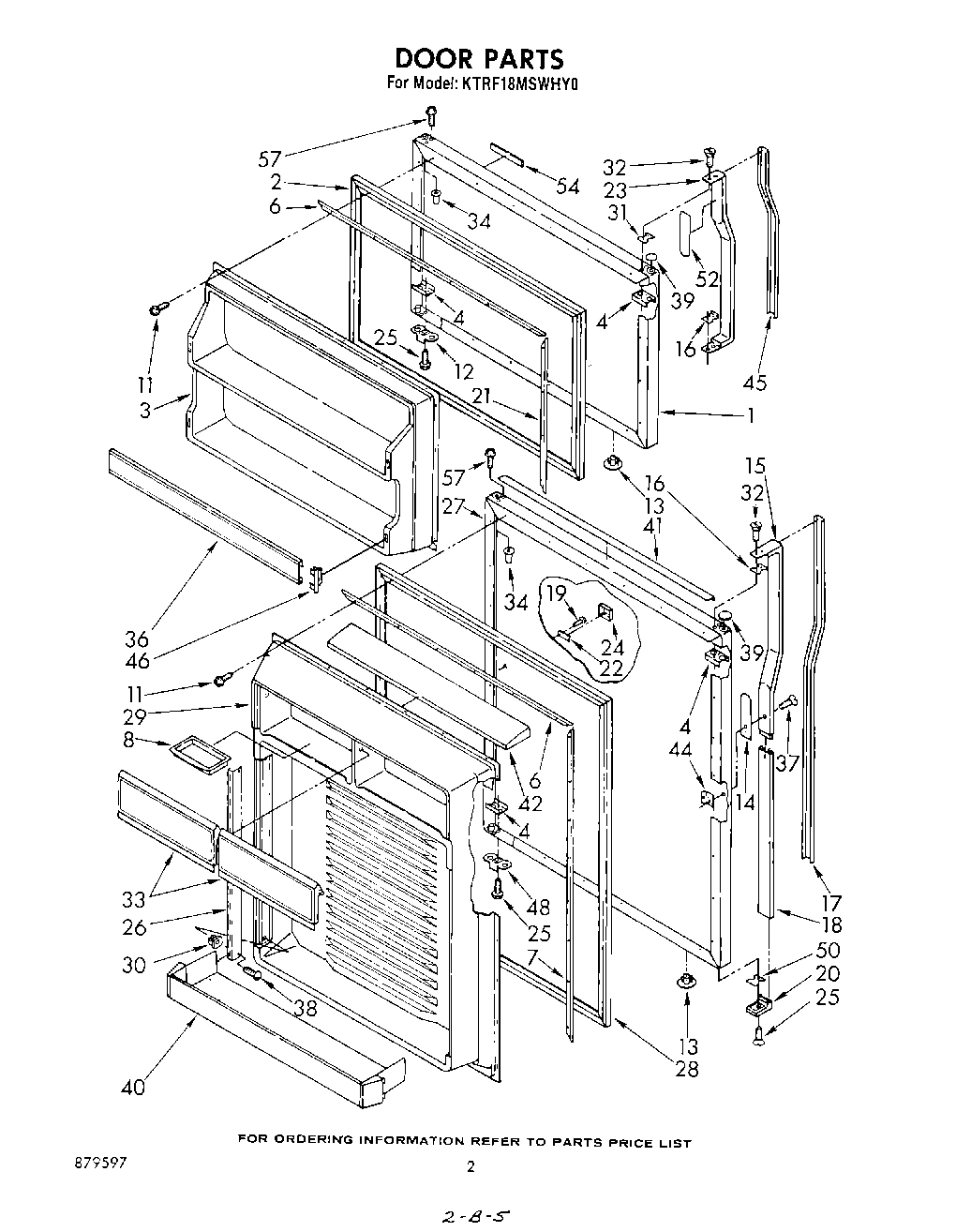

 1


Shelf Gasket, Front WPL  1107265 Contact Us For Availability
  1


Top, Compartment Separator WPL  937257 Contact Us For Availability
  1


Liner (Not A Serviceable Part) WPL  ARI110644A Contact Us For Availability
  1


Cabinet (Not A Serviceable Part) WPL  ARI110643A Contact Us For Availability
  1


Cord, Service WPL  850626 Contact Us For Availability
  1


Lever & Plate Assembly WPL  627248 Contact Us For Availability
  2


Shelf, Ladder WPL  1107112 Contact Us For Availability
  2


Drain Insert WPL  836088 Contact Us For Availability
  2


Stud, Shelf (2) WPL  521878 Contact Us For Availability
  2


Screw, 10-12 x 3/8 WPL  487562 Contact Us For Availability
  3


Shelf, Ladder Center WPL  1107301 Contact Us For Availability
  3


Gasket, Drain Pan WPL  937292 Contact Us For Availability
  3


Grommet (2) WPL  941700 Contact Us For Availability
  3


Clamp (2) WPL  836077 Contact Us For Availability
  4


Screw, 8 x 1-1/4 WPL  488357 Contact Us For Availability
  4


Screw, (Repair) 10 x 1 1/4 WPL  488623 Contact Us For Availability
  4


Grommet (4) WPL  937252 Contact Us For Availability
  5


Screw, 8-32 x 1-1/4 WPL  488960 Contact Us For Availability
  5


Screw (Repair) WPL  488980 Contact Us For Availability
  5


Drain Pan WPL  937291 Contact Us For Availability
  5


Stud, Saddle WPL  836492 Contact Us For Availability
  5


Compressor (Includes Items 55, 56, 57, 58, 59 WPL  482981 Contact Us For Availability
  6


Liner Wiring (Ice Maker) WPL  937264 Contact Us For Availability
  6


Cover WPL  850639 Contact Us For Availability
  7


Cup, Drain WPL  939191 Contact Us For Availability
  7


Screw, Support Center WPL  520959 Contact Us For Availability
  7


Plug, Hole (4) WPL  519890 Contact Us For Availability
  7


Guard, Fan WPL  850156 Contact Us For Availability
  8


Shelf, Cantilever WPL  1107033 Contact Us For Availability
  8


Connecting Rod WPL  937271 Contact Us For Availability
  8


Grommet (4) WPL  848445 Contact Us For Availability
  8


Baffle, Air WPL  850764 Contact Us For Availability
  8


Clamp, Tube WPL  836472 Contact Us For Availability
  9


Glass, Shelf WPL  1107062 Contact Us For Availability
  9


Air Duct Extension WPL  1107280 Contact Us For Availability
  10


Glass, Reflector WPL  1107066 Contact Us For Availability
  10


Air Diffuser WPL  937283 Contact Us For Availability
  10


Fan WPL  989524 Contact Us For Availability
  10


Screw, 4-40 x 1/4 WPL  488622 Contact Us For Availability
  11


Trim, Shelf WPL  1107070 Contact Us For Availability
  11


Insulation, Compartment Separator WPL  937256 Contact Us For Availability
  11


Clip, Heater (4) WPL  935663 Contact Us For Availability
  11


Overload Spring WPL  943320 Contact Us For Availability
  12


Crisper Cover, Frame WPL  1107078 Contact Us For Availability
  12


Hole, Plug Tube WPL  835649 Contact Us For Availability
  12


Clamp, Cord (2) WPL  940108 Contact Us For Availability
  12


Stripper, Ice WPL  625840 Contact Us For Availability
  13


Blade, Fan WPL  992920 Contact Us For Availability
  13


Trim Frame WPL  1107082 Contact Us For Availability
  13


Bottom, Compartment Separator WPL  941712 Contact Us For Availability
  13


Bumper, Grille (2) WPL  1107614 Contact Us For Availability
  13


Bracket, Motor WPL  548695 Contact Us For Availability
  13


Mold & Heater Assembly (Includes Illus. 15) WPL  625856 Contact Us For Availability
  14


Crisper Gasket, Rear WPL  1107478 Contact Us For Availability
  14


Washer WPL  489071 Contact Us For Availability
  14


Roller, Front (2) WPL  981127 Contact Us For Availability
  15


Pan Gasket, Front WPL  1107303 Contact Us For Availability
  15


Knob, Air Control WPL  1107602 Contact Us For Availability
  15


Screw, 8 x 3/8 WPL  488624 Contact Us For Availability
  15


Hole Plug (3) (Toast) WPL  1100176 Contact Us For Availability
  15


Hole Plug (3) (Platinum) WPL  1100177 Contact Us For Availability
  15


Plug, Hole (3) (White) WPL  842031 Contact Us For Availability
  15


Plug, Hole (3) (Almond) WPL  989195 Contact Us For Availability
  15


Heater, Mold WPL  625843 Contact Us For Availability
  16


Support, Crisper Cover WPL  1107730 Contact Us For Availability
  16


Spacer, Knob WPL  941767 Contact Us For Availability
  16


Heater, Stile WPL  945522 Contact Us For Availability
  16


Baffle, Evaporator WPL  937289 Contact Us For Availability
  16


Ice Maker Cabinet Harness (6 In. Lead) WPL  481658 Contact Us For Availability
  17


Post, Crisper Cover WPL  937340 Contact Us For Availability
  17


Screw WPL  489074 Contact Us For Availability
  17


Stud WPL  839213 Contact Us For Availability
  17


Cabinet Wiring Assembly WPL  937267 Contact Us For Availability
  17


Harness, Wiring WPL  627357 Contact Us For Availability
  18


``O`` Ring Seal WPL  489072 Contact Us For Availability
  18


Stud, Retainer (4) WPL  836374 Contact Us For Availability
  18


Wire Assembly (Water Valve) WPL  548734 Contact Us For Availability
  18


Overload WPL  945585 Contact Us For Availability
  19


Grommet, Post WPL  836409 Contact Us For Availability
  19


Screw (Repair) WPL  487470 Contact Us For Availability
  19


Relay WPL  945507 Contact Us For Availability
  20


Pan, Crisper WPL  1107871 Contact Us For Availability
  20


Defrost Timer (10 Hr.) WPL  945486 Contact Us For Availability
  20


Stud, Shelf (2) WPL  521516 Contact Us For Availability
  20


Plug, Hole (2) (Toast) WPL  1100174 Contact Us For Availability
  20


Hole Plug (2) (Platinum) WPL  1100175 Contact Us For Availability
  20


Plug, Hole (2) (White) WPL  835974 Contact Us For Availability
  20


Plug, Hole (2) (Almond) WPL  989193 Contact Us For Availability
  20


Case, Relay WPL  1105055 Contact Us For Availability
  21


Glass, Crisper Cover WPL  1107086 Contact Us For Availability
  21


Control Box WPL  1107653 Contact Us For Availability
  21


Fastener, Wire WPL  851039 Contact Us For Availability
  21


Spring WPL  943322 Contact Us For Availability
  22


Reflector, Glass Shelf WPL  1107237 Contact Us For Availability
  22


Screw, 8 x 1-3/8 (2) WPL  488678 Contact Us For Availability
  22


Terminal Block (Single) WPL  937254 Contact Us For Availability
  22


Tunnel, Wiring WPL  937249 Contact Us For Availability
  22


Screw, 8-32 x 1/2 WPL  489050 Contact Us For Availability
  23


Shelf Gasket, Glass WPL  1107580 Contact Us For Availability
  23


Air Duct WPL  1107276 Contact Us For Availability
  23


Clamp WPL  939009 Contact Us For Availability
  23


Clip, Wire (2) WPL  548745 Contact Us For Availability
  24


Meat Pan, Shelf WPL  1107359 Contact Us For Availability
  24


Sealing Gasket WPL  939099 Contact Us For Availability
  24


Plate, Tap WPL  836162 Contact Us For Availability
  24


Frame WPL  945461 Contact Us For Availability
  25


Front Cover, Crisper WPL  1107154 Contact Us For Availability
  25


Control Box Wiring WPL  941722 Contact Us For Availability
  25


Cover, Evaporator WPL  1107277 Contact Us For Availability
  25


Screw, 8-32 x 3/8 WPL  488474 Contact Us For Availability
  26


Insulation (2) WPL  939083 Contact Us For Availability
  26


Stud, Saddle (R.S.) WPL  523263 Contact Us For Availability
  26


Box, Junction WPL  549947 Contact Us For Availability
  26


Connector Wire WPL  227991 Contact Us For Availability
  27


Screw (Repair) WPL  488132 Contact Us For Availability
  27


Grommet WPL  538449 Contact Us For Availability
  27


Grille, End Cap (R.S) WPL  1107443 Contact Us For Availability
  27


Clamp, Thermostat WPL  625829 Contact Us For Availability
  28


Meat Pan WPL  1107870 Contact Us For Availability
  28


Wiring Shield WPL  937269 Contact Us For Availability
  28


Filler, Grille WPL  839178 Contact Us For Availability
  28


Clip (2) WPL  548744 Contact Us For Availability
  28


Screw, 8-32 x 1 WPL  488372 Contact Us For Availability
  29


Front Cover, Meat WPL  1107178 Contact Us For Availability
  29


Drain Fitting WPL  939271 Contact Us For Availability
  29


Rail, Front WPL  548663 Contact Us For Availability
  30


Glass, Meat Pan Shelf WPL  1107095 Contact Us For Availability
  30


Terminal Block (Multiple) WPL  937253 Contact Us For Availability
  30


Grille WPL  1107193 Contact Us For Availability
  30


Switch, S.P.D.T. WPL  625851 Contact Us For Availability
  31


Spacer, Holding Switch WPL  625834 Contact Us For Availability
  31


Trim Frame WPL  1107130 Contact Us For Availability
  31


Screw, 8 x 1 (2) WPL  488206 Contact Us For Availability
  31


Grommet (3) WPL  548268 Contact Us For Availability
  31


Insert, Air Baffle WPL  1107271 Contact Us For Availability
  31


Clamp WPL  548508 Contact Us For Availability
  32


Screw (Repair) WPL  488923 Contact Us For Availability
  32


Reflector, Glass Shelf WPL  1107449 Contact Us For Availability
  32


Bracket, Double WPL  937277 Contact Us For Availability
  32


Gasket, Seal WPL  940121 Contact Us For Availability
  32


Thermostat WPL  625844 Contact Us For Availability
  33


Utility, Door WPL  1107274 Contact Us For Availability
  33


Freezer, Shelf Upper WPL  1107446 Contact Us For Availability
  33


Grommet WPL  842339 Contact Us For Availability
  33


Hinge Cover (Toast) WPL  1100172 Contact Us For Availability
  33


Condenser & Precooler Assembly WPL  943480 Contact Us For Availability
  33


Cam WPL  625913 Contact Us For Availability
  34


Cap, Hinge Sleeve WPL  509929 Contact Us For Availability
  34


Trim, Shelf Front WPL  1107448 Contact Us For Availability
  34


Knob, Thermostat WPL  937144 Contact Us For Availability
  34


Bracket, Single WPL  937278 Contact Us For Availability
  34


Screw (Repair) WPL  488949 Contact Us For Availability
  34


Clamp (4) WPL  548738 Contact Us For Availability
  34


Motor WPL  625846 Contact Us For Availability
  35


Reflector, Wire Shelf WPL  1107247 Contact Us For Availability
  35


Screw Grommet WPL  538532 Contact Us For Availability
  35


Hinge & Shim (Top) WPL  842039 Contact Us For Availability
  35


Grommet (4) WPL  943447 Contact Us For Availability
  35


Gear WPL  625914 Contact Us For Availability
  36


Trim, Shelf (2) WPL  1107365 Contact Us For Availability
  36


Clip, Reflector WPL  1107246 Contact Us For Availability
  36


Screw WPL  488957 Contact Us For Availability
  37


Freezer, Shelf Lower WPL  1107636 Contact Us For Availability
  37


Support Clip, Icemaker WPL  538533 Contact Us For Availability
  37


Shim, Top Hinge (.030) WPL  836192 Contact Us For Availability
  37


Screw, Shoulder WPL  627199 Contact Us For Availability
  38


Trim, Shelf Front WPL  1107105 Contact Us For Availability
  38


Gasket, Sealing WPL  939199 Contact Us For Availability
  38


Heater, Mullion WPL  1107726 Contact Us For Availability
  38


Clamp WPL  513584 Contact Us For Availability
  38


Tube, Water Inlet WPL  836490 Contact Us For Availability
  39


Hole Plug (Toast) WPL  1100188 Contact Us For Availability
  39


Hole Plug (Platinum) WPL  1100189 Contact Us For Availability
  39


Plug, Hole ( WPL  989196 Contact Us For Availability
  39


Breaker, Freezer (Top) WPL  1107006 Contact Us For Availability
  39


Rail, Center (Toast) WPL  1100170 Contact Us For Availability
  39


Rail, Center (Platinum) WPL  1100171 Contact Us For Availability
  39


Rail, Center (White) WPL  836066 Contact Us For Availability
  39


Rail, Center (Almond) WPL  989191 Contact Us For Availability
  39


Beraing & Inlet WPL  544304 Contact Us For Availability
  40


WPL  1107307 WPL  1107307 Contact Us For Availability
  40


Breaker, Freezer (L.S.) WPL  941711 Contact Us For Availability
  40


Gasket (2) WPL  981750 Contact Us For Availability
  40


Shim (.030) WPL  836155 Contact Us For Availability
  40


Ejector WPL  627375 Contact Us For Availability
  41


WPL  1107198 WPL  1107198 Contact Us For Availability
  41


Breaker, Freezer (R.S.) WPL  941710 Contact Us For Availability
  41


Evaporator WPL  1107491 Contact Us For Availability
  41


Arm, Shut-Off WPL  627003 Contact Us For Availability
  42


WPL  1107941 WPL  1107941 Contact Us For Availability
  42


Egg Container, Bottom WPL  1107384 Contact Us For Availability
  42


Wiring Assembly (Ground & Test) WPL  941725 Contact Us For Availability
  42


Grommet WPL  533881 Contact Us For Availability
  42


Hinge & Shim (Center) WPL  836153 Contact Us For Availability
  42


Clip, Heater (2) WPL  850721 Contact Us For Availability
  42


Spring, Shut-Off Arm WPL  625832 Contact Us For Availability
  43


Egg Container, Top WPL  1107388 Contact Us For Availability
  43


Clip WPL  534365 Contact Us For Availability
  43


Stud, Shelf WPL  528864 Contact Us For Availability
  43


Center Rail, Seal WPL  987524 Contact Us For Availability
  43


Heater, Defrost WPL  937302 Contact Us For Availability
  43


Support WPL  625827 Contact Us For Availability
  44


Ice Cube, Pan WPL  1107378 Contact Us For Availability
  44


Shelf Stud WPL  509108 Contact Us For Availability
  44


Screw Grommet WPL  509812 Contact Us For Availability
  44


Screw (Use W/Motor 625846) WPL  488361 Contact Us For Availability
  45


WPL  1107223 WPL  1107223 Contact Us For Availability
  45


WPL  1107925 WPL  1107925 Contact Us For Availability
  45


Overlay, Ice Cube Pan WPL  1107380 Contact Us For Availability
  45


Exchanger, Heat WPL  1107496 Contact Us For Availability
  45


Lever, Arm WPL  625830 Contact Us For Availability
  46


WPL  1107300 WPL  1107300 Contact Us For Availability
  46


Ice Compartment Side WPL  1107463 Contact Us For Availability
  46


Breaker, Refrigerator R.S. WPL  937258 Contact Us For Availability
  46


Socket WPL  850654 Contact Us For Availability
  46


Dampener (2) WPL  510769 Contact Us For Availability
  46


Screw, 4-24 x 3/4 (2) WPL  488360 Contact Us For Availability
  47


Slide, Ice Compartment WPL  1107465 Contact Us For Availability
  47


Breaker, Refrigerator L.S. WPL  937259 Contact Us For Availability
  47


WPL  836159 WPL  836159 Contact Us For Availability
  47


Screw, 4-40 X 3/4 (2) WPL  488362 Contact Us For Availability
  48


WPL  1107202 WPL  1107202 Contact Us For Availability
  48


Switch, S.P.S.T. WPL  625947 Contact Us For Availability
  49


WPL  654366 WPL  654366 Contact Us For Availability
  49


Front, Ice Compartment WPL  1107466 Contact Us For Availability
  49


Breaker, Refrigerator (Bottom) WPL  937260 Contact Us For Availability
  49


Light Lens WPL  981365 Contact Us For Availability
  49


Pan, Drip WPL  945572 Contact Us For Availability
  49


Insulator, Switch WPL  627680 Contact Us For Availability
  50


WPL  488714 WPL  488714 Contact Us For Availability
  50


WPL  1107229 WPL  1107229 Contact Us For Availability
  50


Overlay, Ice Compartment WPL  1107467 Contact Us For Availability
  50


Gasket, Top WPL  939103 Contact Us For Availability
  50


Screw, 1/4-28 x 1/2 (2) WPL  488454 Contact Us For Availability
  50


Plate, Valve Switch WPL  627024 Contact Us For Availability
  51


Baffle, Liner Top WPL  1107258 Contact Us For Availability
  51


WPL  836196 WPL  836196 Contact Us For Availability
  51


Baffle, R.S. WPL  939106 Contact Us For Availability
  51


Plate, Mounting WPL  627740 Contact Us For Availability
  52


WPL  1107609 WPL  1107609 Contact Us For Availability
  52


Baffle, L.S. WPL  939105 Contact Us For Availability
  53


Retainer, Baffle (2) WPL  939104 Contact Us For Availability
  53


Spring WPL  627163 Contact Us For Availability
  54


WPL  1107915 WPL  1107915 Contact Us For Availability
  54


Support, Heater WPL  851358 Contact Us For Availability
  54


Cover WPL  1107613 Contact Us For Availability
  55


WPL  488681 WPL  488681 Contact Us For Availability
  55


Relay WPL  1100806 Contact Us For Availability
  55


Union, 1/4`` x 3/16`` WPL  512503 Contact Us For Availability
  56


WPL  1107444 WPL  1107444 Contact Us For Availability
  56


Overload WPL  1105077 Contact Us For Availability
  56


Valve, Shut-Off WPL  541157 Contact Us For Availability
  57


WPL  989068 WPL  989068 Contact Us For Availability
  57


Capacitor WPL  482996 Contact Us For Availability
  57


Filter Kit WPL  978488 Contact Us For Availability
  58


Cover, Terminal WPL  1105015 Contact Us For Availability
  59


Strap WPL  938384 Contact Us For Availability
  60


Strap WPL  851095 Contact Us For Availability
  60


Tube, Inlet Valve WPL  627854 Contact Us For Availability
  61


Nut WPL  489142 Contact Us For Availability
  62


VALVE, ACCESS (5/8``) WPL  978029 Contact Us For Availability
  62


Washer WPL  489143 Contact Us For Availability
  62


VALVE, ACCESS (1/2``) WPL  978028 Contact Us For Availability
  63


Screw, 8-32 x 1/4 (Ground) WPL  488542 Contact Us For Availability
  65


Clamp Tube WPL  510716 Contact Us For Availability
  66


Nut, Valve WPL  537588 Contact Us For Availability
  68


WPL  876029 WPL  876029 Contact Us For Availability
  68


TAPE, VINYL (3/4 X 108 WPL  479502 Contact Us For Availability
  68


WPL  799344 WPL  799344 Contact Us For Availability
  68


Enamal, Toast (1 Qt. Uncut) WPL  285367 Contact Us For Availability
  68


Enamel, Platinum (1 Qt. Uncut) WPL  285368 Contact Us For Availability
  68


WPL  542639 WPL  542639 Contact Us For Availability
  68


WPL  627848 WPL  627848 Contact Us For Availability
  68


WPL  72112 WPL  72112 Contact Us For Availability
  68


WPL  799832 WPL  799832 Contact Us For Availability
  68


WPL  799833 WPL  799833 Contact Us For Availability
  68


WPL  799908 WPL  799908 Contact Us For Availability
  68


WPL  978883 WPL  978883 Contact Us For Availability
 × ![]()
