Model Whirlpool KTRF18KTPL00 – Common Parts & Diagrams
03 - CABINET
05 - COMPARTMENT SEPARATOR AND CONTROL

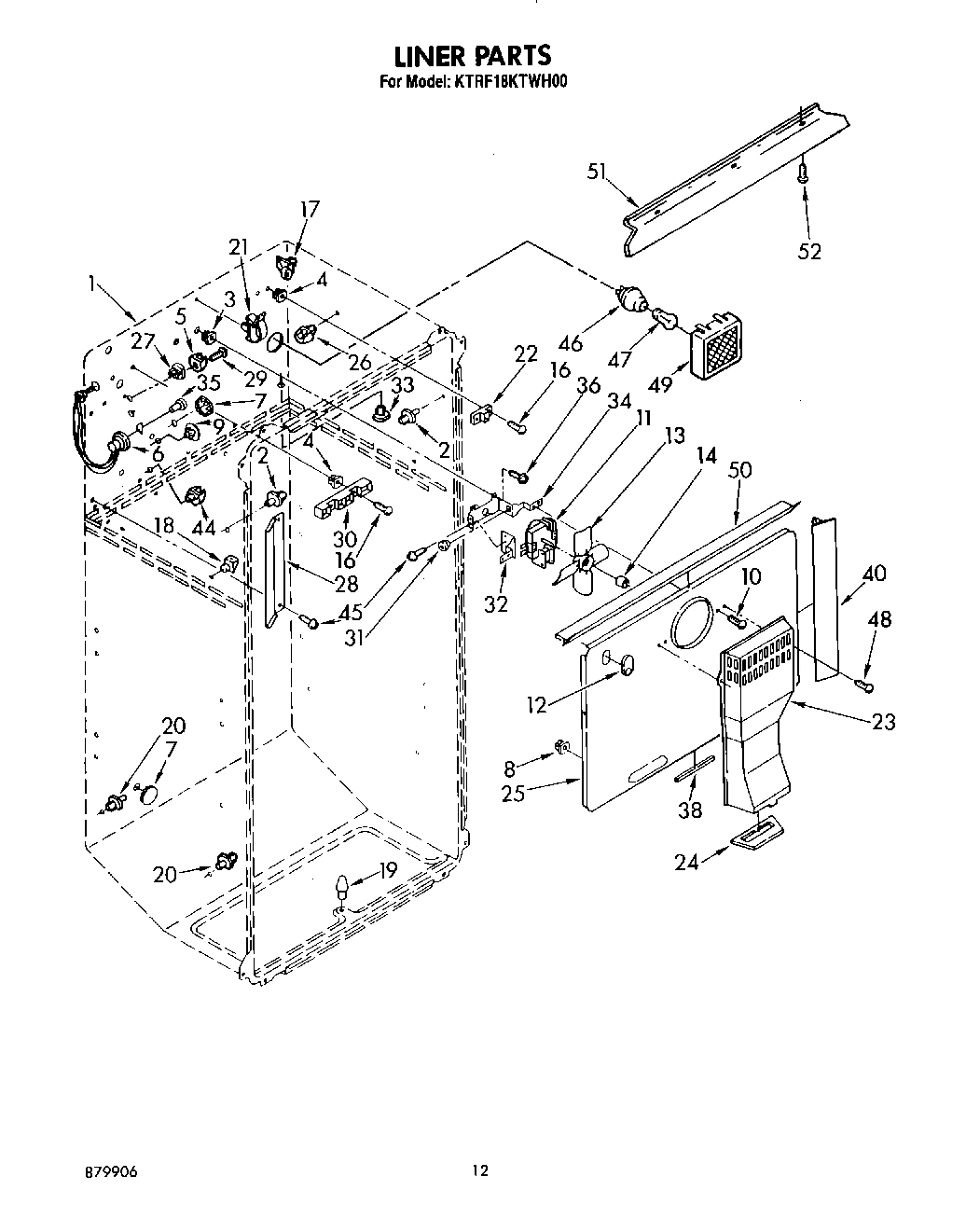

07 - LINER , LIT/OPTIONAL

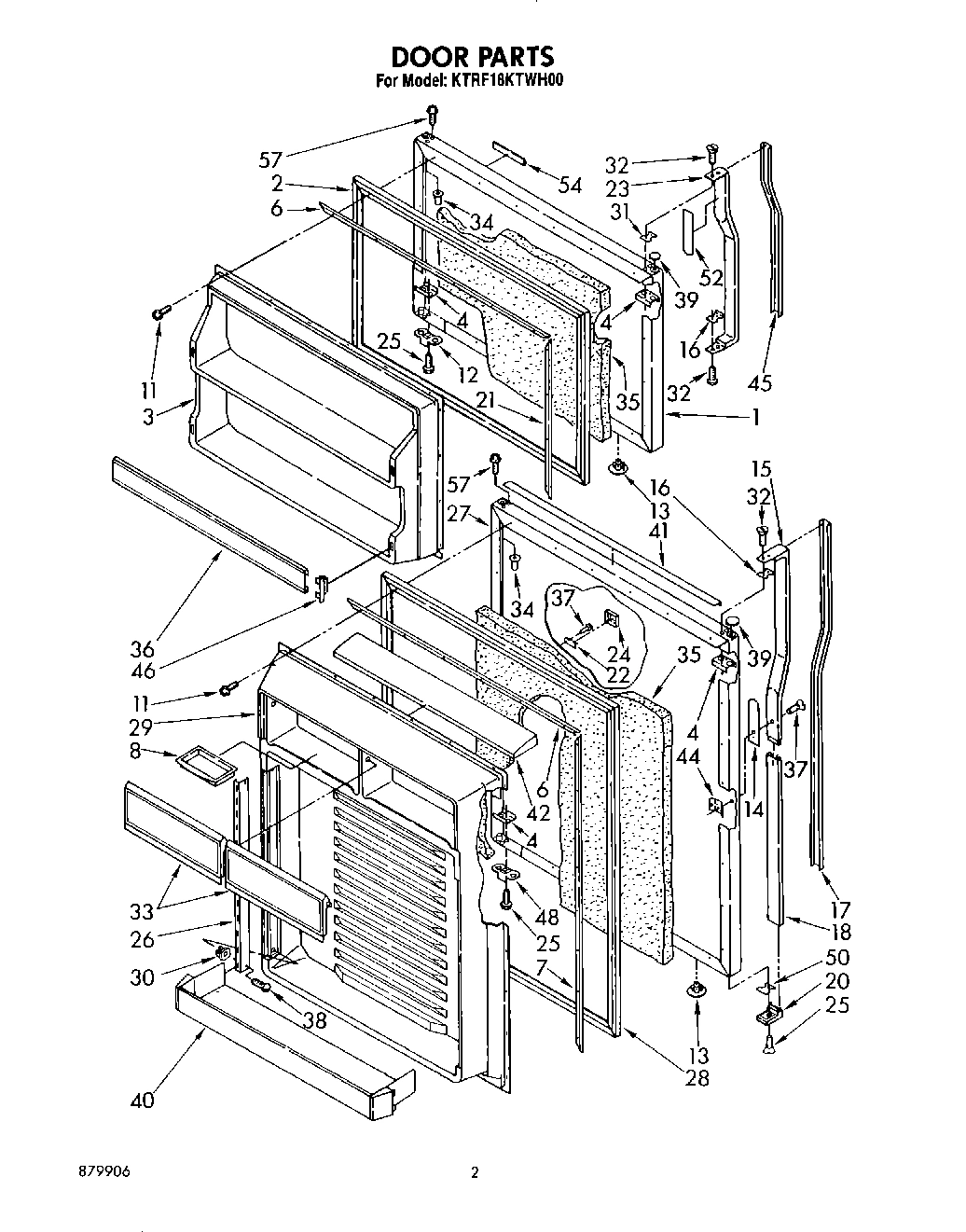

02 - DOOR

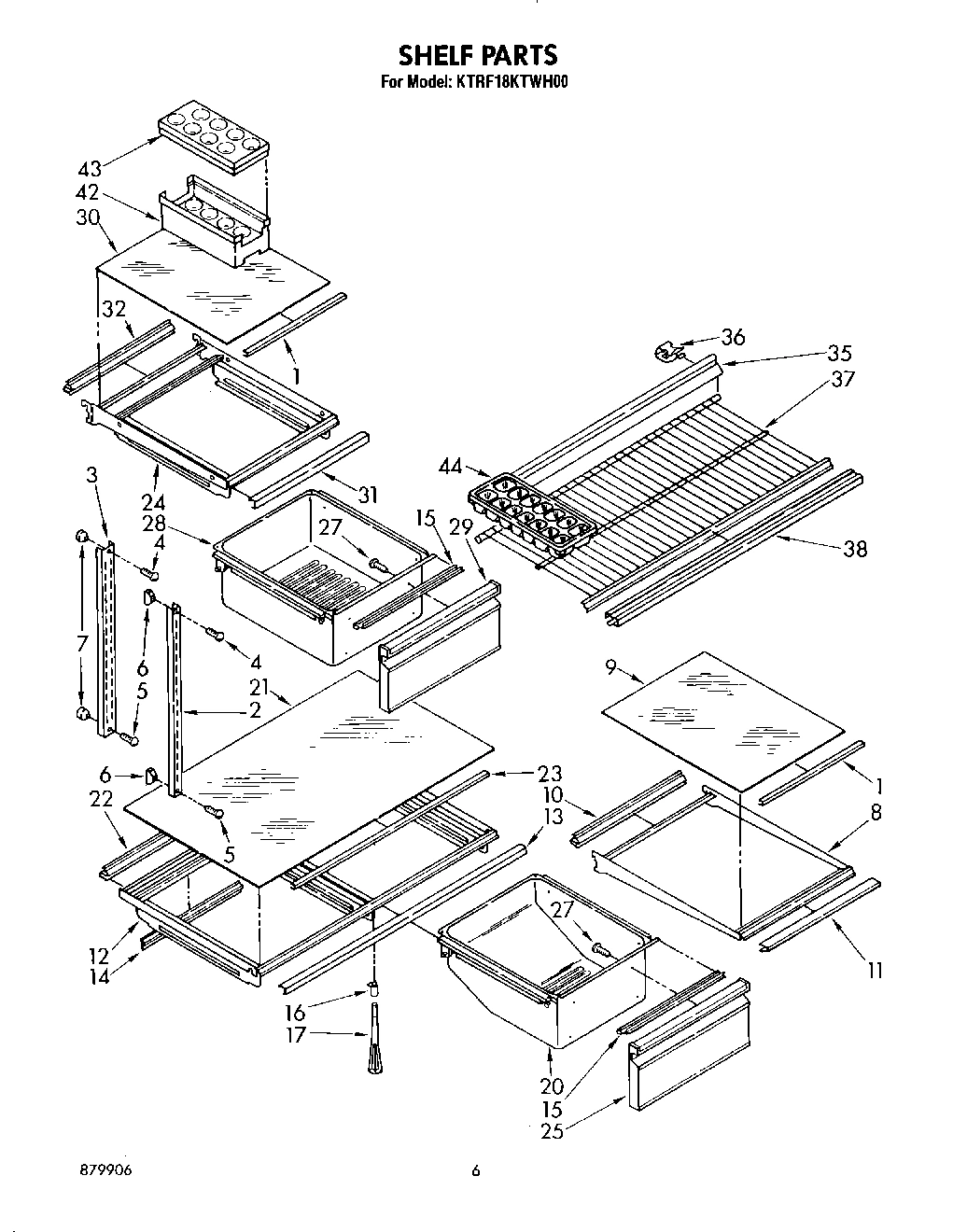

04 - SHELF

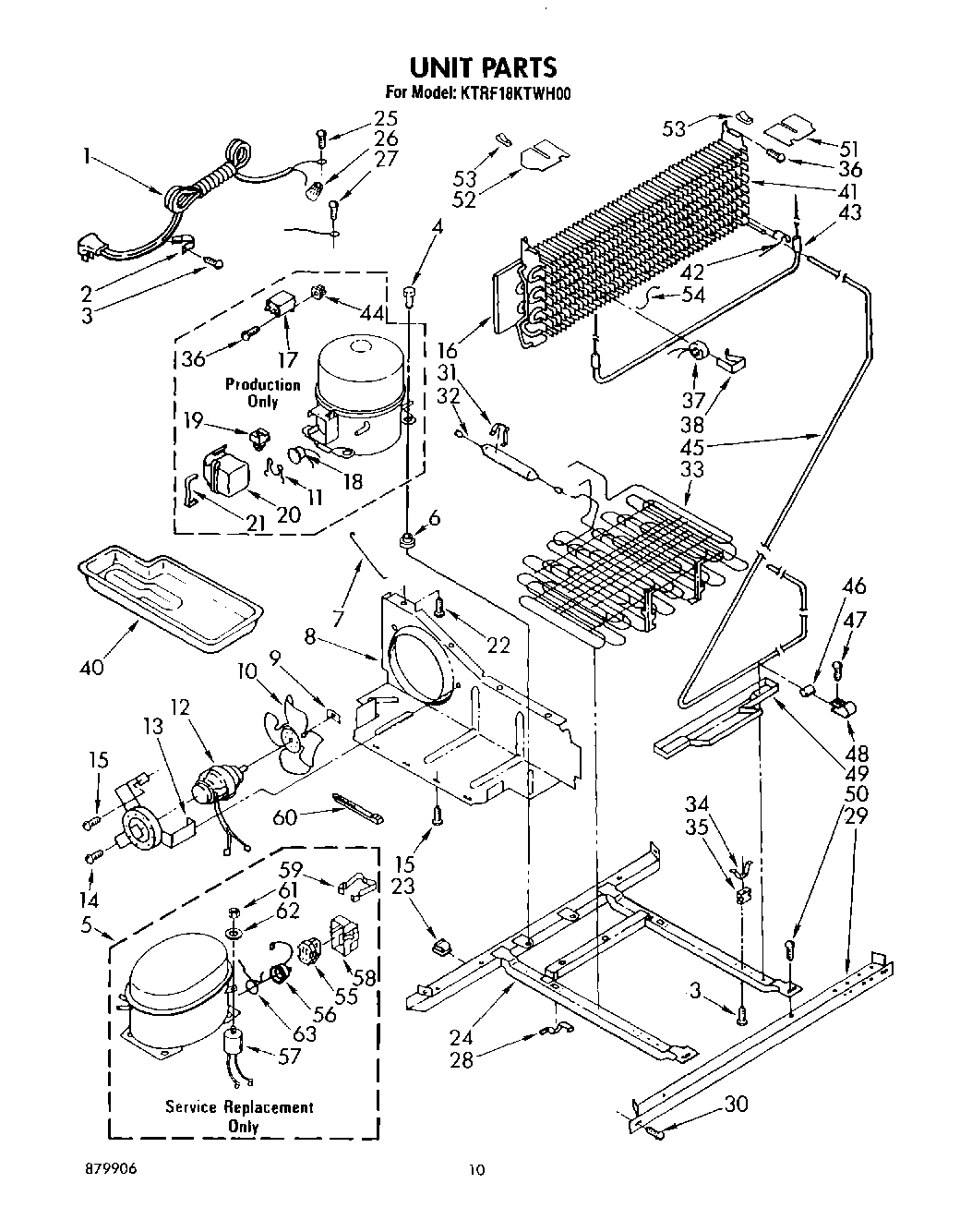

06 - UNIT
Common parts from model Whirlpool KTRF18KTPL00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1107184 WPL LIT1107184 Contact Us For Availability
WPL LIT1117503 WPL LIT1117503 Contact Us For Availability
WPL LIT1117587 WPL LIT1117587 Contact Us For Availability
WPL LIT879906 WPL LIT879906 Contact Us For Availability
1
Top, Compartment Separator WPL 937257 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI110628A Contact Us For Availability
1
Door, Freezer (White) WPL 1107648 Contact Us For Availability
1
Door, Freezer (Toast) WPL 1107681 Contact Us For Availability
1
Door, Freezer (Platinum) (Also Order Item 35) WPL 1107682 Contact Us For Availability
1
Door, Freezer (Almond) WPL 1107683 Contact Us For Availability
1
Shelf Gasket, Front WPL 1107265 Contact Us For Availability
1
Cord, Service WPL 850626 Contact Us For Availability
2
Drain Insert WPL 836088 Contact Us For Availability
2
Stud, Shelf (2) WPL 521878 Contact Us For Availability
2
Gasket, Freezer Door WPL 1107639 Contact Us For Availability
2
Shelf, Ladder WPL 1107112 Contact Us For Availability
3
Gasket, Drain Pan WPL 937292 Contact Us For Availability
3
Grommet (2) WPL 941700 Contact Us For Availability
3
Panel, Interior WPL 1107360 Contact Us For Availability
3
Shelf, Ladder Center WPL 1107301 Contact Us For Availability
4
Grommet (4) WPL 937252 Contact Us For Availability
4
Screw, 8 x 1-1/4 WPL 488357 Contact Us For Availability
4
Screw, (Repair) 10 x 1 1/4 WPL 488623 Contact Us For Availability
5
Drain Pan WPL 937291 Contact Us For Availability
5
Stud, Saddle WPL 836492 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 488960 Contact Us For Availability
5
Screw (Repair) WPL 488980 Contact Us For Availability
5
Compressor (Includes Items 55, 56, 57, 58, 59 WPL 482981 Contact Us For Availability
6
Breaker Trim, Bottom Clip WPL 937668 Contact Us For Availability
6
Liner Wiring (Ice Maker) WPL 937264 Contact Us For Availability
6
Retainer, Top & Bottom (2) WPL 836115 Contact Us For Availability
7
Cup, Drain WPL 939191 Contact Us For Availability
7
Plug, Hole (5) WPL 519890 Contact Us For Availability
7
Retainer, Side (2) WPL 836117 Contact Us For Availability
7
Screw, Support Center WPL 520959 Contact Us For Availability
7
Guard, Fan WPL 850156 Contact Us For Availability
8
Connecting Rod WPL 937271 Contact Us For Availability
8
Grommet (4) WPL 848445 Contact Us For Availability
8
Shelf, Cantilever WPL 1107033 Contact Us For Availability
8
Baffle, Air WPL 850764 Contact Us For Availability
9
Air Duct Extension WPL 1107280 Contact Us For Availability
9
Hole Plug (2) WPL 659598 Contact Us For Availability
9
Glass, Shelf WPL 1107062 Contact Us For Availability
10
Air Diffuser WPL 937283 Contact Us For Availability
10
Glass, Reflector WPL 1107066 Contact Us For Availability
10
Fan WPL 989524 Contact Us For Availability
11
Insulation, Compartment Separator WPL 937256 Contact Us For Availability
11
Trim, Shelf WPL 1107070 Contact Us For Availability
11
Overload Spring WPL 943320 Contact Us For Availability
12
Clip, Breaker Retainer WPL 836090 Contact Us For Availability
12
Hole, Plug WPL 659776 Contact Us For Availability
12
Bracket, Door Stop WPL 944035 Contact Us For Availability
12
Crisper Cover, Frame WPL 1107078 Contact Us For Availability
13
Blade, Fan WPL 992920 Contact Us For Availability
13
Bottom, Compartment Separator WPL 941712 Contact Us For Availability
13
Hole Plug (2) (Toast) WPL 1100196 Contact Us For Availability
13
Hole Plug (2) (Platinum) WPL 1100197 Contact Us For Availability
13
Plug, Hole (2) (White) WPL 534927 Contact Us For Availability
13
Plug, Hole (2) (Almond) WPL 989197 Contact Us For Availability
13
Trim Frame WPL 1107082 Contact Us For Availability
13
Bracket, Motor WPL 548695 Contact Us For Availability
14
Washer WPL 489071 Contact Us For Availability
14
Ring, Compression WPL 992953 Contact Us For Availability
14
Shim, Handle WPL 1107650 Contact Us For Availability
14
Crisper Gasket, Rear WPL 1107478 Contact Us For Availability
15
Knob, Air Control WPL 1107602 Contact Us For Availability
15
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
15
Center, Handle WPL 1107230 Contact Us For Availability
15
Pan Gasket, Front WPL 1107303 Contact Us For Availability
16
Spacer, Knob WPL 941767 Contact Us For Availability
16
Spacer, Handle WPL 1107192 Contact Us For Availability
16
Support, Crisper Cover WPL 1107730 Contact Us For Availability
16
Baffle, Evaporator WPL 937289 Contact Us For Availability
17
Screw WPL 489074 Contact Us For Availability
17
Stud WPL 839213 Contact Us For Availability
17
Insert, Handle WPL 1117543 Contact Us For Availability
17
Post, Crisper Cover WPL 937340 Contact Us For Availability
18
``O`` Ring Seal WPL 489072 Contact Us For Availability
18
Stud, Retainer (4) WPL 836374 Contact Us For Availability
18
Retainer, Insert WPL 1107209 Contact Us For Availability
18
Overload WPL 945585 Contact Us For Availability
19
Grommet, Post WPL 836409 Contact Us For Availability
19
Relay WPL 945507 Contact Us For Availability
20
Defrost Timer (10 Hr.) WPL 945486 Contact Us For Availability
20
Stud, Shelf (4) WPL 1107968 Contact Us For Availability
20
Cap, Handle WPL 1107236 Contact Us For Availability
20
Pan, Crisper WPL 1107871 Contact Us For Availability
20
Case, Relay WPL 1105055 Contact Us For Availability
21
Control Box WPL 1107653 Contact Us For Availability
21
Fastener, Wire WPL 851039 Contact Us For Availability
21
Retainer, Side (2) WPL 836119 Contact Us For Availability
21
Glass, Crisper Cover WPL 1107086 Contact Us For Availability
21
Spring WPL 943322 Contact Us For Availability
22
Screw, 8 x 1-3/8 (2) WPL 488678 Contact Us For Availability
22
Terminal Block (Single) WPL 937254 Contact Us For Availability
22
Clip, Medallion WPL 1107329 Contact Us For Availability
22
Reflector, Glass Shelf WPL 1107237 Contact Us For Availability
22
Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability
23
Air Duct WPL 1107276 Contact Us For Availability
23
Center, Handle WPL 1107238 Contact Us For Availability
23
Shelf Gasket, Glass WPL 1107580 Contact Us For Availability
23
Clip, Wire (2) WPL 548745 Contact Us For Availability
24
Sealing Gasket WPL 939099 Contact Us For Availability
24
Handle Plug (White) WPL 1107226 Contact Us For Availability
24
Handle Plug (Toast) WPL 1107720 Contact Us For Availability
24
Handle Plug (Platinum) WPL 1107721 Contact Us For Availability
24
Handle Plug (Almond) WPL 1107722 Contact Us For Availability
24
Meat Pan, Shelf WPL 1107359 Contact Us For Availability
24
Frame WPL 945461 Contact Us For Availability
25
Control Box Wiring WPL 941722 Contact Us For Availability
25
Cover, Evaporator WPL 1107277 Contact Us For Availability
25
Front Cover, Crisper WPL 1107154 Contact Us For Availability
25
Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability
26
Insulation (2) WPL 939083 Contact Us For Availability
26
Stud, Saddle (R.S.) WPL 523263 Contact Us For Availability
26
Ladder, Door Shelf (2) WPL 1107005 Contact Us For Availability
26
Connector Wire WPL 227991 Contact Us For Availability
27
Grommet WPL 538449 Contact Us For Availability
27
Door, Refrigerator (White) WPL 1107646 Contact Us For Availability
27
Door, Refrigerator (Toast) WPL 1107678 Contact Us For Availability
27
Door, Refrigerator (Platinum) (Also Order Ite WPL 1107679 Contact Us For Availability
27
Door, Refrigerator (Almond) WPL 1107680 Contact Us For Availability
27
Screw (Repair) WPL 488132 Contact Us For Availability
28
Wiring Shield WPL 937269 Contact Us For Availability
28
Gasket, Refrigerator Door WPL 1107638 Contact Us For Availability
28
Meat Pan WPL 1107870 Contact Us For Availability
28
Clip (2) WPL 548744 Contact Us For Availability
29
Panel, Interior WPL 1107264 Contact Us For Availability
29
Front Cover, Meat WPL 1107178 Contact Us For Availability
29
Rail, Front WPL 548663 Contact Us For Availability
30
Terminal Block (Multiple) WPL 937253 Contact Us For Availability
30
Clip, Expansion (4) WPL 537095 Contact Us For Availability
30
Glass, Meat Pan Shelf WPL 1107095 Contact Us For Availability
31
Screw, 8 x 1 (2) WPL 488206 Contact Us For Availability
31
Grommet (3) WPL 548268 Contact Us For Availability
31
Shim, Handle WPL 1107628 Contact Us For Availability
31
Trim Frame WPL 1107130 Contact Us For Availability
31
Clamp WPL 548508 Contact Us For Availability
32
Bracket, Double WPL 937277 Contact Us For Availability
32
Screw (Repair) WPL 489250 Contact Us For Availability
32
Reflector, Glass Shelf WPL 1107449 Contact Us For Availability
33
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
33
Clip, Breaker Trim WPL 838849 Contact Us For Availability
33
Grommet (3) WPL 842339 Contact Us For Availability
33
Utility, Door WPL 1107274 Contact Us For Availability
33
Condenser & Precooler Assembly WPL 943480 Contact Us For Availability
34
Screw (Repair) WPL 488949 Contact Us For Availability
34
Knob, Thermostat WPL 937144 Contact Us For Availability
34
Bracket, Single WPL 937278 Contact Us For Availability
34
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
34
Clamp (4) WPL 548738 Contact Us For Availability
35
Hinge & Shim (Top) WPL 842039 Contact Us For Availability
35
Receptacle Cap WPL 850738 Contact Us For Availability
35
Reflector, Wire Shelf WPL 1117645 Contact Us For Availability
35
Grommet (4) WPL 943447 Contact Us For Availability
36
Clip, Breaker Retainer WPL 941876 Contact Us For Availability
36
Trim, Shelf (2) WPL 1107365 Contact Us For Availability
36
Clip, Reflector WPL 1107246 Contact Us For Availability
37
Shim, Top Hinge (.030) WPL 836192 Contact Us For Availability
37
Freezer, Shelf Lower WPL 1107636 Contact Us For Availability
38
Heater, Mullion WPL 1107726 Contact Us For Availability
38
Wiring Assembly WPL 937078 Contact Us For Availability
38
Gasket, Sealing WPL 939199 Contact Us For Availability
38
Trim, Shelf Front WPL 1107105 Contact Us For Availability
38
Clamp WPL 513584 Contact Us For Availability
39
Rail, Center (Toast) WPL 1100170 Contact Us For Availability
39
Rail, Center (Platinum) WPL 1100171 Contact Us For Availability
39
Rail, Center (White) WPL 836066 Contact Us For Availability
39
Rail, Center (Almond) WPL 989191 Contact Us For Availability
39
Breaker, Freezer (Top) WPL 1107006 Contact Us For Availability
39
Hole Plug (Toast) WPL 1100188 Contact Us For Availability
39
Hole Plug (Platinum) WPL 1100189 Contact Us For Availability
39
Plug, Hole (Almond) WPL 989196 Contact Us For Availability
40
Tray, Evaporating WPL 842041 Contact Us For Availability
40
Shim (.030) WPL 836155 Contact Us For Availability
40
Breaker, Freezer (L.S.) WPL 937262 Contact Us For Availability
40
Gasket (2) WPL 981750 Contact Us For Availability
40
WPL 1107307 WPL 1107307 Contact Us For Availability
41
Breaker, Freezer (R.S.) WPL 937261 Contact Us For Availability
41
WPL 1107198 WPL 1107198 Contact Us For Availability
41
Evaporator WPL 1107491 Contact Us For Availability
42
Hinge & Shim (Center) WPL 836153 Contact Us For Availability
42
Wiring Assembly (Ground & Test) WPL 941725 Contact Us For Availability
42
WPL 1107941 WPL 1107941 Contact Us For Availability
42
Egg Container, Bottom WPL 1107384 Contact Us For Availability
42
Clip, Heater (2) WPL 850721 Contact Us For Availability
43
Center Rail, Seal WPL 987524 Contact Us For Availability
43
Clip WPL 534365 Contact Us For Availability
43
Egg Container, Top WPL 1107388 Contact Us For Availability
43
Heater, Defrost WPL 937302 Contact Us For Availability
44
Shelf Stud WPL 509108 Contact Us For Availability
44
Screw Grommet WPL 509812 Contact Us For Availability
45
WPL 1117544 WPL 1117544 Contact Us For Availability
45
Exchanger, Heat WPL 1107496 Contact Us For Availability
46
Breaker, Refrigerator R.S. WPL 937258 Contact Us For Availability
46
Socket WPL 850654 Contact Us For Availability
46
WPL 1107300 WPL 1107300 Contact Us For Availability
46
Dampener (2) WPL 510769 Contact Us For Availability
47
WPL 836159 WPL 836159 Contact Us For Availability
47
Breaker, Refrigerator L.S. WPL 937259 Contact Us For Availability
48
WPL 1107202 WPL 1107202 Contact Us For Availability
48
Clamp (2) WPL 510716 Contact Us For Availability
49
WPL 654366 WPL 654366 Contact Us For Availability
49
Breaker, Refrigerator (Bottom) WPL 937260 Contact Us For Availability
49
Light Lens WPL 981365 Contact Us For Availability
49
Pan, Drip WPL 945572 Contact Us For Availability
50
WPL 488714 WPL 488714 Contact Us For Availability
50
Gasket, Top WPL 939103 Contact Us For Availability
50
WPL 1107229 WPL 1107229 Contact Us For Availability
50
Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability
51
WPL 836196 WPL 836196 Contact Us For Availability
51
Baffle, Liner Top WPL 1107258 Contact Us For Availability
51
Baffle, R.S. WPL 939106 Contact Us For Availability
52
WPL 876029 WPL 876029 Contact Us For Availability
52
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
52
WPL 799344 WPL 799344 Contact Us For Availability
52
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
52
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
52
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
52
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
52
Leveler, xEnamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
52
WPL 542639 WPL 542639 Contact Us For Availability
52
WPL 72112 WPL 72112 Contact Us For Availability
52
WPL 799832 WPL 799832 Contact Us For Availability
52
WPL 799833 WPL 799833 Contact Us For Availability
52
WPL 799908 WPL 799908 Contact Us For Availability
52
WPL 978883 WPL 978883 Contact Us For Availability
52
WPL 1107609 WPL 1107609 Contact Us For Availability
52
Baffle, L.S. WPL 939105 Contact Us For Availability
53
Retainer, Baffle (2) WPL 939104 Contact Us For Availability
54
WPL 1107915 WPL 1107915 Contact Us For Availability
54
Support, Heater WPL 851358 Contact Us For Availability
55
WPL 488681 WPL 488681 Contact Us For Availability
56
WPL 1107444 WPL 1107444 Contact Us For Availability
56
Overload WPL 483037 Contact Us For Availability
57
WPL 989068 WPL 989068 Contact Us For Availability
57
WPL 489221 WPL 489221 Contact Us For Availability
57
Capacitor WPL 482996 Contact Us For Availability
58
Cover, Terminal WPL 1105015 Contact Us For Availability
59
Strap WPL 938384 Contact Us For Availability
60
Strap WPL 851095 Contact Us For Availability
61
Nut WPL 489142 Contact Us For Availability
62
Washer WPL 489143 Contact Us For Availability
63
VALVE, ACCE WPL 978029 Contact Us For Availability
63
Overload Spring WPL 1114190 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
