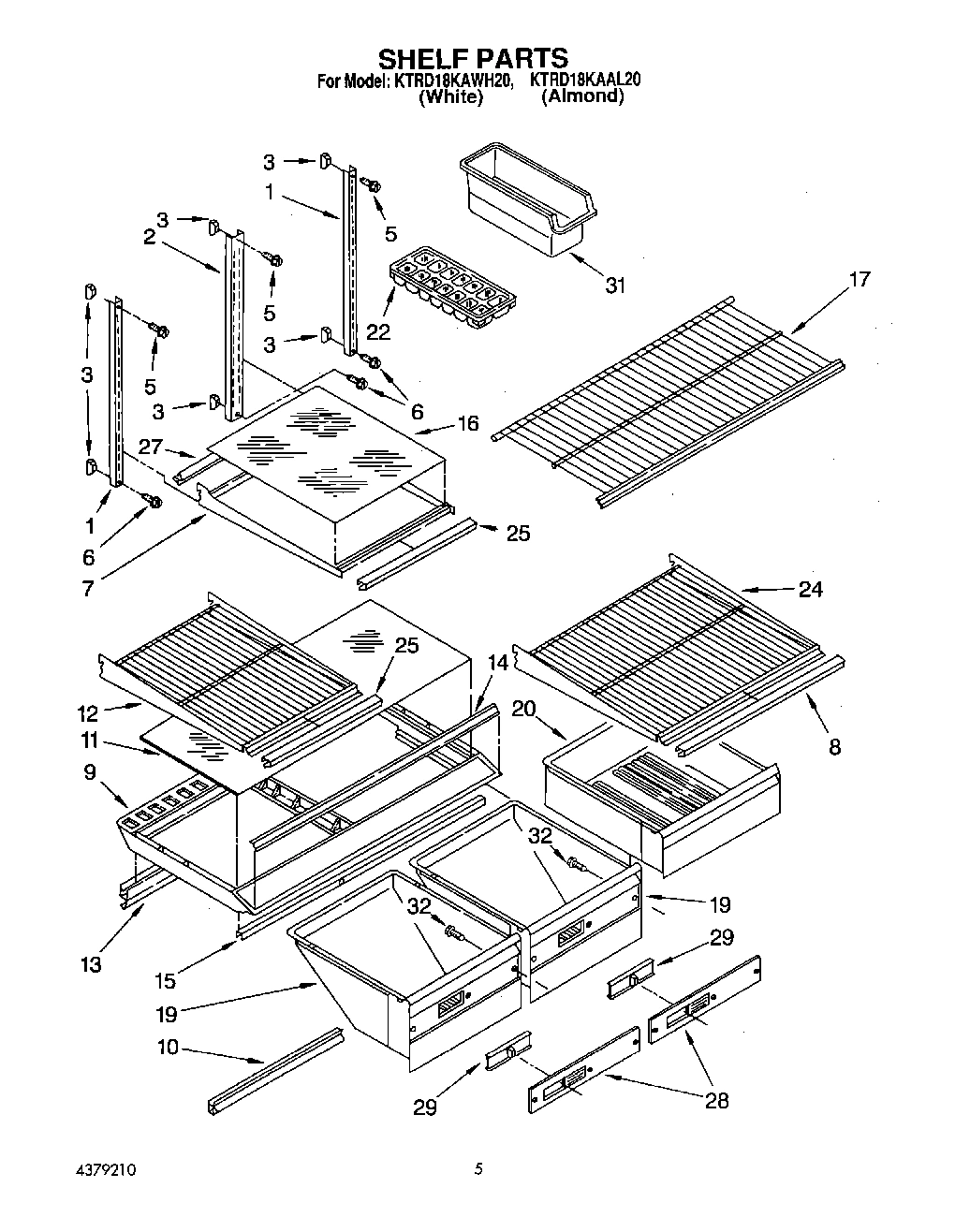

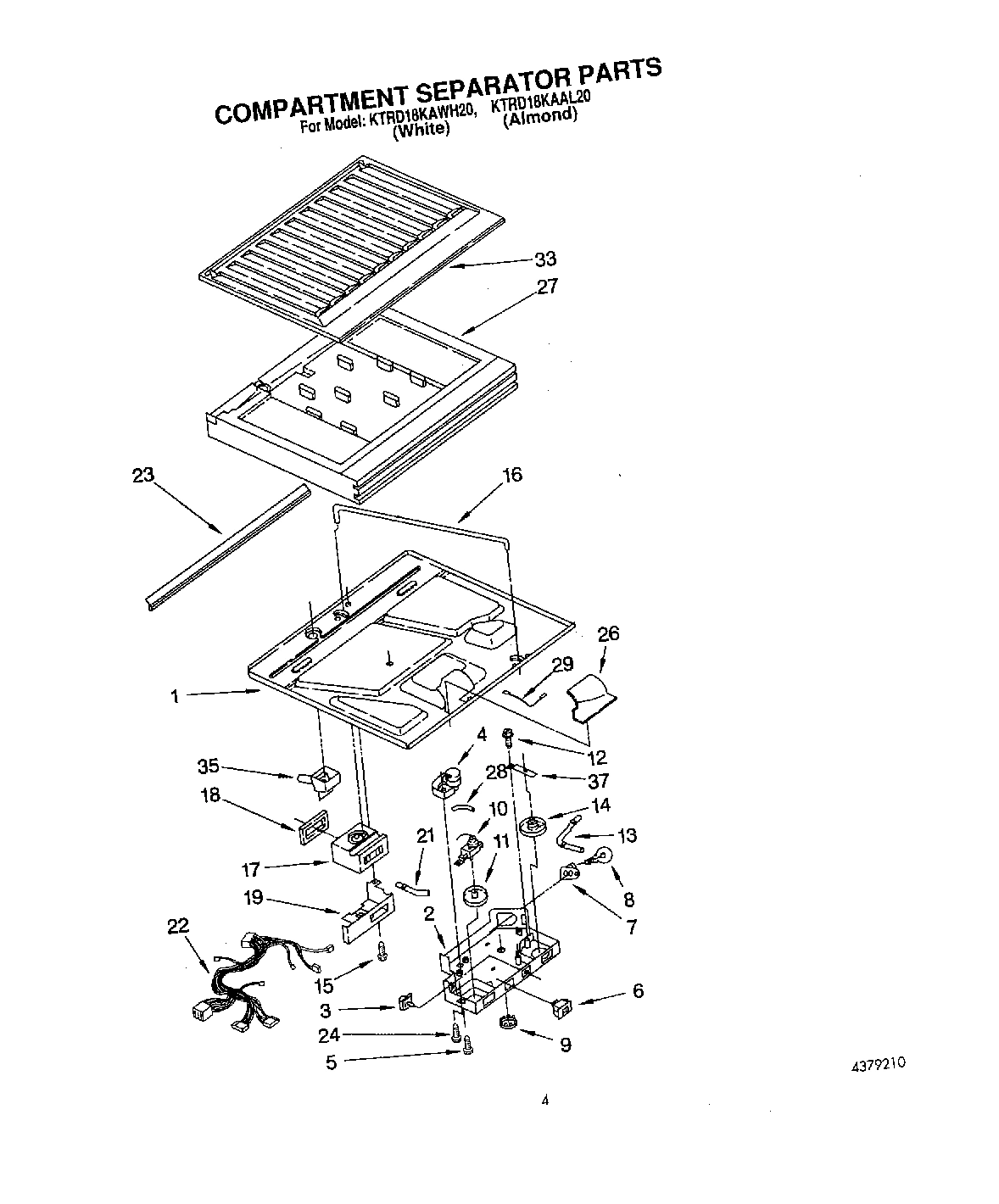

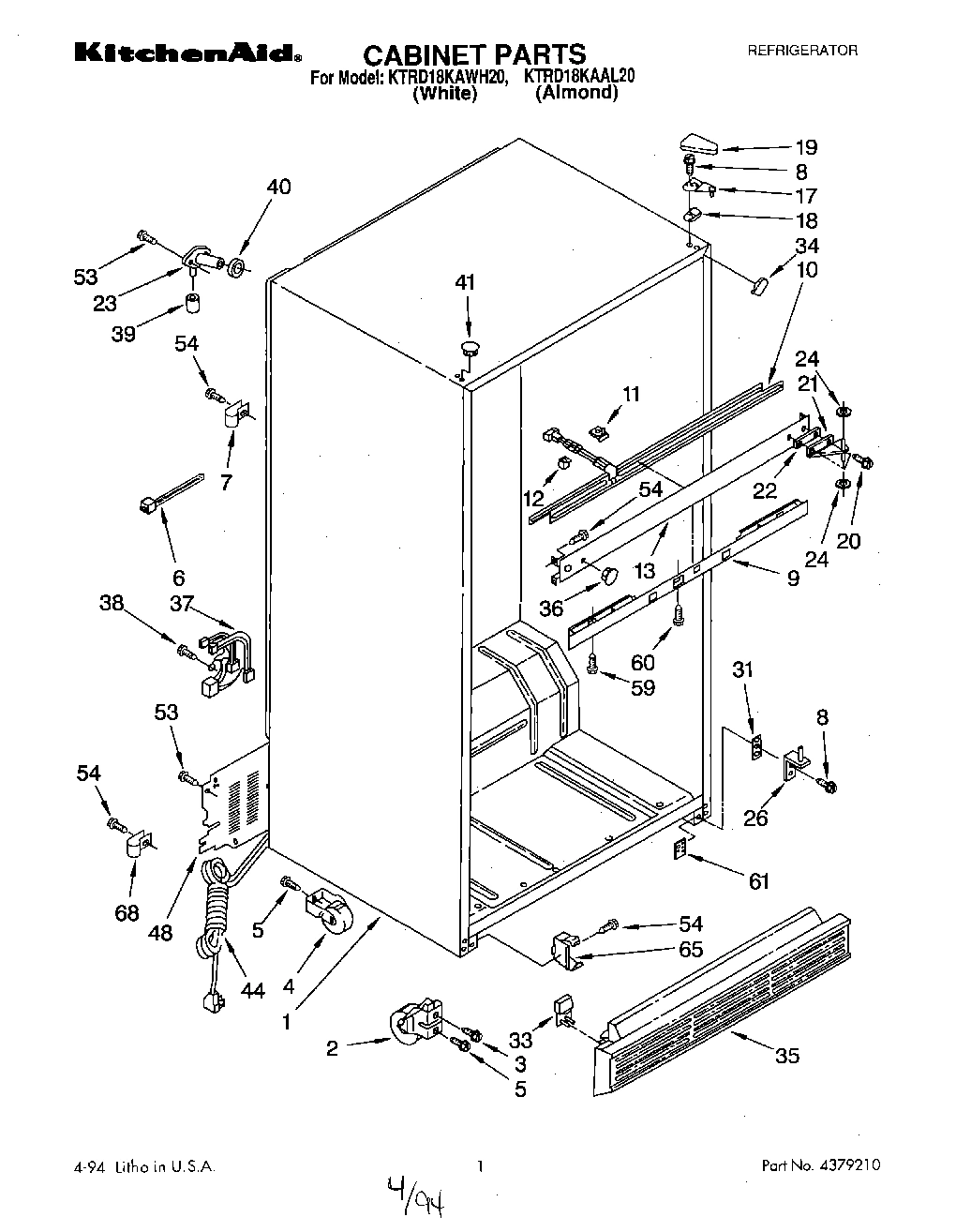

Model Whirlpool KTRD18KAAL20 – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT1126439 WPL LIT1126439 Contact Us For Availability

WPL LIT2154850 WPL LIT2154850 Contact Us For Availability

WPL LIT2168824 WPL LIT2168824 Contact Us For Availability

1

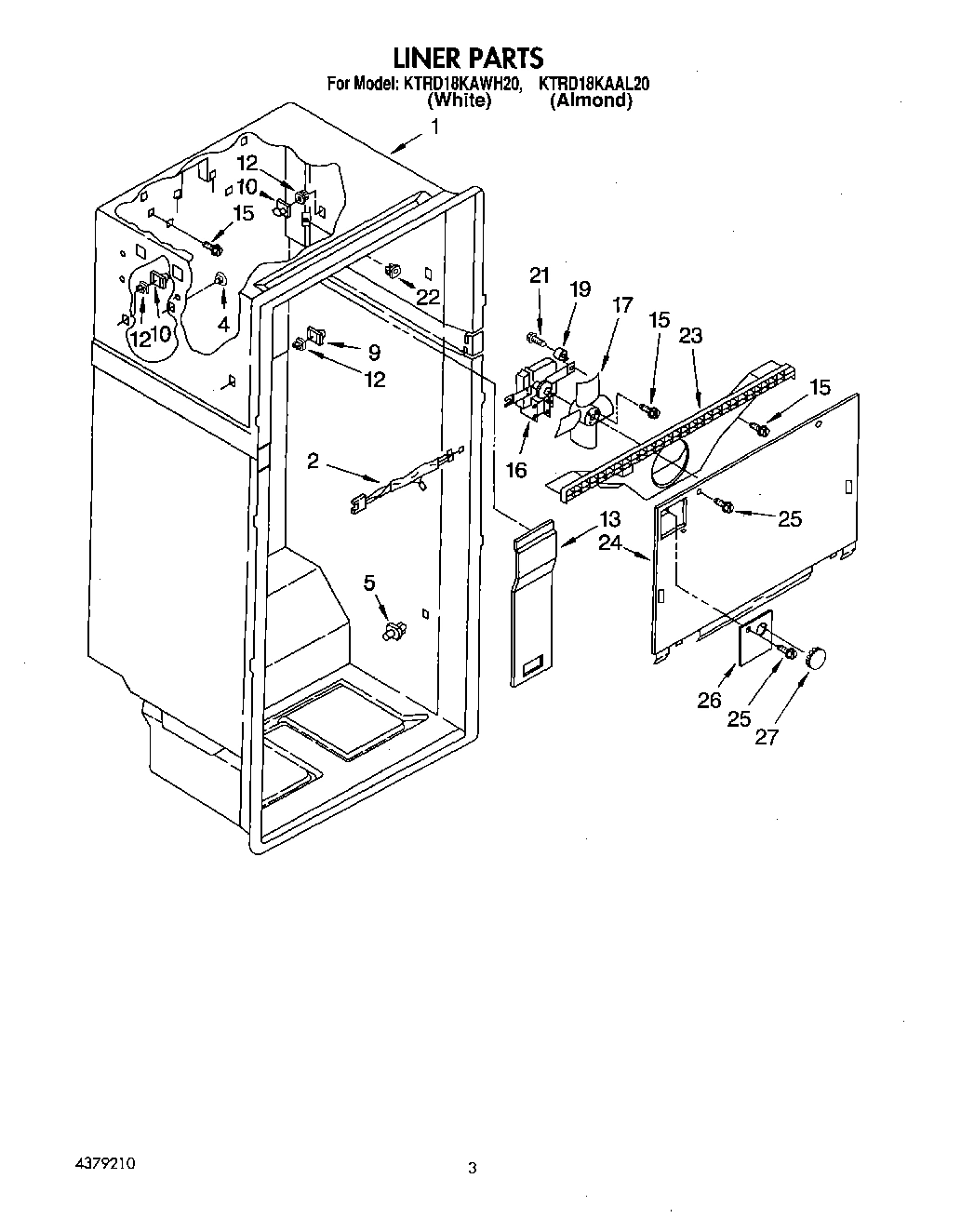

Liner (Not A Serviceable Part) WPL ARI110545A Contact Us For Availability

1

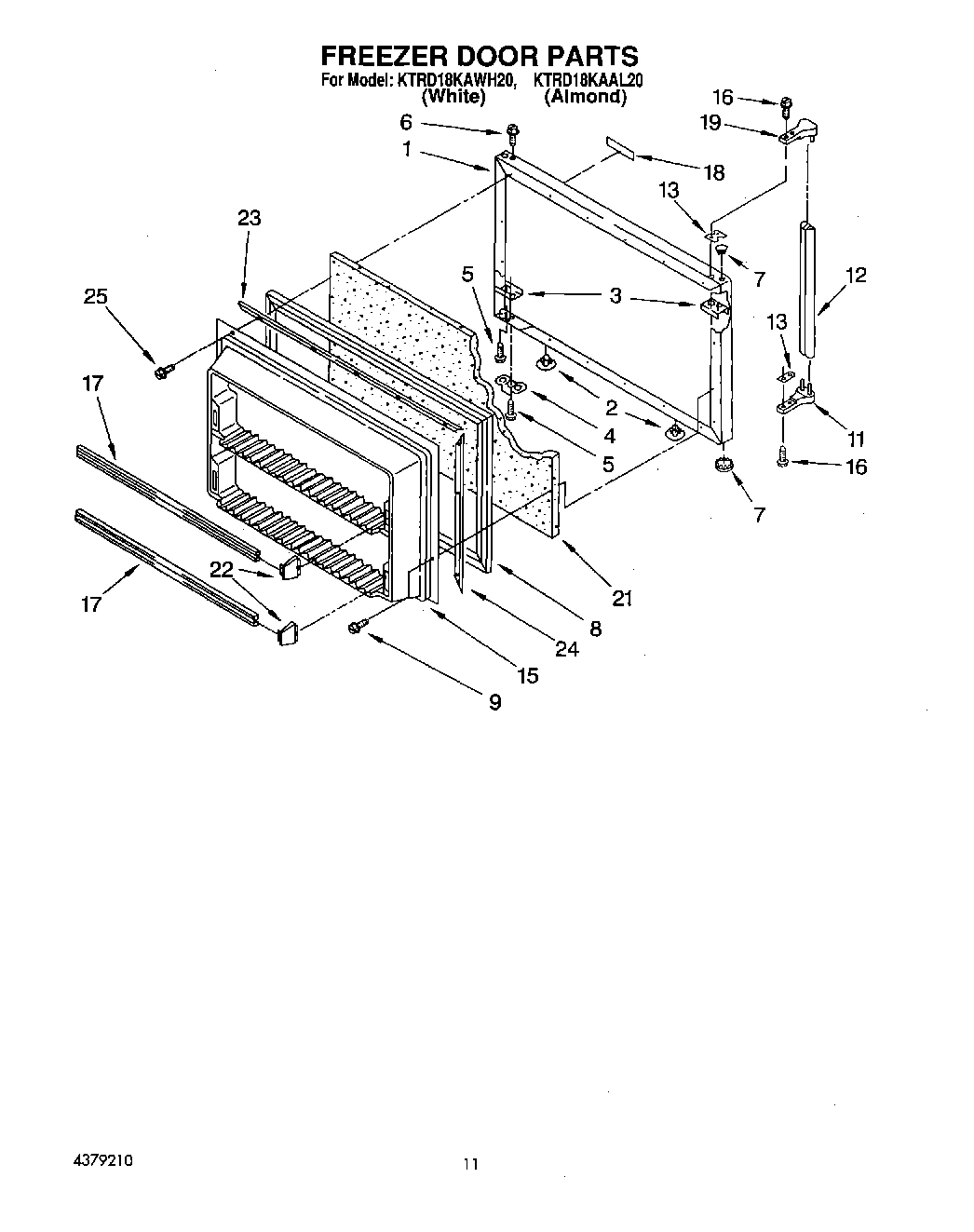

Panel, Freezer Door (Also Order Item 21) (Whi WPL 2157708 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 2157711 Contact Us For Availability

1

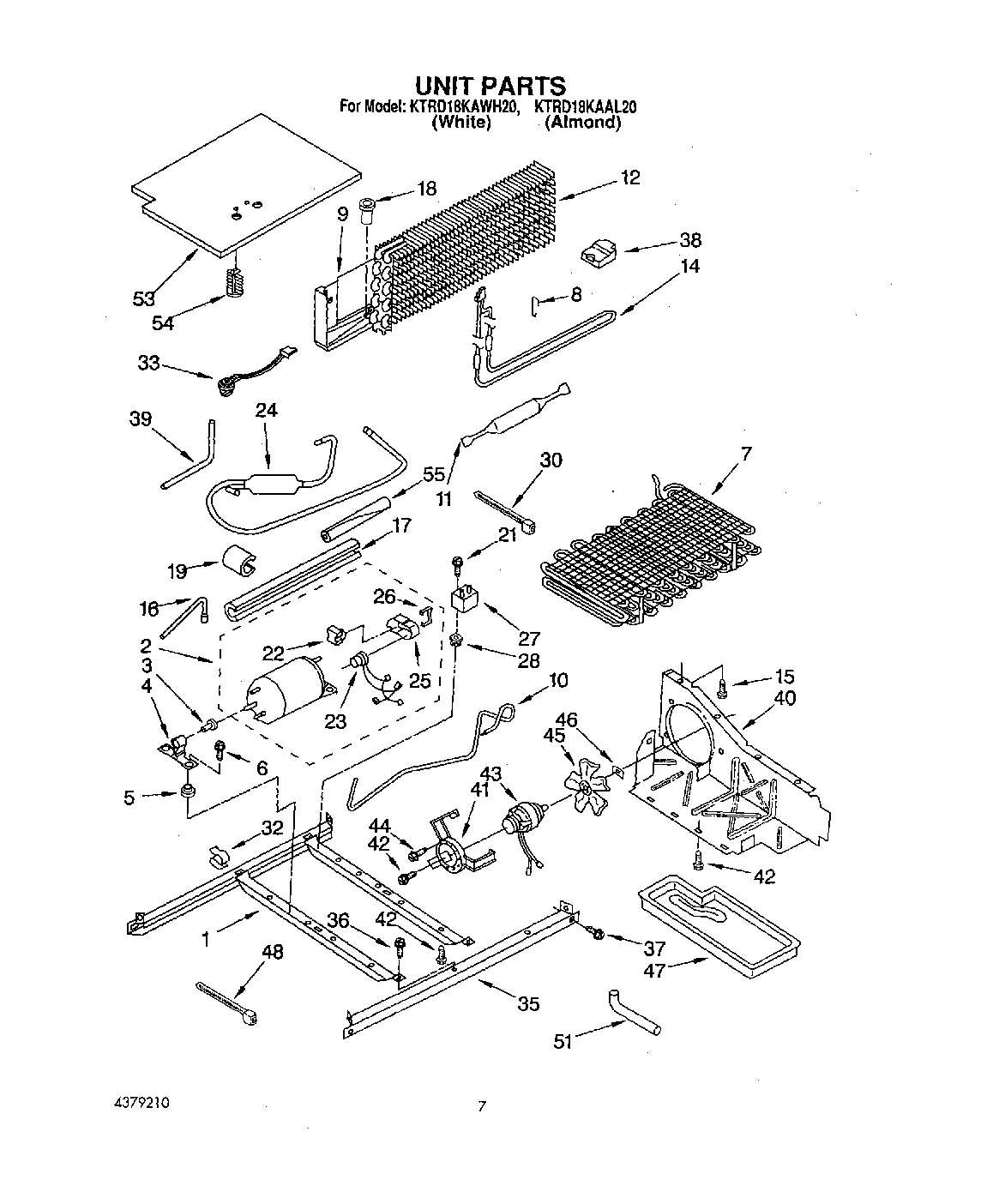

Unit, Frame WPL 2159747 Contact Us For Availability

1

Shelf, Ladder (2) WPL 1114466 Contact Us For Availability

1

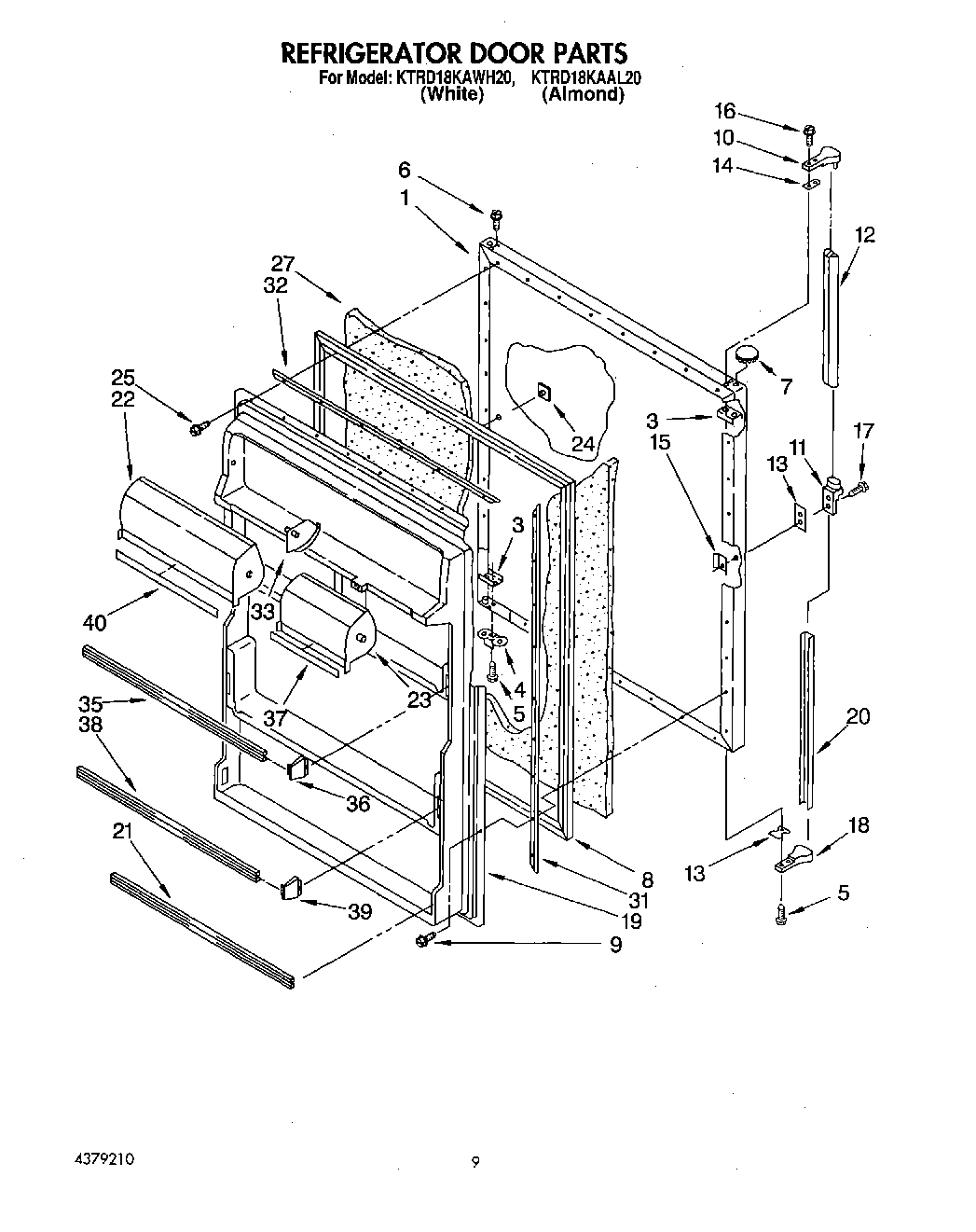

Panel, Refrigerator Door (Also Order Item 27) WPL 1116575 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 27) WPL 1116578 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Hole Plug (2) (White) WPL 534927 Contact Us For Availability

2

Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability

2

Compressor KIt Includes Items 22 (23, 25, 26 WPL 2154564 Contact Us For Availability

2

Shelf, Ladder Center WPL 1114465 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

3

Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

4

Bracket, Mounting WPL 1105220 Contact Us For Availability

4

Bracket, Door Stop WPL 944036 Contact Us For Availability

5

W10854959 Whirlpool Refrigerator Shelf Stud Backorder WPL W10854959 $4.23

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Grommet, Compressor (4) WPL 1105200 Contact Us For Availability

5

Screw, WPL 489345 Contact Us For Availability

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

6

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

6

Screw WPL 489334 Contact Us For Availability

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

Condenser Assembly WPL 2154008 Contact Us For Availability

7

Shelf, Cantilever WPL 1116703 Contact Us For Availability

8

Door Gasket, Magnetic WPL 1125888 Contact Us For Availability

8

Support, Heater WPL 2149120 Contact Us For Availability

8

Trim, Shelf WPL 1125840 Contact Us For Availability

8

Door Gasket, Magnetic WPL 1125889 Contact Us For Availability

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

Stud, Front (2) WPL 946356 Contact Us For Availability

9

Drain Pan & Heat Shield WPL 2153973 Contact Us For Availability

9

Crisper Cover WPL 1125843 Contact Us For Availability

819091 Whirlpool Refrigerator Shelf Stud Backorder WPL 819091 $13.89

End Cap, Top WPL 944302 Contact Us For Availability

Tube, Discharge WPL 2154028 Contact Us For Availability

Gasket, Cover (Front) (2) WPL 1116713 Contact Us For Availability

11

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

11

Glass, Cover WPL 1125844 Contact Us For Availability

11

End Cap WPL 987870 Contact Us For Availability

Support Stud (4) WPL 946355 Contact Us For Availability

Handle Center (White) WPL 2161646 Contact Us For Availability

Handle Center (Almond) WPL 2161648 Contact Us For Availability

Evaporator WPL 2153977 Contact Us For Availability

Shelf, Cantilever WPL 2163920 Contact Us For Availability

Handle, Center (Almond) WPL 1123133 Contact Us For Availability

Handle, Center (White) WPL 2156670 Contact Us For Availability

13

Cover, Air Duct WPL 1116558 Contact Us For Availability

13

Gasket, Cover (Rear) (2) WPL 1116714 Contact Us For Availability

13

Shim, End Cap WPL 987872 Contact Us For Availability

14

Spacer, Handle WPL 944320 Contact Us For Availability

14

Heater, Defrost WPL 2162020 Contact Us For Availability

14

Trim, Cover WPL 2172715 Contact Us For Availability

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $50.82

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

Interior Door Panel WPL 1116610 Contact Us For Availability

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

Tube, Process WPL 2154090 Contact Us For Availability

Glass, Shelf WPL 1125839 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $27.58

WP2002171 Whirlpool Refrigerator Sleeve Backorder WPL WP2002171 $10.19

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Shelf, Freezer WPL 1125849 Contact Us For Availability

Shim, Hinge Top WPL 2157269 Contact Us For Availability

Nameplate (White Model) WPL 2168802 Contact Us For Availability

Nameplate (Almond Model) WPL 2168803 Contact Us For Availability

Drain Fitting WPL 981629 Contact Us For Availability

End Cap WPL 1123210 Contact Us For Availability

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

Hinge Cover (Almond) WPL 2160404 Contact Us For Availability

Grommet (2) WPL 531933 Contact Us For Availability

End Cap WPL 944303 Contact Us For Availability

Pan, Crisper WPL 1125851 Contact Us For Availability

Interior Door Panel WPL 1118123 Contact Us For Availability

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Pan, Meat WPL 1125854 Contact Us For Availability

Handle Extension (White) WPL 2156673 Contact Us For Availability

Handle Extension (Almond) WPL 2161645 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

Hinge, Center WPL 2147335 Contact Us For Availability

Screw WPL 489168 Contact Us For Availability

Trim, Door Shelf WPL 1125857 Contact Us For Availability

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

Shim, Hinge Center WPL 836155 Contact Us For Availability

Grommet WPL 983604 Contact Us For Availability

Relay (See Overload) WPL ARI110546A Contact Us For Availability

Compartment Door, Utility WPL 1126234 Contact Us For Availability

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

Scroll, Fan WPL 1116598 Contact Us For Availability

Overload (Service (Includes Relay)) WPL 2154945 Contact Us For Availability

Overload (Production (Includes Relay)) WPL 2159611 Contact Us For Availability

Compartment Door, Butter WPL 1126233 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

Evaporator Cover WPL 2151668 Contact Us For Availability

Retainer, Gasket Side (2) WPL 1115138 Contact Us For Availability

Muffler WPL 2154033 Contact Us For Availability

Shelf, Full Cantilever WPL 2160873 Contact Us For Availability

Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability

25

Terminal Cover WPL 2154452 Contact Us For Availability

25

Trim, Shelf WPL 1125841 Contact Us For Availability

26

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $15.98

26

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

26

Strap, Cover WPL 1105222 Contact Us For Availability

27

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

27

Hole Plug WPL 1103725 Contact Us For Availability

27

Retainer, Shelf WPL 1118119 Contact Us For Availability

28

Screw Grommet WPL 509812 Contact Us For Availability

28

Front, Pan WPL 1125852 Contact Us For Availability

29

Slide, Front WPL 1125853 Contact Us For Availability

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

31

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

31

Spacer WPL 2172744 Contact Us For Availability

31

Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

KIT, FOAM WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Retainer, Gasket Top & Bottom WPL 1115137 Contact Us For Availability

Clip, Wire (2) WPL 548745 Contact Us For Availability

Door Reversal Instructions WPL 2172757 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

Screw WPL 489268 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WP1118001 Whirlpool Hinge Pin Backorder WPL WP1118001 $3.70

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $16.40

Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability

Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability

34

Filler, Wrapper Corner (2) (White) WPL 1118058 Contact Us For Availability

34

Filler, Wrapper Corner (2) (Almond) WPL 1118059 Contact Us For Availability

Grille (White) WPL 1125664 Contact Us For Availability

Grille (Almond) WPL 1125669 Contact Us For Availability

Trim, Shelf WPL 1125866 Contact Us For Availability

Unit, Rail WPL 1116622 Contact Us For Availability

36

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $6.84

36

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

36

Hole Plug WPL 1129062 Contact Us For Availability

37

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

37

Wiring Assy. Intermediate WPL 2153994 Contact Us For Availability

37

Trim, Compartment WPL 2148588 Contact Us For Availability

38

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

38

Wedge, Air Baffle WPL 1118017 Contact Us For Availability

38

Trim, Shelf WPL 1117944 Contact Us For Availability

39

4318297 Whirlpool Refrigerator Shelf Bar Endc In Stock WPL 4318297 $10.39

39

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

39

Tube, Condenser To Heat Loop WPL 2154031 Contact Us For Availability

40

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

40

Air, Baffle WPL 2154102 Contact Us For Availability

40

Trim, Compartment Door WPL 1121186 Contact Us For Availability

41

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

41

Hole Plug (Almond) WPL 2151653 Contact Us For Availability

41

Fan, Mounting Bracket WPL 2162060 Contact Us For Availability

42

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

43

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

44

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

44

Cord, Service WPL 937360 Contact Us For Availability

45

Fan Blade WPL 1115135 Contact Us For Availability

46

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

47

Tray, Evaporator WPL 1116604 Contact Us For Availability

48

Cover, Unit WPL 2160514 Contact Us For Availability

51

Drain Extension WPL 2154118 Contact Us For Availability

53

Cover, Unit Bottom WPL 2160517 Contact Us For Availability

54

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Sleeve WPL 2159751 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

60

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

61

Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

68

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94
