Model Whirlpool KTRC18KXAL30 – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT1126237 WPL LIT1126237 Contact Us For Availability

WPL LIT2154850 WPL LIT2154850 Contact Us For Availability

WPL LIT2161562 WPL LIT2161562 Contact Us For Availability

WPL LIT4361216 WPL LIT4361216 Contact Us For Availability

1

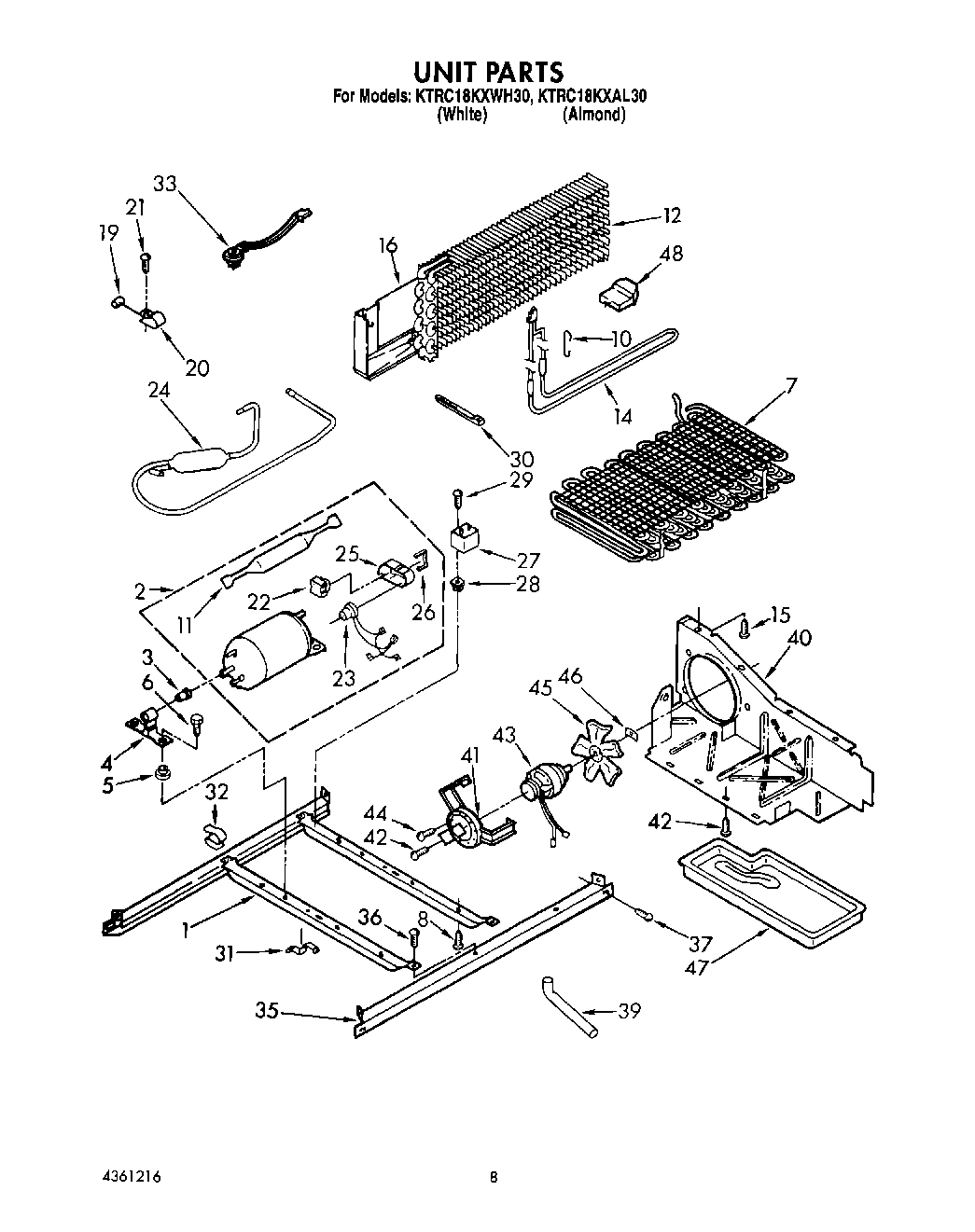

Unit, Frame WPL 1116619 Contact Us For Availability

1

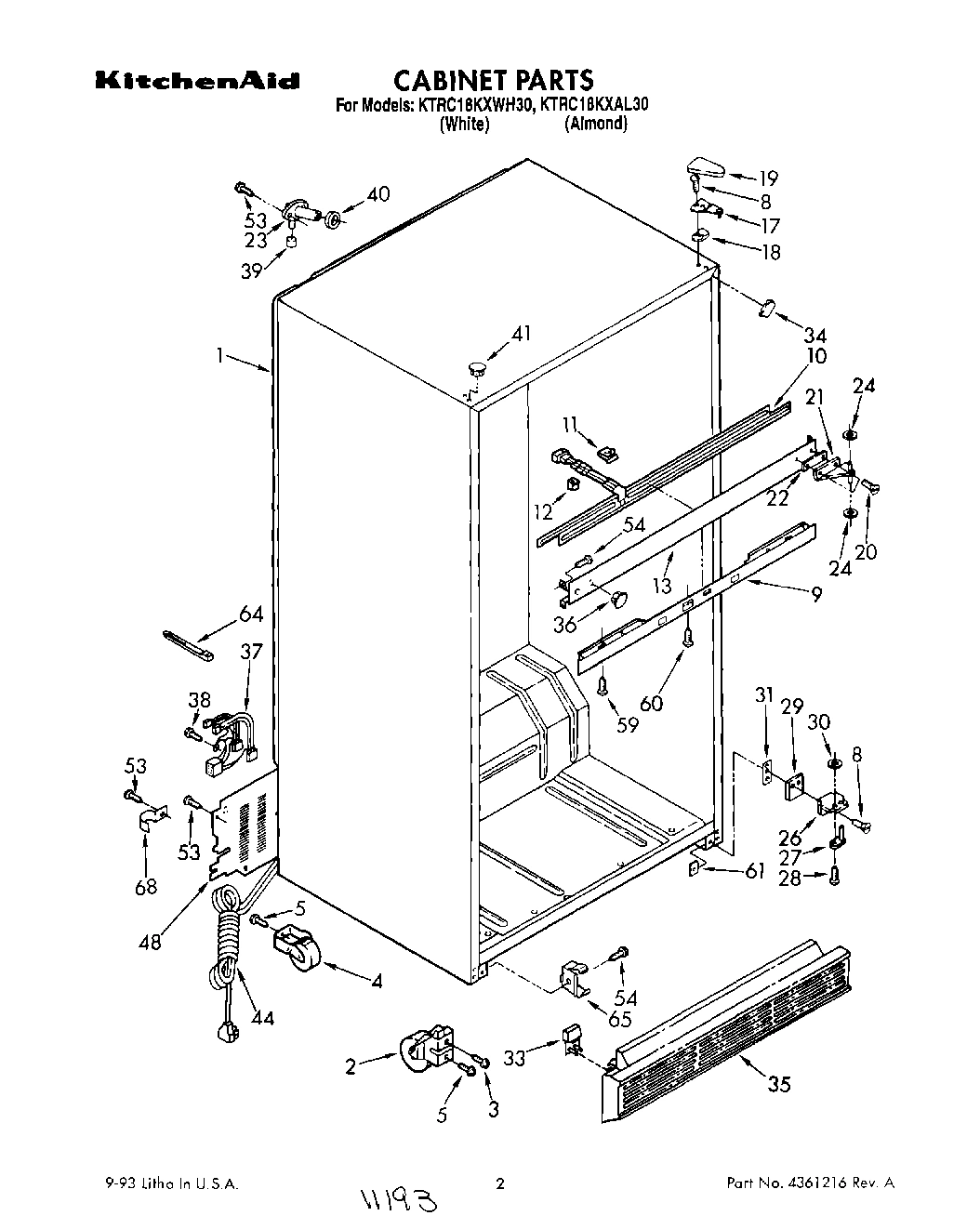

Cabinet (Not A Serviceable Part) WPL ARI109039A Contact Us For Availability

1

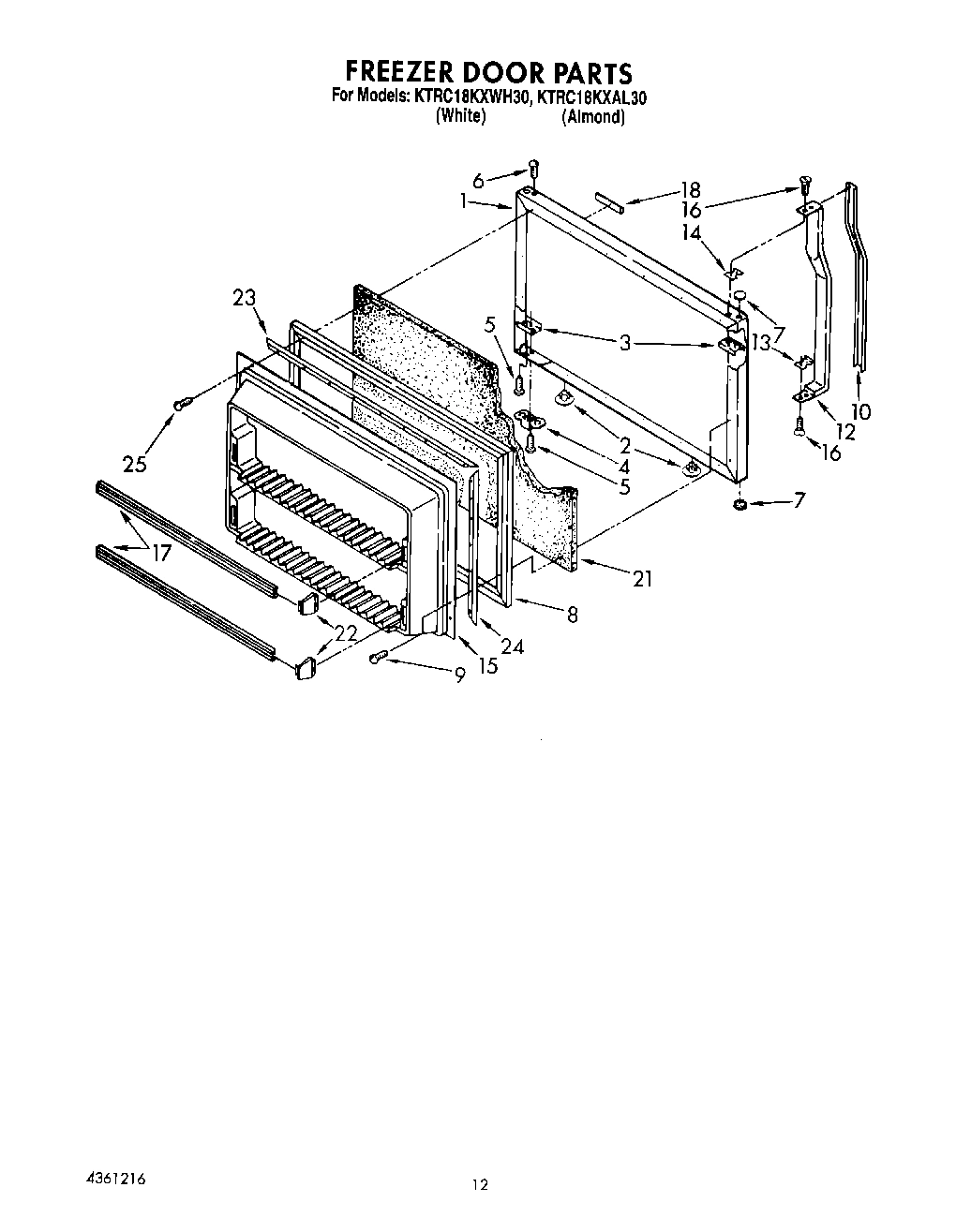

Panel, Freezer Door (Also Order Item 21) (Whi WPL 1116586 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 1116589 Contact Us For Availability

1

Bottom, Compartment Separator WPL 1116561 Contact Us For Availability

1

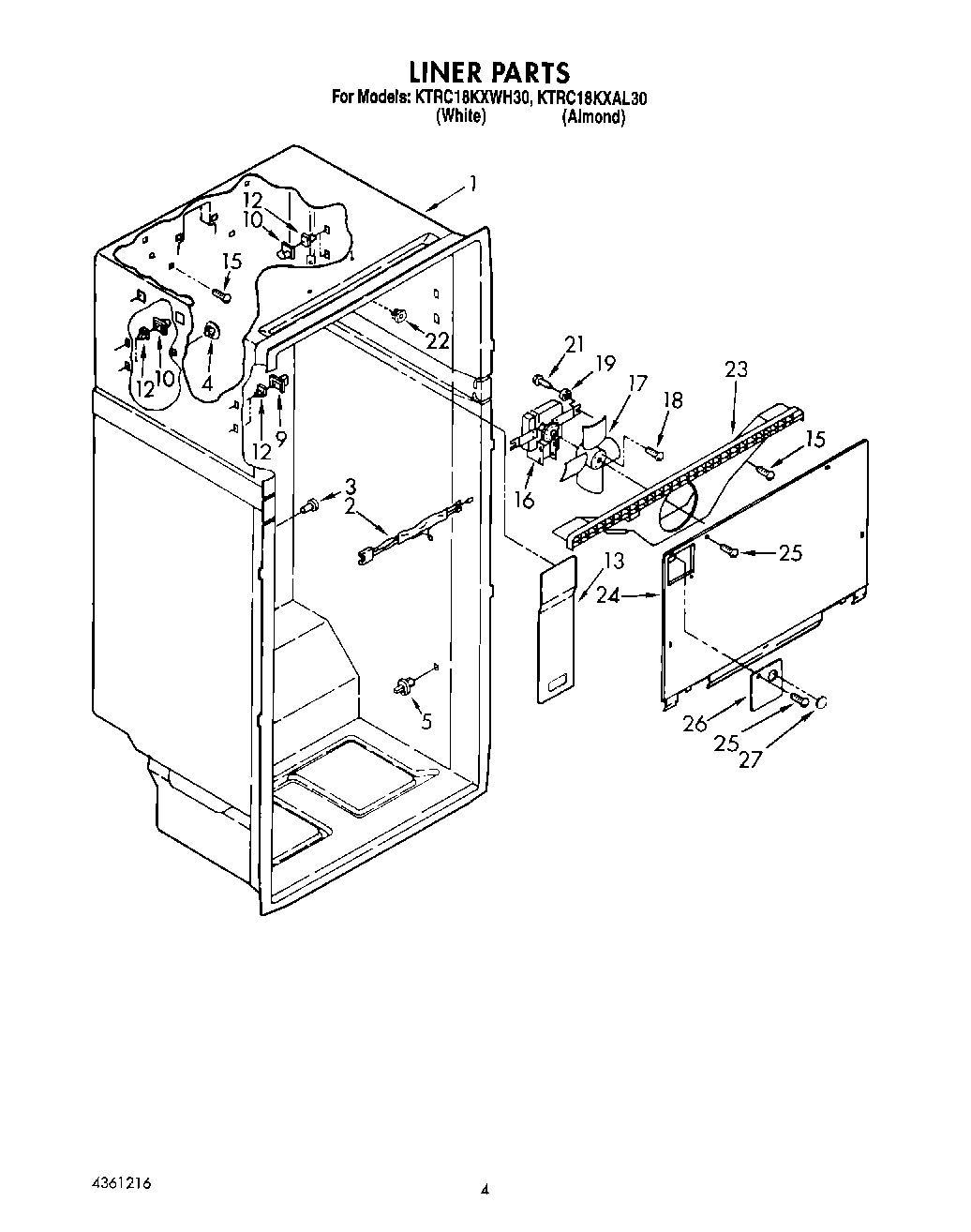

Liner (Not A Serviceable Part) WPL ARI109040A Contact Us For Availability

1

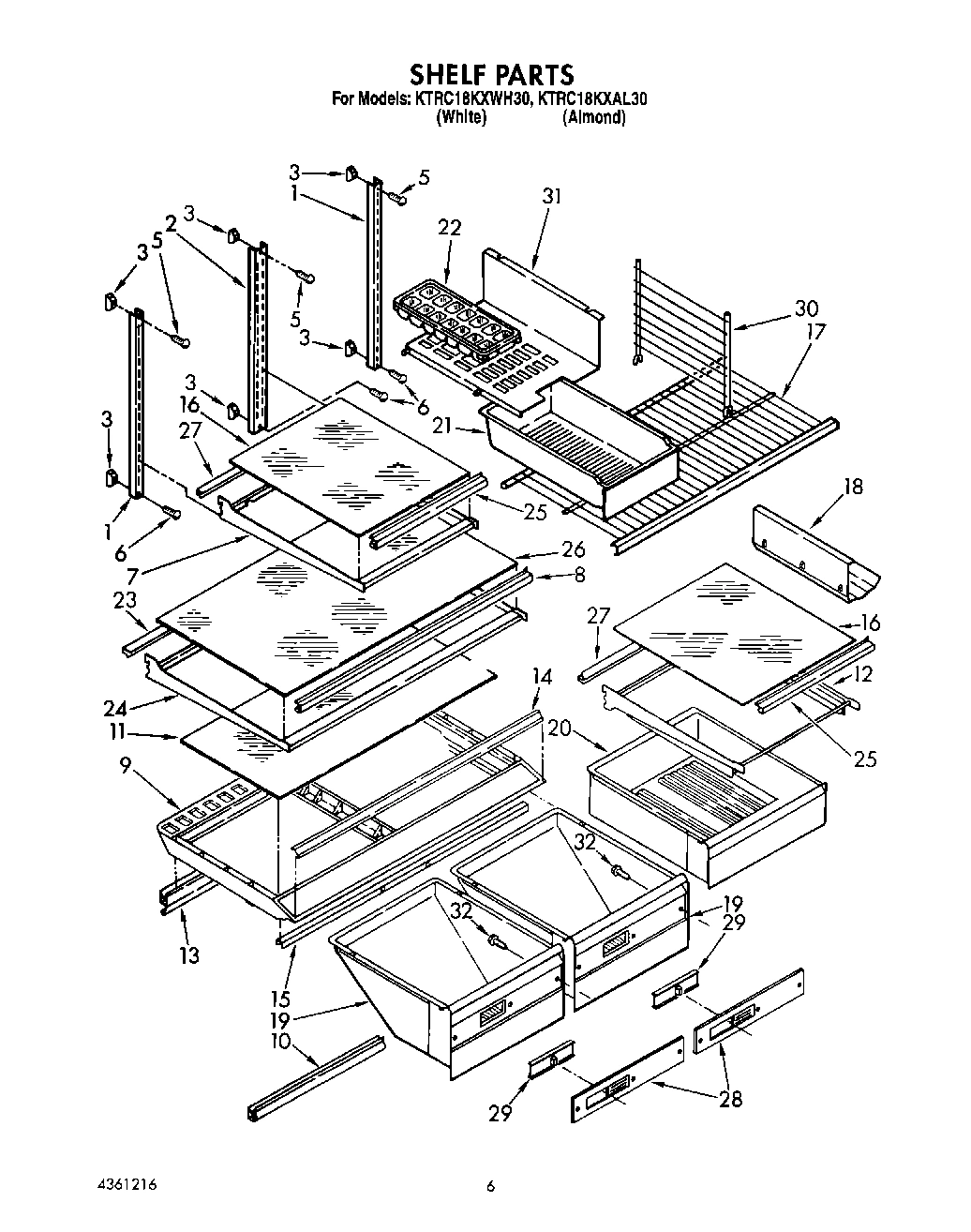

Shelf, Ladder (2) WPL 1114466 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Compressor KIt Includes Items (11, 22, 23, 25 WPL 4318241 Contact Us For Availability

2

Roller, Front WPL 2152011 Contact Us For Availability

2

Hole Plug (2) (White) WPL 534927 Contact Us For Availability

2

Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability

2

Box, Control WPL 1126029 Contact Us For Availability

2

Shelf, Ladder Center WPL 1114465 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

3

Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability

3

Screw, 5/16-24 x 1-1/4 WPL 489333 Contact Us For Availability

3

Grommet (4) WPL 1110779 Contact Us For Availability

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Bracket, Mounting WPL 1105220 Contact Us For Availability

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

4

Timer, Defrost (10 Hour) WPL 1127570 Contact Us For Availability

5

WP487353 Whirlpool Refrigerator Screw In Stock WPL WP487353 $2.51

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Shelf Stud (2) WPL 1106612 Contact Us For Availability

5

Grommet, Compressor (4) WPL 1105200 Contact Us For Availability

5

Screw (4) WPL 488454 Contact Us For Availability

5

Screw (3) WPL 489345 Contact Us For Availability

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $2.51

6

Switch, Toggle WPL 938213 Contact Us For Availability

6

Screw (4) WPL 489334 Contact Us For Availability

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $3.70

7

Condenser Assembly WPL 2154008 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

Shelf, Cantilever WPL 1126187 Contact Us For Availability

8

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.89

8

Screw WPL 489327 Contact Us For Availability

8

Door Gasket, Magnetic WPL 1125888 Contact Us For Availability

8

Gasket, Shelf WPL 1126191 Contact Us For Availability

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

NLA:SCREW Backorder WPL WPW10141645 $3.70

9

Control, Front Cover WPL 1126275 Contact Us For Availability

9

Stud, Front (2) WPL 946356 Contact Us For Availability

9

Crisper Cover WPL 1125843 Contact Us For Availability

1123394 Whirlpool Refrigerator Cold Control T Backorder WPL 1123394 $89.70

819091 Whirlpool Refrigerator Shelf Stud In Stock WPL 819091 $13.89

Support, Heater WPL 2149120 Contact Us For Availability

Heater, Mullion WPL 2154064 Contact Us For Availability

Insert, Handle (White) WPL 1125693 Contact Us For Availability

Insert, Handle (Almond) WPL 1125694 Contact Us For Availability

Gasket, Cover (Front) (2) WPL 1116713 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

Clip, Mullion (3) WPL 2149060 Contact Us For Availability

Knob, Thermostat WPL 1125831 Contact Us For Availability

Glass, Cover WPL 1125844 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Evaporator Assembly WPL 2153977 Contact Us For Availability

Spacer (3) WPL 2149077 Contact Us For Availability

Handle Assembly WPL 1107238 Contact Us For Availability

support stud (8) WPL 946355 Contact Us For Availability

Pan Shelf, Cantilever WPL 1126189 Contact Us For Availability

Center Rail (White) WPL 1116540 Contact Us For Availability

Center Rail (Almond) WPL 1116543 Contact Us For Availability

Spacer, Handle WPL 1107192 Contact Us For Availability

Light, Bar WPL 1105475 Contact Us For Availability

Cover, Air Duct WPL 2153966 Contact Us For Availability

Gasket, Cover (Rear) (2) WPL 1116714 Contact Us For Availability

Heater, Defrost WPL 2154737 Contact Us For Availability

Spacer, Handle WPL 1107628 Contact Us For Availability

Knob, Air Control WPL 1125832 Contact Us For Availability

Trim, Cover WPL 1123002 Contact Us For Availability

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $53.36

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

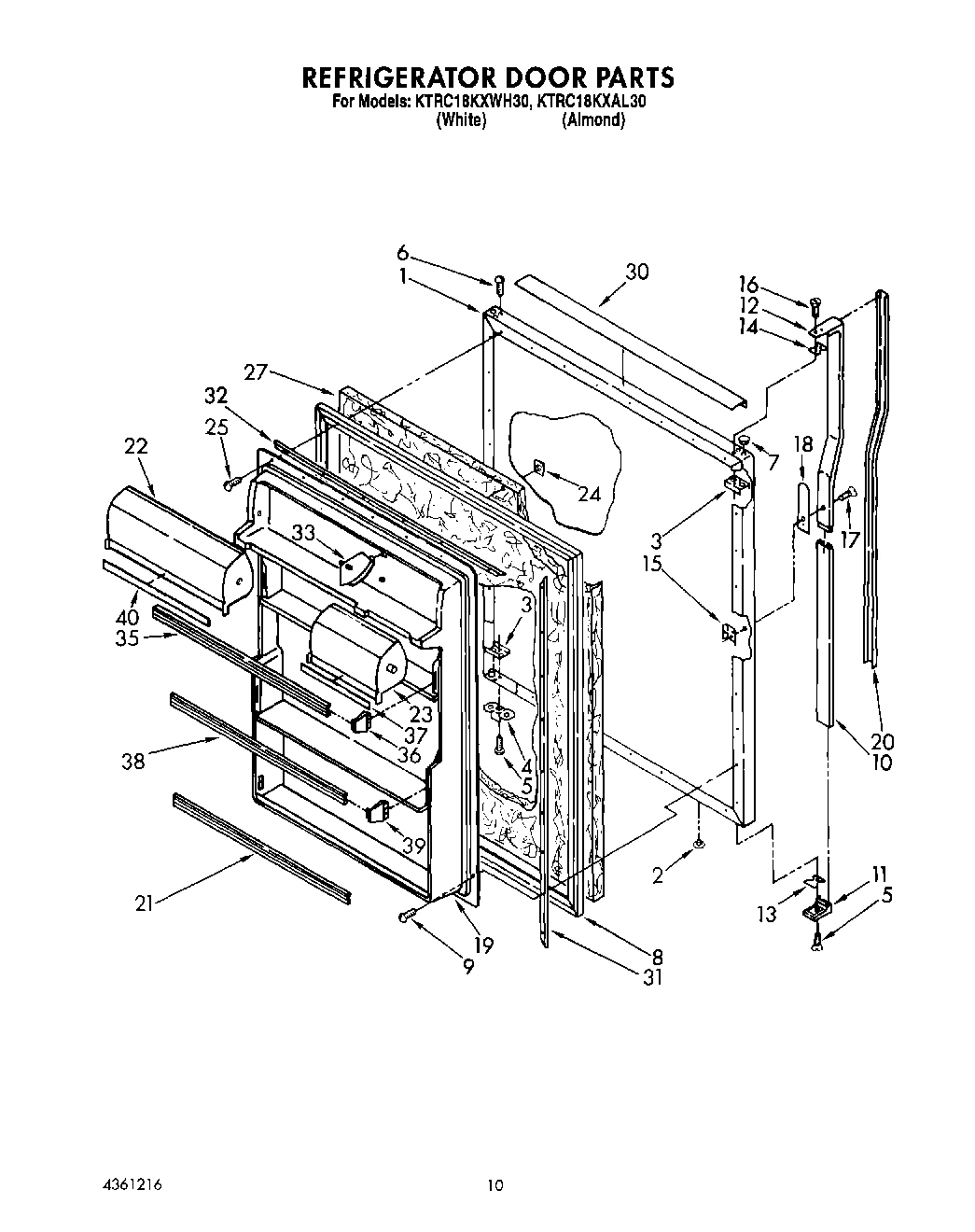

Interior Door Panel WPL 1116610 Contact Us For Availability

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $2.51

Drain Pan & Heat Shield WPL 2153973 Contact Us For Availability

Rod, Connecting WPL 1116565 Contact Us For Availability

Glass, Shelf WPL 1126194 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $28.95

Hinge, Top WPL 1123514 Contact Us For Availability

Trim, Door Shelf (2) WPL 1125866 Contact Us For Availability

Air Diffuser Assembly WPL 2157416 Contact Us For Availability

Shelf, Freezer WPL 1125849 Contact Us For Availability

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

Shim, Hinge Top WPL 1123517 Contact Us For Availability

Nameplate WPL 1126363 Contact Us For Availability

Gasket, Air Diffuser WPL 1114325 Contact Us For Availability

Wine & Egg Rack WPL 1125913 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

Dampener (2) WPL 2149670 Contact Us For Availability

Cover, Air Diffuser WPL 1108176 Contact Us For Availability

Grommet (2) WPL 531933 Contact Us For Availability

Pan, Crisper WPL 1125851 Contact Us For Availability

20

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

20

Tube Clamp (2) WPL 510716 Contact Us For Availability

20

Pan, Meat WPL 1125854 Contact Us For Availability

W11625904 Whirlpool Refrigerator Ice Pan In Stock WPL W11625904 $25.46

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Hinge, Center WPL 2147335 Contact Us For Availability

Light, Bar WPL 1105476 Contact Us For Availability

Screw WPL 489168 Contact Us For Availability

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $6.84

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

Relay (See Overload) WPL ARI109041A Contact Us For Availability

Shim, Hinge Center WPL 836155 Contact Us For Availability

Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability

Grommet WPL 983604 Contact Us For Availability

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

Overload (Production (Includes Relay)) WPL 2149994 Contact Us For Availability

Overload (Service (Includes Relay)) WPL 2154945 Contact Us For Availability

Retainer, Gasket Top & Bottom WPL 1115137 Contact Us For Availability

Gasket, Bottom Separator WPL 1116566 Contact Us For Availability

Scroll, Fan WPL 1116598 Contact Us For Availability

Retainer, Shelf WPL 1126241 Contact Us For Availability

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $4.59

Muffler & Tube Assembly WPL 2154033 Contact Us For Availability

Retainer, Gasket Side (2) WPL 1115138 Contact Us For Availability

Evaporator Cover WPL 2151668 Contact Us For Availability

Shelf, Full Cantilever WPL 1126186 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

Terminal Cover WPL 2154452 Contact Us For Availability

Gasket, Shelf WPL 1126192 Contact Us For Availability

WP2217784 Whirlpool Refrigerator Cover In Stock WPL WP2217784 $16.78

Strap, Cover WPL 1105222 Contact Us For Availability

Hinge Butt, Bottom WPL 2148563 Contact Us For Availability

Insulation, Filler WPL 1108196 Contact Us For Availability

Glass, Full Shelf WPL 1126193 Contact Us For Availability

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

Insulation, Compartment Separator WPL 1116569 Contact Us For Availability

Hole Plug WPL 1103725 Contact Us For Availability

Retainer, Shelf WPL 1118119 Contact Us For Availability

28

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

28

Screw Grommet WPL 509812 Contact Us For Availability

28

Front, Pan WPL 1125852 Contact Us For Availability

29

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

29

Shim, Bottom WPL 1123379 Contact Us For Availability

29

Slide, Front WPL 1125853 Contact Us For Availability

30

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

30

Divider WPL 1125542 Contact Us For Availability

31

Clip, Unit Cover WPL 548744 Contact Us For Availability

31

Spacer WPL 1121117 Contact Us For Availability

31

Shelf, Ice Tray WPL 1125543 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Clip, Wire (2) WPL 548745 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

Screw (6) WPL 489268 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WP1118001 Whirlpool Hinge Pin Backorder WPL WP1118001 $3.70

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $13.77

Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability

Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability

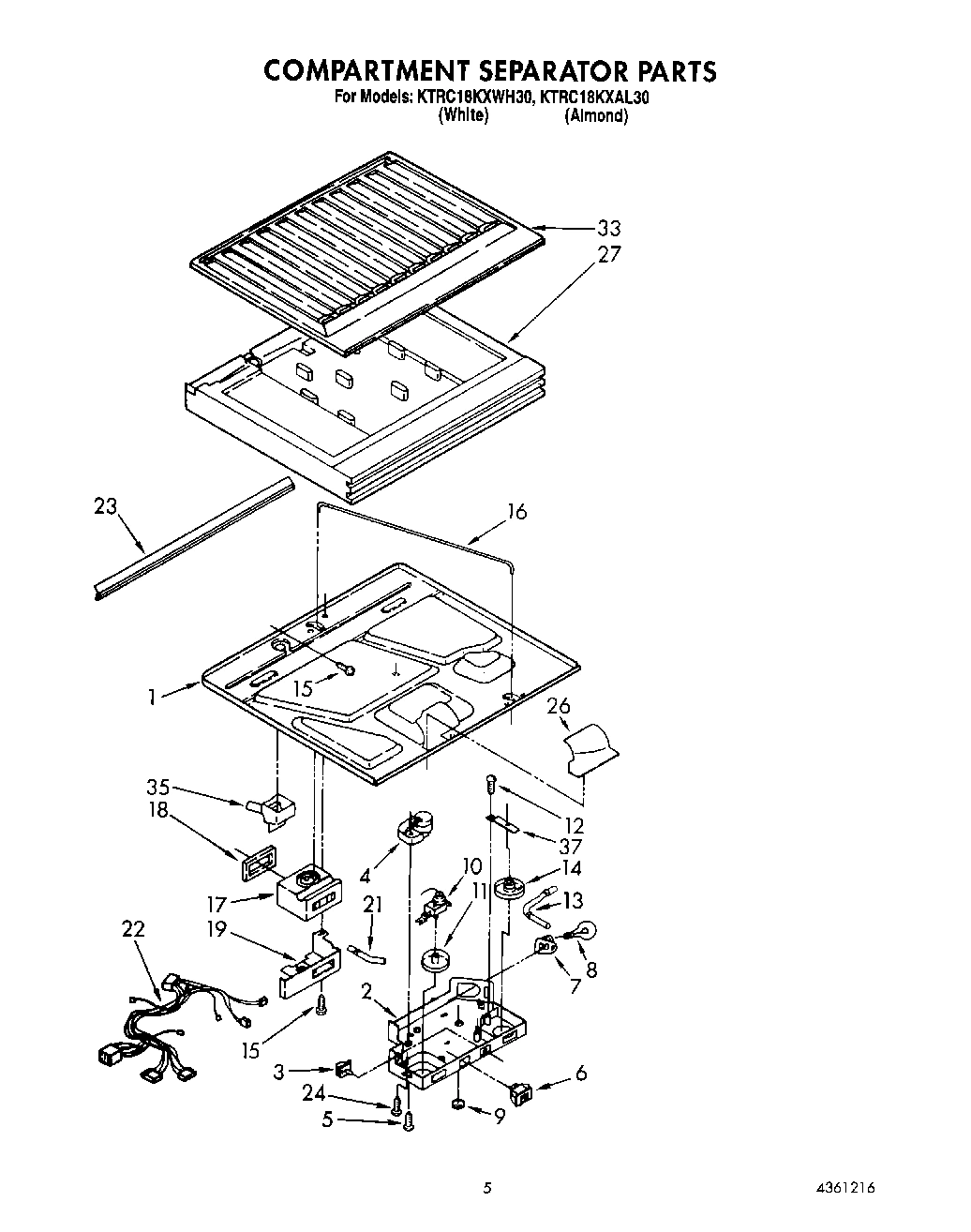

Separator, Compartment (Top) WPL 1116570 Contact Us For Availability

34

Filler, Wrapper Corner (2) (White) WPL 1118058 Contact Us For Availability

34

Filler, Wrapper Corner (2) (Almond) WPL 1118059 Contact Us For Availability

Unit, Rail WPL 1116622 Contact Us For Availability

Grille (White) WPL 1125664 Contact Us For Availability

Grille (Almond) WPL 1125669 Contact Us For Availability

Cup, Drain WPL 937065 Contact Us For Availability

36

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

36

Hole Plug (4) (White) WPL 1129062 Contact Us For Availability

36

Hole Plug (4) (Almond) WPL 1129063 Contact Us For Availability

37

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

37

Wiring Assembly, Intermediate WPL 2153994 Contact Us For Availability

37

Bracket, Control Knob WPL 1105457 Contact Us For Availability

39

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

39

Drain Extension WPL 2154118 Contact Us For Availability

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

Trimless Glass (Black WPL 4318413 Contact Us For Availability

WPL 4318427 WPL 4318427 Contact Us For Availability

WPL 4318428 WPL 4318428 Contact Us For Availability

WPL 4318429 WPL 4318429 Contact Us For Availability

Air, Baffle WPL 2154102 Contact Us For Availability

41

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $8.20

41

Fan, Mounting Bracket WPL 2154110 Contact Us For Availability

41

Hole Plug (Almond) WPL 2151653 Contact Us For Availability

42

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

43

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

44

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

44

Cord, Service WPL 937360 Contact Us For Availability

45

Fan Blade WPL 1115135 Contact Us For Availability

46

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

47

Tray, Evaporator WPL 1116604 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Wedge, Air Baffle WPL 1118017 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Cover, Unit WPL 1116613 Contact Us For Availability

60

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

61

Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability

64

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

68

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94
