Model Whirlpool KTRC18KBWH00 – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2154850 WPL LIT2154850 Contact Us For Availability

WPL LIT2161833 WPL LIT2161833 Contact Us For Availability

WPL LIT2168824 WPL LIT2168824 Contact Us For Availability

1

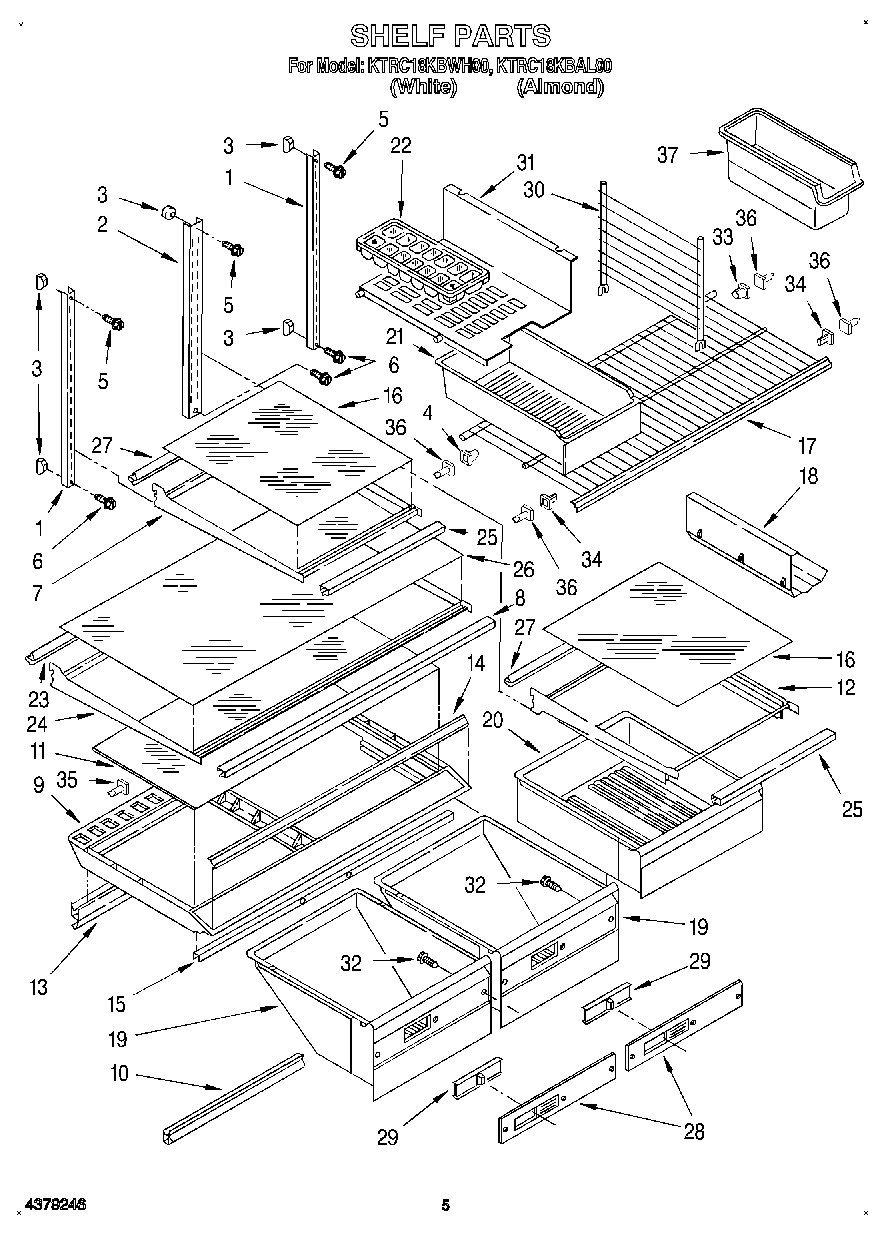

Shelf, Ladder (2) WPL 1114466 Contact Us For Availability

1

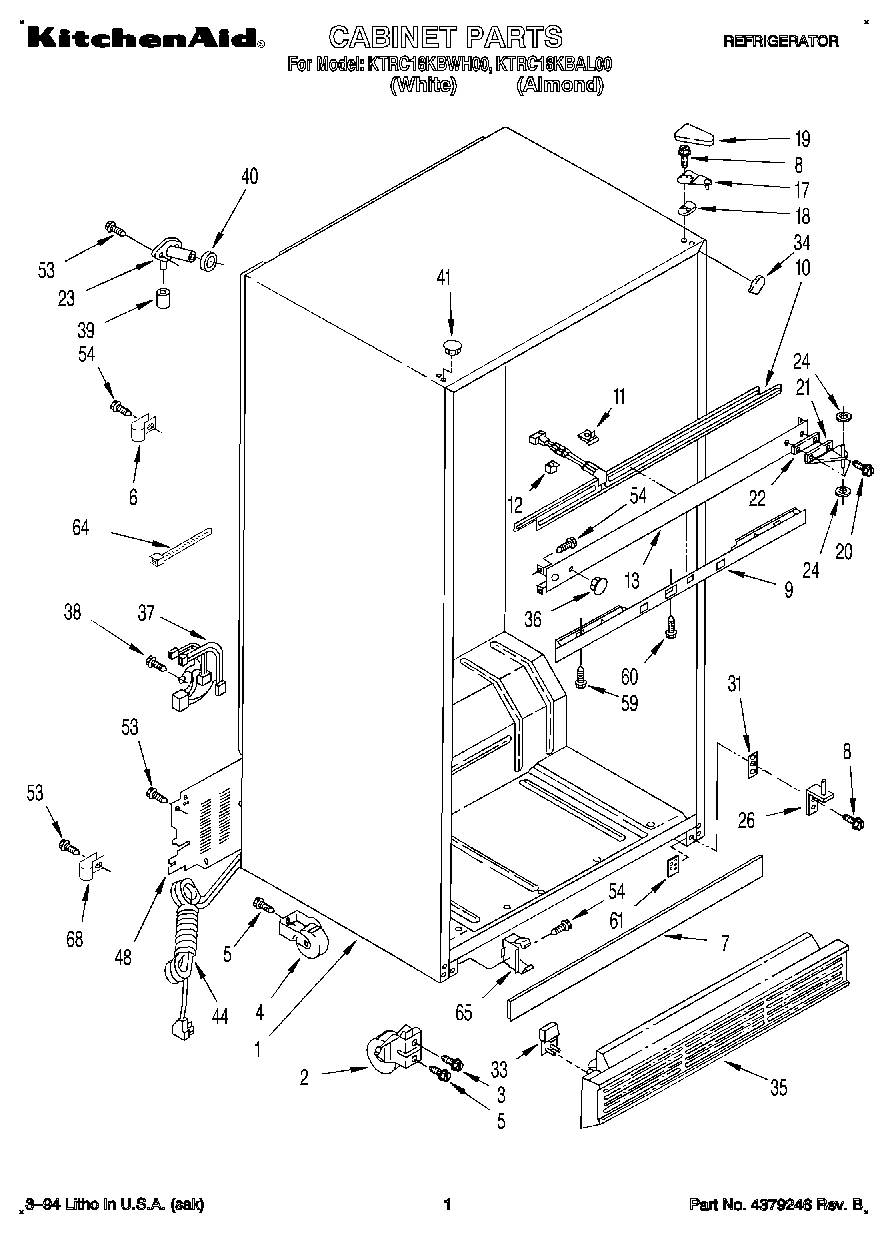

Cabinet (Not A Serviceable Part) WPL ARI109018A Contact Us For Availability

1

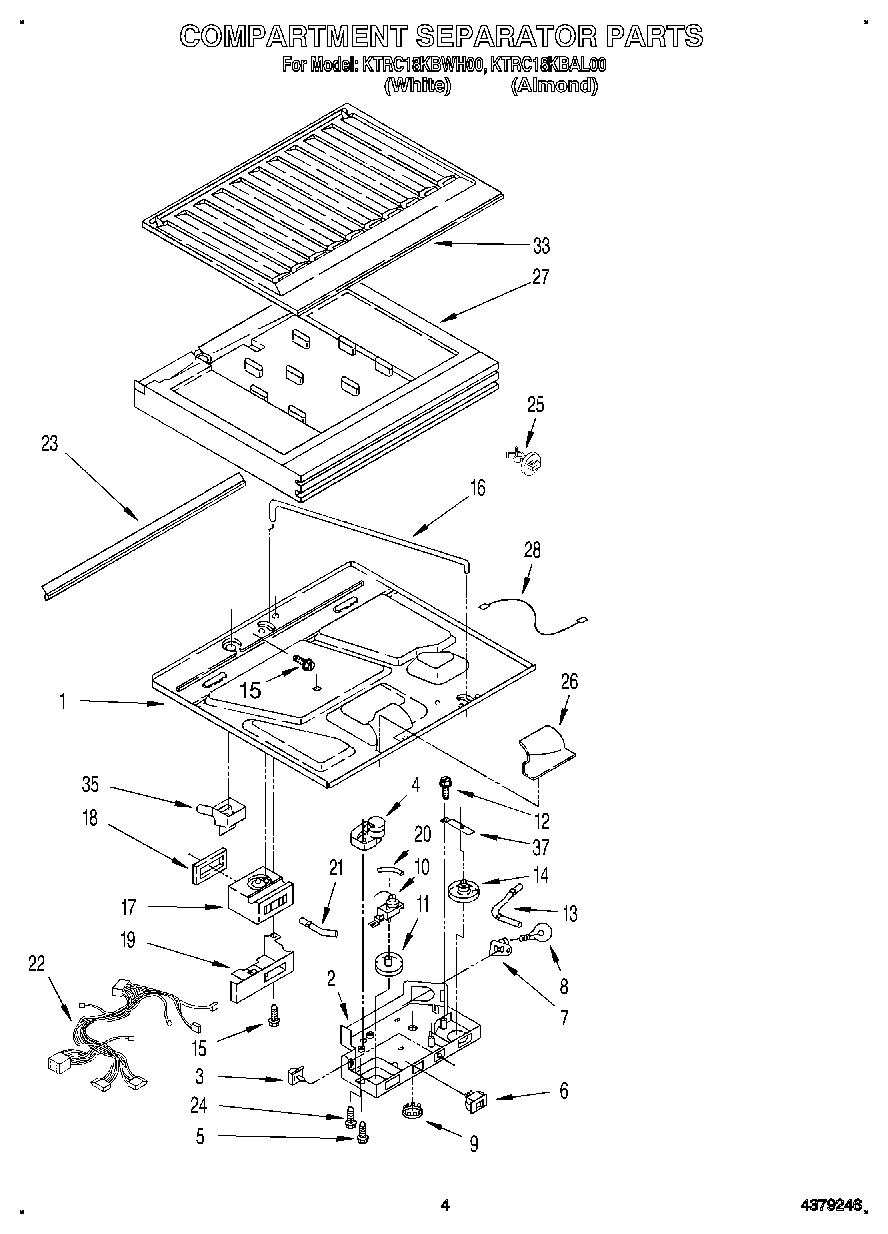

Bottom, Compartment Separator WPL 2172814 Contact Us For Availability

1

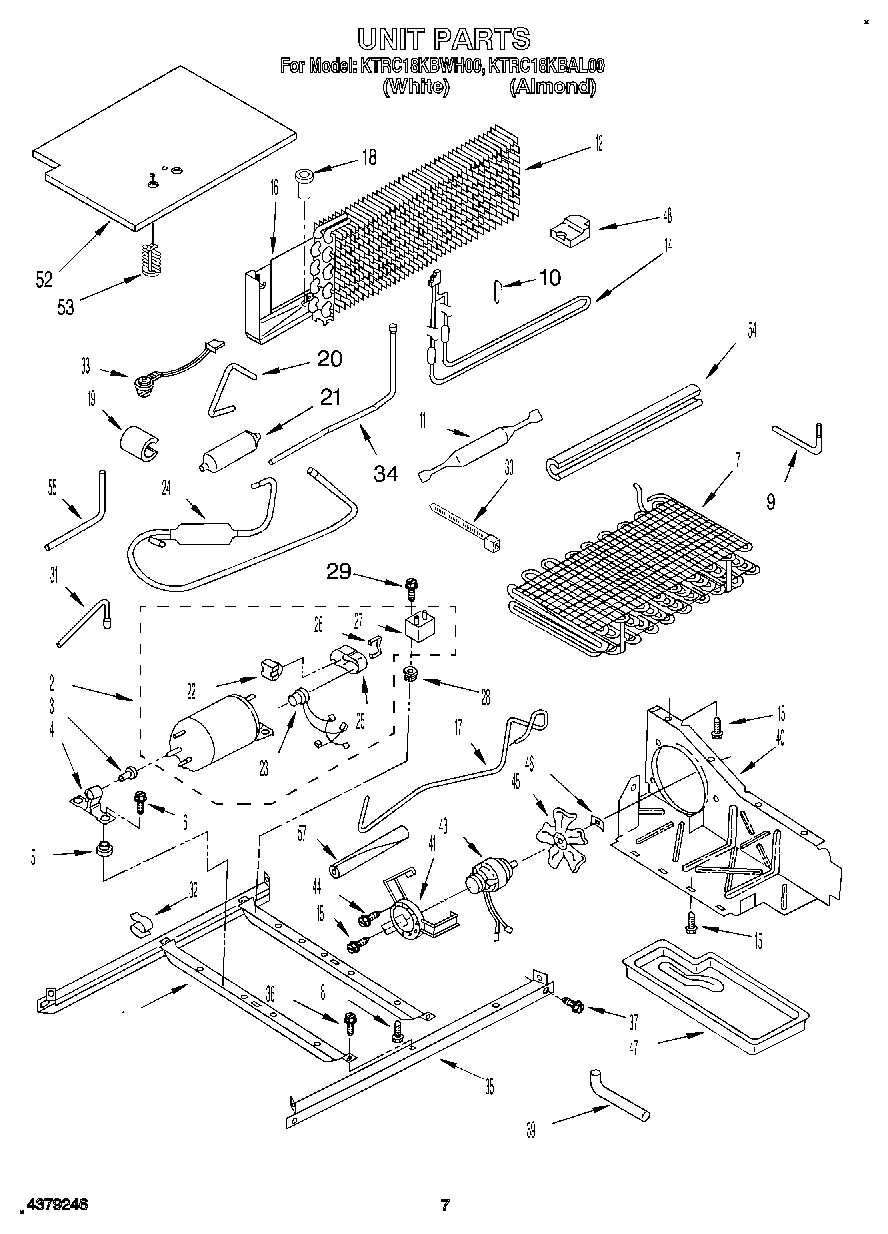

Unit, Frame WPL 2159747 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Shelf, Ladder Center WPL 1114465 Contact Us For Availability

2

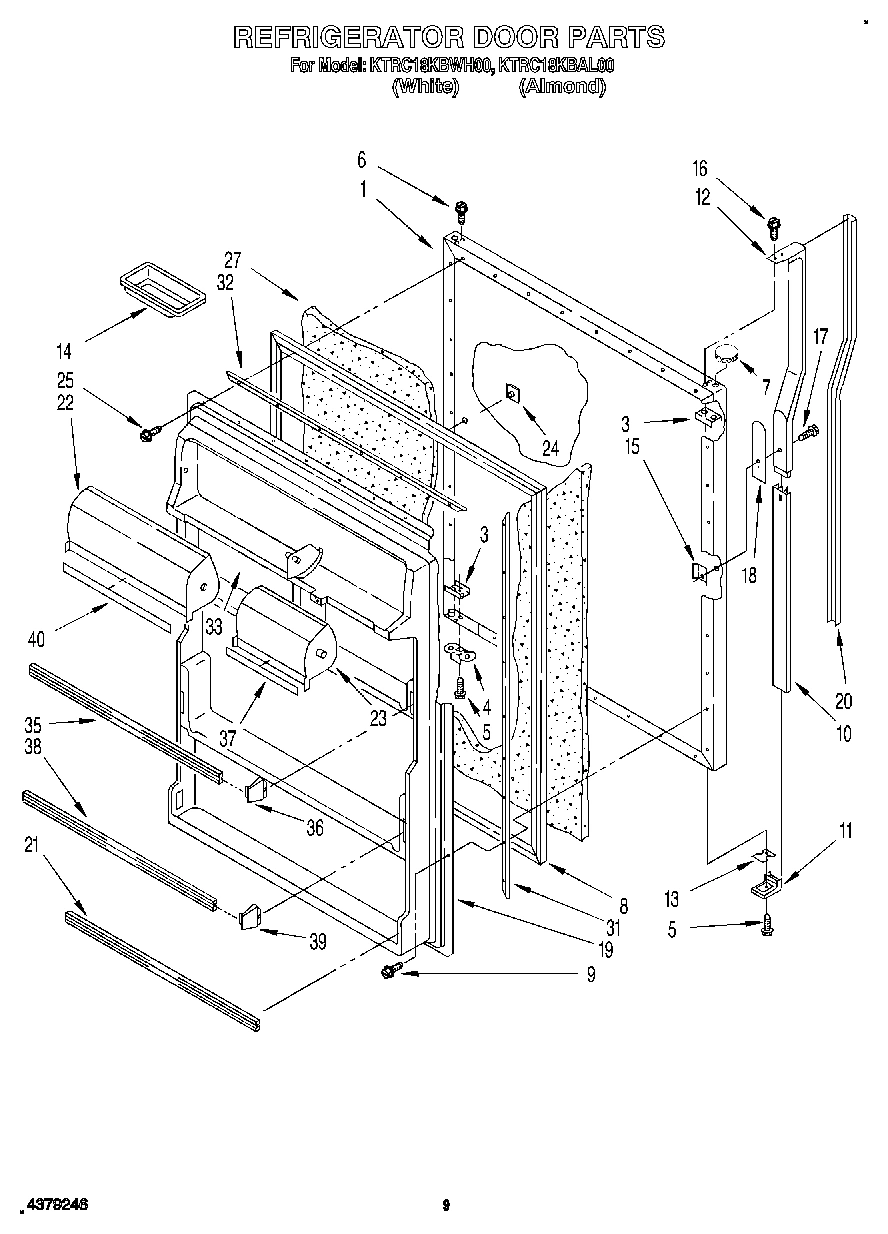

Roller, Front WPL 2152011 Contact Us For Availability

2

Box, Control WPL 1126029 Contact Us For Availability

2

Compressor KIt Includes Items 22 (23, 25, 26 WPL 2154564 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

3

Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability

3

Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability

4

WP2183400 Whirlpool Defrost Timer In Stock WPL WP2183400 $38.88

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Bracket, Door Stop WPL 944036 Contact Us For Availability

4

Bracket, Mounting WPL 1105220 Contact Us For Availability

5

WP487353 Whirlpool Refrigerator Screw In Stock WPL WP487353 $2.51

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Screw, WPL 489345 Contact Us For Availability

5

Screw, WPL 488454 Contact Us For Availability

5

Grommet, Compressor (4) WPL 1105200 Contact Us For Availability

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

6

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $2.51

6

Switch, Toggle WPL 938213 Contact Us For Availability

6

Screw WPL 489334 Contact Us For Availability

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $3.70

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

Shelf, Cantilever WPL 1126187 Contact Us For Availability

7

Deck Rail Cover WPL 2172703 Contact Us For Availability

7

Condenser Assembly WPL 2154008 Contact Us For Availability

8

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.89

8

Door Gasket, Magnetic WPL 1125889 Contact Us For Availability

8

Gasket, Shelf WPL 1126191 Contact Us For Availability

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

Crisper Cover WPL 1125843 Contact Us For Availability

9

Control, Front Cover WPL 1126275 Contact Us For Availability

9

Tube, Process WPL 2154040 Contact Us For Availability

1123394 Whirlpool Refrigerator Cold Control T Backorder WPL 1123394 $89.70

Retainer, Insert WPL 1125879 Contact Us For Availability

Gasket, Cover (Front) (2) WPL 1116713 Contact Us For Availability

Heater, Mullion WPL 2154064 Contact Us For Availability

Support, Heater WPL 2149120 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

Handle End Cap WPL 1107236 Contact Us For Availability

Glass, Cover WPL 1125844 Contact Us For Availability

Clip, Mullion (6) WPL 1129018 Contact Us For Availability

Knob, Thermostat WPL 2168905 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Handle Assembly WPL 2161508 Contact Us For Availability

Pan Shelf, Cantilever WPL 1126189 Contact Us For Availability

Spacer (3) WPL 2149077 Contact Us For Availability

Evaporator Assembly WPL 2153977 Contact Us For Availability

Shim, End Cap WPL 2151813 Contact Us For Availability

Gasket, Cover (Rear) (2) WPL 1116714 Contact Us For Availability

Center Rail WPL 2172701 Contact Us For Availability

Light, Bar WPL 1105475 Contact Us For Availability

Butter, Tray WPL 1125936 Contact Us For Availability

Trim, Cover WPL 2172715 Contact Us For Availability

Knob, Air Control WPL 2168904 Contact Us For Availability

Heater, Defrost WPL 2162020 Contact Us For Availability

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $53.36

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $2.51

Glass, Shelf WPL 1126194 Contact Us For Availability

Rod, Connecting WPL 1116565 Contact Us For Availability

Drain Pan & Heat Shield WPL 2153973 Contact Us For Availability

WP2189412 Whirlpool Refrigerator Door Hinge Backorder WPL WP2189412 $39.86

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

Shelf, Freezer WPL 1125849 Contact Us For Availability

Air Diffuser Assembly WPL 2157252 Contact Us For Availability

Tube, Discharge WPL 2154028 Contact Us For Availability

Spacer, Handle WPL 1107650 Contact Us For Availability

Wine & Egg Rack WPL 1125913 Contact Us For Availability

Shim, Hinge Top WPL 2157269 Contact Us For Availability

Gasket, Air Diffuser WPL 2157255 Contact Us For Availability

Drain Fitting WPL 2172811 Contact Us For Availability

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

Interior Door Panel WPL 1118123 Contact Us For Availability

Pan, Crisper WPL 2168877 Contact Us For Availability

Hinge Cover (Almond) WPL 2160404 Contact Us For Availability

Cover, Air Diffuser WPL 1108176 Contact Us For Availability

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Insert, Handle (White) WPL 2161511 Contact Us For Availability

Insert, Handle (Almond) WPL 2161512 Contact Us For Availability

Pan, Meat WPL 2168878 Contact Us For Availability

Tube, Muffler & Reservoir WPL 2169348 Contact Us For Availability

W11625904 Whirlpool Refrigerator Ice Pan In Stock WPL W11625904 $25.46

Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability

Trim, Door Shelf WPL 1125857 Contact Us For Availability

Hinge, Center WPL 2151453 Contact Us For Availability

Light, Bar WPL 1105476 Contact Us For Availability

Reservoir WPL 2169343 Contact Us For Availability

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

Compartment Door, L.S. WPL 1126234 Contact Us For Availability

Shim, Hinge Center WPL 836155 Contact Us For Availability

Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability

Relay (See Overload) WPL ARI109020A Contact Us For Availability

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

Compartment Door, R.S. WPL 1126233 Contact Us For Availability

Retainer, Shelf WPL 1126241 Contact Us For Availability

Gasket, Bottom Separator WPL 2159733 Contact Us For Availability

Overload (Service (Includes Relay)) WPL 2154945 Contact Us For Availability

Overload (Production (Includes Relay)) WPL 2159611 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability

Shelf, Full Cantilever WPL 1126186 Contact Us For Availability

Muffler & Tube Assembly WPL 2159588 Contact Us For Availability

25

Gasket, Shelf WPL 1126192 Contact Us For Availability

25

Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability

25

Terminal Cover WPL 2154452 Contact Us For Availability

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

Glass, Full Shelf WPL 1126193 Contact Us For Availability

Insulation, Filler WPL 1108196 Contact Us For Availability

Strap, Cover WPL 1105222 Contact Us For Availability

27

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

27

Retainer, Shelf WPL 1118119 Contact Us For Availability

27

Insulation, Compartment Separator WPL 1116569 Contact Us For Availability

28

Front, Pan WPL 2168724 Contact Us For Availability

28

Wire Assembly WPL 2154921 Contact Us For Availability

28

Screw Grommet WPL 509812 Contact Us For Availability

29

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

29

Slide, Front WPL 1125853 Contact Us For Availability

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

30

Divider WPL 1125542 Contact Us For Availability

Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability

Shelf, Ice Tray WPL 1125543 Contact Us For Availability

Spacer WPL 2172744 Contact Us For Availability

Tube, Process WPL 2154090 Contact Us For Availability

32

Retainer, Gasket Top & Bottom (2) WPL 1115137 Contact Us For Availability

32

Screw WPL 489268 Contact Us For Availability

32

Clip, Wire WPL 548745 Contact Us For Availability

819091 Whirlpool Refrigerator Shelf Stud In Stock WPL 819091 $13.89

WP1118001 Whirlpool Hinge Pin Backorder WPL WP1118001 $3.70

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $13.77

Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability

Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability

Separator, Compartment (Top) WPL 2157398 Contact Us For Availability

Shelf Stud WPL 946356 Contact Us For Availability

Filler, Wrapper Corner (2) (White) WPL 1118058 Contact Us For Availability

Filler, Wrapper Corner (2) (Almond) WPL 1118059 Contact Us For Availability

Tube, Reservoir & Heat Exchanger WPL 2169346 Contact Us For Availability

Shelf Stud (2) WPL 1106612 Contact Us For Availability

Trim, Shelf WPL 1125866 Contact Us For Availability

Grille (White) WPL 1125664 Contact Us For Availability

Grille (Almond) WPL 1125669 Contact Us For Availability

Cup, Drain WPL 937065 Contact Us For Availability

Unit, Rail WPL 1116622 Contact Us For Availability

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $6.84

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

Support, Stud WPL 946355 Contact Us For Availability

Hole Plug WPL 1129062 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Trim, Compartment WPL 2148588 Contact Us For Availability

Door Reversal Instructions WPL 2172757 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Wiring Assembly, Intermediate WPL 2153994 Contact Us For Availability

Bracket, Control Knob WPL 1105457 Contact Us For Availability

38

Trim, Shelf WPL 1117944 Contact Us For Availability

39

4318297 Whirlpool Refrigerator Shelf Bar Endc In Stock WPL 4318297 $10.39

39

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

39

Drain Extension WPL 2154118 Contact Us For Availability

40

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

40

Trim, Compartment Door WPL 1121186 Contact Us For Availability

40

Air, Baffle WPL 2169432 Contact Us For Availability

41

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $8.20

41

Hole Plug (Almond) WPL 2151653 Contact Us For Availability

41

Fan, Mounting Bracket WPL 2162060 Contact Us For Availability

43

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

44

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

44

Cord, Service WPL 937360 Contact Us For Availability

45

Fan Blade WPL 1115135 Contact Us For Availability

46

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

47

Tray, Evaporator WPL 1116604 Contact Us For Availability

48

Cover, Unit WPL 2160514 Contact Us For Availability

48

Wedge, Air Baffle WPL 1118017 Contact Us For Availability

52

Cover, Unit Bottom WPL 2160517 Contact Us For Availability

53

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

53

NLA:SCREW Backorder WPL WPW10141645 $3.70

55

Tube, Condenser To Heat Loop WPL 2154031 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Sleeve WPL 2159751 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

60

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

61

Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

68

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94
