Model Whirlpool KSM7586PBK0 SMALL APPLIANCE, STAND MIXER, BOWL LIFT, 7 QT – Common Parts & Diagrams

Common parts from model Whirlpool KSM7586PBK0 SMALL APPLIANCE, STAND MIXER, BOWL LIFT, 7 QT

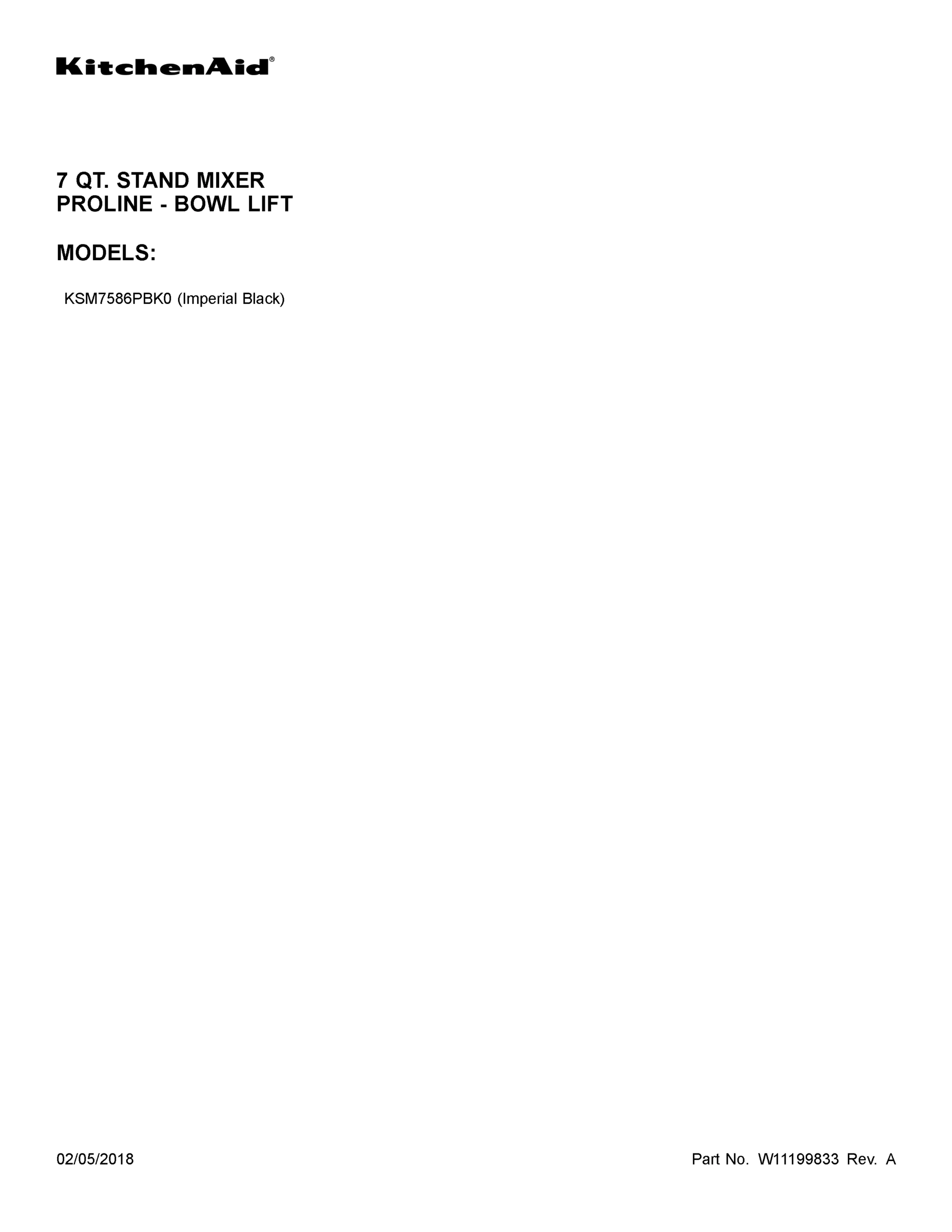

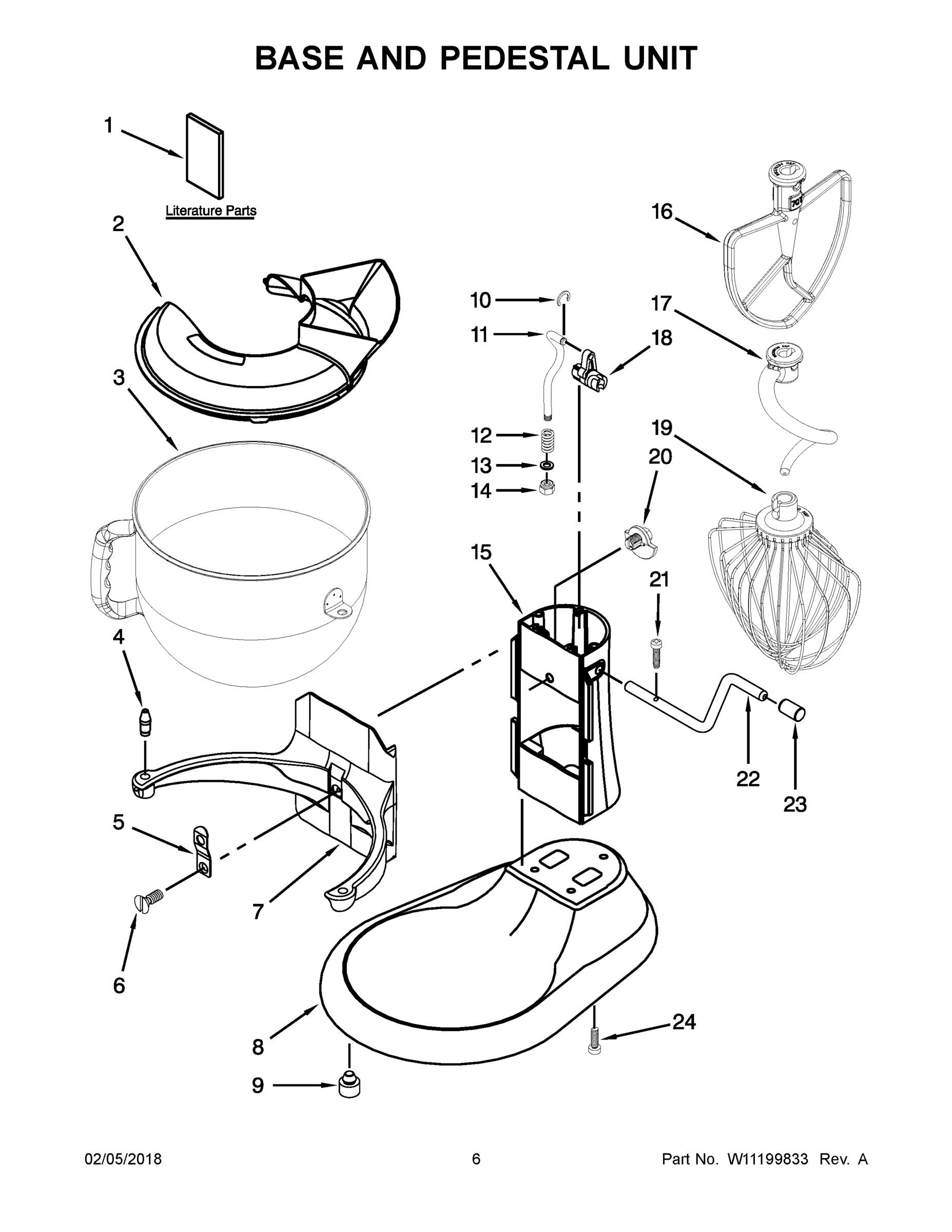

01 - COVER SHEET

Print

• This Diagram
• All Diagrams

1

9703532 Whirlpool Housing Assembly Backorder WPL 9703532 View Details $58.32

View on Model

2

W10234515 Whirlpool Trim Band Backorder WPL W10234515 View Details $27.43

View on Model

3

LOWER GEARCASE (IMPERIAL BLACK) WPL W10737003 Contact Us For Availability

View on Model

4

W10737004 Whirlpool Planetary Assembly Backorder WPL W10737004 View Details $65.47

View on Model

4

WP240185 Whirlpool Bowl Retaining Pin Backorder WPL WP240185 View Details $2.91

View on Model

5

WPW10305968 Whirlpool Holder Backorder WPL WPW10305968 View Details $2.91

View on Model

5

WPW10504114 Whirlpool Clip In Stock WPL WPW10504114 View Details $2.91

View on Model

5

BOWL SUPPORT AND PINS (IMPERIAL BLACK) WPL 9703520 Contact Us For Availability

View on Model

6

COLUMN AND PINS (IMPERIAL BLACK) WPL 9703526 Contact Us For Availability

View on Model

7

GEAR, RING AND PLATE ASSEMBLY WPL W10234493 Contact Us For Availability

View on Model

7

BASE AND FOOT ASSEMBLY (IMPERIAL BLACK) WPL 9703511 Contact Us For Availability

View on Model

9

WP3400814 Whirlpool Screw Backorder WPL WP3400814 View Details $2.91

View on Model

9

WP9708649 Whirlpool Foot Backorder WPL WP9708649 View Details $2.91

View on Model

10

WPW10517938 Whirlpool Motor Assembly In Stock WPL WPW10517938 View Details $133.34

View on Model

11

ROD, BOWL LIFT WPL W10598835 Contact Us For Availability

View on Model

12

W11666266 Whirlpool Speed Control Backorder WPL W11666266 View Details $95.48

View on Model

13

WPW10234531 Whirlpool Dishwasher Groove Pin In Stock WPL WPW10234531 View Details $2.91

View on Model

14

8533907 Whirlpool Dishwasher Nut Backorder WPL 8533907 View Details $17.70

View on Model

15

PLANETARY ASSEMBLY (REFER TO COLOR VARIATION WPL NP Contact Us For Availability

View on Model

16

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 View Details $2.05

View on Model

17

WP9706090 Whirlpool Washer In Stock WPL WP9706090 View Details $2.91

View on Model

18

WP9706885 Whirlpool Lift Arm Assembly In Stock WPL WP9706885 View Details $2.91

View on Model

18

WPW10234643 Whirlpool Gear Assembly Backorder WPL WPW10234643 View Details $3.33

View on Model

19

WP9707223 Whirlpool Dowel Pin In Stock WPL WP9707223 View Details $2.91

View on Model

19

WPW10600940 Whirlpool Wire Whip Backorder WPL WPW10600940 View Details $51.66

View on Model

20

W10854966 Whirlpool Washer Backorder WPL W10854966 View Details $2.91

View on Model

20

CAM, ADJUSTING WPL 9703426 Contact Us For Availability

View on Model

21

WP9708191 Whirlpool Agitator Shaft Backorder WPL WP9708191 View Details $10.39

View on Model

22

WP9703680 Whirlpool Retainer Ring In Stock WPL WP9703680 View Details $2.91

View on Model

23

W10512907 Whirlpool Screw Backorder WPL W10512907 View Details $32.98

View on Model

24

W11664709 Whirlpool Groove Pin Backorder WPL W11664709 View Details $4.43

View on Model

×
