Model Whirlpool KSM70SNDXWH0 SMALL APPLIANCE, STAND MIXER – Common Parts & Diagrams
01 - COVER SHEET
02 - COLOR VARIATION PARTS

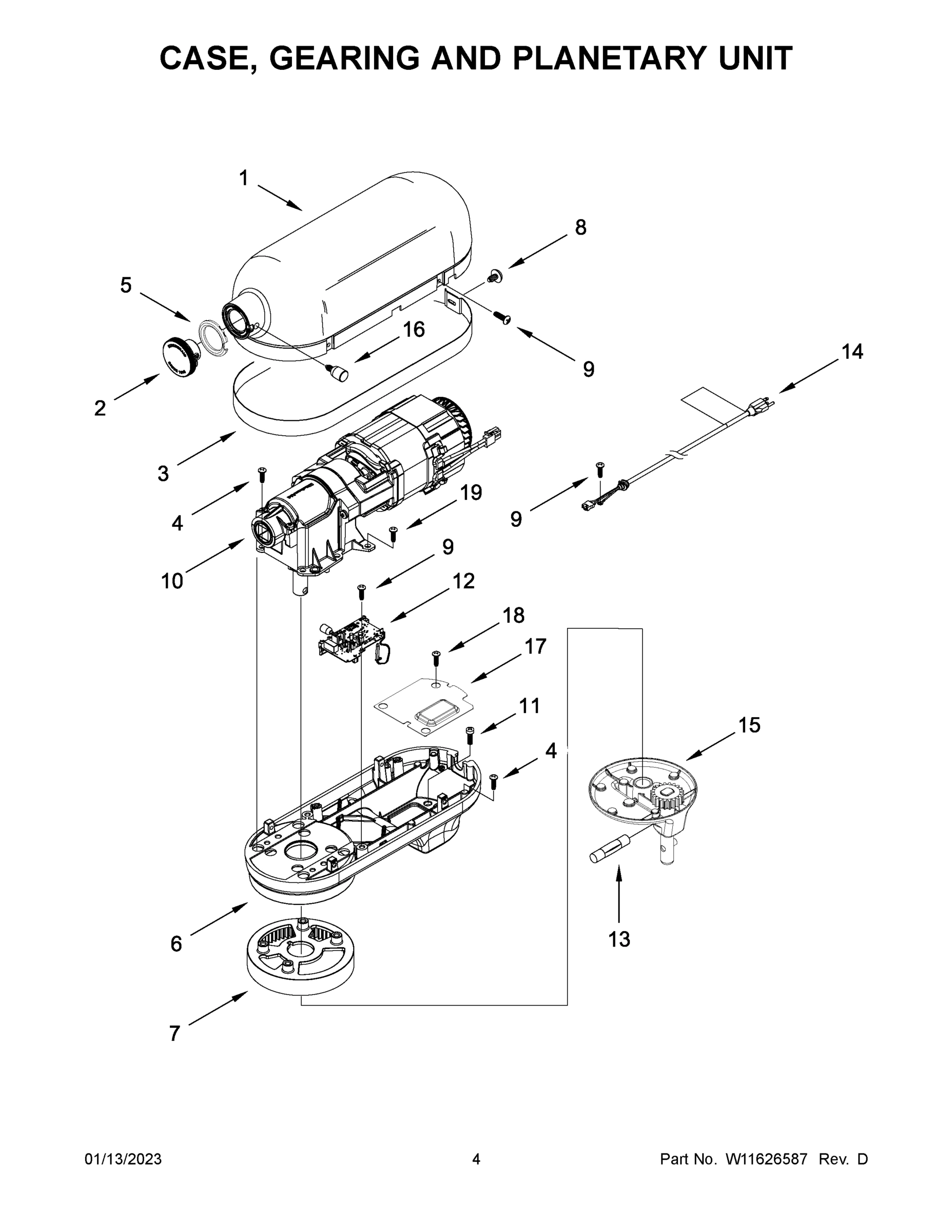

03 - CASE, GEARING AND PLANETARY UNIT

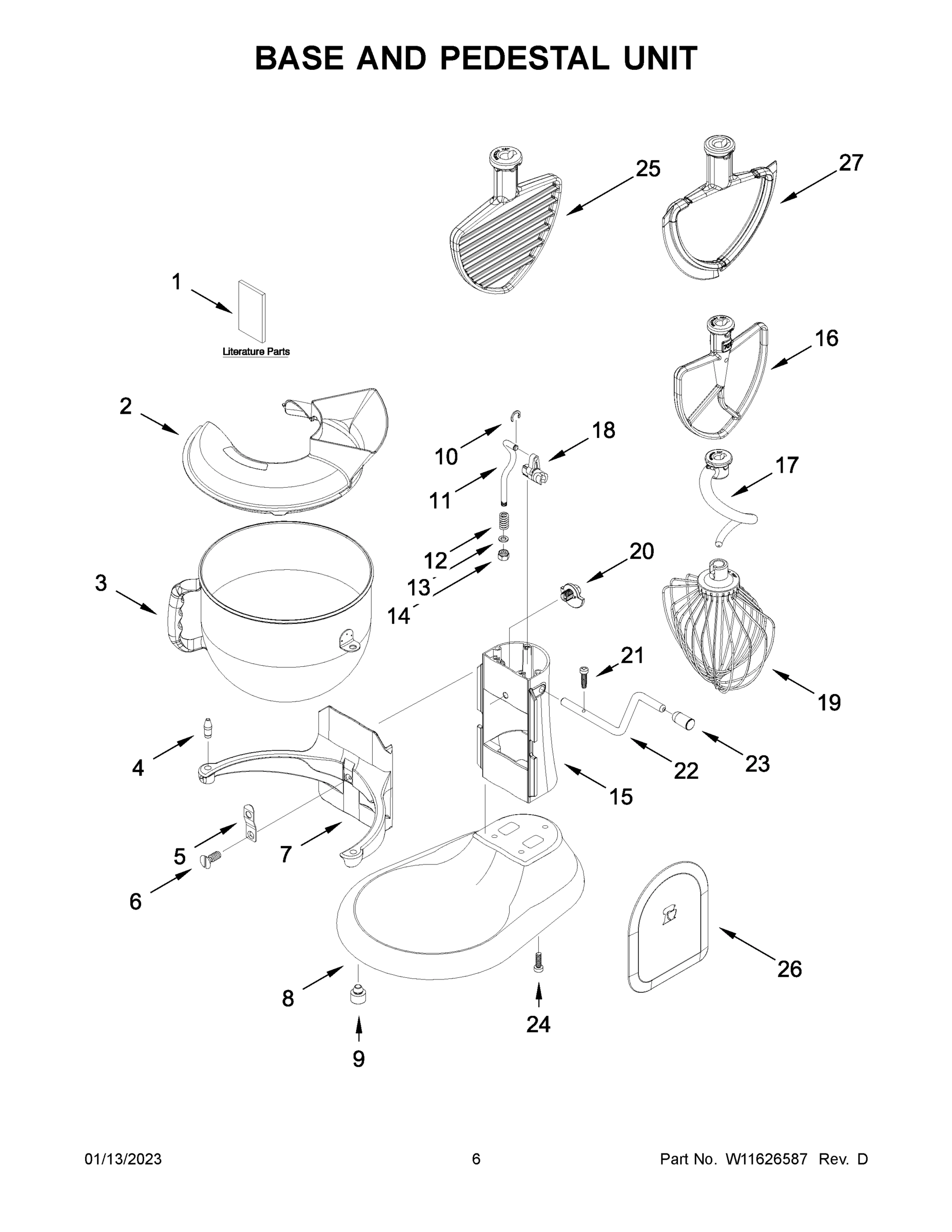

04 - BASE AND PEDESTAL UNIT
Common parts from model Whirlpool KSM70SNDXWH0 SMALL APPLIANCE, STAND MIXER
1
USE AND CARE GUIDE WPL W11545291 Contact Us For Availability
1B
MOTOR HOUSING (EMPIRE RED) WPL 9705300 Contact Us For Availability
1E
MOTOR HOUSING (WHITE) WPL 9703311 Contact Us For Availability
2
COVER, ATTACHMENT HUB - DUAL FINISH WPL W11591898 Contact Us For Availability
2
SHIELD, POURING (WIDE) WPL W11385624 Contact Us For Availability
3
BOWL, 7 QT. (BRUSHED) WPL W11512549 Contact Us For Availability
3A
LOWER GEARCASE (CONTOUR SILVER) WPL W11520143 Contact Us For Availability
3B
LOWER GEARCASE (EMPIRE RED) WPL W11520142 Contact Us For Availability
3C
LOWER GEARCASE (MILKSHAKE) WPL W11520138 Contact Us For Availability
3D
LOWER GEARCASE (PISTACHIO) WPL W11520137 Contact Us For Availability
3E
LOWER GEARCASE (WHITE) WPL W11520144 Contact Us For Availability
4
PLANETARY (SILENT SILVER) WPL W11595416 Contact Us For Availability
5
BOWL SUPPORT AND PINS (BLACK MATTE) WPL W11328664 Contact Us For Availability
5A
BOWL SUPPORT AND PINS (CONTOUR SILVER) WPL W10327966 Contact Us For Availability
5B
BOWL SUPPORT AND PINS (EMPIRE RED) WPL 9705360 Contact Us For Availability
5C
BOWL SUPPORT AND PINS (MILKSHAKE) WPL W11113728 Contact Us For Availability
5D
BOWL SUPPORT AND PINS (PISTACHIO) WPL W11417635 Contact Us For Availability
5E
BOWL SUPPORT AND PINS (WHITE) WPL 9703674 Contact Us For Availability
6
COLUMN AND PINS (BLACK MATTE) WPL W11123140 Contact Us For Availability
6A
COLUMN AND PINS (CONTOUR SILVER) WPL W10328003 Contact Us For Availability
6B
COLUMN AND PINS (EMPIRE RED) WPL 9705324 Contact Us For Availability
6C
COLUMN AND PINS (MILKSHAKE) WPL W11113727 Contact Us For Availability
6D
COLUMN AND PINS (PISTACHIO) WPL 9708104 Contact Us For Availability
6E
COLUMN AND PINS (WHITE) WPL 9703673 Contact Us For Availability
7
BASE AND FOOT ASSEMBLY (BLACK MATTE) WPL W11123131 Contact Us For Availability
7
GEAR, RING AND PLATE ASSEMBLY WPL W11454895 Contact Us For Availability
7A
BASE AND FOOT ASSEMBLY (CONTOUR SILVER) WPL W10328017 Contact Us For Availability
7B
BASE AND FOOT ASSEMBLY (EMPIRE RED) WPL 9705348 Contact Us For Availability
7C
BASE AND FOOT ASSEMBLY (MILKSHAKE) WPL W11113722 Contact Us For Availability
7D
BASE AND FOOT ASSEMBLY (PISTACHIO) WPL 9708107 Contact Us For Availability
7E
BASE AND FOOT ASSEMBLY (WHITE) WPL 9703690 Contact Us For Availability
11
ROD, BOWL LIFT WPL W11376364 Contact Us For Availability
13
WASHER WPL 9703439 Contact Us For Availability
14
NUT WPL 8533907 Contact Us For Availability
14
CORD, POWER (BLACK) WPL W11459266 Contact Us For Availability
15
PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability
16
THUMB SCREW (CHROME) WPL W11521863 Contact Us For Availability
17
PLATE, LOWER HOUSING WPL W11560130 Contact Us For Availability
18
SCREW WPL W10419037 Contact Us For Availability
19
SCREW WPL W11457471 Contact Us For Availability
20
CAM, ADJUSTING WPL 9703426 Contact Us For Availability
22
HANDLE, BOWL LIFT WPL W11376371 Contact Us For Availability
23
CAP, HANDLE WPL W11627641 Contact Us For Availability
25
BEATER, PASTRY (STAINLESS) WPL W11518260 Contact Us For Availability
26
SCRAPER, POT (NYLON) WPL W11550306 Contact Us For Availability
27
BEATER, DOUBLE FLEX EDGE (SILENT SILVER) WPL W11569890 Contact Us For Availability
× ![]()
