Model Whirlpool KSM70SNDXMI0 SMALL APPLIANCE, STAND MIXER – Common Parts & Diagrams

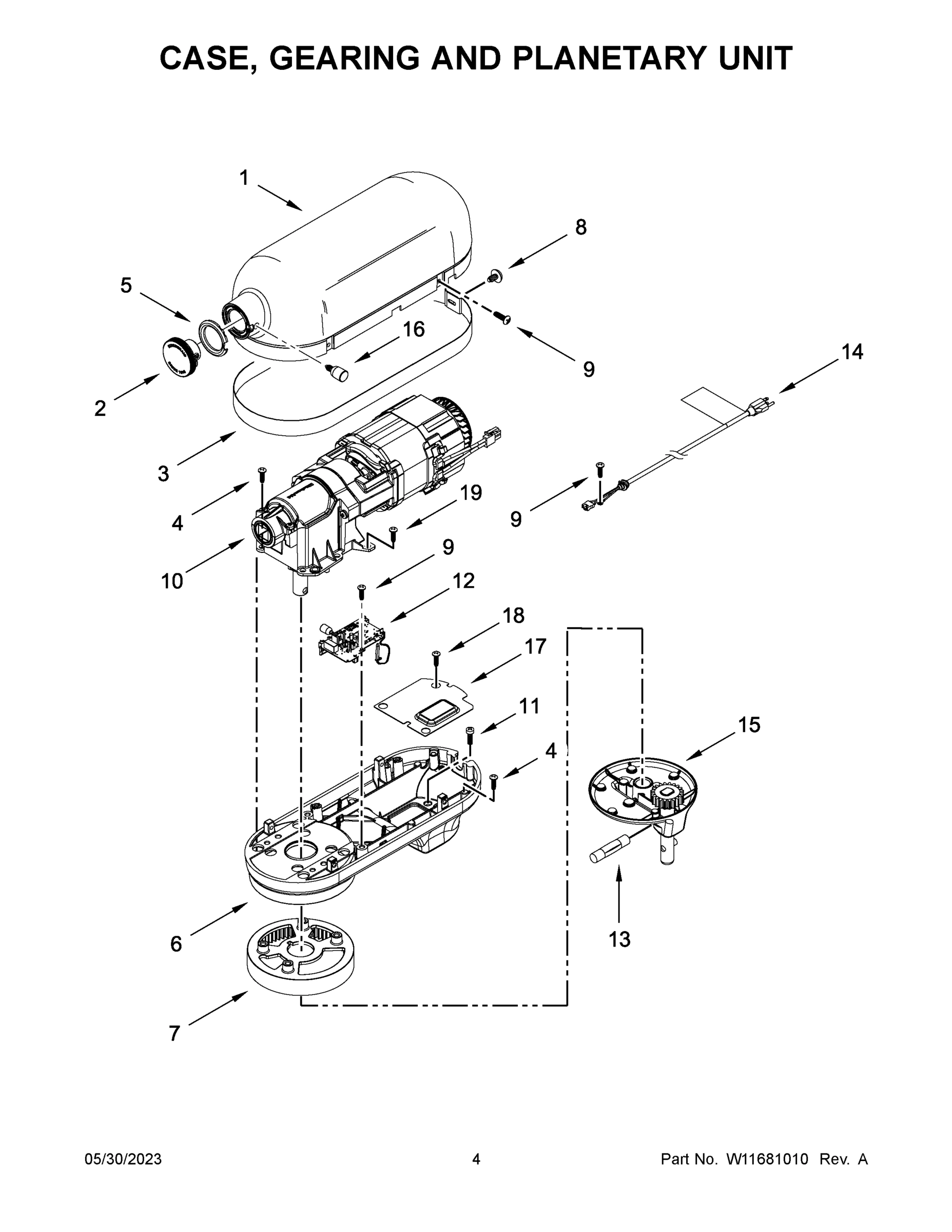

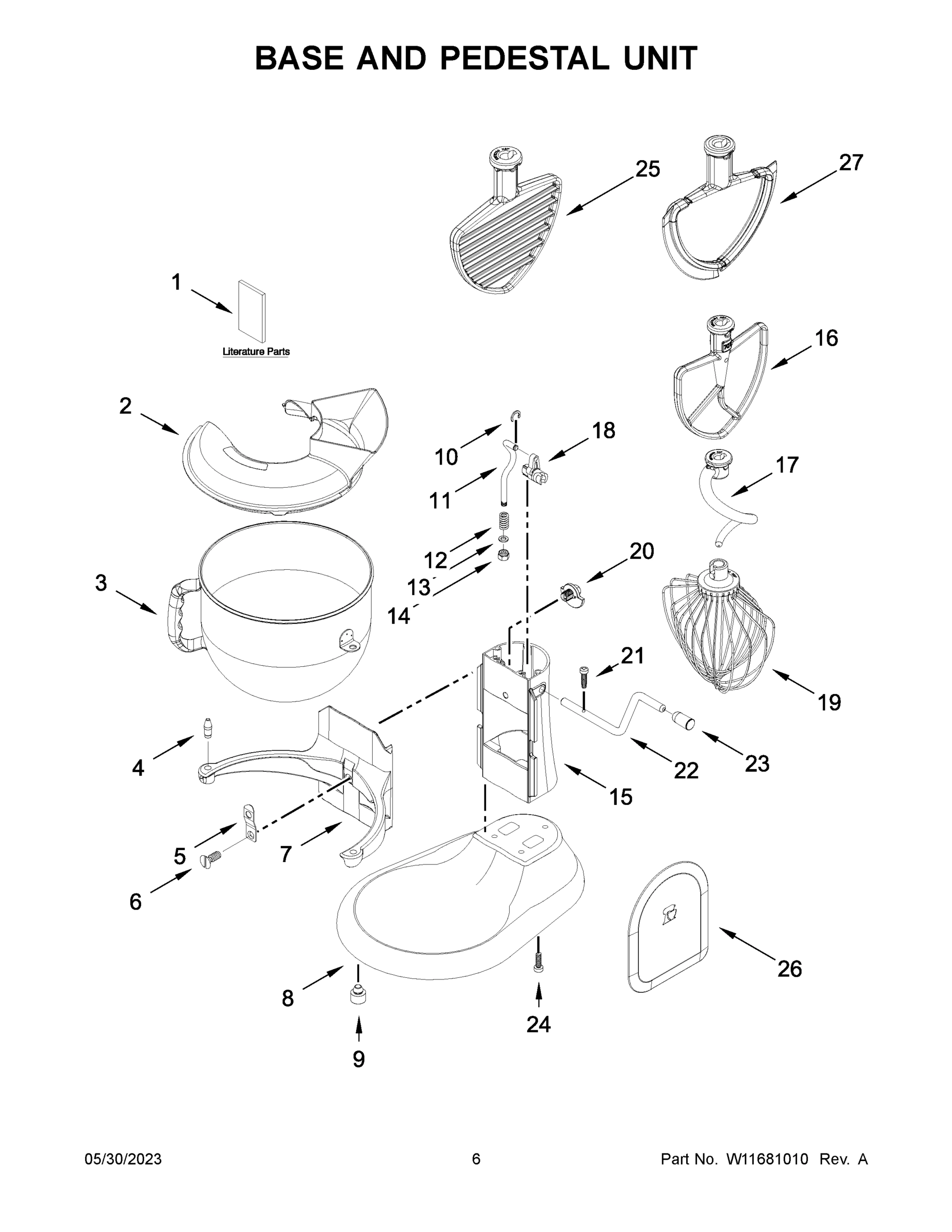

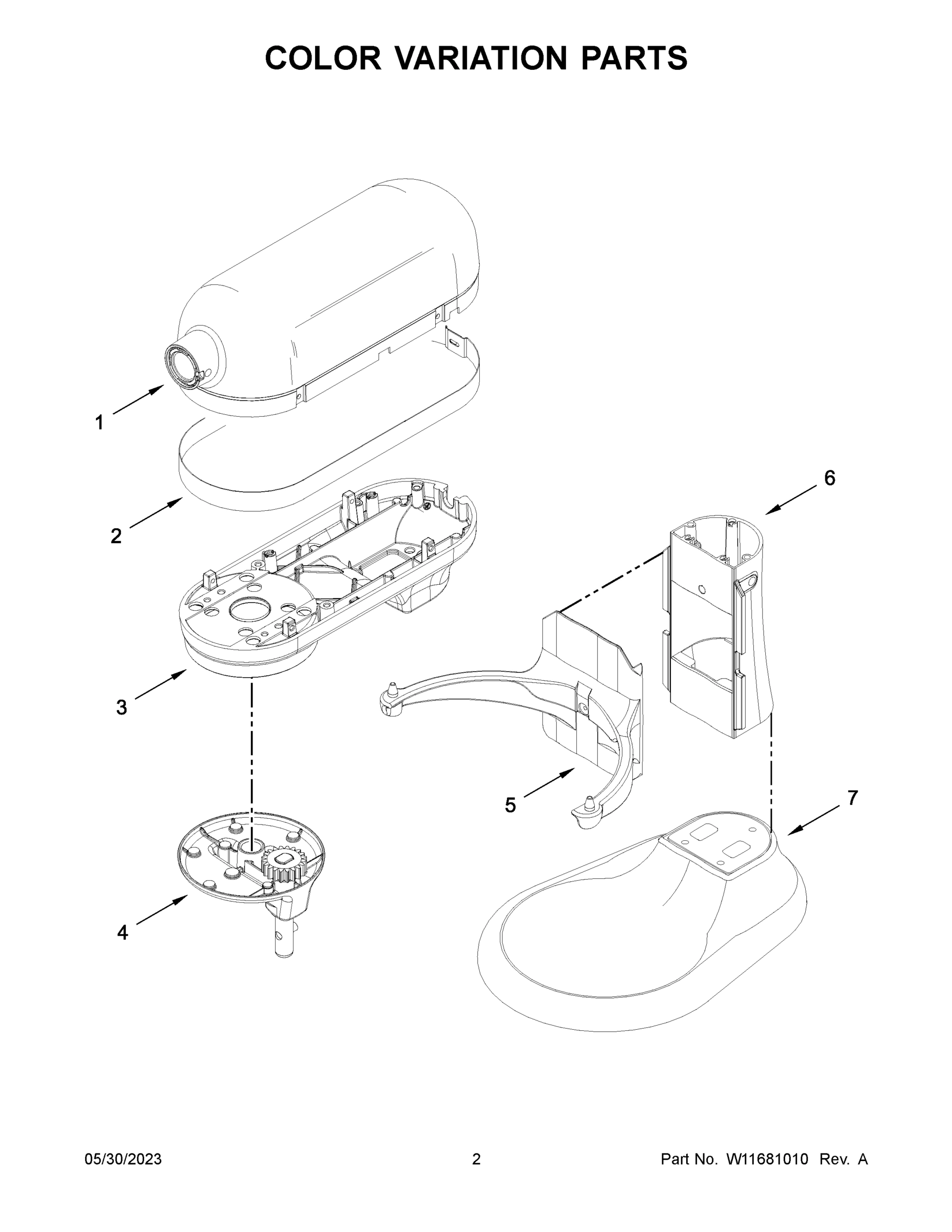

Common parts from model Whirlpool KSM70SNDXMI0 SMALL APPLIANCE, STAND MIXER

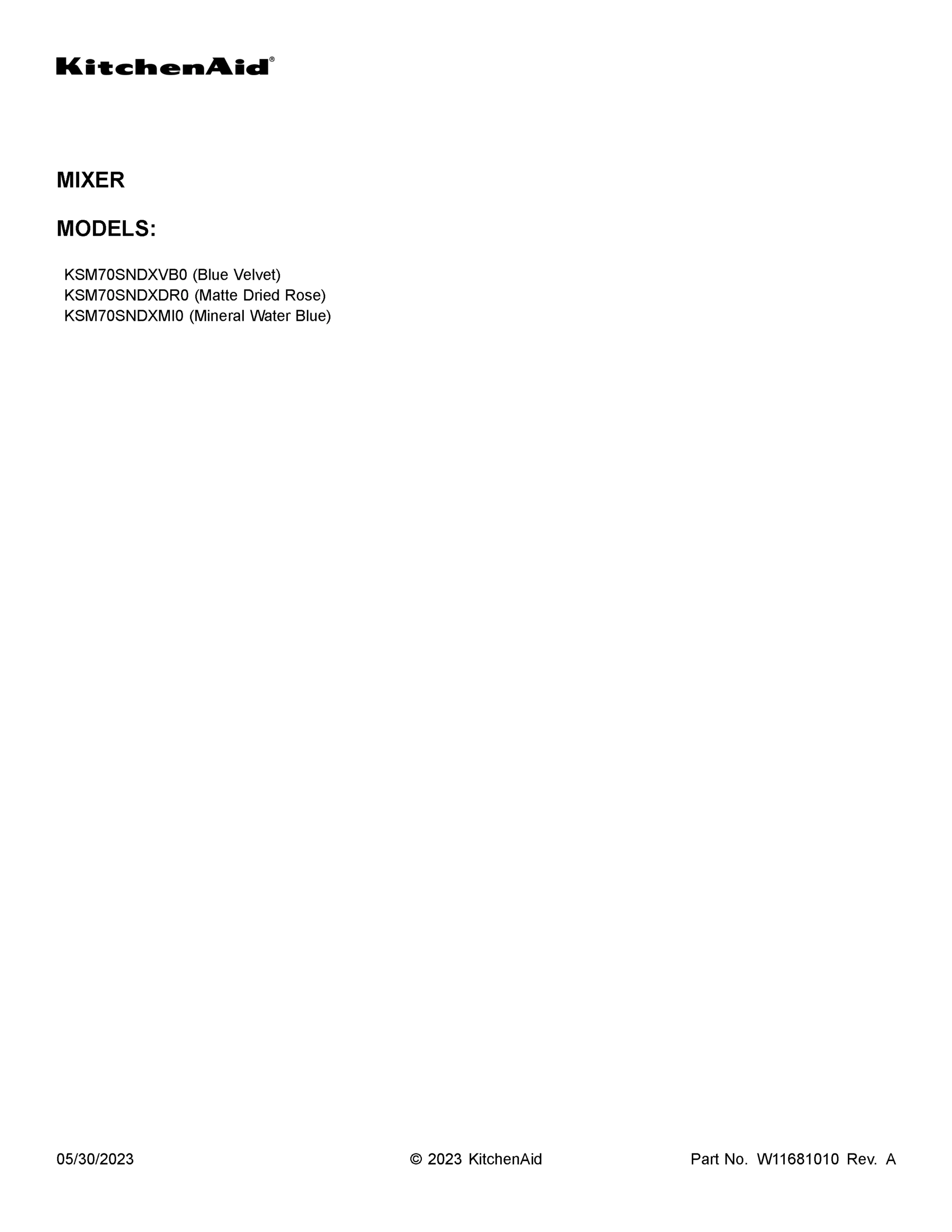

01 - COVER SHEET

Print

• This Diagram
• All Diagrams

1

USE AND CARE GUIDE WPL W11545291 Contact Us For Availability

View on Model

2

COVER, ATTACHMENT HUB - DUAL FINISH WPL W11591898 Contact Us For Availability

View on Model

2

SHIELD, POURING (WIDE) WPL W11385624 Contact Us For Availability

View on Model

3

BOWL, 7 QT. (BRUSHED) WPL W11512549 Contact Us For Availability

View on Model

4

W10914506 Whirlpool Screw Backorder WPL W10914506 View Details $2.91

View on Model

4

WP240185 Whirlpool Bowl Retaining Pin Backorder WPL WP240185 View Details $2.91

View on Model

5

WP9703315 Whirlpool Hub Cap Backorder WPL WP9703315 View Details $11.64

View on Model

5

WPW10504114 Whirlpool Clip In Stock WPL WPW10504114 View Details $2.91

View on Model

5A

BOWL SUPPORT AND PINS (MATTE DRIED ROSE) WPL W11438574 Contact Us For Availability

View on Model

5B

BOWL SUPPORT AND PINS (MINERAL WATER BLUE) WPL W11520075 Contact Us For Availability

View on Model

6

W10861883 Whirlpool Screw Backorder WPL W10861883 View Details $2.91

View on Model

6

COLUMN AND PINS (BLUE VELVET) WPL W11255413 Contact Us For Availability

View on Model

6A

COLUMN AND PINS (MATTE DRIED ROSE) WPL W11234594 Contact Us For Availability

View on Model

6B

COLUMN AND PINS (MINERAL WATER BLUE) WPL W11520107 Contact Us For Availability

View on Model

7

BASE AND FOOT ASSEMBLY (BLUE VELVET) WPL W11255409 Contact Us For Availability

View on Model

7

GEAR, RING AND PLATE ASSEMBLY WPL W11454895 Contact Us For Availability

View on Model

7A

BASE AND FOOT ASSEMBLY (MATTE DRIED ROSE) WPL W11236428 Contact Us For Availability

View on Model

7B

BASE AND FOOT ASSEMBLY (MINERAL WATER BLUE) WPL W11520052 Contact Us For Availability

View on Model

8

W10853069 Whirlpool Screw Backorder WPL W10853069 View Details $2.91

View on Model

9

WP3400814 Whirlpool Screw Backorder WPL WP3400814 View Details $2.91

View on Model

9

WP9708649 Whirlpool Foot Backorder WPL WP9708649 View Details $2.91

View on Model

10

W11647949 Whirlpool Motor Backorder WPL W11647949 View Details $132.70

View on Model

10

WP9703307 Whirlpool Ring-C Assembly Backorder WPL WP9703307 View Details $2.91

View on Model

11

ROD, BOWL LIFT WPL W11376364 Contact Us For Availability

View on Model

12

4159622 Whirlpool PP Spring Backorder WPL 4159622 View Details $2.91

View on Model

12

W11677161 Whirlpool Speed Control Backorder WPL W11677161 View Details $56.38

View on Model

13

WPW10234531 Whirlpool Dishwasher Groove Pin In Stock WPL WPW10234531 View Details $2.91

View on Model

13

WASHER WPL 9703439 Contact Us For Availability

View on Model

14

8533907 Whirlpool Dishwasher Nut Backorder WPL 8533907 View Details $17.70

View on Model

14

CORD, POWER (BLACK) WPL W11459266 Contact Us For Availability

View on Model

15

DIVERTER VALVE MOTOR (NOT SERVICED) WPL NP Contact Us For Availability

View on Model

16

W11458649 Whirlpool Mixer Beater Backorder WPL W11458649 View Details $54.79

View on Model

16

THUMB SCREW (CHROME) WPL W11521863 Contact Us For Availability

View on Model

17

W11397072 Whirlpool Mixer Dough Hook Backorder WPL W11397072 View Details $48.95

View on Model

17

PLATE, LOWER HOUSING WPL W11560130 Contact Us For Availability

View on Model

18

WP9706885 Whirlpool Lift Arm Assembly In Stock WPL WP9706885 View Details $2.91

View on Model

18

SCREW WPL W10419037 Contact Us For Availability

View on Model

19

WPW10600940 Whirlpool Wire Whip Backorder WPL WPW10600940 View Details $51.66

View on Model

19

SCREW WPL W11457471 Contact Us For Availability

View on Model

20

CAM, ADJUSTING WPL 9703426 Contact Us For Availability

View on Model

22

W11376371 Whirlpool Handle Assembly Backorder WPL W11376371 View Details $23.22

View on Model

23

CAP, HANDLE WPL W11627641 Contact Us For Availability

View on Model

24

W10913677 Whirlpool Screw Backorder WPL W10913677 View Details $2.91

View on Model

25

BEATER, PASTRY (STAINLESS) WPL W11518260 Contact Us For Availability

View on Model

26

SCRAPER, POT (NYLON) WPL W11550306 Contact Us For Availability

View on Model

27

BEATER, DOUBLE FLEX EDGE (SILENT SILVER) WPL W11569890 Contact Us For Availability

View on Model

×
