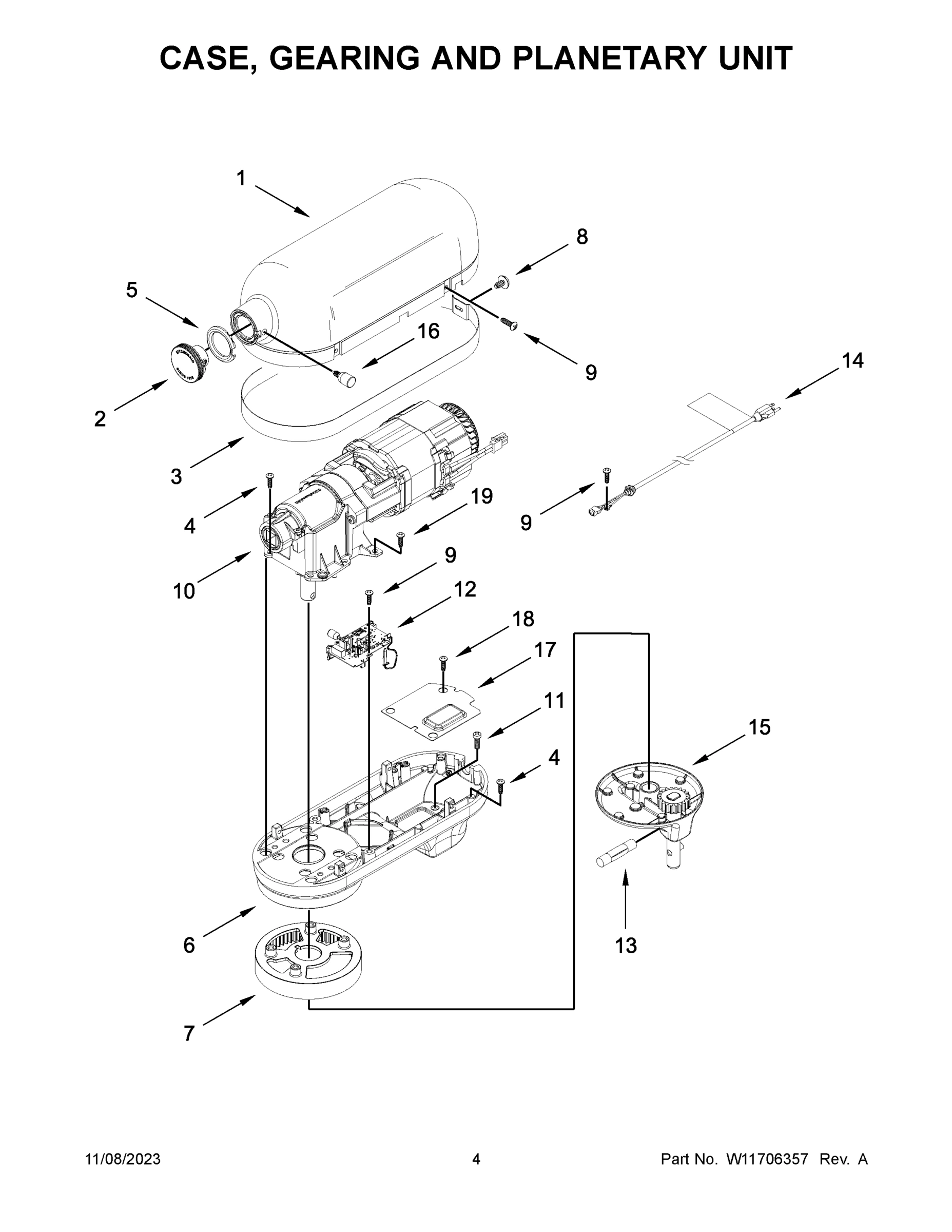

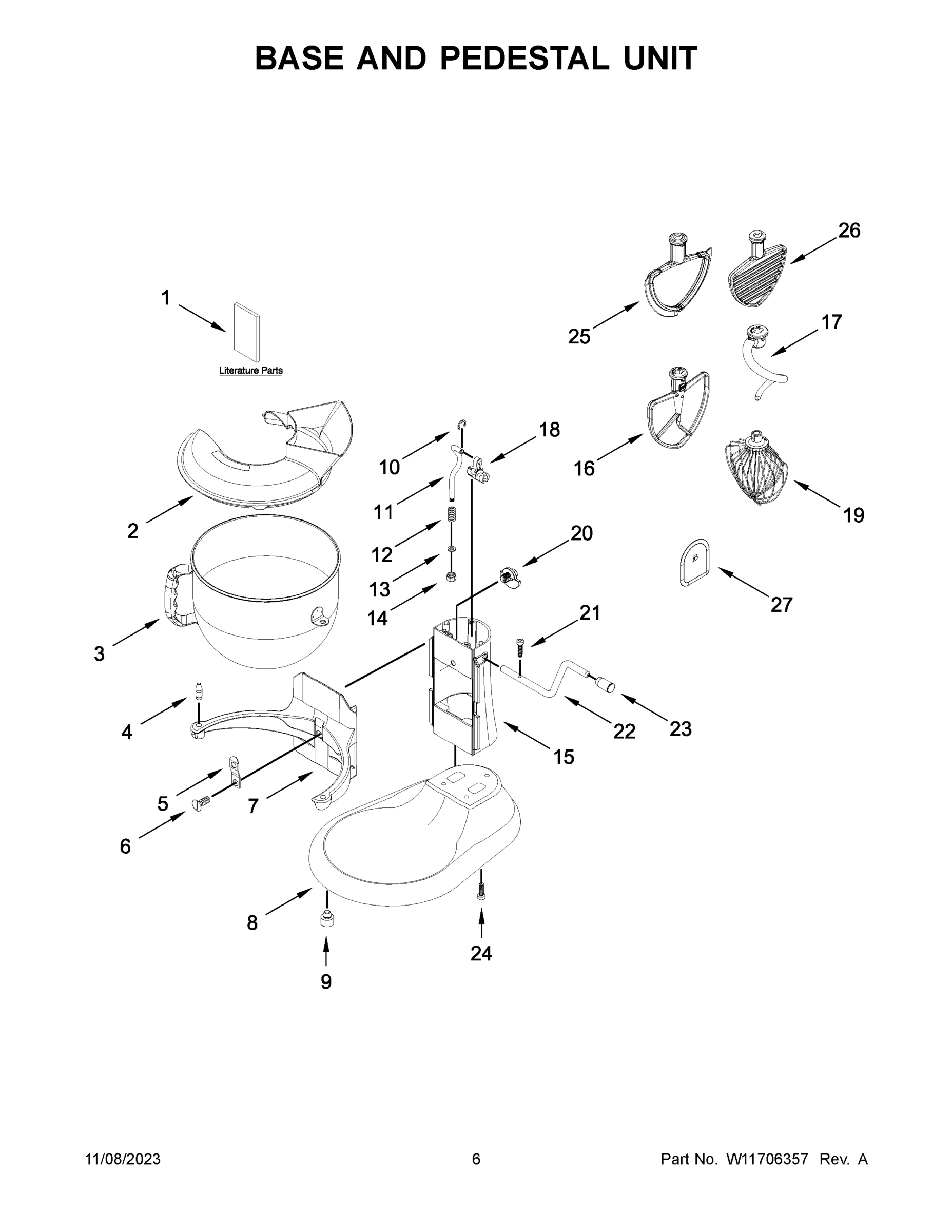

Model Whirlpool KSM70SKQXFT0 SMALL APPLIANCE, STAND MIXER – Common Parts & Diagrams

1
GEARCASE MOTOR HOUSING (REFER TO COLOR VARIAT
GEARCASE MOTOR HOUSING (REFER TO COLOR VARIAT WPL ARI33F21CE8839E6A9E729A46FBA298BEC9 Contact Us For Availability
View on Model
1
USE AND CARE GUIDE
USE AND CARE GUIDE WPL W11519607 Contact Us For Availability
View on Model
2
COVER, ATTACHMENT HUB - DUAL FINISH
COVER, ATTACHMENT HUB - DUAL FINISH WPL W11591898 Contact Us For Availability
View on Model
2
SHIELD, POURING (WIDE)
SHIELD, POURING (WIDE) WPL W11385624 Contact Us For Availability
View on Model
3
BAND, TRIM (REFER TO COLOR VARIATION PARTS PA
BAND, TRIM (REFER TO COLOR VARIATION PARTS PA WPL ARIBCA4922FCDA0811E32A4250D3BAC8839 Contact Us For Availability
View on Model
3
BOWL, 7 QT. (BRUSHED)
BOWL, 7 QT. (BRUSHED) WPL W11512549 Contact Us For Availability
View on Model
3A
LOWER GEARCASE (CAST IRON BLACK/IMPERIAL BLAC
LOWER GEARCASE (CAST IRON BLACK/IMPERIAL BLAC WPL W11520134 Contact Us For Availability
View on Model
3C
LOWER GEARCASE (EMPIRE RED)
LOWER GEARCASE (EMPIRE RED) WPL W11520142 Contact Us For Availability
View on Model
3D
LOWER GEARCASE (FEATHER PINK)
LOWER GEARCASE (FEATHER PINK) WPL W11520132 Contact Us For Availability
View on Model
3E
LOWER GEARCASE (MINERAL WATER BLUE)
LOWER GEARCASE (MINERAL WATER BLUE) WPL W11520127 Contact Us For Availability
View on Model
3F
LOWER GEARCASE (PORCELAIN WHITE)
LOWER GEARCASE (PORCELAIN WHITE) WPL W11691225 Contact Us For Availability
View on Model
3G
LOWER GEARCASE (PISTACHIO)
LOWER GEARCASE (PISTACHIO) WPL W11520137 Contact Us For Availability
View on Model
3H
LOWER GEARCASE (BLUE VELVET)
LOWER GEARCASE (BLUE VELVET) WPL W11520141 Contact Us For Availability
View on Model
4
PLANETARY (SILENT SILVER)
PLANETARY (SILENT SILVER) WPL W11595416 Contact Us For Availability
View on Model
5
BOWL SUPPORT AND PINS (BEETROOT)
BOWL SUPPORT AND PINS (BEETROOT) WPL W11691204 Contact Us For Availability
View on Model
5A
BOWL SUPPORT AND PINS (CAST IRON BLACK/IMPERI
BOWL SUPPORT AND PINS (CAST IRON BLACK/IMPERI WPL 9703520 Contact Us For Availability
View on Model
5B
BOWL SUPPORT AND PINS (CONTOUR SILVER)
BOWL SUPPORT AND PINS (CONTOUR SILVER) WPL W10327966 Contact Us For Availability
View on Model
5D
BOWL SUPPORT AND PINS (FEATHER PINK)
BOWL SUPPORT AND PINS (FEATHER PINK) WPL W11520077 Contact Us For Availability
View on Model
5E
BOWL SUPPORT AND PINS (MINERAL WATER BLUE)
BOWL SUPPORT AND PINS (MINERAL WATER BLUE) WPL W11520075 Contact Us For Availability
View on Model
5F
BOWL SUPPORT AND PINS (PORCELAIN WHITE)
BOWL SUPPORT AND PINS (PORCELAIN WHITE) WPL W11691232 Contact Us For Availability
View on Model
5G
BOWL SUPPORT AND PINS (PISTACHIO)
BOWL SUPPORT AND PINS (PISTACHIO) WPL W11417635 Contact Us For Availability
View on Model
5H
BOWL SUPPORT AND PINS (BLUE VELVET)
BOWL SUPPORT AND PINS (BLUE VELVET) WPL W11255416 Contact Us For Availability
View on Model
6
COLUMN AND PINS (BEETROOT)
COLUMN AND PINS (BEETROOT) WPL W11691201 Contact Us For Availability
View on Model
6
LOWER GEARCASE (REFER TO COLOR VARIATION PART
LOWER GEARCASE (REFER TO COLOR VARIATION PART WPL ARI8B12F47A83C5A0C26A834B1BD94F178F Contact Us For Availability
View on Model
6A
COLUMN AND PINS (CAST
COLUMN AND PINS (CAST WPL 9703526 Contact Us For Availability
View on Model
6D
WPL W11520109
WPL W11520109 WPL W11520109 Contact Us For Availability
View on Model
6E
WPL W11520107
WPL W11520107 WPL W11520107 Contact Us For Availability
View on Model
6F
WPL W11691229
WPL W11691229 WPL W11691229 Contact Us For Availability
View on Model
6G
WPL 9708104
WPL 9708104 WPL 9708104 Contact Us For Availability
View on Model
6H
WPL W11255413
WPL W11255413 WPL W11255413 Contact Us For Availability
View on Model
7
WPL W11691198
WPL W11691198 WPL W11691198 Contact Us For Availability
View on Model
7
GEAR, RING AND PLATE ASSEMBLY
GEAR, RING AND PLATE ASSEMBLY WPL W11454895 Contact Us For Availability
View on Model
7
BOWL SUPPORT (REFER TO COLOR VARIATION PARTS
BOWL SUPPORT (REFER TO COLOR VARIATION PARTS WPL ARI4980FA4F89CD9DADED6078D081567037 Contact Us For Availability
View on Model
7A
WPL 9703511
WPL 9703511 WPL 9703511 Contact Us For Availability
View on Model
7B
WPL W10328017
WPL W10328017 WPL W10328017 Contact Us For Availability
View on Model
7D
WPL W11520054
WPL W11520054 WPL W11520054 Contact Us For Availability
View on Model
7E
WPL W11520052
WPL W11520052 WPL W11520052 Contact Us For Availability
View on Model
7F
WPL W11691226
WPL W11691226 WPL W11691226 Contact Us For Availability
View on Model
7G
WPL 9708107
WPL 9708107 WPL 9708107 Contact Us For Availability
View on Model
7H
WPL W11255409
WPL W11255409 WPL W11255409 Contact Us For Availability
View on Model
8
BASE AND FOOT ASSEMBLY (REFER TO COLOR VARIAT
BASE AND FOOT ASSEMBLY (REFER TO COLOR VARIAT WPL ARIE3AF1D82A6A4B7D31EBF980CFE7ECCF0 Contact Us For Availability
View on Model
11
ROD, BOWL LIFT
ROD, BOWL LIFT WPL W11376364 Contact Us For Availability
View on Model
13
WASHER
WASHER WPL 9703439 Contact Us For Availability
View on Model
14
CORD, POWER (BLACK)
CORD, POWER (BLACK) WPL W11459266 Contact Us For Availability
View on Model
15
PLANETARY ASSEMBLY (REFER TO COLOR VARIATION
PLANETARY ASSEMBLY (REFER TO COLOR VARIATION WPL ARI2C54D97F5D296EF7DCEE4AED6DC7F137 Contact Us For Availability
View on Model
15
COLUMN ASSEMBLY (REFER TO COLOR VARIATION PAR
COLUMN ASSEMBLY (REFER TO COLOR VARIATION PAR WPL ARIBD06E68AD0288B7063FE4A14C0B20BBA Contact Us For Availability
View on Model
16
THUMB SCREW (CHROME)
THUMB SCREW (CHROME) WPL W11521863 Contact Us For Availability
View on Model
17
PLATE, LOWER HOUSING
PLATE, LOWER HOUSING WPL W11560130 Contact Us For Availability
View on Model
18
SCREW
SCREW WPL W10419037 Contact Us For Availability
View on Model
19
SCREW
SCREW WPL W11457471 Contact Us For Availability
View on Model
20
CAM, ADJUSTING
CAM, ADJUSTING WPL 9703426 Contact Us For Availability
View on Model
22
HANDLE, BOWL LIFT
HANDLE, BOWL LIFT WPL W11376371 Contact Us For Availability
View on Model
23
CAP, HANDLE
CAP, HANDLE WPL W11663366 Contact Us For Availability
View on Model
25
BEATER, DOUBLE FLEX EDGE (SILENT SILVER)
BEATER, DOUBLE FLEX EDGE (SILENT SILVER) WPL W11569890 Contact Us For Availability
View on Model
26
BEATER, PASTRY (SILENT SILVER)
BEATER, PASTRY (SILENT SILVER) WPL W11686803 Contact Us For Availability
View on Model
27
SCRAPER, POT (NYLON)
SCRAPER, POT (NYLON) WPL W11550306 Contact Us For Availability
View on Model
