Model Whirlpool KSM6573CWH0 6 QT. STAND MIXER COSTCO - BOWL LIFT – Common Parts & Diagrams

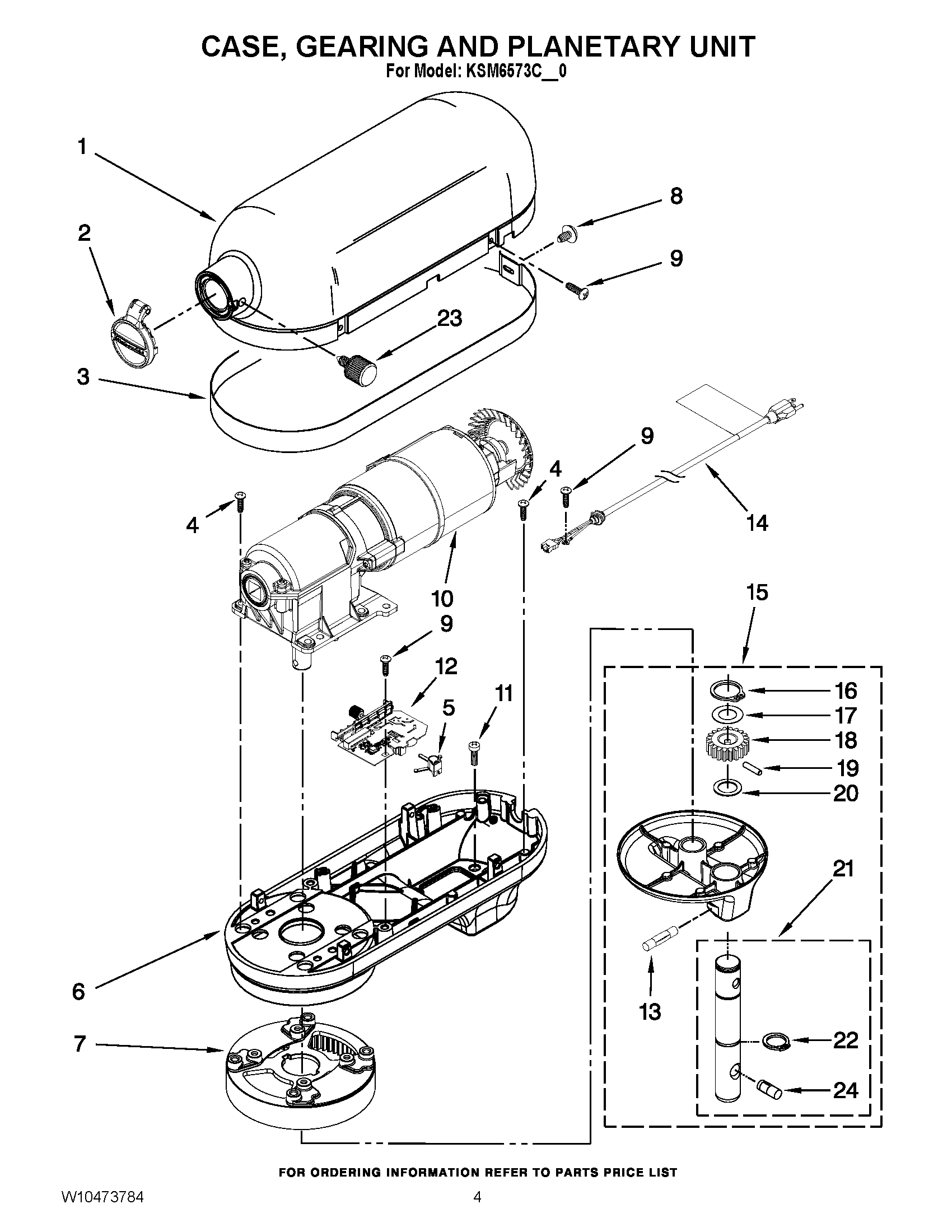

02 - CASE, GEARING AND PLANETARY UNIT

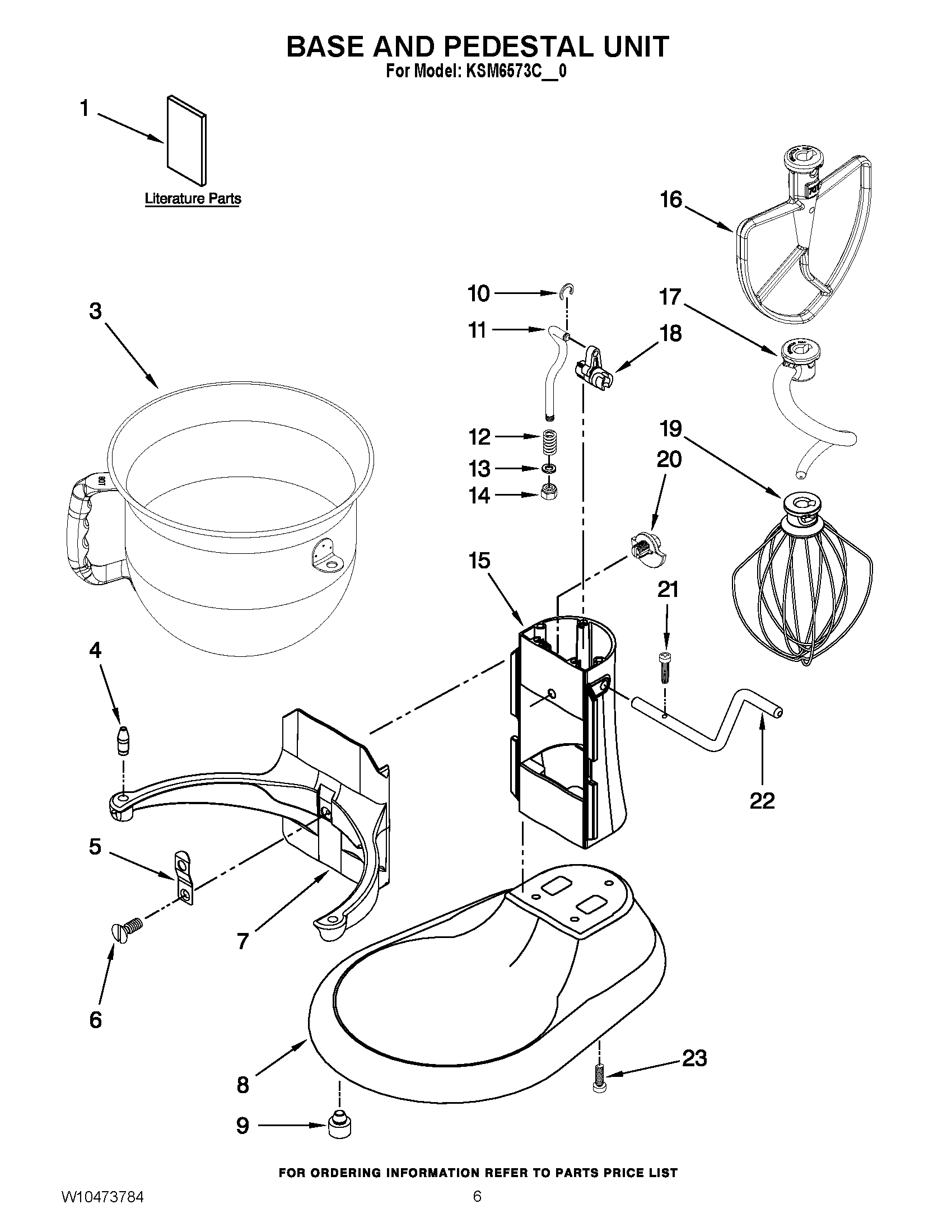

03 - BASE AND PEDESTAL UNIT
04 - ACCESSORY PARTS

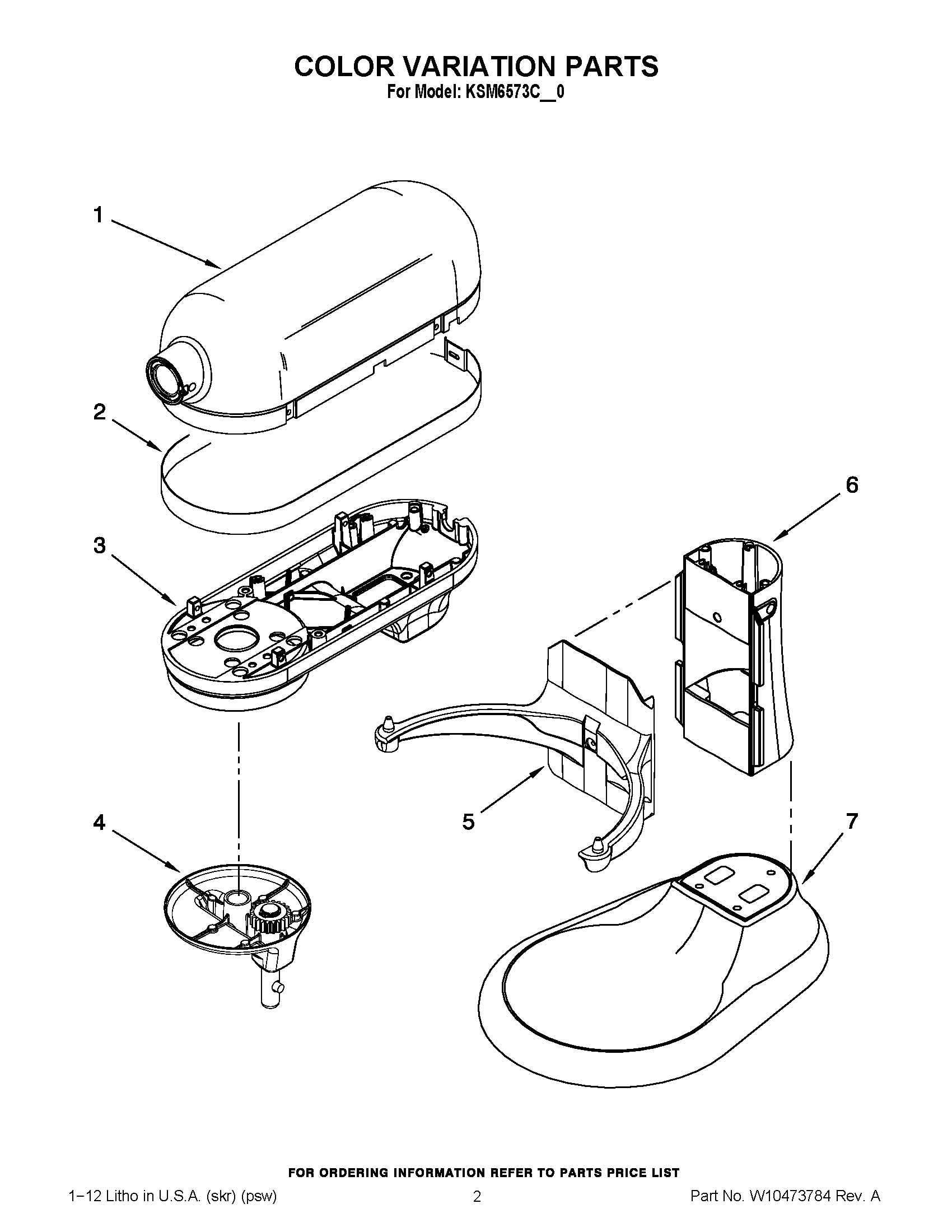

01 - COLOR VARIATION PARTS
Common parts from model Whirlpool KSM6573CWH0 6 QT. STAND MIXER COSTCO - BOWL LIFT
2
TRIM BAND (DARK PLATINUM) WPL W10410026 Contact Us For Availability
3
LOWER GEARCASE (WHITE) WPL W10234488 Contact Us For Availability
5
Bowl Support and Pins (White) WPL 9707633 Contact Us For Availability
5
Bowl Support and Pins (Onyx Black) WPL 9707876 Contact Us For Availability
5
Bowl Support and Pins (Empire Red) WPL 9707883 Contact Us For Availability
5
BOWL SUPPORT AND PINS (CONTOUR SILVER) WPL W10410004 Contact Us For Availability
7
GEAR, RING & PLATE TO PLANETARY WPL W10234493 Contact Us For Availability
7
BASE & FOOT ASSEMBLY (CONTOUR SILVER) WPL W10328017 Contact Us For Availability
15
COLUMN ASSEMBLY WPL NP Contact Us For Availability
16
BEATER, FLAT WPL W10401173 Contact Us For Availability
20
Cam, Adjusting WPL 9703426 Contact Us For Availability
NI
FOOD TRAY (FT) WPL 241675 Contact Us For Availability
NI
JUICER (JE) WPL 4164748 Contact Us For Availability
NI
FOOD GRINDER (FG-A) WPL 4164749 Contact Us For Availability
NI
ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) WPL 4164750 Contact Us For Availability
NI
FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FV WPL 4164774 Contact Us For Availability
NI
FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A WPL 4164775 Contact Us For Availability
NI
MIXER ATTACHMENT PAK (INCLUDES FOOD GRINDER ( WPL 4164778 Contact Us For Availability
NI
SAUSAGE STUFFER KIT (SSA) WPL 4164803 Contact Us For Availability
NI
Ice Cream Maker (KICA0WH0) WPL 8212519 Contact Us For Availability
NI
PASTA EXTRUDER WITH 6 DISCS WPL KPEXTA Contact Us For Availability
NI
GRAIN MILL (KGM0) WPL W10318099 Contact Us For Availability
× ![]()
