Model Whirlpool KSM55SXTXIC0 SMALL APPLIANCE, STAND MIXER – Common Parts & Diagrams

Common parts from model Whirlpool KSM55SXTXIC0 SMALL APPLIANCE, STAND MIXER

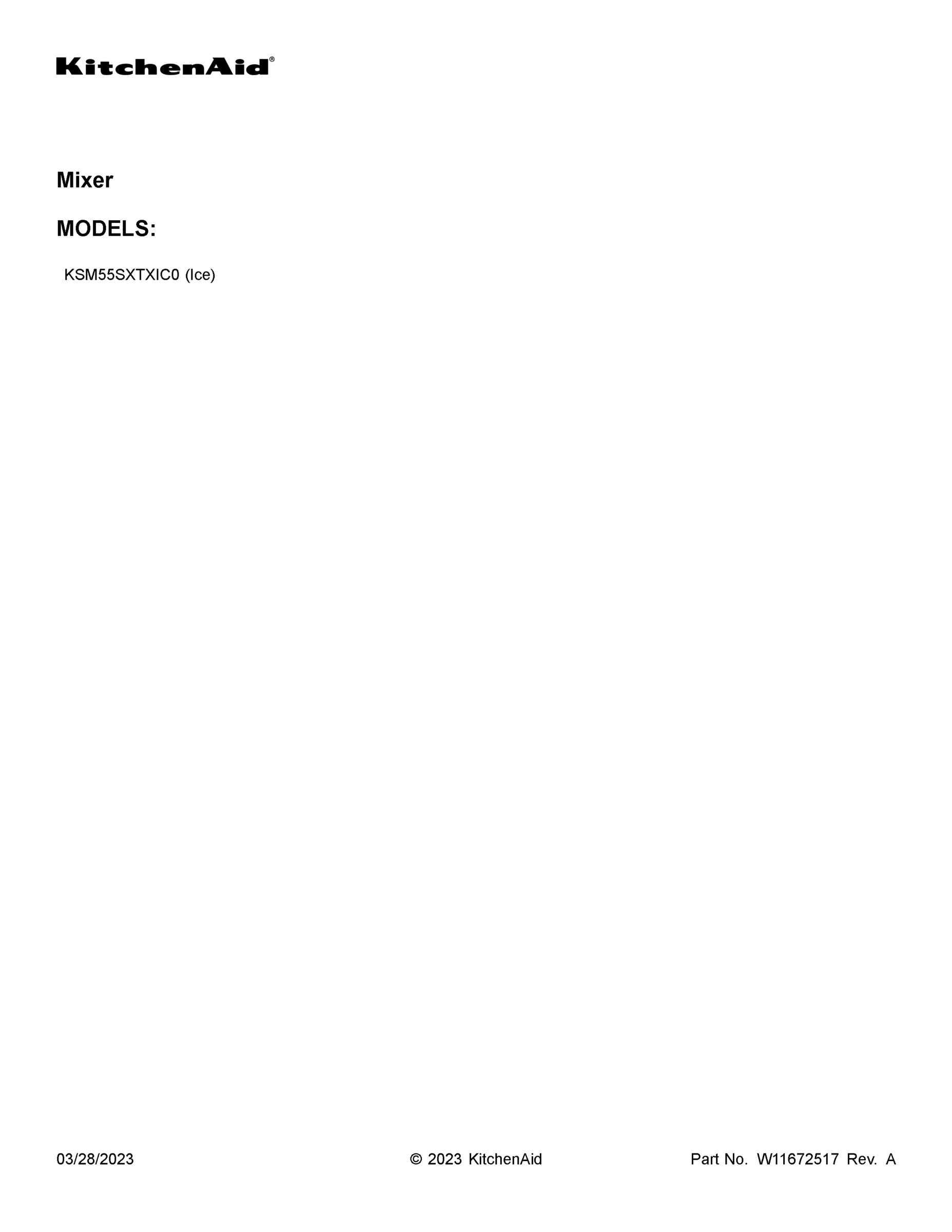

01 - COVER SHEET

Print

• This Diagram
• All Diagrams

1

USE AND CARE GUIDE WPL W11519607 Contact Us For Availability

View on Model

2

W10913677 Whirlpool Screw Backorder WPL W10913677 View Details $2.91

View on Model

3

WPW10717235 Whirlpool Mixer Bowl Backorder WPL WPW10717235 View Details $67.44

View on Model

4

WP240185 Whirlpool Bowl Retaining Pin Backorder WPL WP240185 View Details $2.91

View on Model

5

WPW10504114 Whirlpool Clip In Stock WPL WPW10504114 View Details $2.91

View on Model

6

W10861883 Whirlpool Screw Backorder WPL W10861883 View Details $2.91

View on Model

9

WP3400814 Whirlpool Screw Backorder WPL WP3400814 View Details $2.91

View on Model

9

WP9708649 Whirlpool Foot Backorder WPL WP9708649 View Details $2.91

View on Model

10

WP9703307 Whirlpool Ring-C Assembly Backorder WPL WP9703307 View Details $2.91

View on Model

11

ROD, BOWL LIFT WPL W11376364 Contact Us For Availability

View on Model

12

4159622 Whirlpool PP Spring Backorder WPL 4159622 View Details $2.91

View on Model

12

W11672012 Whirlpool Speed Control Backorder WPL W11672012 View Details $54.79

View on Model

13

WPW10234531 Whirlpool Dishwasher Groove Pin In Stock WPL WPW10234531 View Details $2.91

View on Model

13

WASHER WPL 9703439 Contact Us For Availability

View on Model

14

8533907 Whirlpool Dishwasher Nut Backorder WPL 8533907 View Details $17.70

View on Model

14

W11677162 Whirlpool Power Cord Backorder WPL W11677162 View Details $19.09

View on Model

15

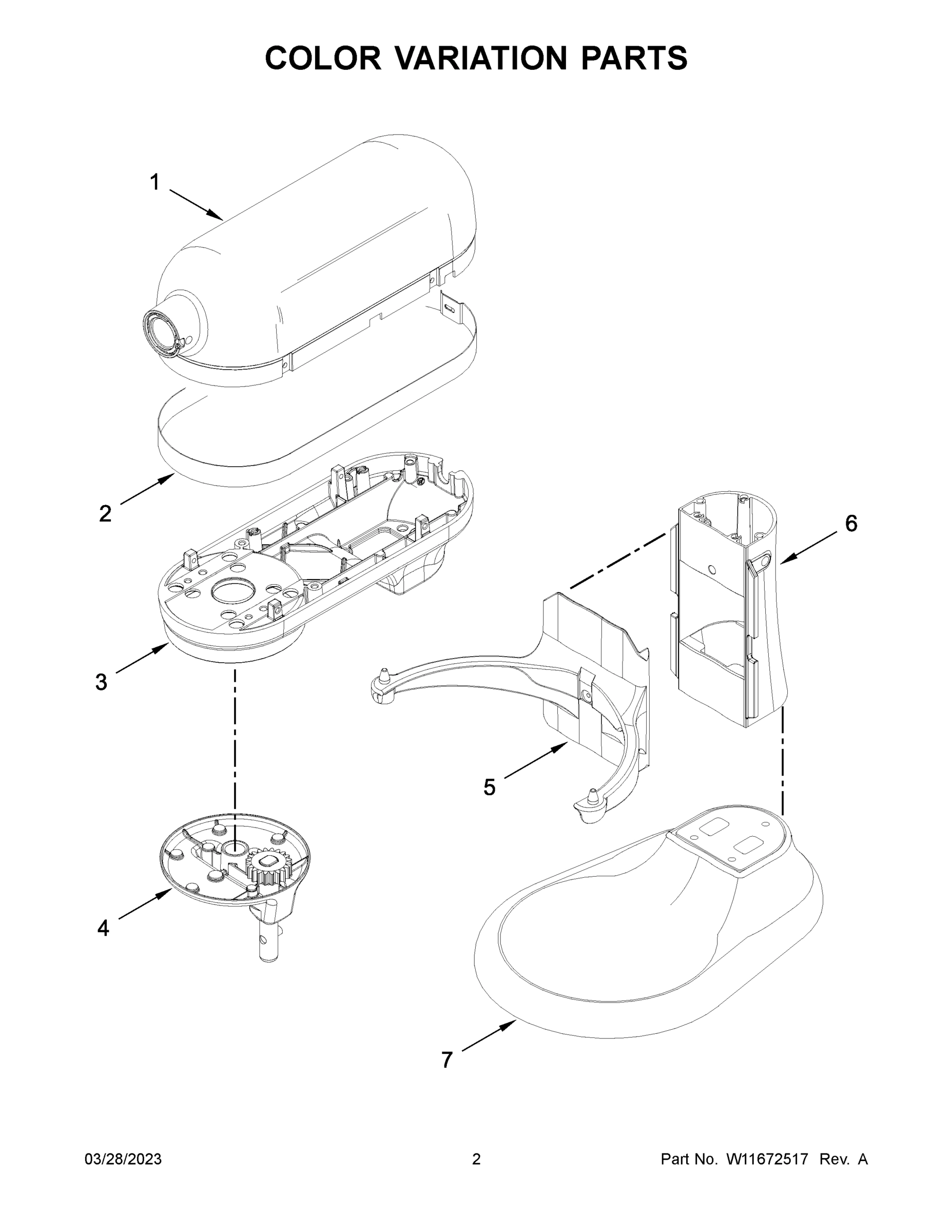

PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability

View on Model

16

WP9703315 Whirlpool Hub Cap Backorder WPL WP9703315 View Details $11.64

View on Model

16

WPW10672616 Whirlpool Mixer Beater Backorder WPL WPW10672616 View Details $13.58

View on Model

17

W10908278 Whirlpool Dough Hook Backorder WPL W10908278 View Details $20.66

View on Model

17

SHAFT, AGITATOR WPL W11531546 Contact Us For Availability

View on Model

18

W11664709 Whirlpool Groove Pin Backorder WPL W11664709 View Details $4.43

View on Model

18

WP9706885 Whirlpool Lift Arm Assembly In Stock WPL WP9706885 View Details $2.91

View on Model

19

WP9703491 Whirlpool Wire Whip Backorder WPL WP9703491 View Details $19.64

View on Model

19

WP9703680 Whirlpool Retainer Ring In Stock WPL WP9703680 View Details $2.91

View on Model

20

W10854966 Whirlpool Washer Backorder WPL W10854966 View Details $2.91

View on Model

20

CAM, ADJUSTING WPL 9703426 Contact Us For Availability

View on Model

21

GEAR, PINION WPL W11553110 Contact Us For Availability

View on Model

22

W11376371 Whirlpool Handle Assembly Backorder WPL W11376371 View Details $23.22

View on Model

22

W11649170 Whirlpool Washer Backorder WPL W11649170 View Details $2.43

View on Model

×
