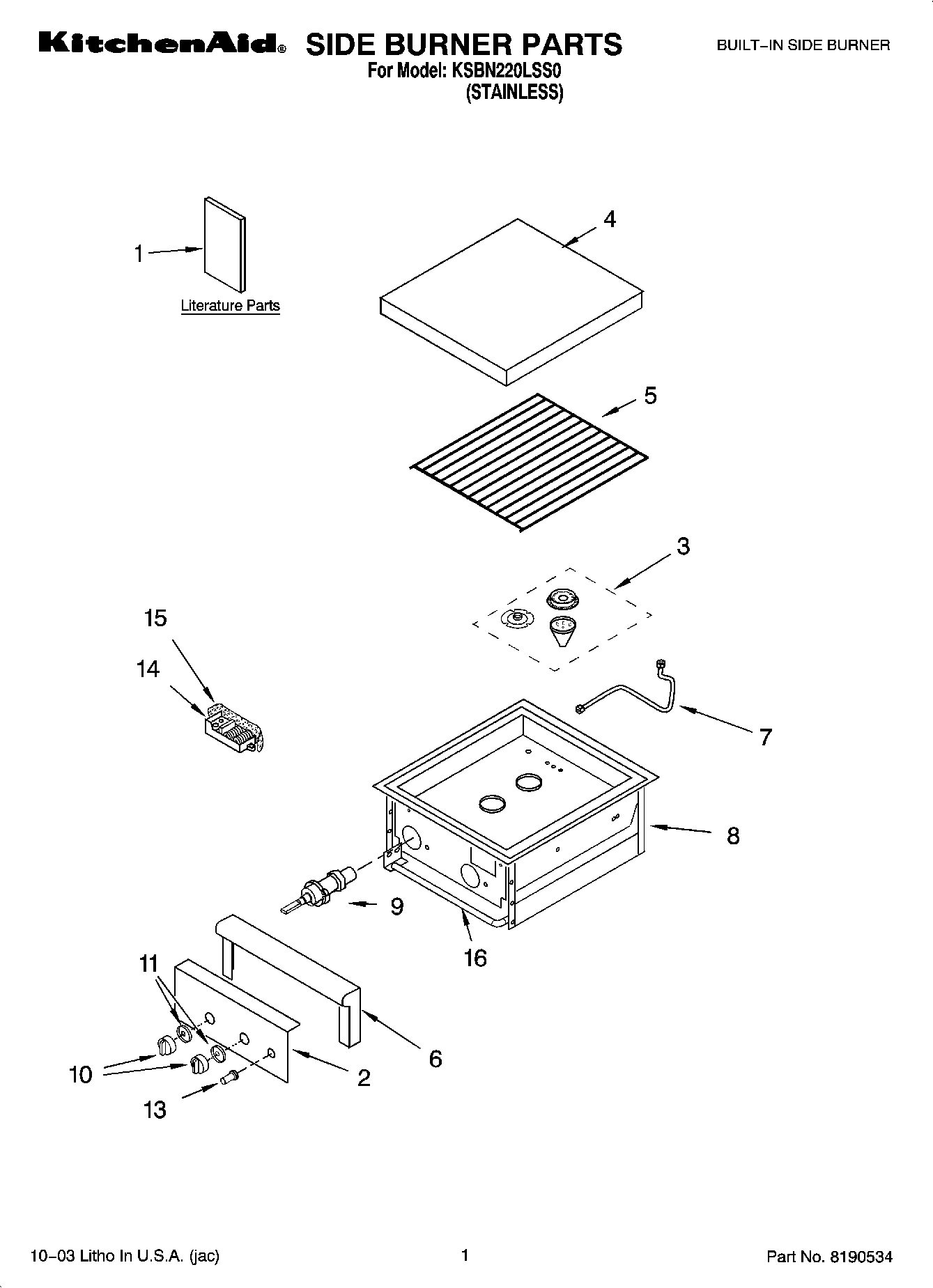

Model Whirlpool KSBN220LSS0 BUILT-IN SIDE BURNER – Common Parts & Diagrams

1
Literature Parts (U & C Guide / Instructions,
Literature Parts (U & C Guide / Instructions, WPL LIT8190046 Contact Us For Availability
View on Model
2
Panel, Front
Panel, Front WPL 8190514 Contact Us For Availability
View on Model
3
Burner (2)
Burner (2) WPL 8190504 Contact Us For Availability
View on Model
4
Cover, Side Burner
Cover, Side Burner WPL 8190519 Contact Us For Availability
View on Model
5
Grate
Grate WPL 8190520 Contact Us For Availability
View on Model
6
Bullnose
Bullnose WPL 8190518 Contact Us For Availability
View on Model
7
Tubing (Front)
Tubing (Front) WPL 8190516 Contact Us For Availability
View on Model
7
Tubing (Rear)
Tubing (Rear) WPL 8190517 Contact Us For Availability
View on Model
8
Fire Box Asy (Not Serviced)
Fire Box Asy (Not Serviced) WPL ARI89444A2 Contact Us For Availability
View on Model
9
Valve, Main (2)
Valve, Main (2) WPL 8190024 Contact Us For Availability
View on Model
10
KNOB
KNOB WPL 8190028 Contact Us For Availability
View on Model
11
Bezel
Bezel WPL 8190027 Contact Us For Availability
View on Model
13
Switch, Igniter
Switch, Igniter WPL 8190029 Contact Us For Availability
View on Model
14
Module, Spark
Module, Spark WPL 8190458 Contact Us For Availability
View on Model
15
Insulation, Module
Insulation, Module WPL 8190130 Contact Us For Availability
View on Model
16
Clip, J Type 8-32
Clip, J Type 8-32 WPL 8190033 Contact Us For Availability
View on Model
16
Logo, Kitchenaid
Logo, Kitchenaid WPL 8190090 Contact Us For Availability
View on Model
16
Latch-Magnetic
Latch-Magnetic WPL 8190115 Contact Us For Availability
View on Model
16
Screw 18X1/2 Pan
Screw 18X1/2 Pan WPL 8190121 Contact Us For Availability
View on Model
16
Screw 1/4-20X1/2SS (Hex Bolt)
Screw 1/4-20X1/2SS (Hex Bolt) WPL 8190124 Contact Us For Availability
View on Model
16
Washer, Flat
Washer, Flat WPL 8190125 Contact Us For Availability
View on Model
16
Plug, Pipe 1/8 C/S Hex Head
Plug, Pipe 1/8 C/S Hex Head WPL 8190140 Contact Us For Availability
View on Model
16
Battery, 9 Volt
Battery, 9 Volt WPL 8190156 Contact Us For Availability
View on Model
16
Elbow 1/2`` 90 deg
Elbow 1/2`` 90 deg WPL 8190196 Contact Us For Availability
View on Model
16
Wire, Battery
Wire, Battery WPL 8190456 Contact Us For Availability
View on Model
16
Shield (Igniter Module)
Shield (Igniter Module) WPL 8190515 Contact Us For Availability
View on Model
16
Slider (Battery Tray)
Slider (Battery Tray) WPL 8190521 Contact Us For Availability
View on Model
16
Holder (Battery Tray)
Holder (Battery Tray) WPL 8190522 Contact Us For Availability
View on Model
16
Manifold
Manifold WPL 8190538 Contact Us For Availability
View on Model
16
FOLLOWING PARTS NOT ILLUSTRATED
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI89445A4 Contact Us For Availability
View on Model
16
1/4X11/16SS
1/4X11/16SS WPL ARI89446A8 Contact Us For Availability
View on Model
