Model Whirlpool KSB5OB4 5-SPEED BLENDER – Common Parts & Diagrams

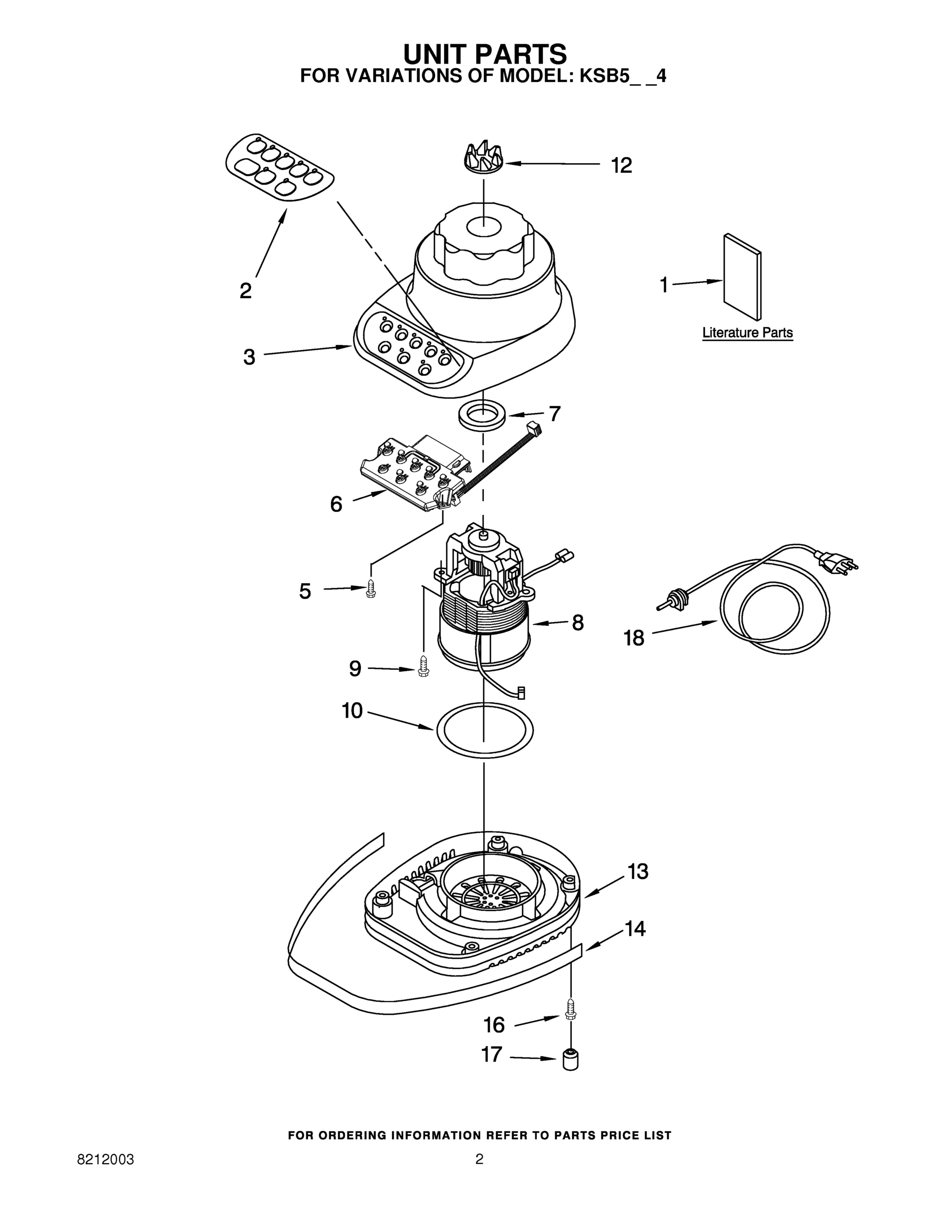

01 - UNIT PARTS

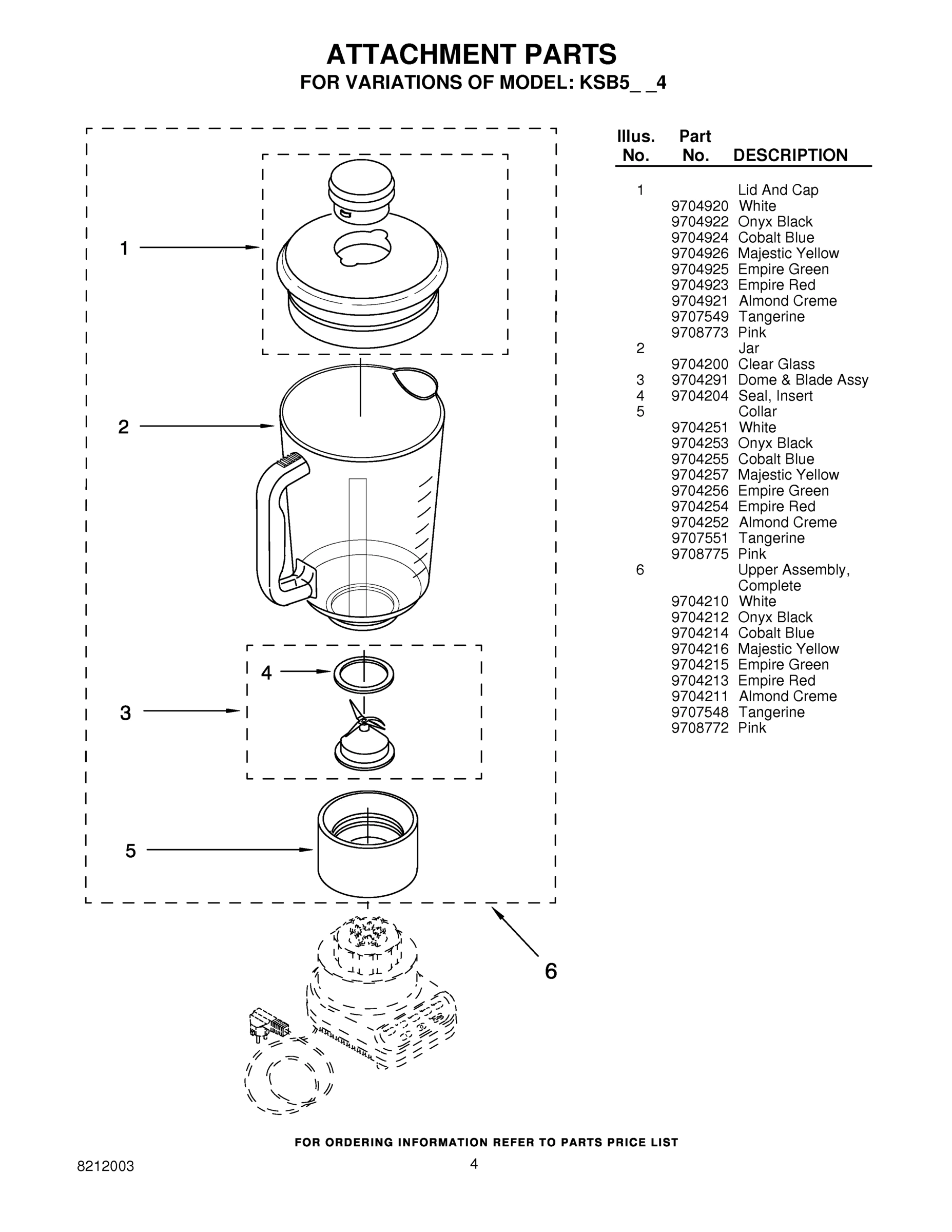

02 - ATTACHMENT PARTS
Common parts from model Whirlpool KSB5OB4 5-SPEED BLENDER
1
Lid and Cap (White) WPL 9704920 Contact Us For Availability
2
Overlay, Switch (Cobalt Blue) WPL 9701914 Contact Us For Availability
2
Overlay, Switch (5-Speed) (Majestic Yellow) WPL 9704485 Contact Us For Availability
2
Overlay, Switch (5-Speed) (Empire Red) WPL 9704486 Contact Us For Availability
2
Overlay, Switch (5-Speed) (Tangerine) WPL 9707546 Contact Us For Availability
2
Overlay, Switch (Pink) WPL 9708770 Contact Us For Availability
2
Jar (Clear Glass) WPL 9704200 Contact Us For Availability
3
Housing, Upper (Chrome) WPL 9706900 Contact Us For Availability
3
Housing, Upper (Nickel) WPL 9706901 Contact Us For Availability
3
Housing, Upper (Copper) WPL 9706902 Contact Us For Availability
3
Housing, Upper (White) WPL 9706989 Contact Us For Availability
3
Housing, Upper (Almond Creme) WPL 9706990 Contact Us For Availability
3
Housing, Upper (Cobalt Blue) WPL 9706991 Contact Us For Availability
3
Housing, Upper (Empire Green) WPL 9706992 Contact Us For Availability
3
Housing, Upper (Onyx Black) WPL 9706993 Contact Us For Availability
3
Housing, Upper (Majestic Yellow) WPL 9706994 Contact Us For Availability
3
Housing, Upper (Empire Red) WPL 9706995 Contact Us For Availability
3
Housing, Upper (Imperial Gray) WPL 9706996 Contact Us For Availability
3
Housing, Upper (Imperial Black) WPL 9706997 Contact Us For Availability
3
Housing, Upper (Metallic Pink) WPL 9707354 Contact Us For Availability
3
Housing, Upper (Tangerine) WPL 9707544 Contact Us For Availability
5
Collar (White) WPL 9704251 Contact Us For Availability
6
Board, Control WPL 9706612 Contact Us For Availability
6
Upper Assembly, Complete (White) WPL 9704210 Contact Us For Availability
7
Seal, Motor WPL 3184398 Contact Us For Availability
8
Motor WPL 9706759 Contact Us For Availability
9
Screw WPL 3400062 Contact Us For Availability
10
O-Ring WPL 9701904 Contact Us For Availability
13
Base (White) WPL 9706718 Contact Us For Availability
13
Base (Almond Creme) WPL 9706719 Contact Us For Availability
13
Base (Cobalt Blue) WPL 9706720 Contact Us For Availability
13
Base (Empire Green) WPL 9706721 Contact Us For Availability
13
Base (Onyx Black) WPL 9706722 Contact Us For Availability
13
Base (Majestic Yellow) WPL 9706723 Contact Us For Availability
13
Base (Empire Red) WPL 9706724 Contact Us For Availability
13
Base (Tangerine) WPL 9707547 Contact Us For Availability
13
Base (Pink) WPL 9708771 Contact Us For Availability
14
WPL 3184612 WPL 3184612 Contact Us For Availability
14
WPL 3184613 WPL 3184613 Contact Us For Availability
14
WPL 3184616 WPL 3184616 Contact Us For Availability
14
WPL 3184617 WPL 3184617 Contact Us For Availability
16
WPL 3184608 WPL 3184608 Contact Us For Availability
17
WPL 115792 WPL 115792 Contact Us For Availability
18
WPL 9706646 WPL 9706646 Contact Us For Availability
18
WPL 9706647 WPL 9706647 Contact Us For Availability
NI
Lid and Cap (Onyx Black) WPL 9704922 Contact Us For Availability
NI
Lid and Cap (Cobalt Blue) WPL 9704924 Contact Us For Availability
NI
Upper Assembly, Complete (Almond Creme) WPL 9704211 Contact Us For Availability
NI
Upper Assembly, Complete (Onyx Black) WPL 9704212 Contact Us For Availability
NI
Upper Assembly, Complete (Empire Red) WPL 9704213 Contact Us For Availability
NI
Upper Assembly, Complete (Cobalt Blue) WPL 9704214 Contact Us For Availability
NI
Upper Assembly, Complete (Empire Green) WPL 9704215 Contact Us For Availability
NI
Upper Assembly, Complete (Majestic Yellow) WPL 9704216 Contact Us For Availability
NI
Collar (Almond Creme) WPL 9704252 Contact Us For Availability
NI
Collar (Empire Red) WPL 9704254 Contact Us For Availability
NI
Collar (Cobalt Blue) WPL 9704255 Contact Us For Availability
NI
Collar (Empire Green) WPL 9704256 Contact Us For Availability
NI
Collar (Majestic Yellow) WPL 9704257 Contact Us For Availability
NI
Lid and Cap (Almond Creme) WPL 9704921 Contact Us For Availability
NI
Lid and Cap (Empire Red) WPL 9704923 Contact Us For Availability
NI
Lid and Cap (Empire Green) WPL 9704925 Contact Us For Availability
NI
Lid and Cap (Majestic Yellow) WPL 9704926 Contact Us For Availability
NI
UPPER ASSY, COMPLETE (TANGERINE) WPL 9707548 Contact Us For Availability
NI
LID AND CAP (TANGERINE) WPL 9707549 Contact Us For Availability
NI
Collar (Tangerine) WPL 9707551 Contact Us For Availability
NI
UPPER ASSY, COMPLETE (PINK) WPL 9708772 Contact Us For Availability
NI
LID AND CAP (PINK) WPL 9708773 Contact Us For Availability
NI
Collar (Pink) WPL 9708775 Contact Us For Availability
× ![]()
