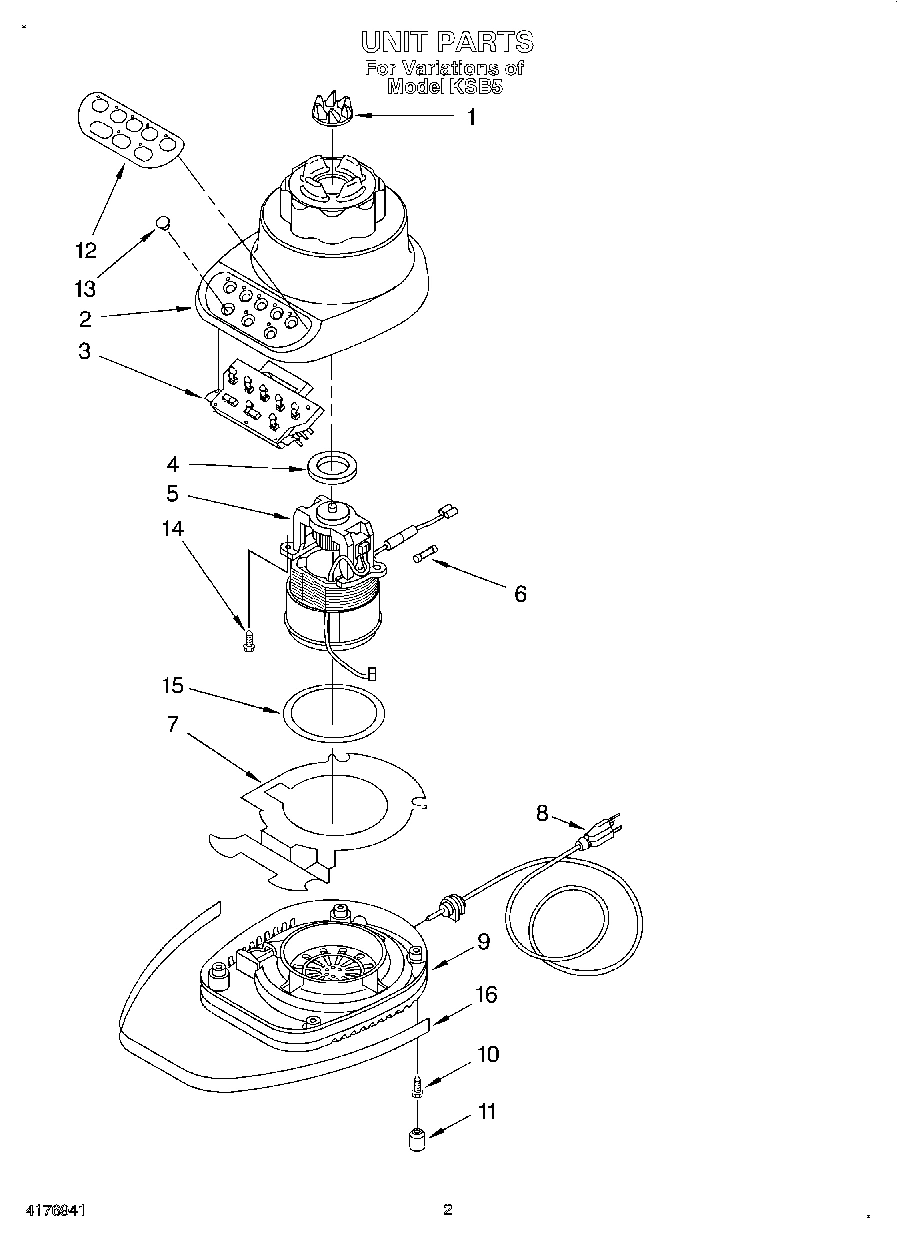

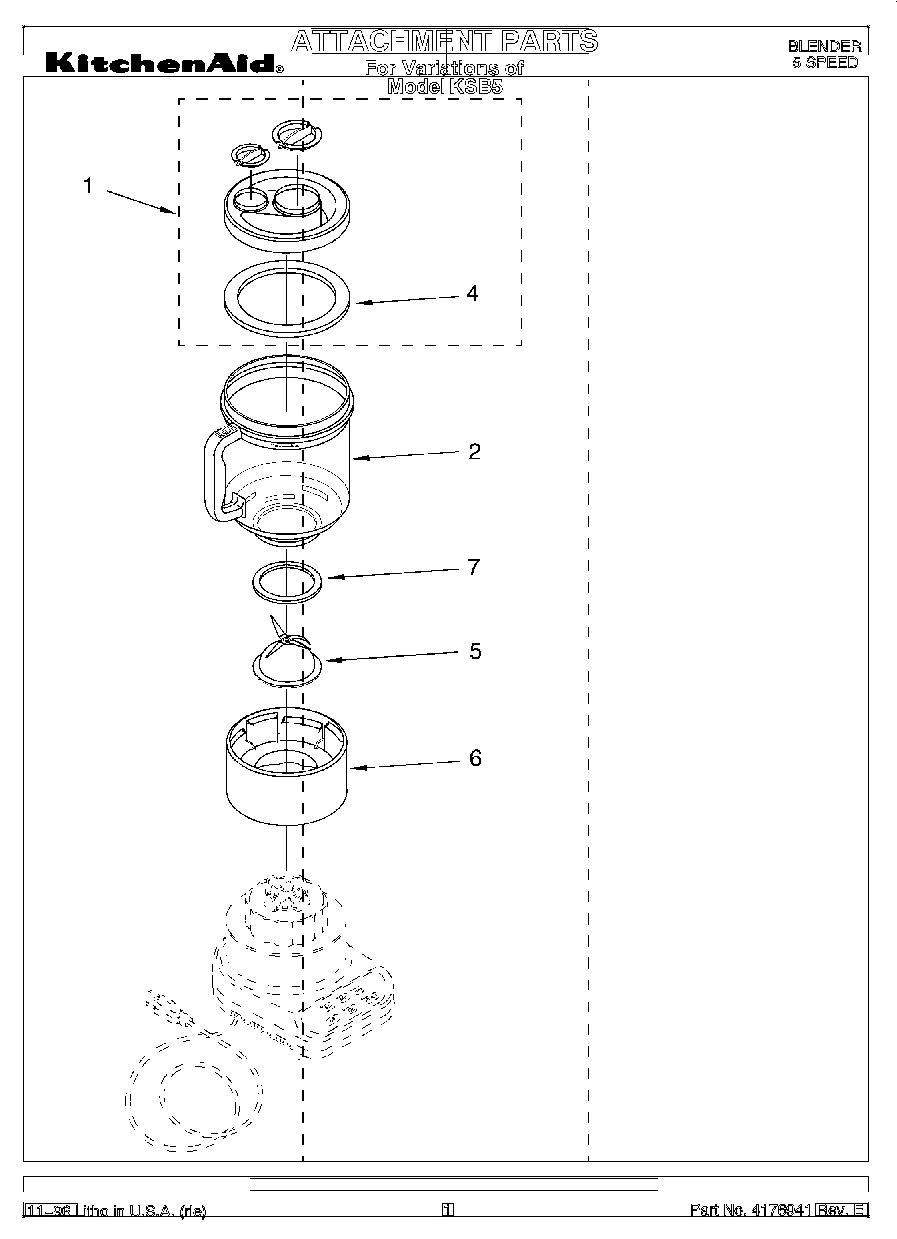

Model Whirlpool KSB5AC0 5-SPEED BLENDER – Common Parts & Diagrams

Repair Parts List
Repair Parts List WPL LIT4176941 Contact Us For Availability
View on Model
Use and Care Guide
Use and Care Guide WPL LIT9702901 Contact Us For Availability
View on Model
1
Lid Assembly (White)
Lid Assembly (White) WPL 4176341 Contact Us For Availability
View on Model
1
Lid Assembly (Almond Creme)
Lid Assembly (Almond Creme) WPL 4176342 Contact Us For Availability
View on Model
1
Lid Assembly (Cobalt Blue)
Lid Assembly (Cobalt Blue) WPL 4176343 Contact Us For Availability
View on Model
1
Lid Assembly (Empire Green)
Lid Assembly (Empire Green) WPL 4176344 Contact Us For Availability
View on Model
1
Lid Assembly (Onyx Black)
Lid Assembly (Onyx Black) WPL 4176345 Contact Us For Availability
View on Model
2
Housing, Upper (Almond Creme)
Housing, Upper (Almond Creme) WPL 3184304 Contact Us For Availability
View on Model
2
Housing, Upper (Cobalt Blue)
Housing, Upper (Cobalt Blue) WPL 3184305 Contact Us For Availability
View on Model
2
Housing, Upper (Empire Green)
Housing, Upper (Empire Green) WPL 3184306 Contact Us For Availability
View on Model
2
Housing, Upper (Onyx Black (Also order item 1
Housing, Upper (Onyx Black (Also order item 1 WPL 3184307 Contact Us For Availability
View on Model
2
Jar
Jar WPL 3184399 Contact Us For Availability
View on Model
3
Board, Control
Board, Control WPL 3184594 Contact Us For Availability
View on Model
4
Seal, Motor
Seal, Motor WPL 3184398 Contact Us For Availability
View on Model
5
Motor
Motor WPL 9703244 Contact Us For Availability
View on Model
5
Blade, Insert Asm. (Also Order Item 7)
Blade, Insert Asm. (Also Order Item 7) WPL 9702184 Contact Us For Availability
View on Model
6
Fuse, 250V/8A (If Needed)
Fuse, 250V/8A (If Needed) WPL 9702592 Contact Us For Availability
View on Model
6
Collar (White)
Collar (White) WPL 3184360 Contact Us For Availability
View on Model
6
Collar (Almond Creme)
Collar (Almond Creme) WPL 3184361 Contact Us For Availability
View on Model
6
Collar (Cobalt Blue)
Collar (Cobalt Blue) WPL 3184362 Contact Us For Availability
View on Model
6
Collar (Empire Green)
Collar (Empire Green) WPL 3184363 Contact Us For Availability
View on Model
6
Collar (Onyx Black)
Collar (Onyx Black) WPL 3184364 Contact Us For Availability
View on Model
7
Barrier, Ventilation
Barrier, Ventilation WPL 9701027 Contact Us For Availability
View on Model
7
Seal, Cutter Insert Asm.
Seal, Cutter Insert Asm. WPL 3184397 Contact Us For Availability
View on Model
7
Carton, 4-Pack
Carton, 4-Pack WPL 4176242 Contact Us For Availability
View on Model
8
Cord, Power (White)
Cord, Power (White) WPL 9701031 Contact Us For Availability
View on Model
8
Cord, Power (Black)
Cord, Power (Black) WPL 9701032 Contact Us For Availability
View on Model
9
Base (White)
Base (White) WPL 3184536 Contact Us For Availability
View on Model
9
Base (Almond Creme)
Base (Almond Creme) WPL 3184537 Contact Us For Availability
View on Model
9
Base (Cobalt Blue)
Base (Cobalt Blue) WPL 3184538 Contact Us For Availability
View on Model
9
Base (Empire Green)
Base (Empire Green) WPL 3184539 Contact Us For Availability
View on Model
9
Base (Onyx Black)
Base (Onyx Black) WPL 3184540 Contact Us For Availability
View on Model
10
Screw
Screw WPL 3184608 Contact Us For Availability
View on Model
11
Foot, Rubber
Foot, Rubber WPL 115792 Contact Us For Availability
View on Model
12
Overlay, Switch (White)
Overlay, Switch (White) WPL 9701907 Contact Us For Availability
View on Model
12
Overlay, Switch (Almond Creme)
Overlay, Switch (Almond Creme) WPL 9701908 Contact Us For Availability
View on Model
12
Overlay, Switch (Onyx Black)
Overlay, Switch (Onyx Black) WPL 9701911 Contact Us For Availability
View on Model
12
Overlay, Switch (Empire Green)
Overlay, Switch (Empire Green) WPL 9701912 Contact Us For Availability
View on Model
12
Overlay, Switch (Cobalt Blue)
Overlay, Switch (Cobalt Blue) WPL 9701914 Contact Us For Availability
View on Model
13
Button, Switch
Button, Switch WPL 3184601 Contact Us For Availability
View on Model
14
Screw
Screw WPL 3184609 Contact Us For Availability
View on Model
15
Ring, O
Ring, O WPL 9701904 Contact Us For Availability
View on Model
16
Band, Trim (White)
Band, Trim (White) WPL 3184612 Contact Us For Availability
View on Model
16
Band, Trim (Almond Creme)
Band, Trim (Almond Creme) WPL 3184613 Contact Us For Availability
View on Model
16
Band, Trim (Onyx Black)
Band, Trim (Onyx Black) WPL 3184614 Contact Us For Availability
View on Model
