Model Whirlpool KSB5(DUP) – Common Parts & Diagrams

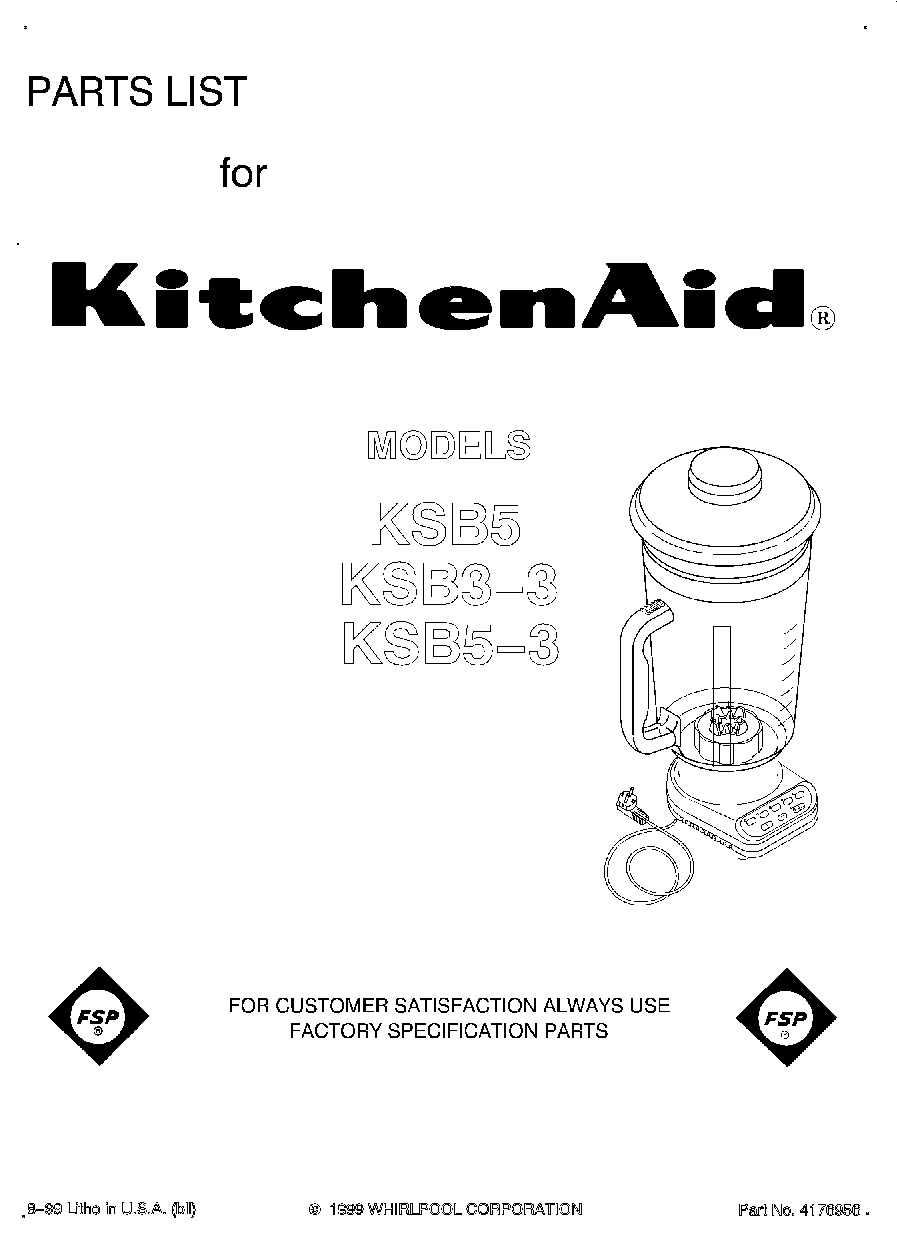

01 - SECTION

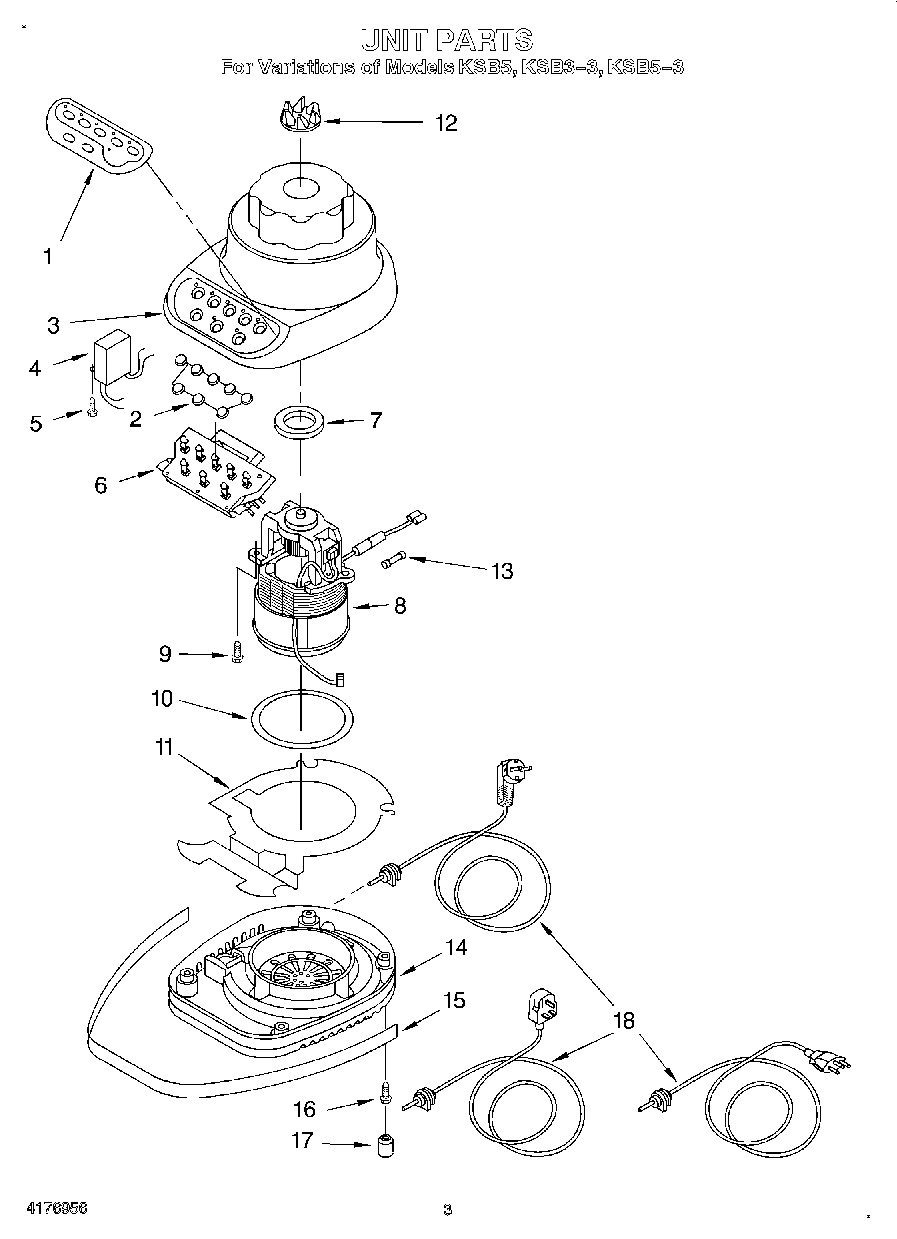

03 - SECTION

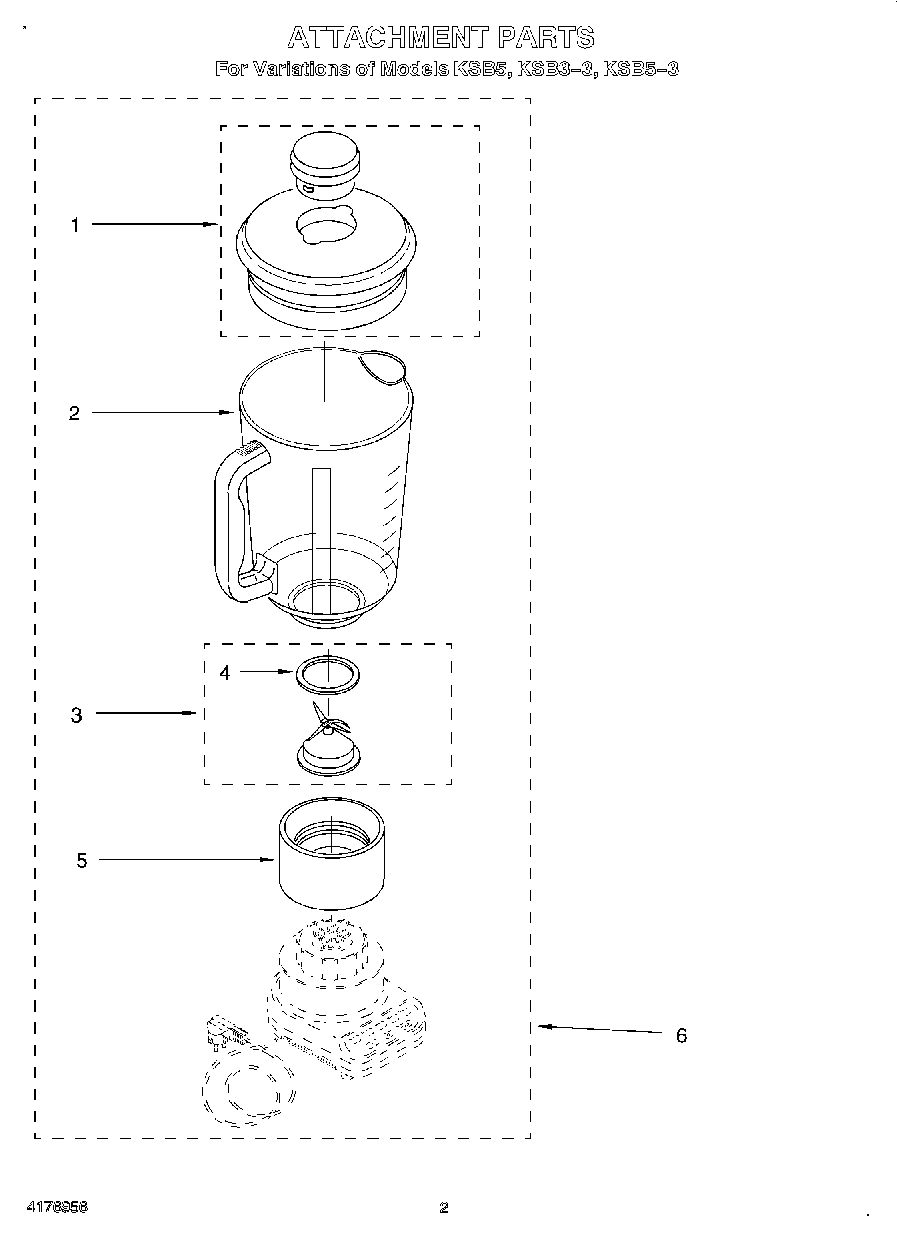

02 - SECTION
Common parts from model Whirlpool KSB5(DUP)
Repair Parts List WPL LIT4176956 Contact Us For Availability
Use and Care Guide WPL LIT9704294 Contact Us For Availability
1
Lid and Cap (Onyx Black) WPL 9704922 Contact Us For Availability
1
Lid and Cap (Cobalt Blue) WPL 9704924 Contact Us For Availability
1
Lid and Cap (White) WPL 9704920 Contact Us For Availability
1
Lid and Cap (Almond Creme) WPL 9704921 Contact Us For Availability
1
Lid and Cap (Empire Red) WPL 9704923 Contact Us For Availability
1
Lid and Cap (Empire Green) WPL 9704925 Contact Us For Availability
1
Lid and Cap (Majestic Yellow) WPL 9704926 Contact Us For Availability
2
Jar WPL 9704200 Contact Us For Availability
3
Housing, Upper (Empire Green) WPL 3184306 Contact Us For Availability
3
Housing, Upper (Chrome) WPL 3184309 Contact Us For Availability
3
Housing, Upper (Majestic Yellow) WPL 3184310 Contact Us For Availability
3
Housing, Upper (Empire Red) WPL 3184311 Contact Us For Availability
4
EMI Filter (Global Only) WPL 9704299 Contact Us For Availability
5
Collar (White) WPL 9704251 Contact Us For Availability
5
Collar (Almond Creme) WPL 9704252 Contact Us For Availability
5
Collar (Empire Red) WPL 9704254 Contact Us For Availability
5
Collar (Cobalt Blue) WPL 9704255 Contact Us For Availability
5
Collar (Empire Green) WPL 9704256 Contact Us For Availability
5
Collar (Majestic Yellow) WPL 9704257 Contact Us For Availability
6
Board, Control (5-Speed 220/240V) WPL 9704280 Contact Us For Availability
6
Board, Control (3-Speed 110V) WPL 9705073 Contact Us For Availability
6
Board, Control (5-Speed 110V) WPL 9705074 Contact Us For Availability
6
Upper Assembly, Complete (White) WPL 9704210 Contact Us For Availability
6
Upper Assembly, Complete (Almond Creme) WPL 9704211 Contact Us For Availability
6
Upper Assembly, Complete (Onyx Black) WPL 9704212 Contact Us For Availability
6
Upper Assembly, Complete (Empire Red) WPL 9704213 Contact Us For Availability
6
Upper Assembly, Complete (Cobalt Blue) WPL 9704214 Contact Us For Availability
6
Upper Assembly, Complete (Empire Green) WPL 9704215 Contact Us For Availability
6
Upper Assembly, Complete (Majestic Yellow) WPL 9704216 Contact Us For Availability
7
Seal, Motor WPL 3184398 Contact Us For Availability
8
Motor (120 Volt) WPL 9703244 Contact Us For Availability
8
Motor (240 Volt) WPL 9704287 Contact Us For Availability
9
Screw WPL 3184609 Contact Us For Availability
10
O-Ring WPL 9701904 Contact Us For Availability
11
Barrier, Ventilation WPL 9701027 Contact Us For Availability
13
Fuse, 8A WPL 9702592 Contact Us For Availability
14
Base (White) WPL 3184536 Contact Us For Availability
14
Base (Almond Creme) WPL 3184537 Contact Us For Availability
14
Base (Cobalt Blue) WPL 3184538 Contact Us For Availability
14
Base (Empire Green) WPL 3184539 Contact Us For Availability
14
Base (Onyx Black) WPL 3184540 Contact Us For Availability
14
Base (Majestic Yellow) WPL 3184542 Contact Us For Availability
14
Base (Empire Red) WPL 3184543 Contact Us For Availability
15
Band, Trim (Grey) WPL 3184611 Contact Us For Availability
15
Band, Trim (White) WPL 3184612 Contact Us For Availability
15
Band, Trim (Almond Creme) WPL 3184613 Contact Us For Availability
15
Band, Trim (Cobalt Blue) WPL 9704295 Contact Us For Availability
16
Screw WPL 4176022 Contact Us For Availability
17
Foot, Rubber WPL 115792 Contact Us For Availability
18
Cord, Power (Swiss) WPL 9704273 Contact Us For Availability
18
Cord, Power (Europe Models) WPL 9704274 Contact Us For Availability
18
Cord, Power (UK) WPL 9704275 Contact Us For Availability
18
Cord, Power (Black US) WPL 9705060 Contact Us For Availability
18
Cord, Power (White US Pulse) WPL 9705061 Contact Us For Availability
× ![]()
