Model Whirlpool KRFC236SBE02 – Common Parts &amp; Diagrams

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $23.08

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

W10134625 Whirlpool Refrigerator Touch-Up Pai In Stock WPL W10134625 $7.85

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

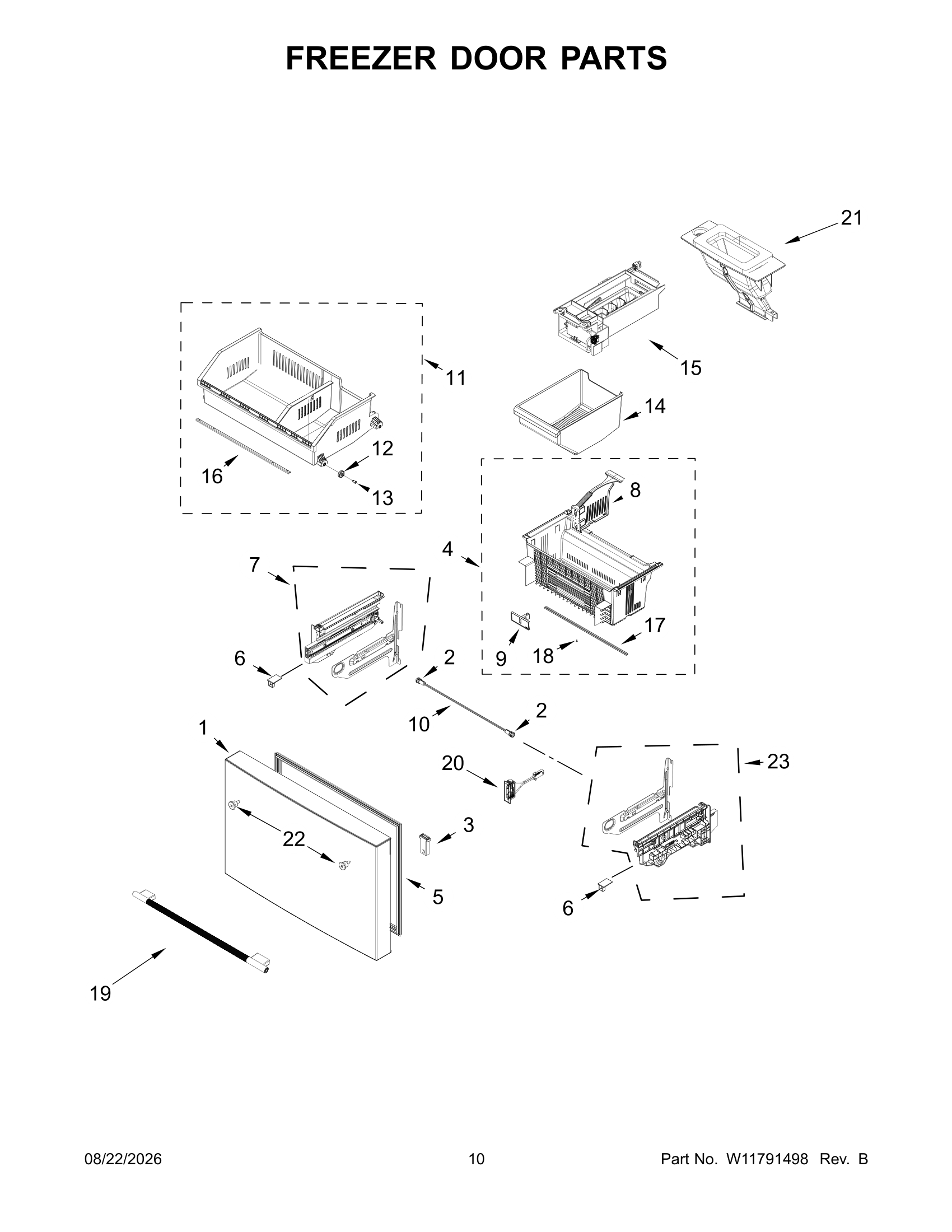

1

Freezer Door Assembly (Black Ore) WPL W11690350 Contact Us For Availability

1

Right Door Assembly (Black Ore) WPL W11690345 Contact Us For Availability

1

Water Reservoir WPL W11768672 Contact Us For Availability

1

Stationary Shelf Assembly WPL W11579005 Contact Us For Availability

1

Compressor Baseplate WPL W11543386 Contact Us For Availability

2

WPW10277361 Whirlpool Refrigerator Collar Backorder WPL WPW10277361 $4.28

2

Evaporator Assembly WPL W11646272 Contact Us For Availability

2

Left Door Assembly (Black Ore) WPL W11690348 Contact Us For Availability

2

Filter Housing Assembly WPL W11611455 Contact Us For Availability

2

Pantry Crisper Assembly WPL W11753409 Contact Us For Availability

2

Clip WPL 2223913 Contact Us For Availability

3

Reed Switch Holder WPL W11658593 Contact Us For Availability

3

HMI Assembly WPL W11550269 Contact Us For Availability

3

Tower Cover WPL W11589849 Contact Us For Availability

3

Full Shelf Assembly WPL W11612888 Contact Us For Availability

3

Water Tray WPL W11678106 Contact Us For Availability

4

EDRARXD1 Whirlpool Water Filter In Stock WPL EDRARXD1 $58.80

4

W11678963 Whirlpool Grommet In Stock WPL W11678963 $3.70

4

Bottom Basket Assembly WPL W11534705 Contact Us For Availability

4

Evaporator Cover Assembly WPL W11609201 Contact Us For Availability

4

Door Stopper Spring WPL W11681260 Contact Us For Availability

4

Side Support Flange WPL W10840918 Contact Us For Availability

5

Freezer Door Gasket (Grey) WPL W11586644 Contact Us For Availability

5

Evaporator Wire Assembly WPL W11559742 Contact Us For Availability

5

Mullion Assembly WPL W11624284 Contact Us For Availability

5

Damper Assembly WPL W11512870 Contact Us For Availability

5

Pantry Lid Cover WPL W11753454 Contact Us For Availability

5

Condenser Assembly WPL W11668494 Contact Us For Availability

6

Clip Adapter WPL W11614114 Contact Us For Availability

6

Heat Shield Assembly WPL W11569938 Contact Us For Availability

6

Door Duct Retainer WPL W11685003 Contact Us For Availability

6

Water Filter Housing Plug (Grey) WPL W11669932 Contact Us For Availability

6

Crisper Pan Roller WPL W11753406 Contact Us For Availability

6

Tube Assembly WPL W11614556 Contact Us For Availability

7

Adapter Assembly (Left Hand) WPL W11750020 Contact Us For Availability

7

Wire Jumper Assembly WPL W11627842 Contact Us For Availability

7

Cover Screw WPL W11589852 Contact Us For Availability

7

Pantry Jumper Assembly WPL W11717382 Contact Us For Availability

7

Crisper Pan Roller WPL W11753405 Contact Us For Availability

7

Compressor WPL W11754926 Contact Us For Availability

8

Bottom Basket Divider WPL W11727686 Contact Us For Availability

8

Defrost Heater WPL W11560604 Contact Us For Availability

8

Handle Assembly (Black Ore) WPL W11682897 Contact Us For Availability

8

EPS Holder WPL W11733721 Contact Us For Availability

8

Pantry Adapter Cover (Left Hand) WPL W11666151 Contact Us For Availability

8

Condenser Fan Assembly WPL W11613932 Contact Us For Availability

9

Slider Basket WPL W11632631 Contact Us For Availability

9

Defrost Heater Clip WPL W11365795 Contact Us For Availability

9

Refrigerator Door Gasket (Grey) WPL W11586645 Contact Us For Availability

9

Air Return Duct Grille WPL W11608374 Contact Us For Availability

9

Crisper Cover Frame WPL W11620147 Contact Us For Availability

9

Precooler Assembly WPL W11610529 Contact Us For Availability

Shaft Rack Assembly (Bottom) WPL W11611561 Contact Us For Availability

Air Dam (Left Hand) WPL W11563438 Contact Us For Availability

Gallon BIn WPL W11657108 Contact Us For Availability

Air Return Grille WPL W11615361 Contact Us For Availability

Shelf Ladder (Left Hand) WPL W11580665 Contact Us For Availability

Inverter Box Assembly WPL W11754928 Contact Us For Availability

Top Basket Assembly WPL W11536451 Contact Us For Availability

Reed Switch WPL W11548358 Contact Us For Availability

Bottom Bin (Right Hand) WPL W11657111 Contact Us For Availability

Wire Jumper Assembly WPL W11669736 Contact Us For Availability

Ladder Shelf (Right Hand) WPL W11599143 Contact Us For Availability

Drain Tube Extension WPL W11559668 Contact Us For Availability

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

Pan Roller WPL W10838061 Contact Us For Availability

Air Dam (Right Hand) WPL W11563437 Contact Us For Availability

Gallon Bin WPL W11657107 Contact Us For Availability

False Wall WPL W11790387 Contact Us For Availability

Shelf Ladder (Center) WPL W11580666 Contact Us For Availability

W10774846 Whirlpool Refrigerator Cabinet Roll Backorder WPL W10774846 $34.44

W10839805 Whirlpool Axle Assembly Backorder WPL W10839805 $9.13

Bottom Bin WPL W11657113 Contact Us For Availability

Crisper Roller Assembly WPL W11639664 Contact Us For Availability

Ice Bucket WPL W11699243 Contact Us For Availability

LED Light Module WPL W11555160 Contact Us For Availability

Badge WPL W11688412 Contact Us For Availability

Knob Side Support WPL W11608888 Contact Us For Availability

Front Shroud WPL W11613272 Contact Us For Availability

Icemaker Assembly WPL W11608631 Contact Us For Availability

Cover Screw WPL W11607800 Contact Us For Availability

Pantry Roller Adapter (Left Hand) WPL W11753421 Contact Us For Availability

Inverter Connector Cover WPL W11682571 Contact Us For Availability

Tube Inlet WPL W11551460 Contact Us For Availability

Pan Support WPL W11612780 Contact Us For Availability

Retainer Plug WPL W11719970 Contact Us For Availability

Port Lid Assembly WPL W11724694 Contact Us For Availability

Pantry Adapter Assembly WPL W11753422 Contact Us For Availability

Baseplate Gasket WPL W11642492 Contact Us For Availability

Filter Outlet Tube WPL W11768632 Contact Us For Availability

Pan Support WPL W11604038 Contact Us For Availability

False Wall WPL W11608364 Contact Us For Availability

Pantry Base (Includes Thermistor Assembly) WPL W11718514 Contact Us For Availability

Roller Cover WPL W11613273 Contact Us For Availability

W11109499 Whirlpool Refrigerator Tube In Stock WPL W11109499 $20.17

Screw WPL W11113841 Contact Us For Availability

Water Filter Housing Cover WPL W11611458 Contact Us For Availability

Center Support Assembly WPL W11672924 Contact Us For Availability

PCA Board WPL W11601109 Contact Us For Availability

Handle Assembly (Black Ore) WPL W11682892 Contact Us For Availability

Water Tube Holder WPL W11775450 Contact Us For Availability

Crisper Adapter (Left Hand) WPL W11757357 Contact Us For Availability

Rear Shroud WPL W11611636 Contact Us For Availability

Air Bottom Separator WPL W11676389 Contact Us For Availability

Reed Switch WPL W11553901 Contact Us For Availability

Microswitch WPL W11777021 Contact Us For Availability

Crisper Adapter (Right Hand) WPL W11757355 Contact Us For Availability

Assembly, Wire Harness WPL W11728244 Contact Us For Availability

Icemaker Water Tube WPL W11768995 Contact Us For Availability

Ice Maker Air Duct Assembly WPL W11644790 Contact Us For Availability

Dispenser Fascia WPL W11769081 Contact Us For Availability

Crisper Frame Platter WPL W11775514 Contact Us For Availability

22

W11449276 Whirlpool Handle Support In Stock WPL W11449276 $9.59

22

Triple Valve Bracket WPL W11541794 Contact Us For Availability

22

Adapter Pantry Cover (Right Hand) WPL W11666169 Contact Us For Availability

23

Door Coupler WPL W10505294 Contact Us For Availability

23

Adapter Assembly (Right Hand) WPL W11750021 Contact Us For Availability

23

Glass Platter WPL W11755657 Contact Us For Availability

24

W10705239 Whirlpool Refrigerator Grommet Backorder WPL W10705239 $30.91

24

Glass Crisper Cover WPL W11664614 Contact Us For Availability

25

Shelf Adapter (Left Hand) WPL W11612881 Contact Us For Availability

26

Fill Tube Assembly WPL W11796059 Contact Us For Availability

26

Shelf Adapter (Right Hand) WPL W11612883 Contact Us For Availability

27

Roller Bracket Assembly (Right Hand) WPL W11561087 Contact Us For Availability

28

Top Hinge Assembly (Right Hand) WPL W11354191 Contact Us For Availability
