Model Whirlpool KPWB100NP0 PRO LINE WAFFLE BAKER – Common Parts & Diagrams

Common parts from model Whirlpool KPWB100NP0 PRO LINE WAFFLE BAKER

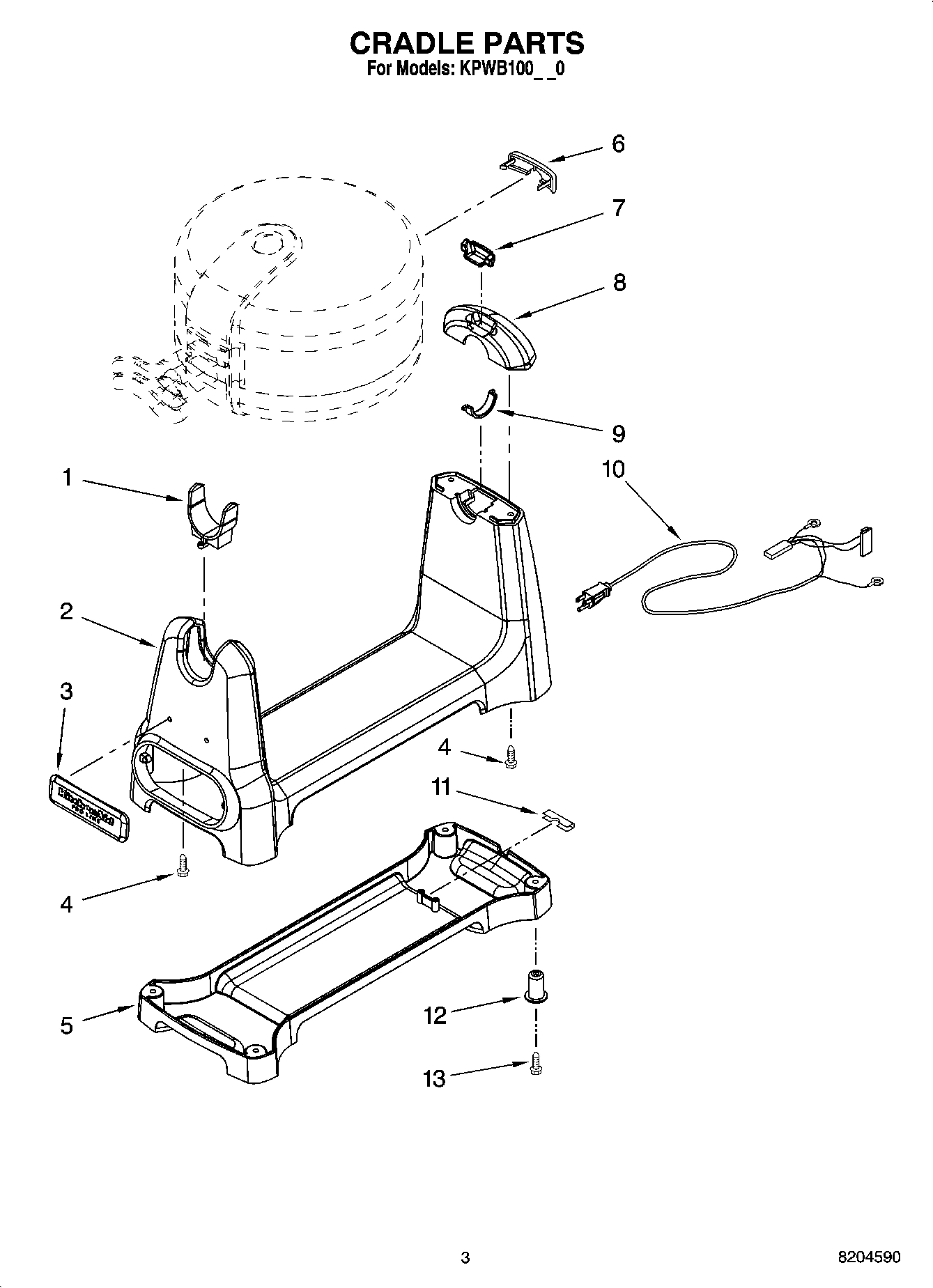

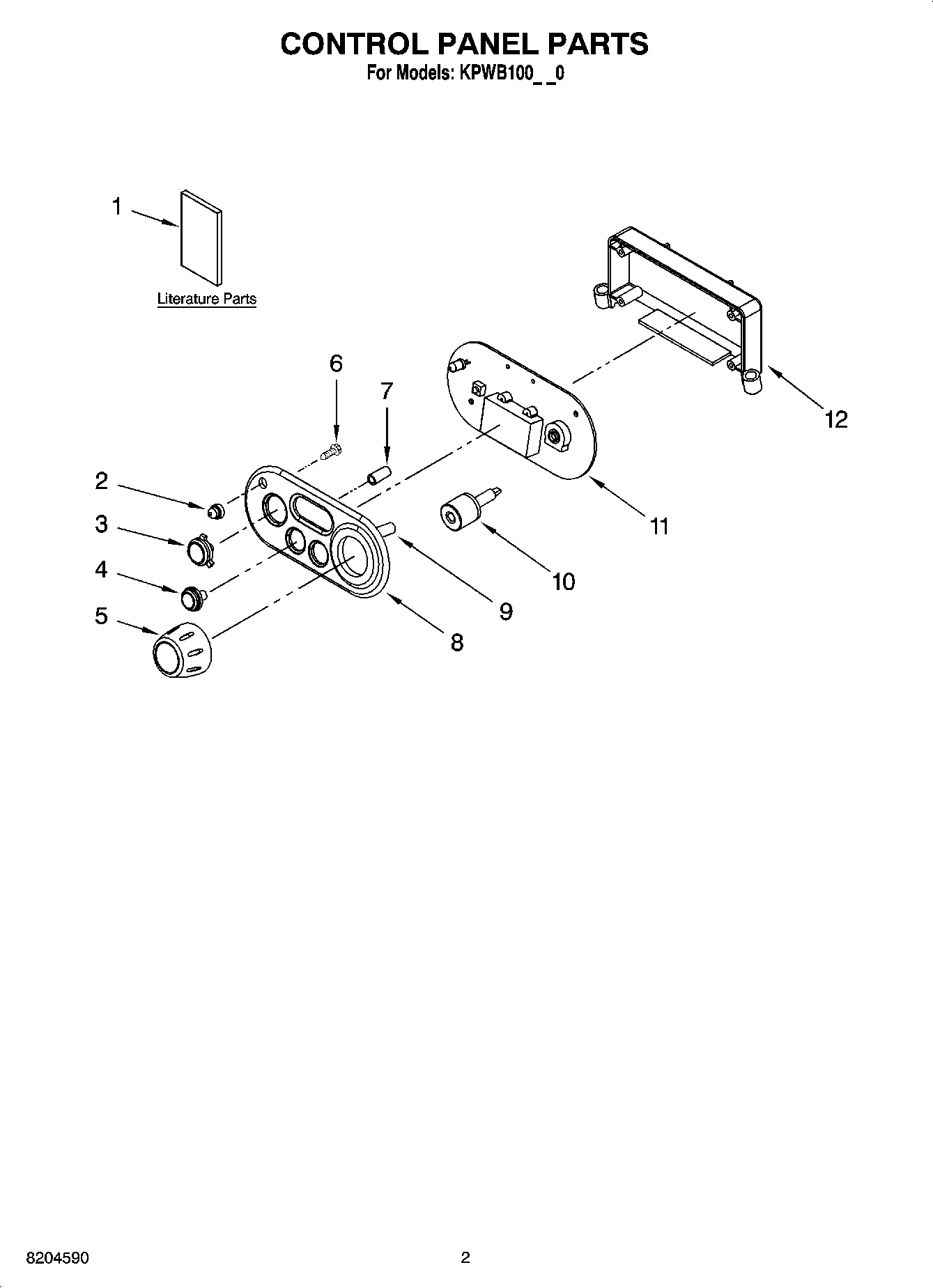

02 - CRADLE PARTS

Print

• This Diagram
• All Diagrams

1

8211494 Whirlpool Bracket Backorder WPL 8211494 View Details $21.39

View on Model

1

Repair Parts List WPL 8204590 Contact Us For Availability

View on Model

1

Wiring Diagram WPL 8204592 Contact Us For Availability

View on Model

1

Guide, Use & Care WPL W10158016 Contact Us For Availability

View on Model

2

Base (Pearl Metallic) WPL 8211496 Contact Us For Availability

View on Model

2

Base (Nickel Pearl) WPL 8212148 Contact Us For Availability

View on Model

2

Base (Onyx Black) WPL W10157757 Contact Us For Availability

View on Model

2

Lens, LED WPL 8211489 Contact Us For Availability

View on Model

3

8211487 Whirlpool Button Backorder WPL 8211487 View Details $23.88

View on Model

3

Nameplate WPL 8211492 Contact Us For Availability

View on Model

4

Screw WPL 8211495 Contact Us For Availability

View on Model

4

Button, Start WPL 8211486 Contact Us For Availability

View on Model

5

W10240856 Whirlpool Cover Backorder WPL W10240856 View Details $28.26

View on Model

5

Knob WPL 8211485 Contact Us For Availability

View on Model

6

Cover, Spring WPL 8211504 Contact Us For Availability

View on Model

6

Screw WPL 8211490 Contact Us For Availability

View on Model

7

8211508 Whirlpool Cover Backorder WPL 8211508 View Details $20.59

View on Model

7

Clamp WPL 8211498 Contact Us For Availability

View on Model

8

8211488 Whirlpool Bezel Backorder WPL 8211488 View Details $34.62

View on Model

8

Cap (Pearl Metallic) WPL 8211497 Contact Us For Availability

View on Model

8

Cap (Nickel Pearl) WPL 8212149 Contact Us For Availability

View on Model

8

Cap (Onyx Black) WPL W10157758 Contact Us For Availability

View on Model

9

Holder, Axle WPL 8211499 Contact Us For Availability

View on Model

9

Spring WPL 8211514 Contact Us For Availability

View on Model

10

Cord, Power (Incl. Mov Board and PCB) WPL 8212256 Contact Us For Availability

View on Model

10

Bracket, Knob WPL 8211513 Contact Us For Availability

View on Model

11

Clamp, Cord WPL 8211503 Contact Us For Availability

View on Model

11

MCU PCB Assembly WPL 8211491 Contact Us For Availability

View on Model

12

8211501 Whirlpool Foot Assembly Backorder WPL 8211501 View Details $17.70

View on Model

12

Holder, PCB WPL 8211493 Contact Us For Availability

View on Model

13

Screw WPL 8211502 Contact Us For Availability

View on Model

×
