Model Whirlpool KPFP850PM0 PROLINE FOOD PROCESSOR 16-CUP – Common Parts & Diagrams

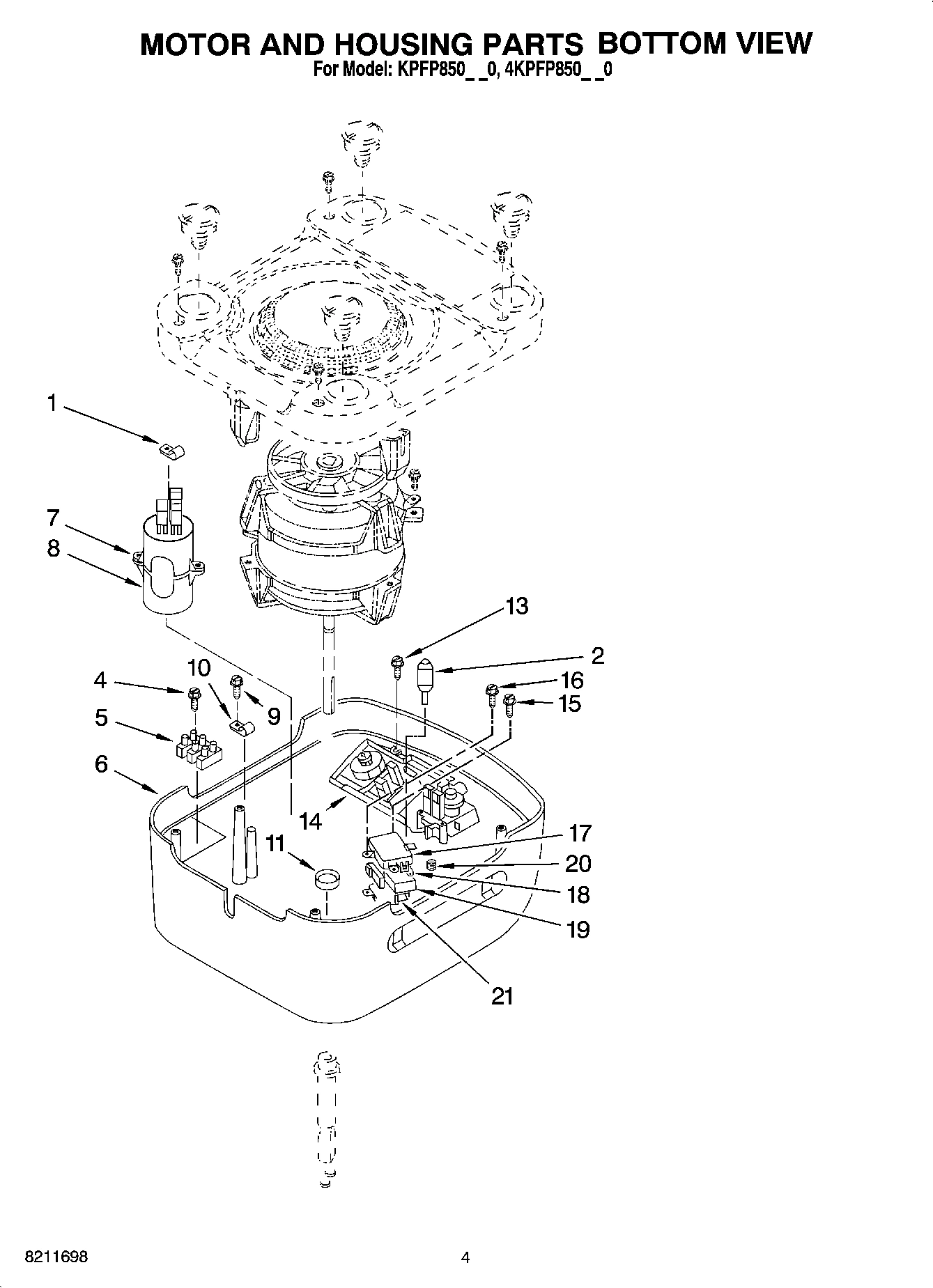

03 - MOTOR AND HOUSING PARTS BOTTOM VIEW

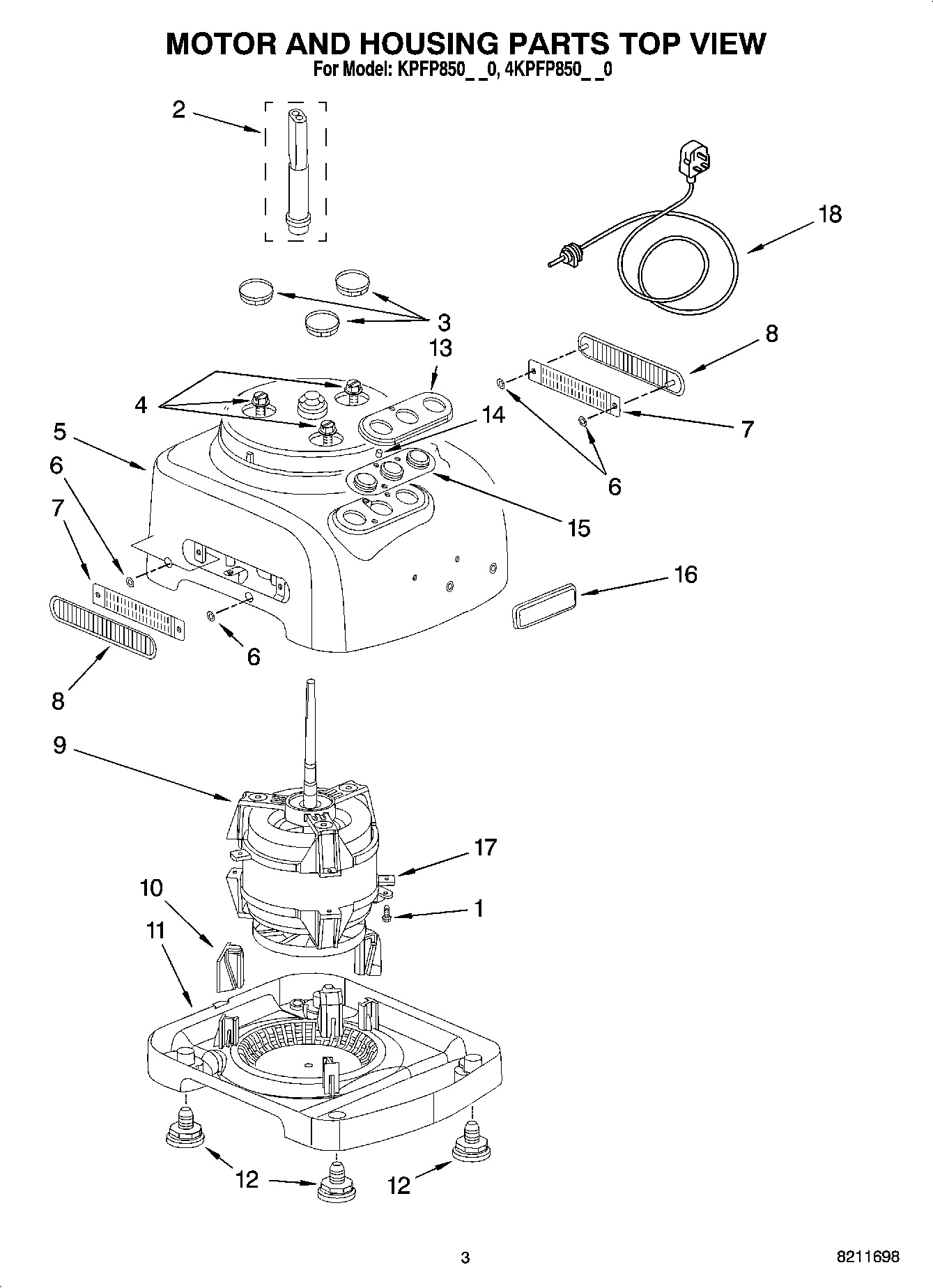

02 - MOTOR AND HOUSING PARTS TOP VIEW

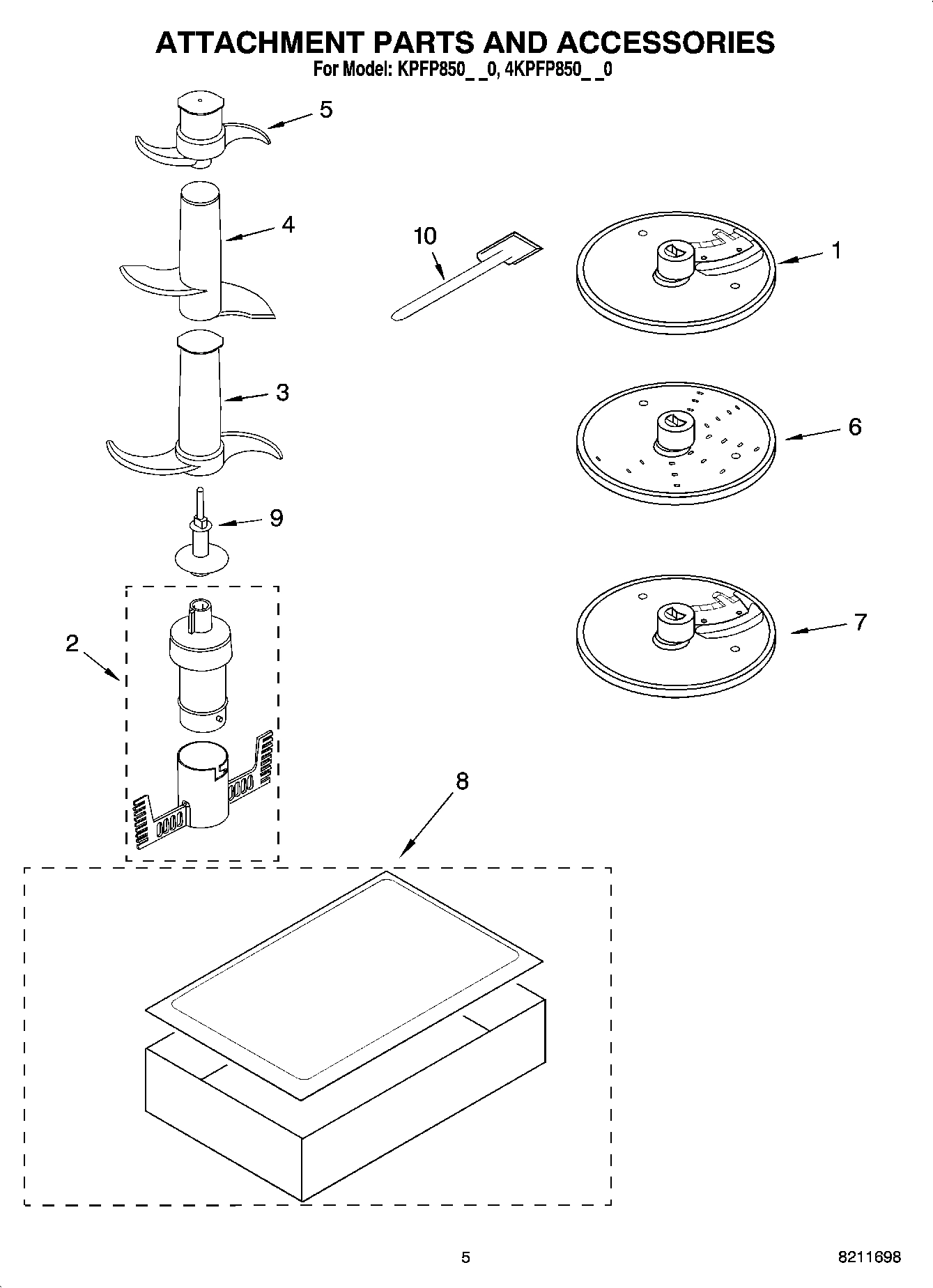

04 - ATTACHMENT PARTS AND ACCESSORIES

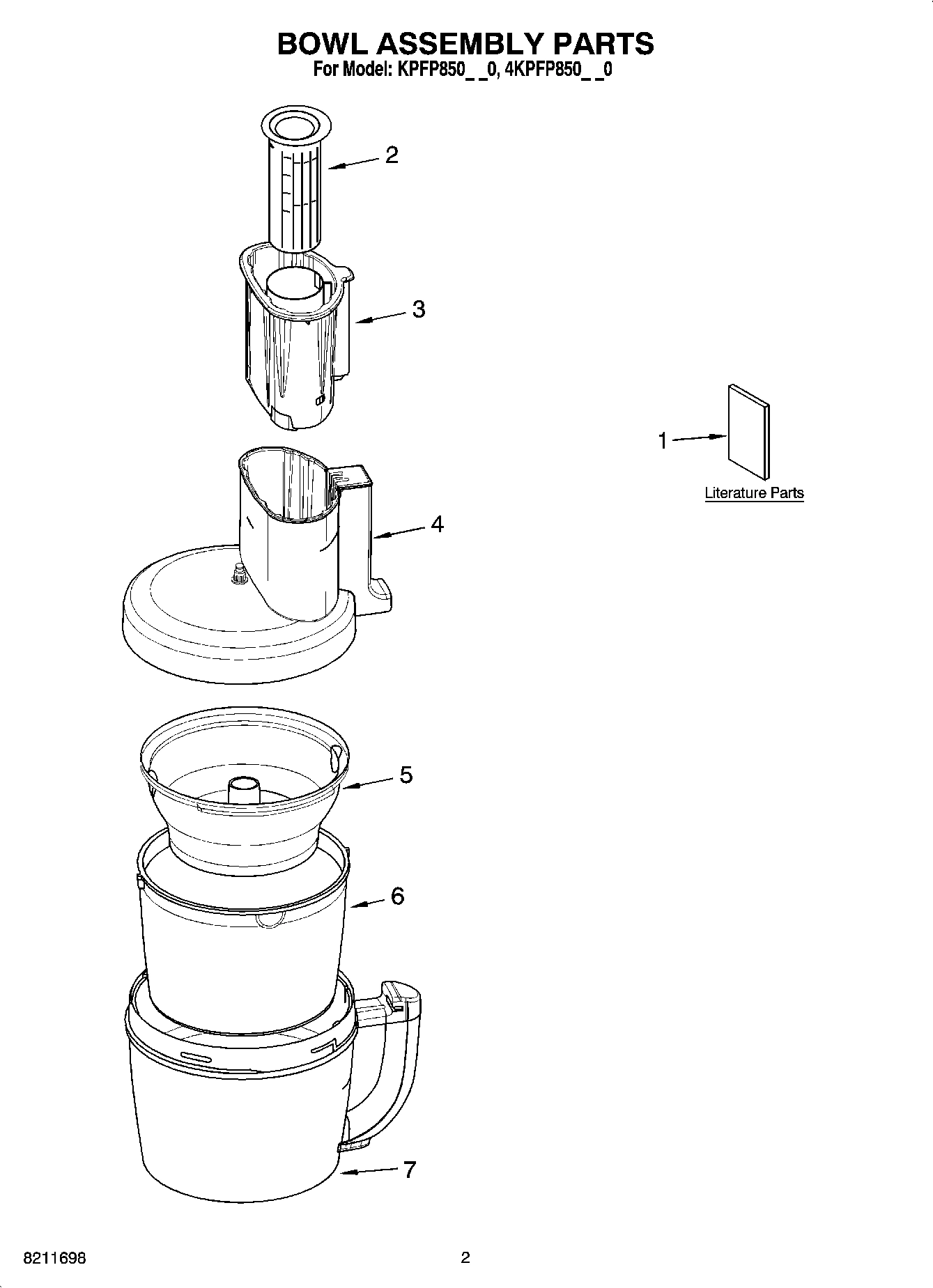

01 - BOWL ASSEMBLY PARTS
Common parts from model Whirlpool KPFP850PM0 PROLINE FOOD PROCESSOR 16-CUP
1
Screw WPL 8211600 Contact Us For Availability
1
Slicing Disc 2MM WPL 8211549 Contact Us For Availability
1
Guide, Use & Care WPL 8204593 Contact Us For Availability
1
Repair Parts List WPL 8211698 Contact Us For Availability
2
Lamp, Neon WPL 8211738 Contact Us For Availability
2
Sleeve, Motor Shaft WPL 8211584 Contact Us For Availability
2
Egg Whisk Assembly WPL 8211553 Contact Us For Availability
2
Insert, Pusher WPL 8211547 Contact Us For Availability
3
Cover, Screw WPL 8211585 Contact Us For Availability
3
Multipurpose Blade WPL 8211555 Contact Us For Availability
3
Pusher WPL 8211548 Contact Us For Availability
4
Screw WPL 8211604 Contact Us For Availability
4
Screw WPL 8211586 Contact Us For Availability
4
Dough Blade Assembly WPL 8211556 Contact Us For Availability
4
Cover, Bowl Asm WPL 8211550 Contact Us For Availability
5
Terminal Block WPL 8211605 Contact Us For Availability
5
Housing, Motor (Pearl Metallic) WPL 8211587 Contact Us For Availability
5
Housing (Onyx Black) WPL W10193428 Contact Us For Availability
5
Mini Blade WPL 8211557 Contact Us For Availability
5
Bowl, Mini WPL 8211689 Contact Us For Availability
6
Shield WPL 8211606 Contact Us For Availability
6
Nut, Self-Locking WPL 8211588 Contact Us For Availability
6
Shredding Disc 4MM WPL 8211558 Contact Us For Availability
6
Bowl, Chefs WPL 8211690 Contact Us For Availability
7
Clip, Capacitor WPL 8211607 Contact Us For Availability
7
Guard, Vent WPL 8211589 Contact Us For Availability
7
Slicing Disc 4MM WPL 8211559 Contact Us For Availability
7
Bowl, Work 16 Cup WPL 8211697 Contact Us For Availability
8
Capacitor WPL 8211608 Contact Us For Availability
8
Vent WPL 8211590 Contact Us For Availability
8
Storage Box, Accessory WPL 8211554 Contact Us For Availability
9
Screw WPL 8211609 Contact Us For Availability
9
Motor and Bracket WPL 8211591 Contact Us For Availability
9
Stem, Disc WPL 8211759 Contact Us For Availability
10
Grommet, Motor WPL 8211592 Contact Us For Availability
11
Seal, Shaft WPL 8211612 Contact Us For Availability
11
Base, Housing WPL 8211593 Contact Us For Availability
12
Foot, Pedestal WPL 8211594 Contact Us For Availability
13
Screw WPL 8211717 Contact Us For Availability
13
Bezel, Control WPL 8211595 Contact Us For Availability
14
Relay & Switch Panel Assembly WPL 8211718 Contact Us For Availability
14
Lens, Power Indicator WPL 8211596 Contact Us For Availability
15
Screw WPL 8211719 Contact Us For Availability
15
Overlay WPL 8211597 Contact Us For Availability
16
Screw WPL 8211720 Contact Us For Availability
16
Nameplate WPL 8211598 Contact Us For Availability
17
Insulation, Housing Upper WPL 8211721 Contact Us For Availability
17
Clamp, Cable WPL 8211599 Contact Us For Availability
18
Lever, Switch WPL 8211722 Contact Us For Availability
18
Cord, Power WPL 8212390 Contact Us For Availability
19
Switch, Micro WPL 8211723 Contact Us For Availability
20
Spring, Torson WPL 8211724 Contact Us For Availability
21
Insulation, Housing Lower WPL 8211725 Contact Us For Availability
× ![]()
