Model Whirlpool KPFP850 FOOD PROCESSOR 16 Cup Pro-Line – Common Parts & Diagrams
05 - ATTACHMENT PARTS AND ACCESSORIES
02 - MOTOR AND HOUSING PARTS TOP VIEW

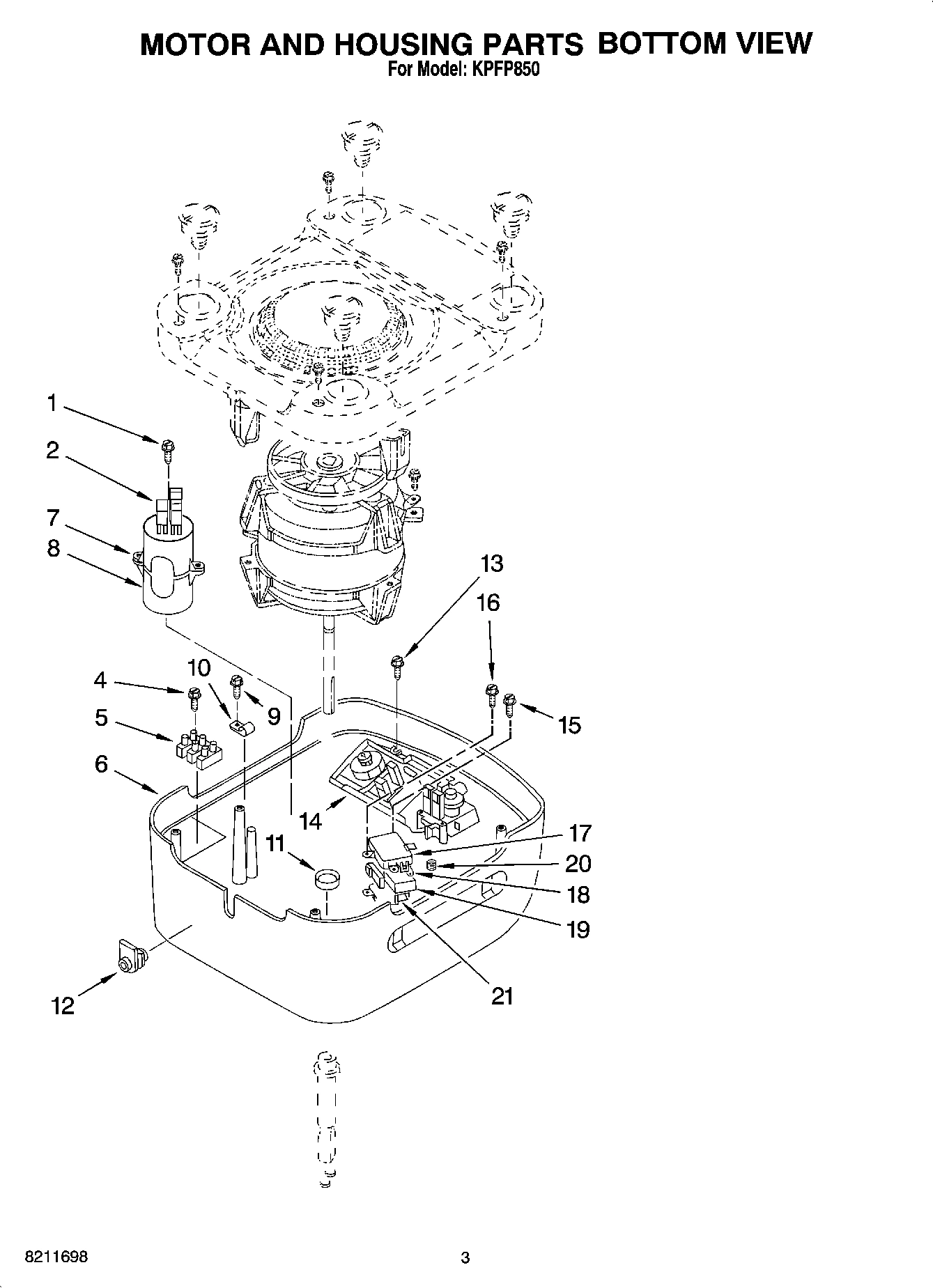

03 - MOTOR AND HOUSING PARTS BOTTOM VIEW

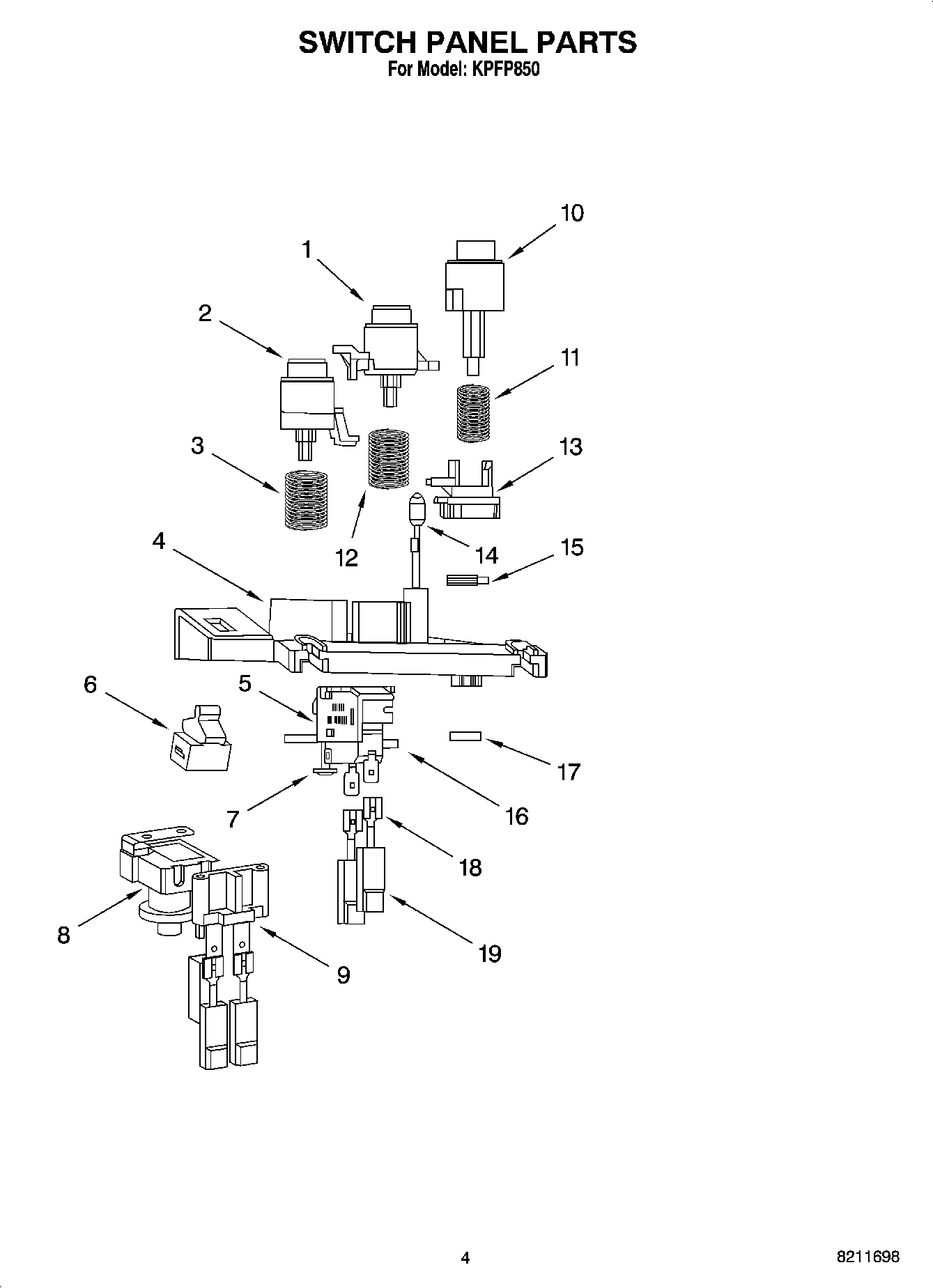

04 - SWITCH PANEL PARTS

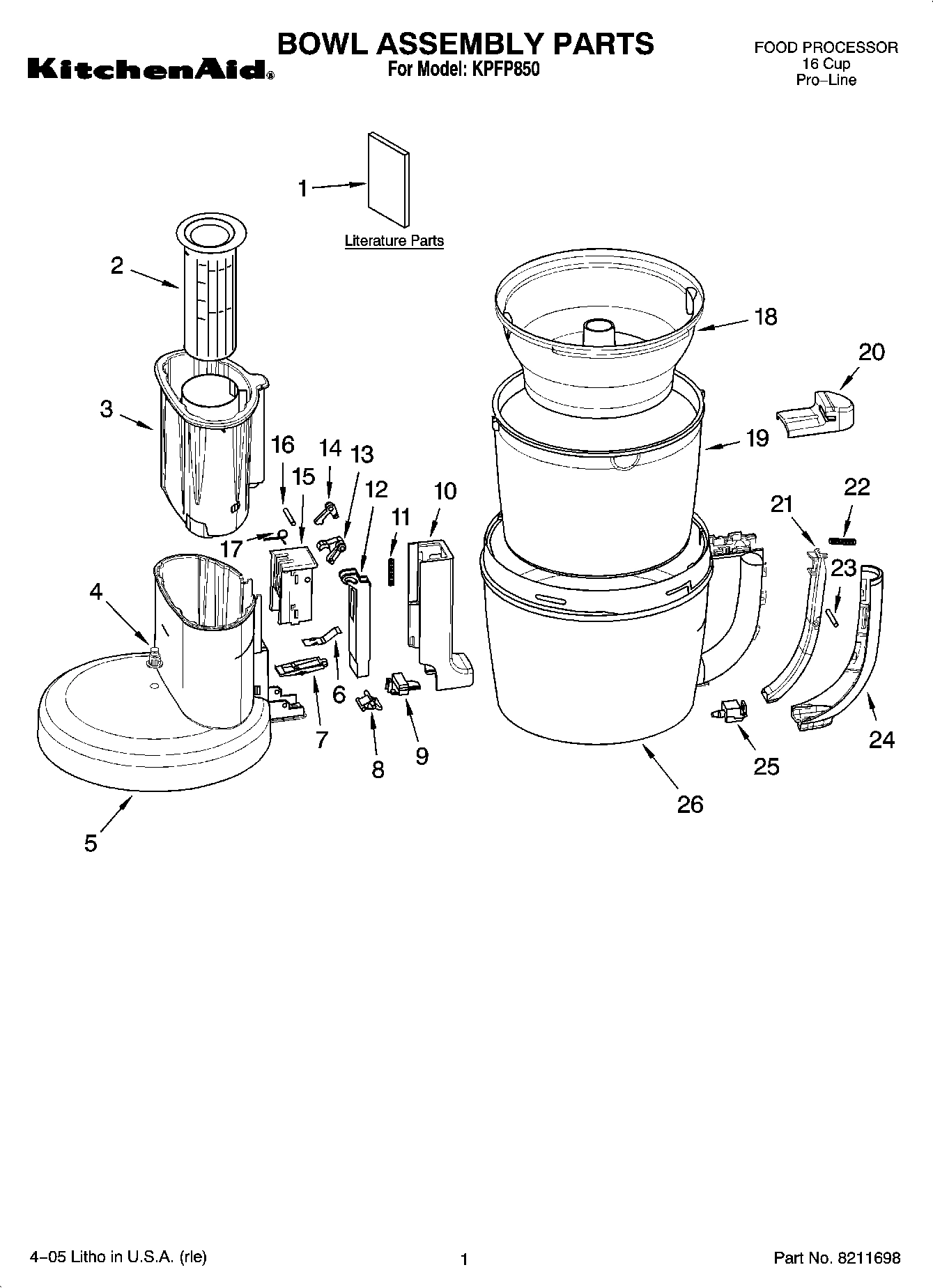

01 - BOWL ASSEMBLY PARTS
Common parts from model Whirlpool KPFP850 FOOD PROCESSOR 16 Cup Pro-Line
1
Slicing Disc 2MM WPL 8211549 Contact Us For Availability
1
Button, On WPL 8211726 Contact Us For Availability
1
Guide, Use & Care WPL 8204593 Contact Us For Availability
1
Repair Parts List (8) WPL 821169 Contact Us For Availability
2
Egg Whisk Assembly WPL 8211553 Contact Us For Availability
2
Sleeve, Motor Shaft WPL 8211584 Contact Us For Availability
2
Insulator, Terminal WPL 8211602 Contact Us For Availability
2
Button, Pulse WPL 8211727 Contact Us For Availability
2
Insert, Pusher WPL 8211547 Contact Us For Availability
3
Multipurpose Blade WPL 8211555 Contact Us For Availability
3
Cover, Screw WPL 8211585 Contact Us For Availability
3
Spring, Button Pulse WPL 8211728 Contact Us For Availability
3
Pusher WPL 8211548 Contact Us For Availability
4
Dough Blade Assembly WPL 8211556 Contact Us For Availability
4
Screw WPL 8211586 Contact Us For Availability
4
Screw WPL 8211604 Contact Us For Availability
4
Shelf, Button WPL 8211729 Contact Us For Availability
4
Bushing WPL 8211613 Contact Us For Availability
5
Mini Blade WPL 8211557 Contact Us For Availability
5
Housing, Motor WPL 8211587 Contact Us For Availability
5
Terminal Block WPL 8211605 Contact Us For Availability
5
Mount, Switch WPL 8211730 Contact Us For Availability
5
Cover, Bowl WPL 8211550 Contact Us For Availability
6
Shredding Disc 4MM WPL 8211558 Contact Us For Availability
6
Nut, Self-Locking WPL 8211588 Contact Us For Availability
6
Shield WPL 8211606 Contact Us For Availability
6
Not Serviced WPL ARI89404A8 Contact Us For Availability
6
Spring, Latch Interlock WPL 8211551 Contact Us For Availability
7
Slicing Disc 4MM WPL 8211559 Contact Us For Availability
7
Guard, Vent WPL 8211589 Contact Us For Availability
7
Clip, Capacitor WPL 8211607 Contact Us For Availability
7
Screw WPL 8211731 Contact Us For Availability
7
Latch, Interlock WPL 8211552 Contact Us For Availability
8
Storage Box, Accessory WPL 8211554 Contact Us For Availability
8
Vent WPL 8211590 Contact Us For Availability
8
Capacitor WPL 8211608 Contact Us For Availability
8
Relay WPL 8211732 Contact Us For Availability
8
Link, Plate WPL 8211614 Contact Us For Availability
9
Stem, Disc WPL 8211759 Contact Us For Availability
9
Motor and Bracket WPL 8211591 Contact Us For Availability
9
Screw WPL 8211609 Contact Us For Availability
9
Adaptor WPL 8211733 Contact Us For Availability
9
Lock, Plate WPL 8211615 Contact Us For Availability
10
Grommet, Motor WPL 8211592 Contact Us For Availability
10
Button, Off WPL 8211734 Contact Us For Availability
10
Cover, Chute WPL 8211616 Contact Us For Availability
11
Base, Housing WPL 8211593 Contact Us For Availability
11
Bushing, Power Cord WPL 8211611 Contact Us For Availability
11
Spring, Button Off WPL 8211735 Contact Us For Availability
11
Spring, Slider WPL 8211617 Contact Us For Availability
12
Foot, Pedestal WPL 8211594 Contact Us For Availability
12
Seal, Shaft WPL 8211612 Contact Us For Availability
12
Spring, Button On WPL 8211736 Contact Us For Availability
12
Slide, Plate WPL 8211618 Contact Us For Availability
13
Bezel, Control WPL 8211595 Contact Us For Availability
13
Screw WPL 8211717 Contact Us For Availability
13
Button, Off WPL 8211737 Contact Us For Availability
13
Wedge, Plate Left WPL 8211619 Contact Us For Availability
14
Lens, Power Indicator WPL 8211596 Contact Us For Availability
14
Relay & Switch Panel Assmebly WPL 8211718 Contact Us For Availability
14
Lamp, Neon WPL 8211738 Contact Us For Availability
14
Wedge, Plate Right WPL 8211620 Contact Us For Availability
15
Overlay WPL 8211597 Contact Us For Availability
15
Screw WPL 8211719 Contact Us For Availability
15
Spring, Torsion Button Off WPL 8211739 Contact Us For Availability
15
Guard, Plate Chute WPL 8211686 Contact Us For Availability
16
Nameplate WPL 8211598 Contact Us For Availability
16
Screw WPL 8211720 Contact Us For Availability
16
Switch, Micro WPL 8211740 Contact Us For Availability
16
Pin, Plate Shaft WPL 8211687 Contact Us For Availability
17
Clamp, Cable WPL 8211599 Contact Us For Availability
17
Insulation, Housing Upper WPL 8211721 Contact Us For Availability
17
Mount, Button WPL 8211741 Contact Us For Availability
17
Spring, Torsion Wedge Plate WPL 8211688 Contact Us For Availability
18
Screw WPL 8211600 Contact Us For Availability
18
Lever, Switch WPL 8211722 Contact Us For Availability
18
Receptacle WPL 8211742 Contact Us For Availability
18
Bowl, Mini WPL 8211689 Contact Us For Availability
19
Switch, Micro WPL 8211723 Contact Us For Availability
19
Insulator, Terminal WPL 8211743 Contact Us For Availability
19
Bowl, Chefs WPL 8211690 Contact Us For Availability
20
Spring, Torson WPL 8211724 Contact Us For Availability
20
Cover, Grip WPL 8211691 Contact Us For Availability
21
Insulation, Housing Lower WPL 8211725 Contact Us For Availability
21
Lever, Interlocking WPL 8211692 Contact Us For Availability
22
Spring, Lever Interlocking WPL 8211693 Contact Us For Availability
23
Pin, Lever WPL 8211694 Contact Us For Availability
24
Cover, Grip Base WPL 8211695 Contact Us For Availability
25
Lock, Plate Chute Lower WPL 8211696 Contact Us For Availability
26
Bowl, Work 16 Cup WPL 8211697 Contact Us For Availability
× ![]()
