Model Whirlpool KP26M8XCP5 6 QT. STAND MIXER PROFESSIONAL 620 BOWL LIFT – Common Parts & Diagrams

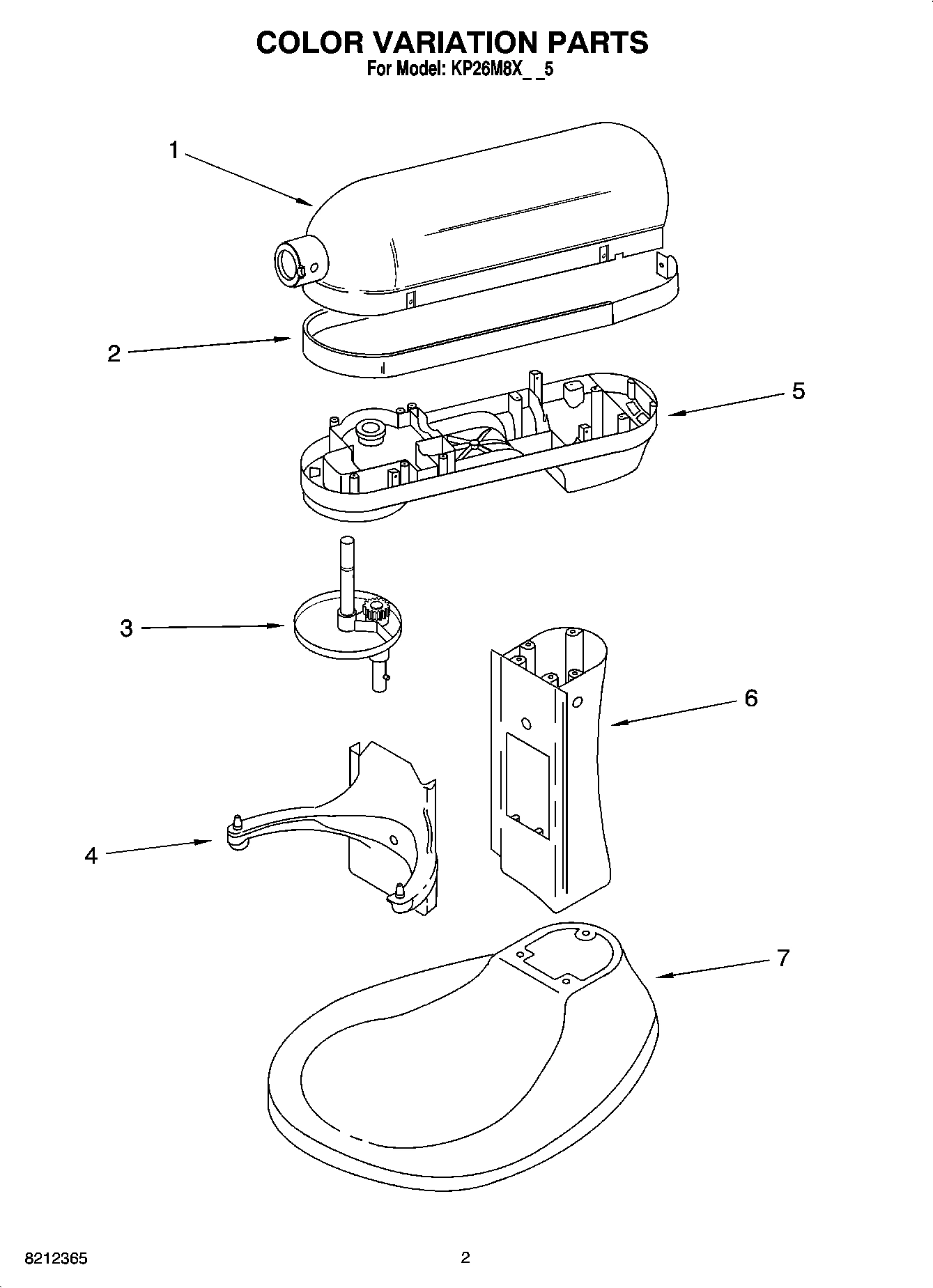

01 - COLOR VARIATION PARTS

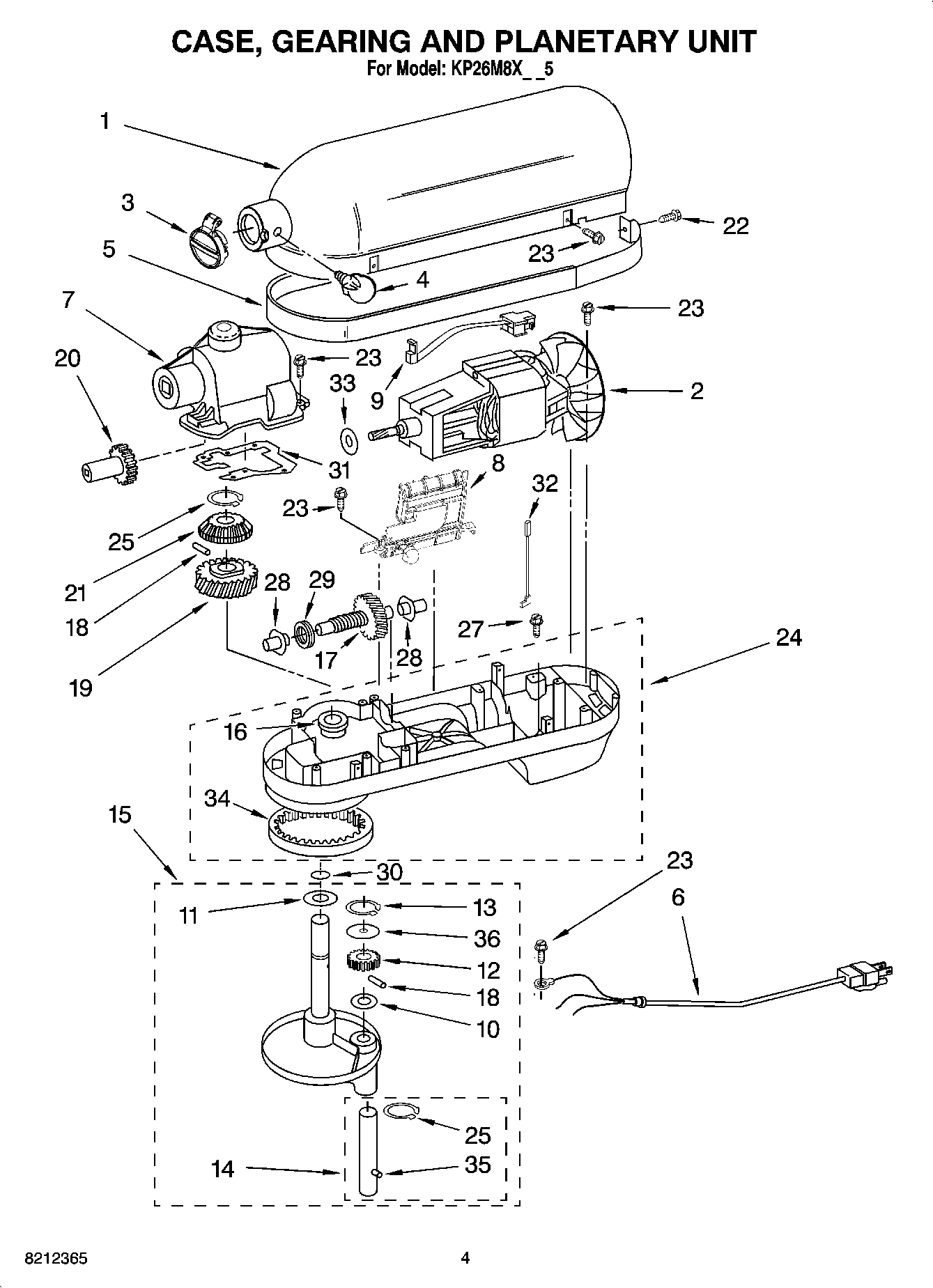

02 - CASE, GEARING AND PLANETARY UNIT

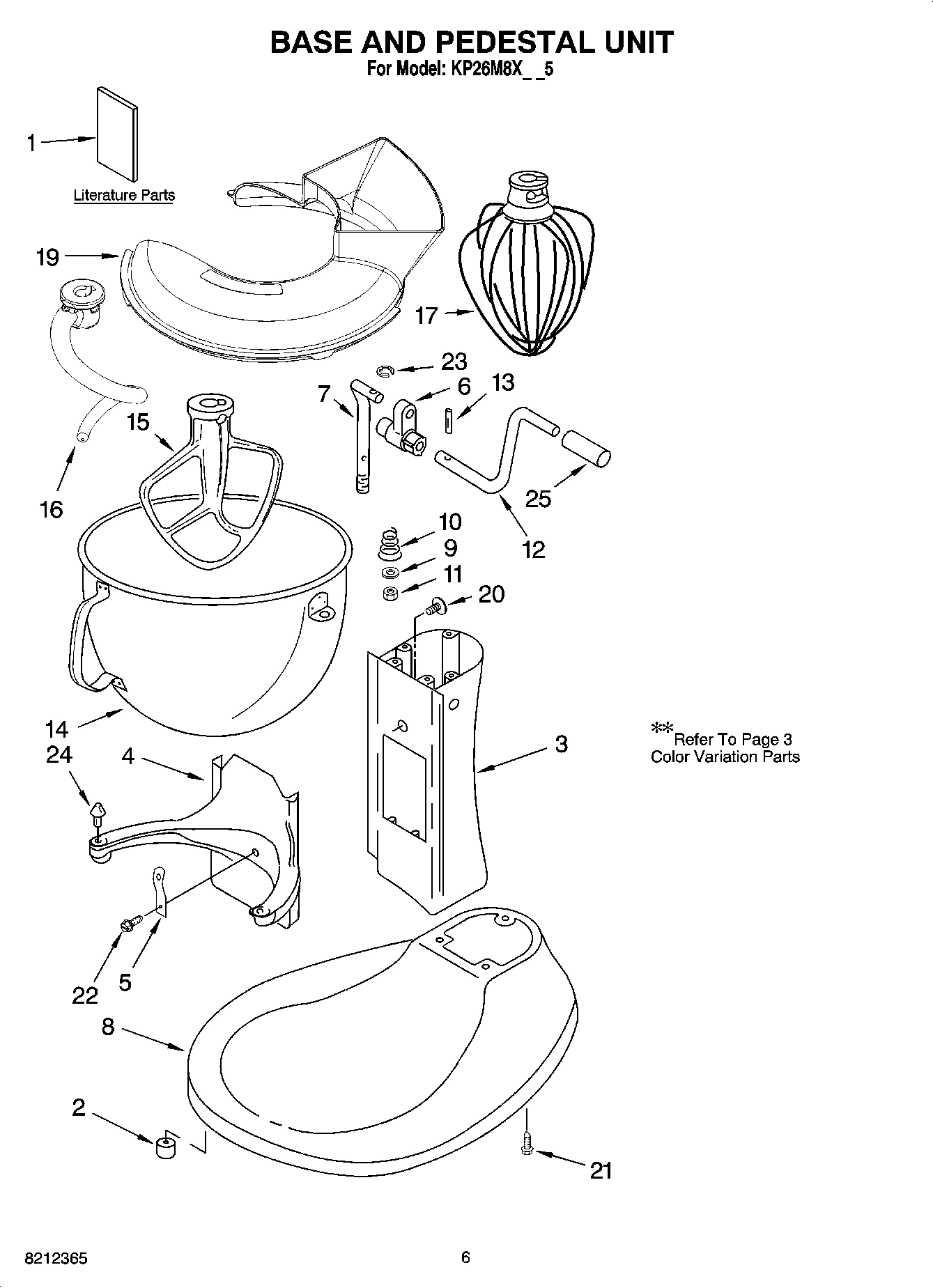

03 - BASE AND PEDESTAL UNIT, OPTIONAL PARTS
Common parts from model Whirlpool KP26M8XCP5 6 QT. STAND MIXER PROFESSIONAL 620 BOWL LIFT
Food Tray (FT) WPL 4162838 Contact Us For Availability
CAN OPENER (CO) WPL 4164747 Contact Us For Availability
JUICER (JE) WPL 4164748 Contact Us For Availability
FOOD GRINDER (FG-A) WPL 4164749 Contact Us For Availability
ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) WPL 4164750 Contact Us For Availability
PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PA WPL 4164768 Contact Us For Availability
FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FV WPL 4164774 Contact Us For Availability
FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A WPL 4164775 Contact Us For Availability
MIXER ATTACHMENT PAK (INCLUDES FOOD GRINDER ( WPL 4164778 Contact Us For Availability
SAUSAGE STUFFER KIT (SSA) WPL 4164803 Contact Us For Availability
PASTA MAKER PLATES (SNPA) WPL 4164824 Contact Us For Availability
Grain Mill, KGMA WPL 8211924 Contact Us For Availability
Ice Cream Maker (KICA) WPL 9707963 Contact Us For Availability
1
Gearcase Motor Housing WPL ARI89289A6 Contact Us For Availability
1
Repair Parts List WPL 8212365 Contact Us For Availability
1
Use & Care Guide (U.S.) WPL 9708307 Contact Us For Availability
1
LITERATURE PARTS WPL ARI89293A6 Contact Us For Availability
2
Trim Band (Platinum/Frost) WPL 9708797 Contact Us For Availability
3
Planetary (Brushed Nickel) WPL W10112546 Contact Us For Availability
3
Planetary (Satin Copper) WPL W10112810 Contact Us For Availability
3
Column Assembly WPL ARI89294A6 Contact Us For Availability
4
Bowl Support And Pins (Metallic Chrome) WPL 9703397 Contact Us For Availability
4
Bowl Support And Pins (Brushed Nickel) WPL W10112553 Contact Us For Availability
4
Bowl Support And Pins (Satin Copper) WPL W10112815 Contact Us For Availability
4
Bowl Support WPL ARI89295A3 Contact Us For Availability
5
Lower Gearcase (Metallic Chrome) WPL 9706306 Contact Us For Availability
5
Lower Gearcase (Brushed Nickel) WPL W10112549 Contact Us For Availability
5
Lower Gearcase (Satin Copper) WPL W10112812 Contact Us For Availability
5
Band, Trim WPL ARI89290A2 Contact Us For Availability
6
COLUMN (METALLIC CHROME) WPL 9703349 Contact Us For Availability
6
Column (Satin Copper) WPL W10112817 Contact Us For Availability
7
Base & Foot Assembly (Metallic Chrome) WPL 9703346 Contact Us For Availability
7
Base & Foot Assembly (Brushed Nickel) WPL W10112559 Contact Us For Availability
7
Base & Foot Assembly (Satin Copper) WPL W10112820 Contact Us For Availability
7
ROD, BOWL LIFT WPL 9706787 Contact Us For Availability
8
Base And Foot Supports WPL ARI89296A9 Contact Us For Availability
9
Washer WPL 9703439 Contact Us For Availability
11
Nut WPL 8533907 Contact Us For Availability
15
Planetary Assembly WPL ARI89291A7 Contact Us For Availability
20
Cam, Adjusting WPL 9703426 Contact Us For Availability
24
Lower Gear Case WPL ARI89292A5 Contact Us For Availability
30
O RING WPL 6750055 Contact Us For Availability
32
Lead, Motor to Control WPL 9706036 Contact Us For Availability
× ![]()
