Model Whirlpool KP26M1XQ3CU5 SMALL APPLIANCE, STAND MIXER, BOWL LIFT, PROFESSIONAL, 6 QT – Common Parts & Diagrams
01 - COVER SHEET
02 - COLOR VARIATION PARTS

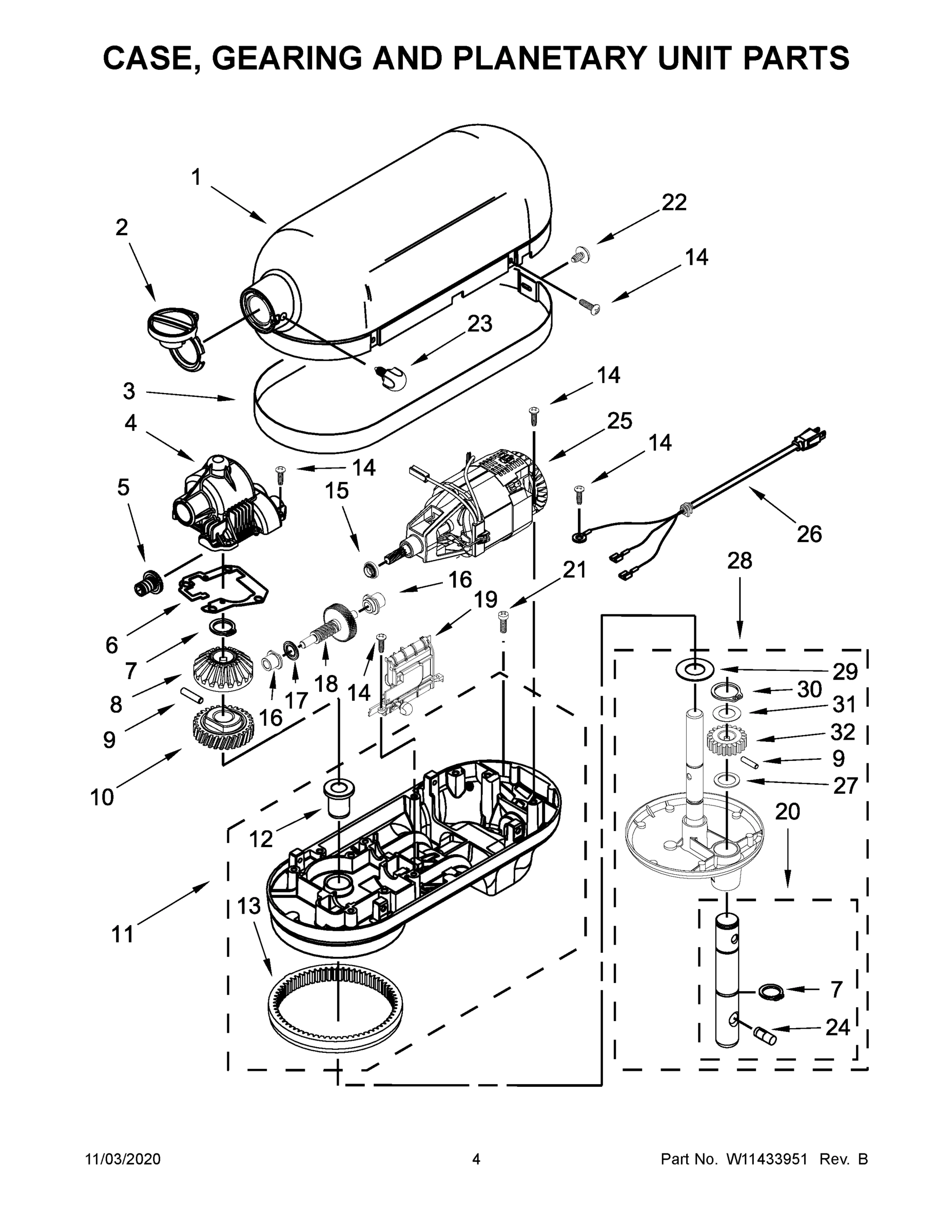

03 - CASE, GEARING AND PLANETARY UNIT PARTS

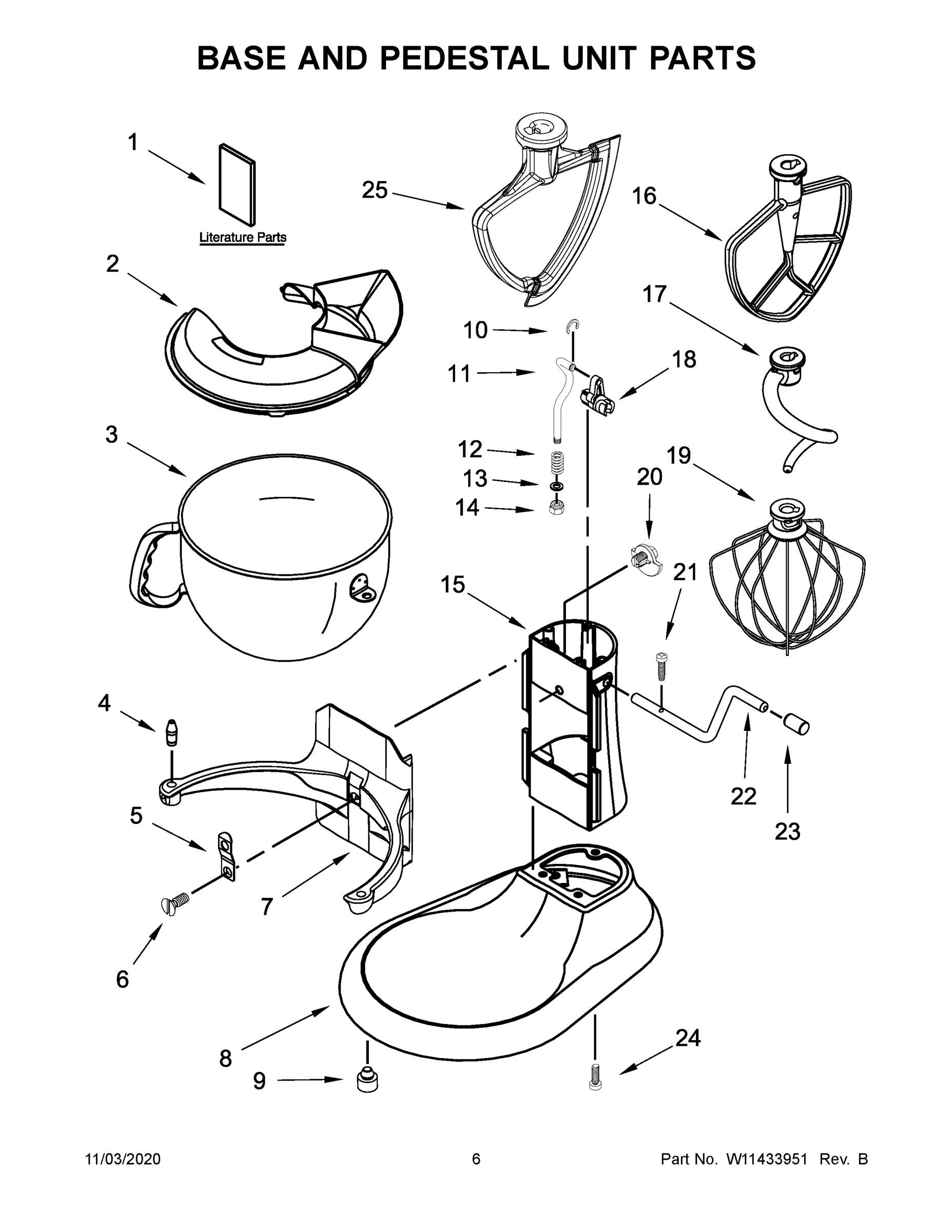

04 - BASE AND PEDESTAL UNIT PARTS
Common parts from model Whirlpool KP26M1XQ3CU5 SMALL APPLIANCE, STAND MIXER, BOWL LIFT, PROFESSIONAL, 6 QT
1
USE & CARE GUIDE WPL W11378207 Contact Us For Availability
1E
MOTOR HOUSING (EMPIRE RED) WPL 9705300 Contact Us For Availability
1J
MOTOR HOUSING (PEBBLED PALM) WPL W11415369 Contact Us For Availability
1K
MOTOR HOUSING (STARRY NIGHT) WPL W11415303 Contact Us For Availability
1L
MOTOR HOUSING (SILK PINK) WPL W11415392 Contact Us For Availability
1M
MOTOR HOUSING (TOFFEE DELIGHT) WPL W11255406 Contact Us For Availability
2
TRIM BAND (PLATINUM/FROST) WPL 9708371 Contact Us For Availability
3
LOWER GEARCASE (MATTE VINTAGE BLUE) WPL W11255419 Contact Us For Availability
3A
LOWER GEARCASE (PISTACHIO) WPL 9708097 Contact Us For Availability
3B
LOWER GEARCASE (AQUA SKY) WPL W10577750 Contact Us For Availability
3C
LOWER GEARCASE (COPPER PEARL) WPL 9709159 Contact Us For Availability
3D
LOWER GEARCASE (CONTOUR SILVER) WPL W10327958 Contact Us For Availability
3E
LOWER GEARCASE (EMPIRE RED) WPL 9706331 Contact Us For Availability
3F
LOWER GEARCASE (MATTE WHITE) WPL W11415352 Contact Us For Availability
3G
LOWER GEARCASE (GLOSS CINNAMON) WPL W10114562 Contact Us For Availability
3H
LOWER GEARCASE (MAJESTIC YELLOW) WPL 9706336 Contact Us For Availability
3I
LOWER GEARCASE (PASSION RED) WPL W11415403 Contact Us For Availability
3J
LOWER GEARCASE (PEBBLED PALM) WPL W11415370 Contact Us For Availability
3K
LOWER GEARCASE (STARRY NIGHT) WPL W11415302 Contact Us For Availability
3L
LOWER GEARCASE (SILK PINK) WPL W11415393 Contact Us For Availability
3M
LOWER GEARCASE (TOFFEE DELIGHT) WPL W11255400 Contact Us For Availability
4
PLANETARY (MATTE VINTAGE BLUE) WPL W11255422 Contact Us For Availability
4A
PLANETARY (PISTACHIO) WPL 9708190 Contact Us For Availability
4B
PLANETARY (AQUA SKY) WPL W10577733 Contact Us For Availability
4C
PLANETARY (COPPER PEARL) WPL 9709156 Contact Us For Availability
4D
PLANETARY (CONTOUR SILVER) WPL W10327955 Contact Us For Availability
4F
PLANETARY (MATTE WHITE) WPL W11415479 Contact Us For Availability
4G
PLA WPL W10114559 Contact Us For Availability
4H
WPL 9708181 WPL 9708181 Contact Us For Availability
4I
WPL W11415484 WPL W11415484 Contact Us For Availability
4J
WPL W11415371 WPL W11415371 Contact Us For Availability
4L
WPL W11415483 WPL W11415483 Contact Us For Availability
4M
WPL W11255403 WPL W11255403 Contact Us For Availability
5
WPL W11255416 WPL W11255416 Contact Us For Availability
5A
WPL W11417635 WPL W11417635 Contact Us For Availability
5B
WPL W10577761 WPL W10577761 Contact Us For Availability
5C
WPL 9709163 WPL 9709163 Contact Us For Availability
5D
WPL W10327966 WPL W10327966 Contact Us For Availability
5E
WPL 9705360 WPL 9705360 Contact Us For Availability
5F
WPL W11415346 WPL W11415346 Contact Us For Availability
5G
WPL W10114566 WPL W10114566 Contact Us For Availability
5H
WPL 9705361 WPL 9705361 Contact Us For Availability
5I
WPL W11316742 WPL W11316742 Contact Us For Availability
5J
WPL W11415373 WPL W11415373 Contact Us For Availability
5K
WPL W11415299 WPL W11415299 Contact Us For Availability
5L
WPL W11415398 WPL W11415398 Contact Us For Availability
5M
WPL W11255397 WPL W11255397 Contact Us For Availability
6
WPL W11255413 WPL W11255413 Contact Us For Availability
6A
WPL 9708104 WPL 9708104 Contact Us For Availability
6B
WPL W10577769 WPL W10577769 Contact Us For Availability
6C
WPL 9709166 WPL 9709166 Contact Us For Availability
6D
WPL W10328003 WPL W10328003 Contact Us For Availability
6E
WPL 9705324 WPL 9705324 Contact Us For Availability
6F
WPL W11415350 WPL W11415350 Contact Us For Availability
6G
WPL W10114569 WPL W10114569 Contact Us For Availability
6H
WPL 9705325 WPL 9705325 Contact Us For Availability
6I
WPL W11415405 WPL W11415405 Contact Us For Availability
6J
WPL W11415374 WPL W11415374 Contact Us For Availability
6K
WPL W11415296 WPL W11415296 Contact Us For Availability
6L
WPL W11415399 WPL W11415399 Contact Us For Availability
6M
WPL W11255394 WPL W11255394 Contact Us For Availability
7
WPL W11255409 WPL W11255409 Contact Us For Availability
7A
WPL 9708107 WPL 9708107 Contact Us For Availability
7B
WPL W10577773 WPL W10577773 Contact Us For Availability
7C
WPL 9709169 WPL 9709169 Contact Us For Availability
7D
WPL W10328017 WPL W10328017 Contact Us For Availability
7E
WPL 9705348 WPL 9705348 Contact Us For Availability
7F
WPL W11415353 WPL W11415353 Contact Us For Availability
7G
WPL W10114572 WPL W10114572 Contact Us For Availability
7H
WPL 9705349 WPL 9705349 Contact Us For Availability
7I
WPL W11316735 WPL W11316735 Contact Us For Availability
7J
WPL W11415375 WPL W11415375 Contact Us For Availability
7K
WPL W11415295 WPL W11415295 Contact Us For Availability
7L
WPL W11415400 WPL W11415400 Contact Us For Availability
7M
WPL W11255390 WPL W11255390 Contact Us For Availability
11
ROD, BOWL LIFT WPL W11376364 Contact Us For Availability
13
WASHER WPL 9703439 Contact Us For Availability
14
NUT WPL 8533907 Contact Us For Availability
15
PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability
20
CAM, ADJUSTING WPL 9703426 Contact Us For Availability
22
HANDLE, BOWL LIFT WPL W11376371 Contact Us For Availability
25
BEATER, FLEX EDGE WPL W10778038 Contact Us For Availability
× ![]()
