Model Whirlpool KP26M1XACS5 STAND MIXER – Common Parts & Diagrams

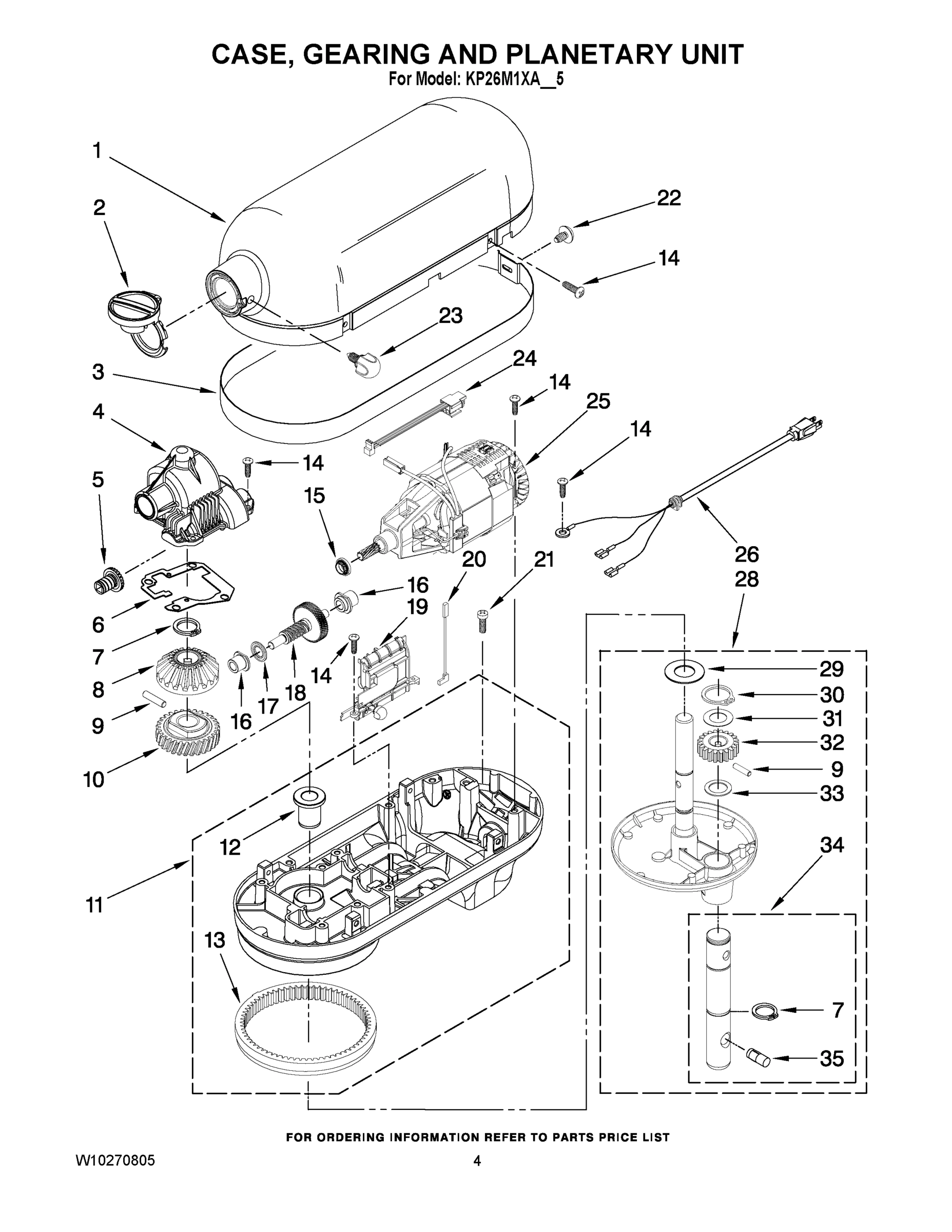

02 - CASE, GEARING AND PLANETARY UNIT

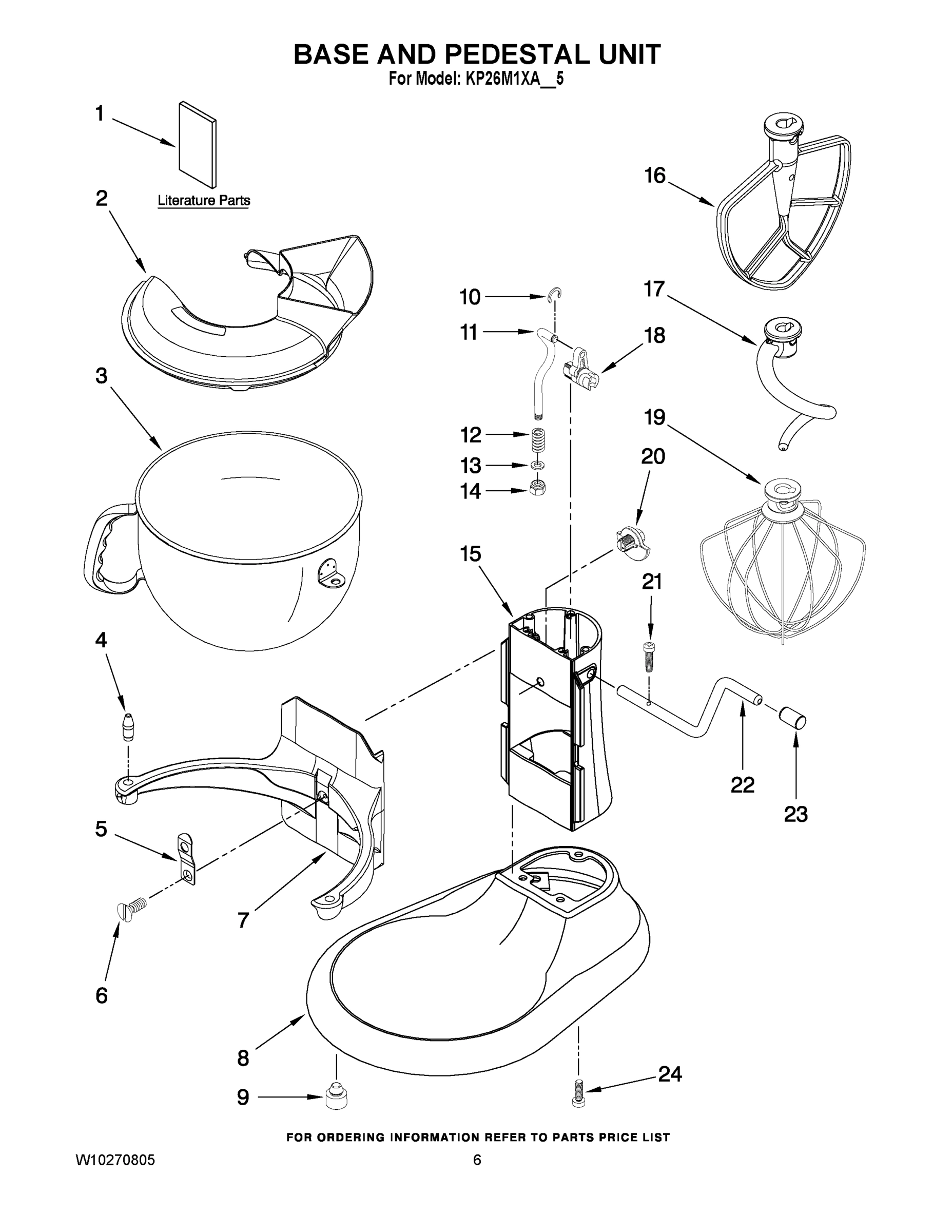

03 - BASE AND PEDESTAL UNIT
04 - ACCESSORY PARTS
01 - COLOR VARIATION PARTS
Common parts from model Whirlpool KP26M1XACS5 STAND MIXER
1
MOTOR HOUSING (COCOA SILVER) WPL W10171605 Contact Us For Availability
2
TRIM BAND (DARK PLATINUM) WPL W10171603 Contact Us For Availability
5
BOWL SUPPORT AND PINS (COCOA SILVER) WPL W10171616 Contact Us For Availability
6
COLUMN AND PINS (COCOA SILVER) WPL W10171619 Contact Us For Availability
7
BASE & FOOT ASSEMBLY (COCOA SILVER) WPL W10171622 Contact Us For Availability
20
Cam, Adjusting WPL 9703426 Contact Us For Availability
NI
Food Tray (FT) WPL 4162838 Contact Us For Availability
NI
CAN OPENER (CO) WPL 4164747 Contact Us For Availability
NI
JUICER (JE) WPL 4164748 Contact Us For Availability
NI
FOOD GRINDER (FG-A) WPL 4164749 Contact Us For Availability
NI
ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) WPL 4164750 Contact Us For Availability
NI
PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PA WPL 4164768 Contact Us For Availability
NI
FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FV WPL 4164774 Contact Us For Availability
NI
FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A WPL 4164775 Contact Us For Availability
NI
MIXER ATTACHMENT PAK (INCLUDES FOOD GRINDER ( WPL 4164778 Contact Us For Availability
NI
SAUSAGE STUFFER KIT (SSA) WPL 4164803 Contact Us For Availability
NI
PASTA MAKER PLATES (SNPA) WPL 4164824 Contact Us For Availability
NI
Grain Mill, KGMA WPL 8211924 Contact Us For Availability
NI
Ice Cream Maker, KICA0WH0 WPL 9707963 Contact Us For Availability
× ![]()
