Model Whirlpool KOMS155MSS0 MICROWAVE OVEN 1.5 CUBIC FOOT – Common Parts & Diagrams
03 - OVEN CAVITY PARTS
01 - DOOR PARTS

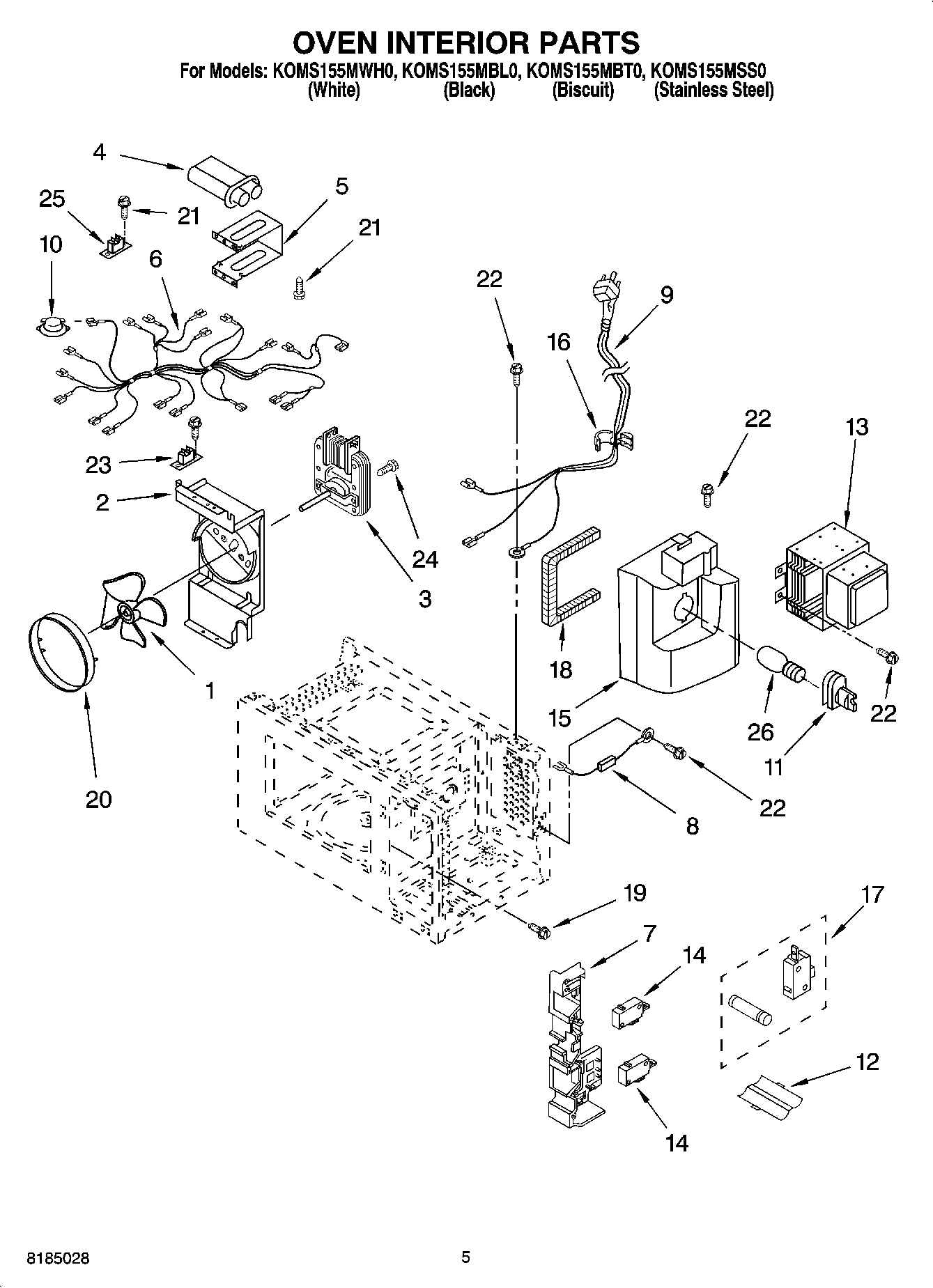

05 - OVEN INTERIOR PARTS

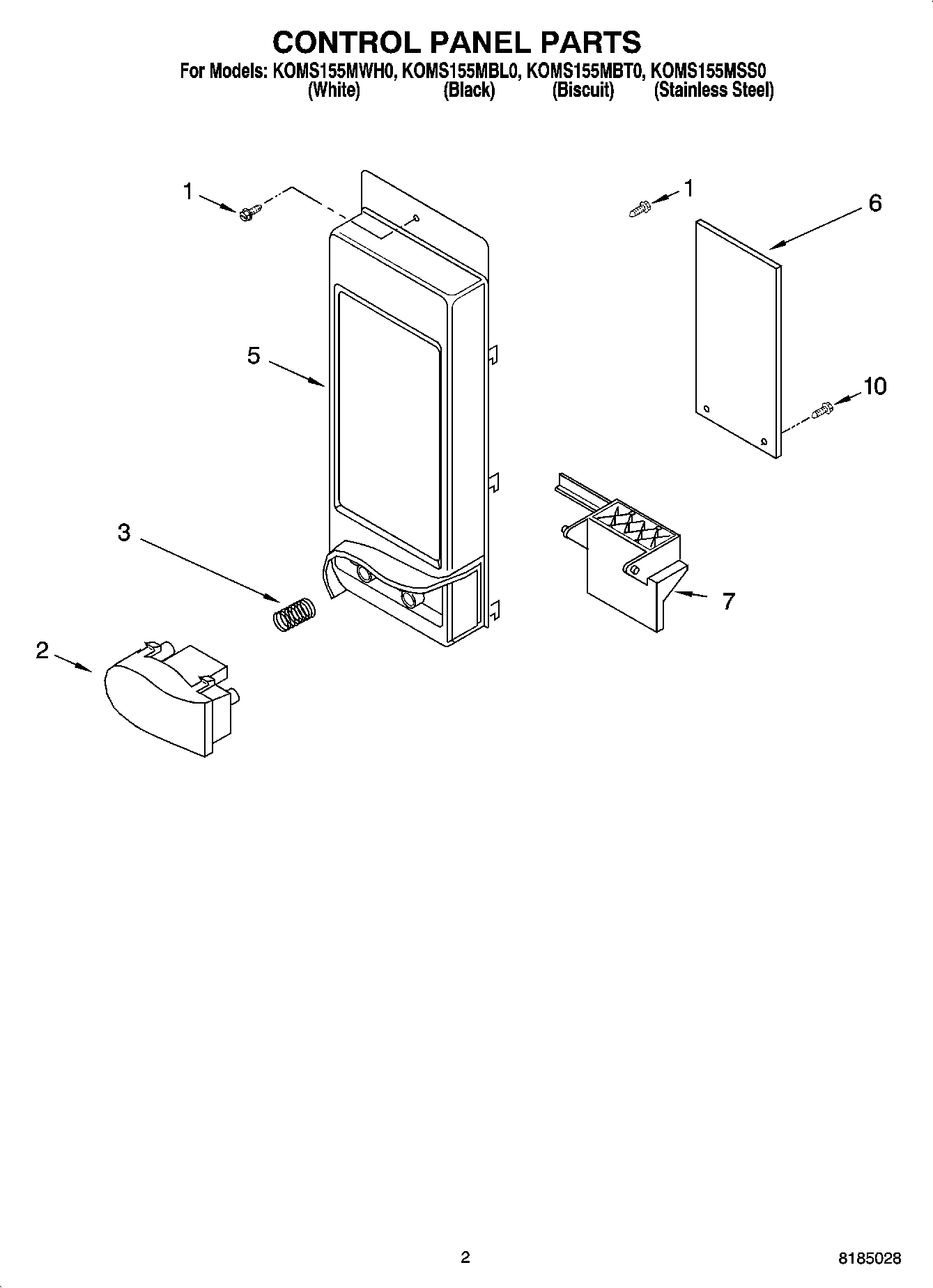

02 - CONTROL PANEL PARTS

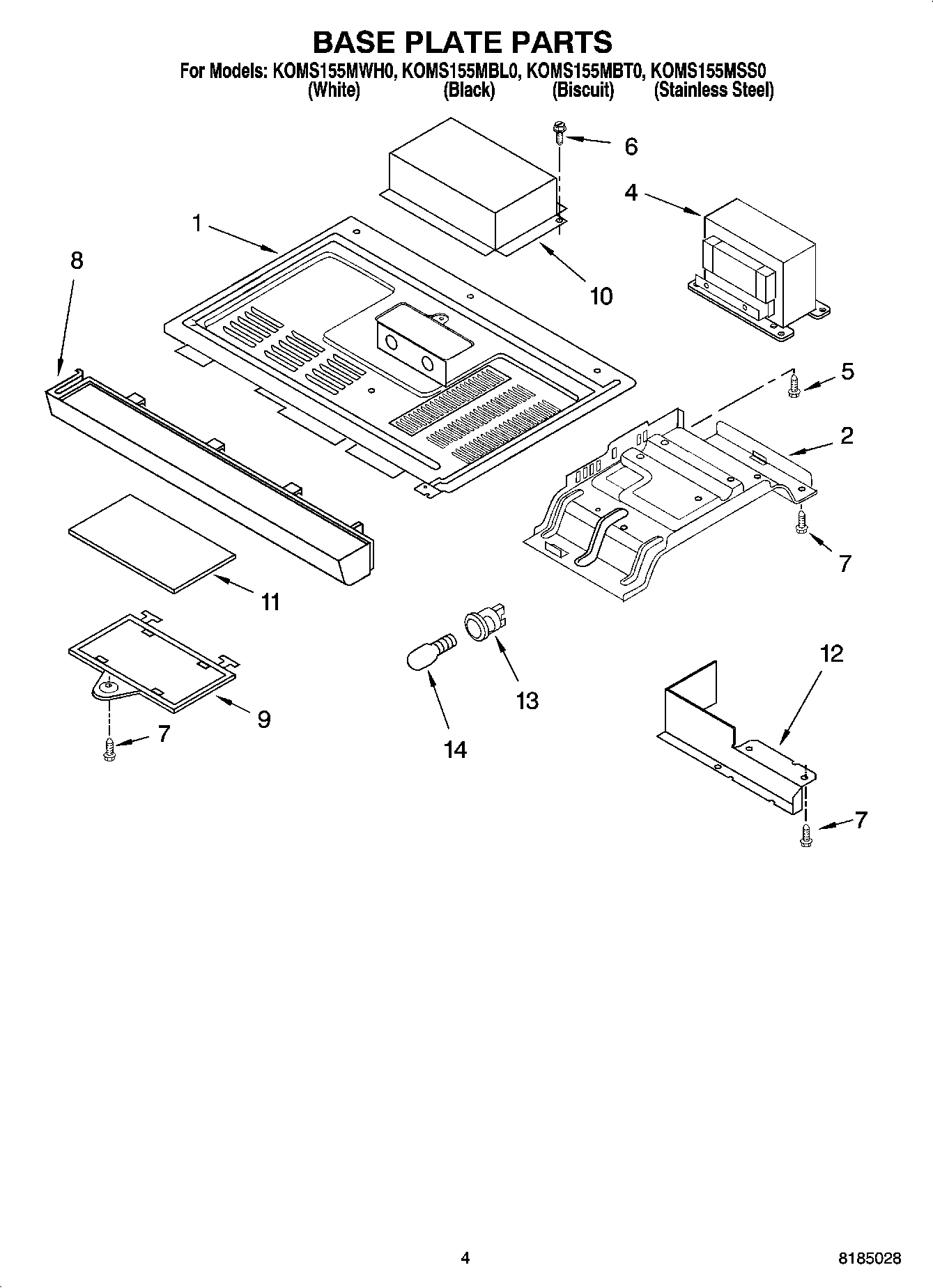

04 - BASE PLATE PARTS
Common parts from model Whirlpool KOMS155MSS0 MICROWAVE OVEN 1.5 CUBIC FOOT
1
Use & Care Guide WPL 8185015 Contact Us For Availability
1
Tech Sheet WPL 8185018 Contact Us For Availability
1
Cook Guide Label WPL 8185347 Contact Us For Availability
1
Operating Instructions WPL 8185363 Contact Us For Availability
1
Propeller WPL 8185332 Contact Us For Availability
1
Base Cover (Black) WPL 8185335 Contact Us For Availability
1
Base Cover (White) WPL 8205297 Contact Us For Availability
1
Base Cover (Biscuit) WPL 8205298 Contact Us For Availability
2
Plate, Mounting WPL 8185297 Contact Us For Availability
2
Name Plate WPL 8205896 Contact Us For Availability
2
Guide, Suction WPL 8185339 Contact Us For Availability
2
Release Button (Stainless) WPL 8185312 Contact Us For Availability
2
Release Button (White) WPL 8185422 Contact Us For Availability
2
Release Button (Black) WPL 8185428 Contact Us For Availability
2
Release Button (Biscuit) WPL 8185434 Contact Us For Availability
2
Base Plate (R) WPL 8185309 Contact Us For Availability
3
Panel, Door WPL 8185300 Contact Us For Availability
3
Motor, Fan WPL 8185360 Contact Us For Availability
3
Spring, Button WPL 8185331 Contact Us For Availability
4
Outer Case (S.Steel) WPL 8185307 Contact Us For Availability
4
Outer Case (White) WPL 8185420 Contact Us For Availability
4
Outer Case (Black) WPL 8185426 Contact Us For Availability
4
Outer Case (Biscuit) WPL 8185432 Contact Us For Availability
4
Choke Cover WPL 8185308 Contact Us For Availability
4
H.V. Capacitor WPL 8185358 Contact Us For Availability
4
Transformer WPL 8185361 Contact Us For Availability
5
Screw WPL 8185372 Contact Us For Availability
5
H.V.C Bracket WPL 8185316 Contact Us For Availability
5
Panel, Right (Stainless) WPL 8185311 Contact Us For Availability
5
Panel, Right (White) WPL 8185421 Contact Us For Availability
5
Panel, Right (Black) WPL 8185427 Contact Us For Availability
5
Panel, Right (Biscuit) WPL 8185433 Contact Us For Availability
6
Latch WPL 8185321 Contact Us For Availability
6
Leadwire Assembly WPL 8185305 Contact Us For Availability
6
Microcomputer WPL 8185294 Contact Us For Availability
6
Screw WPL 8185368 Contact Us For Availability
7
Support, Chassis WPL 8185315 Contact Us For Availability
7
Screw WPL 8185371 Contact Us For Availability
7
Spring, Latch WPL 8185330 Contact Us For Availability
7
Latch, Door WPL 8185343 Contact Us For Availability
7
Lever, Release WPL 8185329 Contact Us For Availability
8
Turntable Support WPL 8185280 Contact Us For Availability
8
Guide, Light WPL 8185319 Contact Us For Availability
8
H.V. Diode Cable WPL 8185303 Contact Us For Availability
8
Sash, Bottom WPL 8185310 Contact Us For Availability
9
Lever, Mounting WPL 8185328 Contact Us For Availability
9
Frame, Door Outer (S. Steel) WPL 8185299 Contact Us For Availability
9
Frame, Door Outer (White) WPL 8185418 Contact Us For Availability
9
Frame, Door Outer (Black) WPL 8185424 Contact Us For Availability
9
Frame, Door Outer (Biscuit) WPL 8185430 Contact Us For Availability
9
Power Cord WPL 8185296 Contact Us For Availability
9
Frame, Glass (Black) WPL 8185314 Contact Us For Availability
9
Frame, Glass (White) WPL 8205299 Contact Us For Availability
9
Frame, Glass (Biscuit) WPL 8205300 Contact Us For Availability
10
Duct, Exhaust WPL 8185341 Contact Us For Availability
10
Door Assembly (Stainless) WPL 8185292 Contact Us For Availability
10
Door Assembly (White) WPL 8185417 Contact Us For Availability
10
Door Assembly (Black) WPL 8185423 Contact Us For Availability
10
Door Assembly (Biscuit) WPL 8185429 Contact Us For Availability
10
Screw WPL 8185369 Contact Us For Availability
10
Sensor WPL 8185301 Contact Us For Availability
10
Cover, Light WPL 8185336 Contact Us For Availability
11
Motor, Turntable WPL 8185359 Contact Us For Availability
11
Control Panel (S.Steel) WPL 8185304 Contact Us For Availability
11
Control Panel (White) WPL 8185419 Contact Us For Availability
11
Control Panel (Black) WPL 8185425 Contact Us For Availability
11
Control Panel (Biscuit) WPL 8185431 Contact Us For Availability
11
Glass WPL 8185342 Contact Us For Availability
12
Holder, LCD WPL 8185320 Contact Us For Availability
12
Cap, Fuse WPL 8185283 Contact Us For Availability
12
Arm Guide, Bottom WPL 8185281 Contact Us For Availability
13
Stopper, Door (Upper) WPL 8185322 Contact Us For Availability
13
Stopper, Door (Lower) WPL 8185323 Contact Us For Availability
13
Socket, Lamp WPL 8185354 Contact Us For Availability
14
Screw WPL 8185367 Contact Us For Availability
14
Cover, Microcomputer WPL 8185334 Contact Us For Availability
14
Lamp WPL 8185282 Contact Us For Availability
14
Bar, Accessory (2) WPL 8185284 Contact Us For Availability
14
Hardware Pack S-Hooks WPL 8185293 Contact Us For Availability
14
Scale, Plate WPL 8185313 Contact Us For Availability
14
Wire, High Voltage WPL 8185356 Contact Us For Availability
14
Wire, Ground WPL 8185357 Contact Us For Availability
14
Wall Template WPL 8185364 Contact Us For Availability
14
Top Template WPL 8185365 Contact Us For Availability
14
Hardware, Installation WPL 8205894 Contact Us For Availability
14
ACCESSORY PARTS WPL ARI89149A5 Contact Us For Availability
15
Duct, Air WPL 8185338 Contact Us For Availability
16
Wire Harness WPL 8185306 Contact Us For Availability
16
Bushing WPL 8185317 Contact Us For Availability
17
Display WPL 8185295 Contact Us For Availability
18
Cover WPL 8185345 Contact Us For Availability
18
Cushion (Not Serviced) WPL ARI89150A1 Contact Us For Availability
20
Orifice WPL 8185340 Contact Us For Availability
22
Screw WPL 8185325 Contact Us For Availability
23
Fuse (Magnetron) WPL 8185352 Contact Us For Availability
25
Fuse (Cavity) WPL 8185353 Contact Us For Availability
× ![]()
