Model LG KNSCB241A – Common Parts & Diagrams

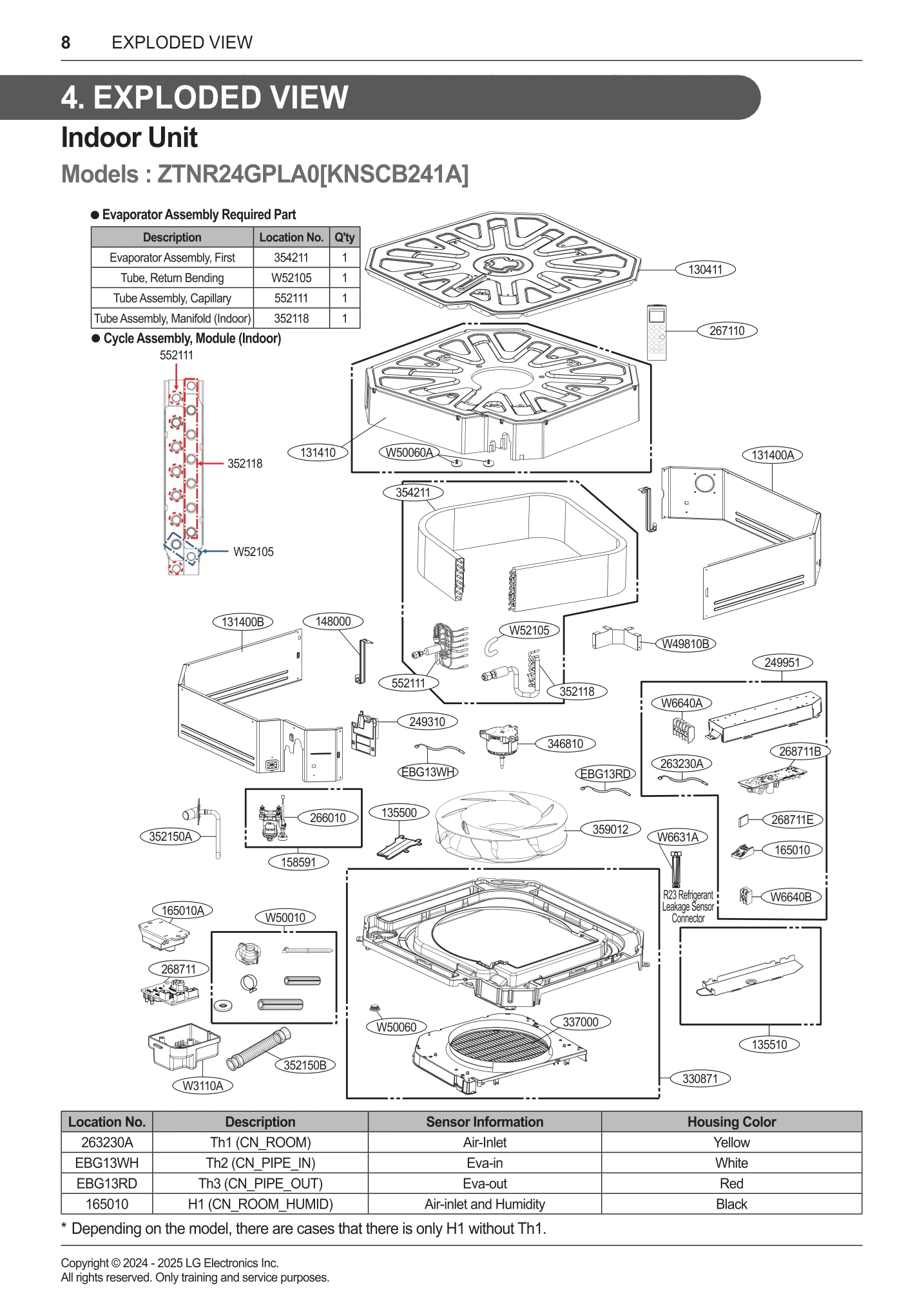

Diagram 0
Common parts from model LG KNSCB241A
130411
Base Assembly,Indoor LGE AAN31579010 Contact Us For Availability
131400A
Cabinet LGE MBH65042404 Contact Us For Availability
131400B
Cabinet LGE MBH65062104 Contact Us For Availability
131410
Cabinet Assembly LGE ABJ76147102 Contact Us For Availability
135510
Cover LGE MCK71515201 Contact Us For Availability
148000
Supporter LGE MJH65513304 Contact Us For Availability
165010
Sensor Assembly LGE EBD62905701 Contact Us For Availability
249310
Holder Assembly LGE AEJ75620001 Contact Us For Availability
249951
Case Assembly,Control(Indoor) LGE ABQ30310601 Contact Us For Availability
268711E
PCB Assembly,Sub LGE EBR87859745 Contact Us For Availability
330871
Pan Assembly,Drain LGE AGK74230507 Contact Us For Availability
337000
Mesh,Metal LGE MFN55272306 Contact Us For Availability
346810
Motor Assembly,DC,Indoor LGE 4681A20168G Contact Us For Availability
352118
Tube Assembly,Manifold(Indoor) LGE AJR30107701 Contact Us For Availability
354211
Evaporator Assembly,Bending LGE ADL32881103 Contact Us For Availability
359012
Fan Assembly,Turbo LGE ADP75513502 Contact Us For Availability
552111
Tube Assembly,Capillary LGE AJR33796512 Contact Us For Availability
W3110A
Case LGE MBN66613701 Contact Us For Availability
W6631A
Harness,Single LGE EAD64646924 Contact Us For Availability
W6640A
Connector,Terminal Block LGE EAG63452303 Contact Us For Availability
W6640B
Connector,Terminal Block LGE EAG38884446 Contact Us For Availability
W49810B
Supporter Assembly LGE AJJ76378302 Contact Us For Availability
W50010
Accessory Assembly LGE AAA31075428 Contact Us For Availability
W50060A
Cap LGE MBL64919401 Contact Us For Availability
× ![]()
