Model Whirlpool KN15E1XDJ0 5 QT. STAND MIXER – Common Parts & Diagrams

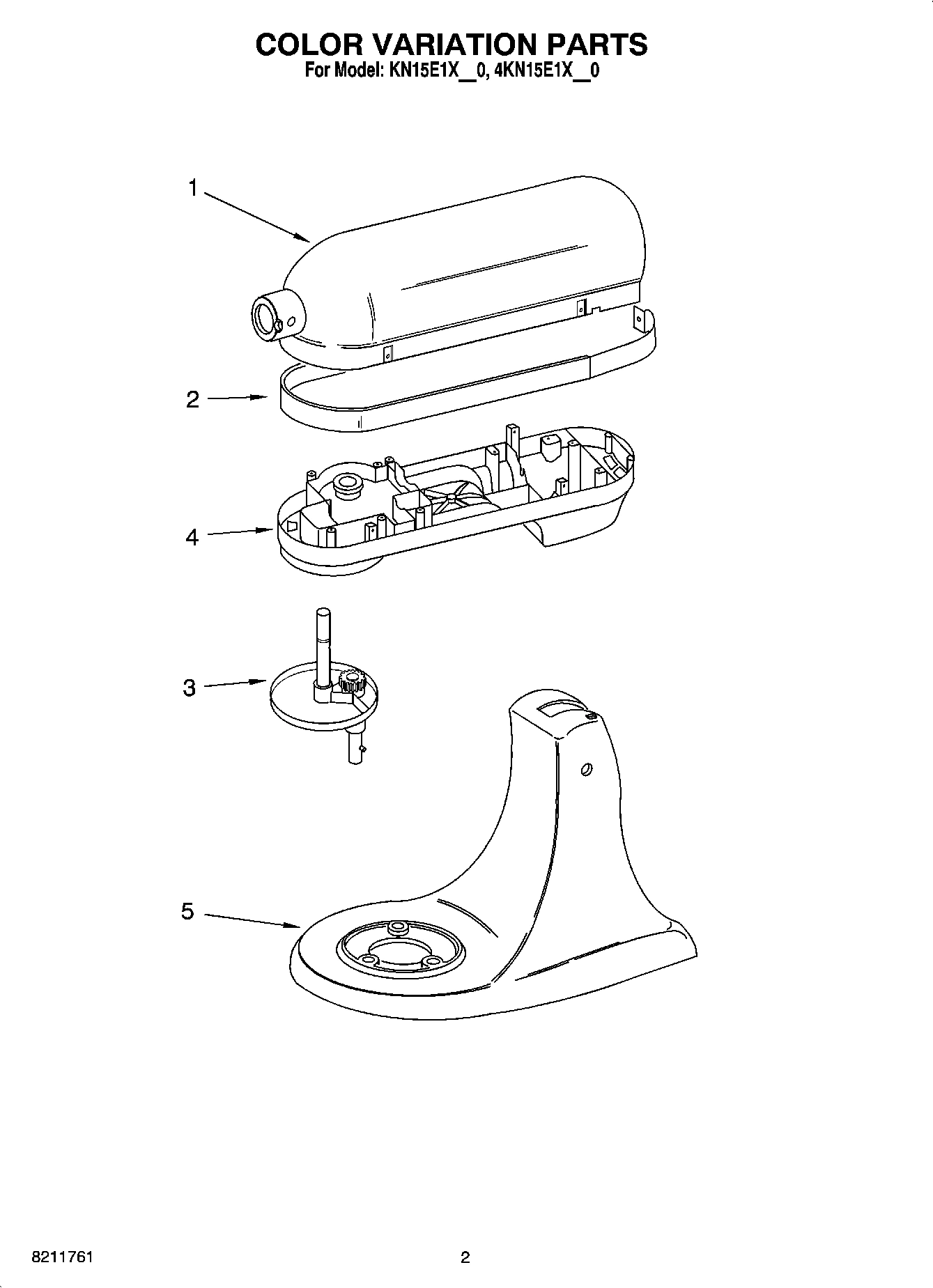

01 - COLOR VARIATION PARTS

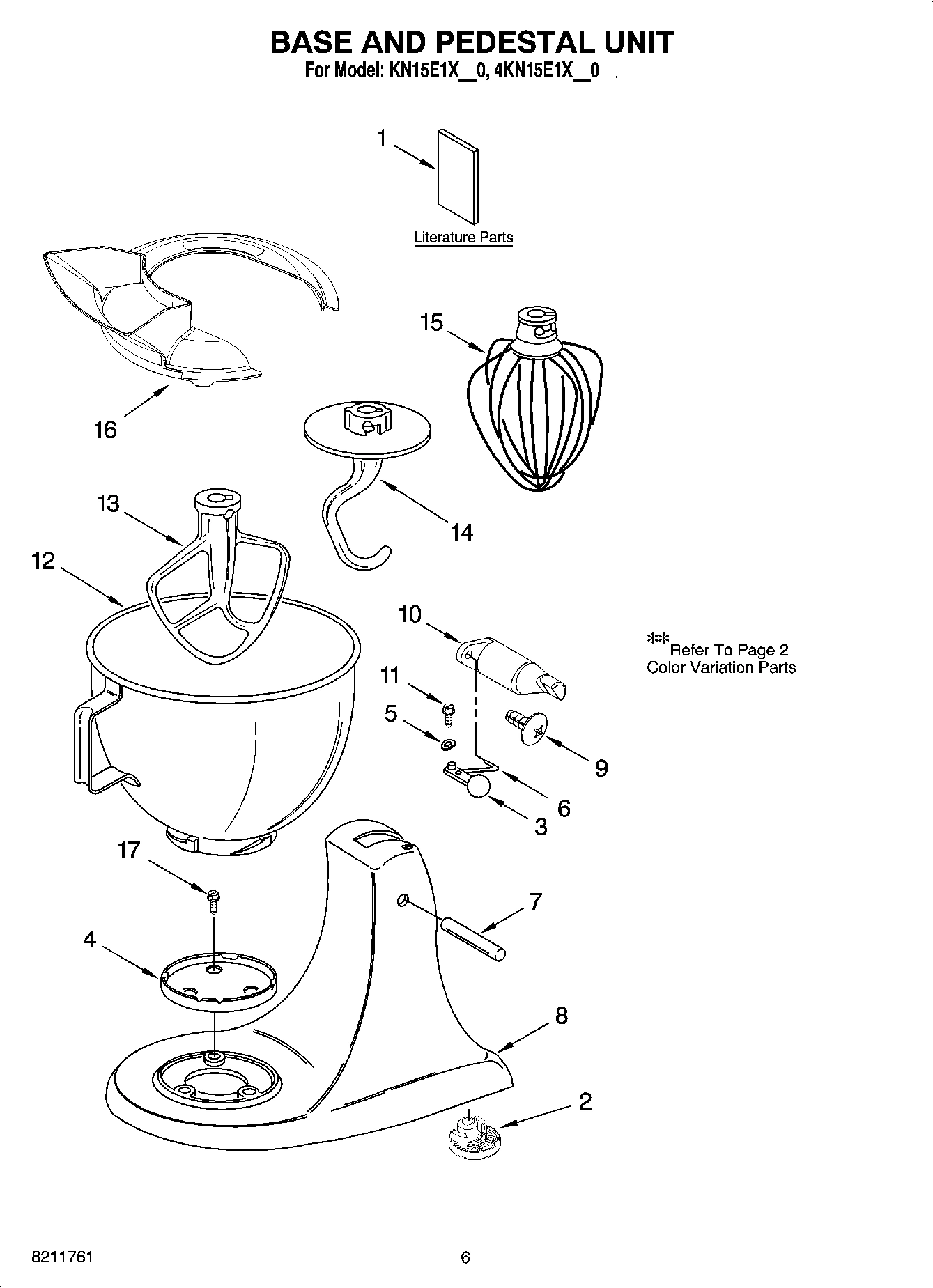

03 - BASE AND PEDESTAL UNIT, OPTIONAL PARTS

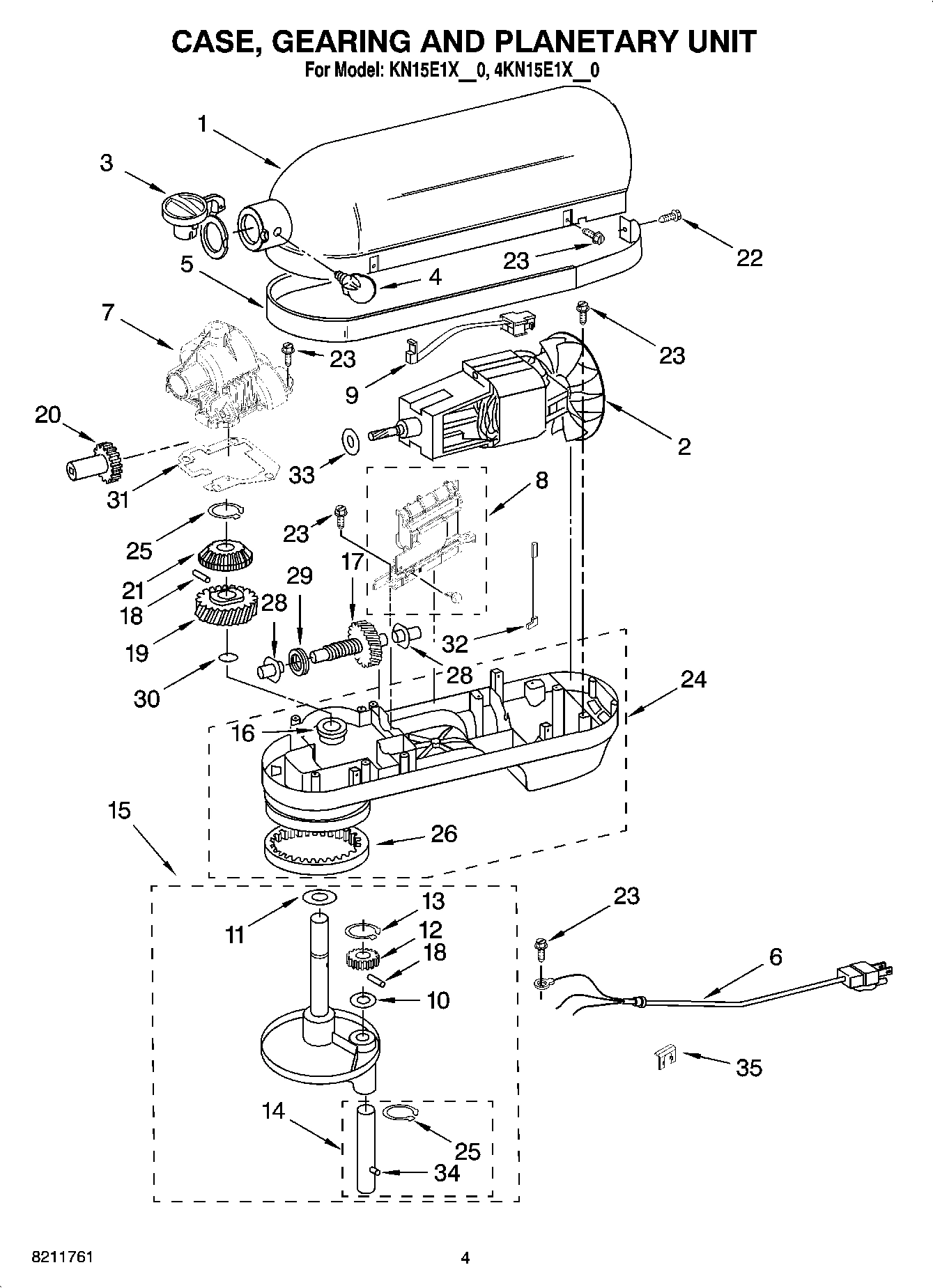

02 - CASE, GEARING AND PLANETARY UNIT
Common parts from model Whirlpool KN15E1XDJ0 5 QT. STAND MIXER
Food Tray (FT) WPL 4162838 Contact Us For Availability
CAN OPENER (CO) WPL 4164747 Contact Us For Availability
JUICER (JE) WPL 4164748 Contact Us For Availability
FOOD GRINDER (FG-A) WPL 4164749 Contact Us For Availability
ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) WPL 4164750 Contact Us For Availability
Grain Mill (GM-A) WPL 4164751 Contact Us For Availability
PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PA WPL 4164768 Contact Us For Availability
FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FV WPL 4164774 Contact Us For Availability
FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A WPL 4164775 Contact Us For Availability
MIXER ATTACHMENT PAK (INCLUDES FOOD GRINDER ( WPL 4164778 Contact Us For Availability
SAUSAGE STUFFER KIT (SSA) WPL 4164803 Contact Us For Availability
PASTA MAKER PLATES (SNPA) WPL 4164824 Contact Us For Availability
Following Parts Not Illustrated WPL ARI89046A8 Contact Us For Availability
1
Repair Parts List WPL 8211761 Contact Us For Availability
1
Use & Care Guide (U.S.) WPL 9703467 Contact Us For Availability
1
Use & Care Guide (Canada) WPL 9709234 Contact Us For Availability
1
LITERATURE PARTS WPL ARI89044A3 Contact Us For Availability
1
Gearcase Motor Housing WPL ARI89040A5 Contact Us For Availability
3
Planetary (Juniper Berry) WPL 9708621 Contact Us For Availability
3
Planetary (Meringue) WPL 9708662 Contact Us For Availability
3
Planetary (Pink Satin) WPL 9708979 Contact Us For Availability
3
Planetary (Lemon Grass/ Green Apple) WPL 9708994 Contact Us For Availability
3
Planetary (Sky) WPL 9709006 Contact Us For Availability
3
Planetary (Honeysuckle) WPL 9709018 Contact Us For Availability
3
Planetary (Sorbet) WPL 9709047 Contact Us For Availability
3
Planetary (Blue Willow) WPL 9709084 Contact Us For Availability
3
Planetary (Mint Julip) WPL 9709097 Contact Us For Availability
3
Planetary (Sugar Plum) WPL 9709110 Contact Us For Availability
3
Lever, Latch (Black) WPL 9709284 Contact Us For Availability
3
Lever, Latch (Grey) WPL 9709285 Contact Us For Availability
4
Lower Gearcase (Meringue) WPL 9708522 Contact Us For Availability
4
Lower Gearcase (Cinnamon) WPL 9708534 Contact Us For Availability
4
Lower Gearcase (Licorice) WPL 9708546 Contact Us For Availability
4
Lower Gearcase (Green Peppercorn) WPL 9708558 Contact Us For Availability
4
Lower Gearcase (Olive) WPL 9708582 Contact Us For Availability
4
Lower Gearcase (Dijon) WPL 9708593 Contact Us For Availability
4
Lo WPL 9708606 Contact Us For Availability
4
WPL 9708624 WPL 9708624 Contact Us For Availability
4
WPL 9708982 WPL 9708982 Contact Us For Availability
4
WPL 9708997 WPL 9708997 Contact Us For Availability
4
WPL 9709009 WPL 9709009 Contact Us For Availability
4
WPL 9709021 WPL 9709021 Contact Us For Availability
4
WPL 9709050 WPL 9709050 Contact Us For Availability
4
WPL 9709087 WPL 9709087 Contact Us For Availability
4
WPL 9709100 WPL 9709100 Contact Us For Availability
4
WPL 9709113 WPL 9709113 Contact Us For Availability
4
WPL 9709720 WPL 9709720 Contact Us For Availability
4
Screw Cap WPL 9703554 Contact Us For Availability
5
WPL 9708525 WPL 9708525 Contact Us For Availability
5
WPL 9708537 WPL 9708537 Contact Us For Availability
5
WPL 9708549 WPL 9708549 Contact Us For Availability
5
WPL 9708561 WPL 9708561 Contact Us For Availability
5
WPL 9708585 WPL 9708585 Contact Us For Availability
5
WPL 9708597 WPL 9708597 Contact Us For Availability
5
WPL 9708609 WPL 9708609 Contact Us For Availability
5
WPL 9708627 WPL 9708627 Contact Us For Availability
5
WPL 9708985 WPL 9708985 Contact Us For Availability
5
WPL 9709000 WPL 9709000 Contact Us For Availability
5
WPL 9709012 WPL 9709012 Contact Us For Availability
5
WPL 9709024 WPL 9709024 Contact Us For Availability
5
WPL 9709053 WPL 9709053 Contact Us For Availability
5
WPL 9709090 WPL 9709090 Contact Us For Availability
5
WPL 9709103 WPL 9709103 Contact Us For Availability
5
WPL 9709116 WPL 9709116 Contact Us For Availability
5
WPL 9709723 WPL 9709723 Contact Us For Availability
5
Band, Trim WPL ARI89041A4 Contact Us For Availability
6
Link, Latch WPL 9706803 Contact Us For Availability
6
Power Cord (White) WPL 9706553 Contact Us For Availability
6
Power Cord (Black) WPL 9706554 Contact Us For Availability
7
Pin, Hinge WPL 9703583 Contact Us For Availability
8
Pedestal and Foot Assembly WPL ARI89045A9 Contact Us For Availability
10
Cam, Headlock WPL 9708306 Contact Us For Availability
12
Bowl (5 Qt) WPL 9707956 Contact Us For Availability
15
Planetary Assembly WPL ARI89042A5 Contact Us For Availability
17
SCREW WPL 3400020 Contact Us For Availability
24
Lower Gear Case WPL ARI89043A5 Contact Us For Availability
30
O RING WPL 6750055 Contact Us For Availability
35
Clip, Cord Retainer WPL 9703333 Contact Us For Availability
× ![]()
