Model Whirlpool KMLS311HBS5 MICROWAVE HOOD, COMPACT, 1.1 CUBIC FOOT – Common Parts & Diagrams
07 - CABINET AND INSTALLATION PARTS
05 - AIR FLOW PARTS

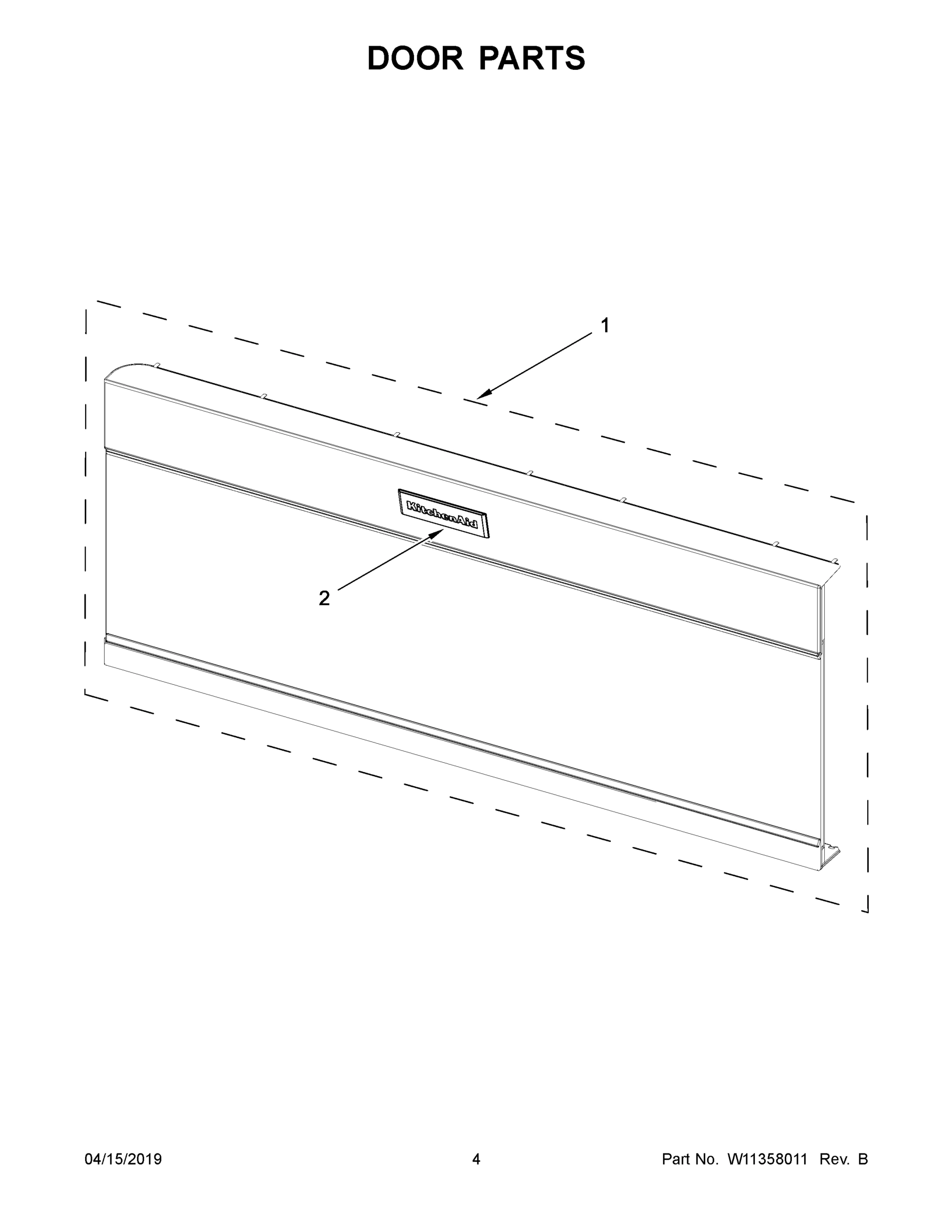

03 - DOOR PARTS

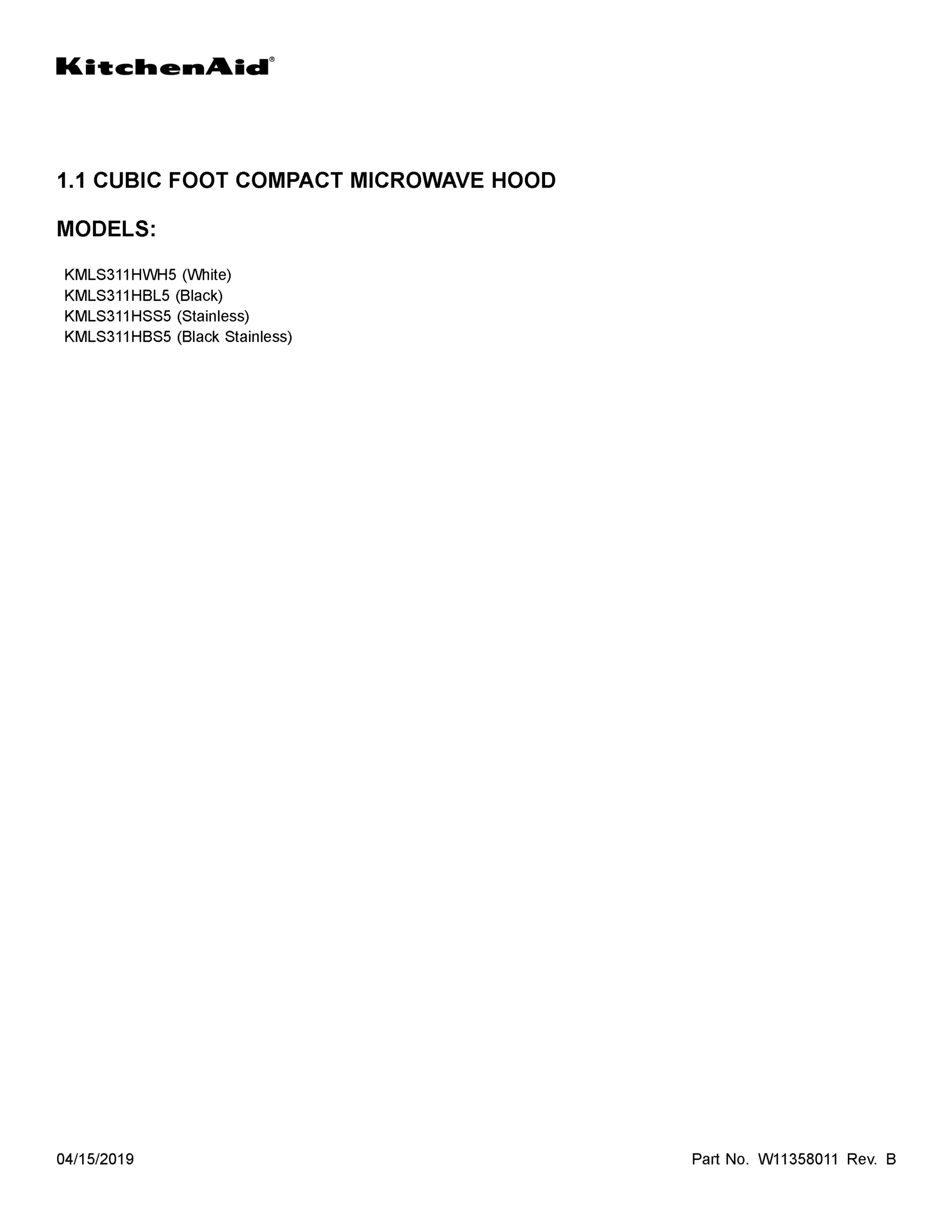

01 - COVER SHEET

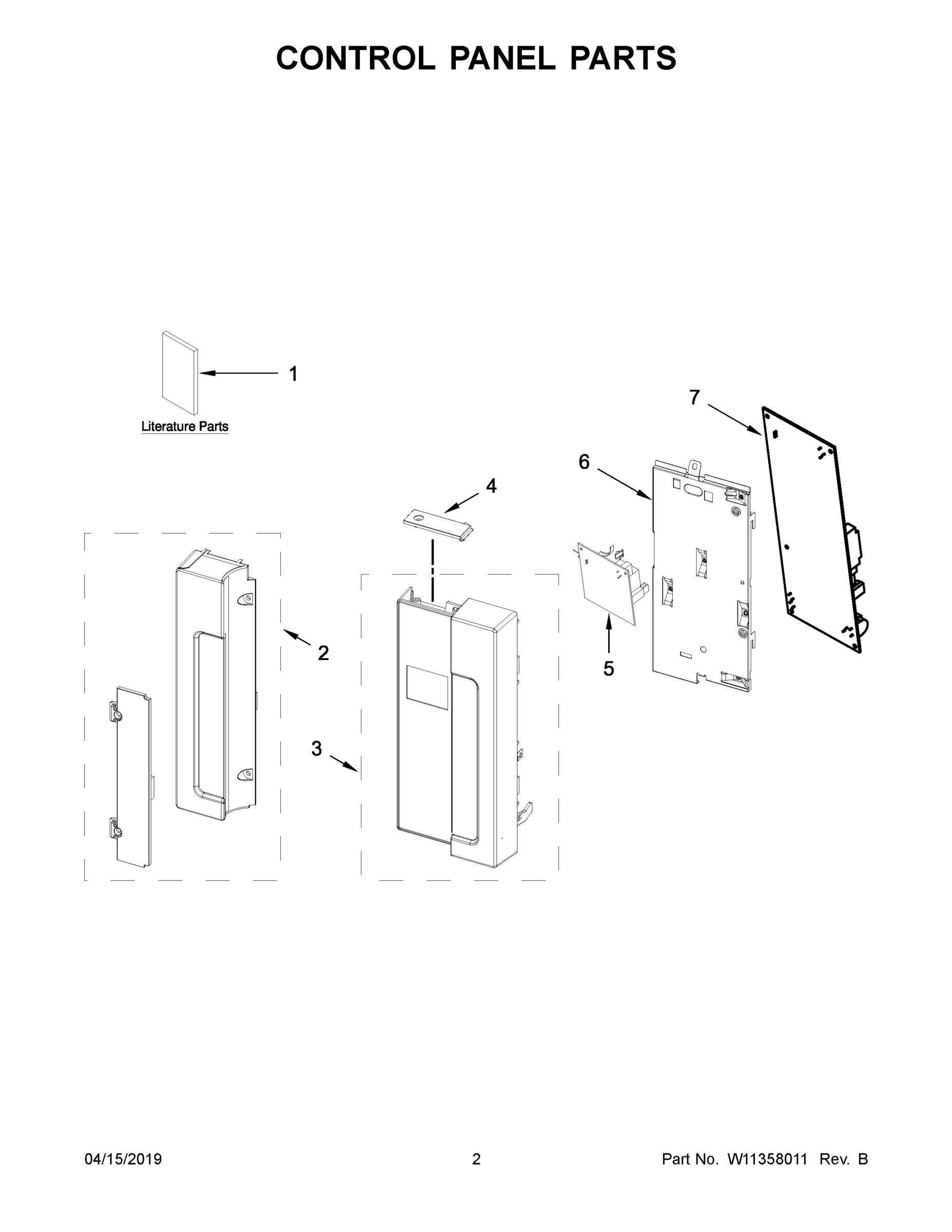

02 - CONTROL PANEL PARTS

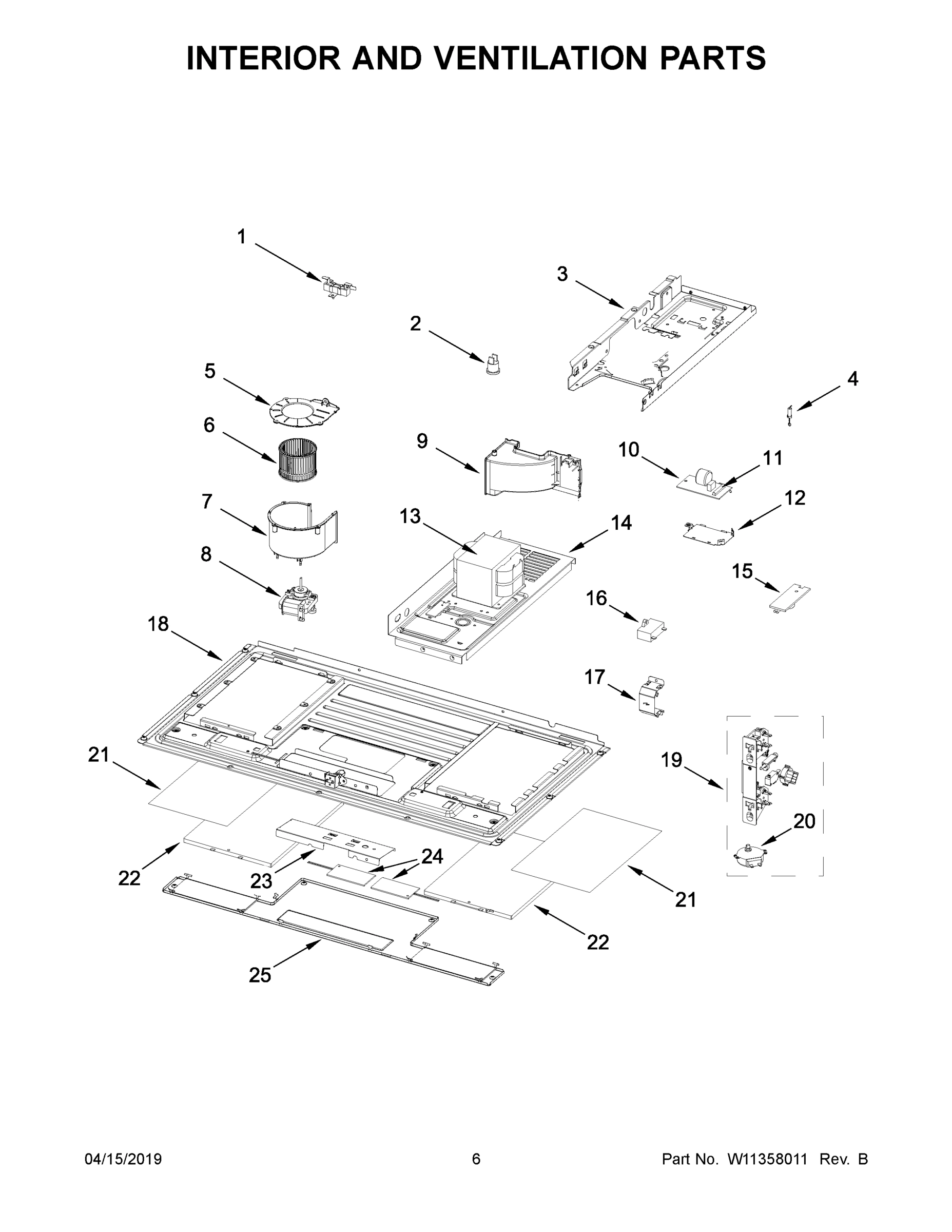

04 - INTERIOR AND VENTILATION PARTS

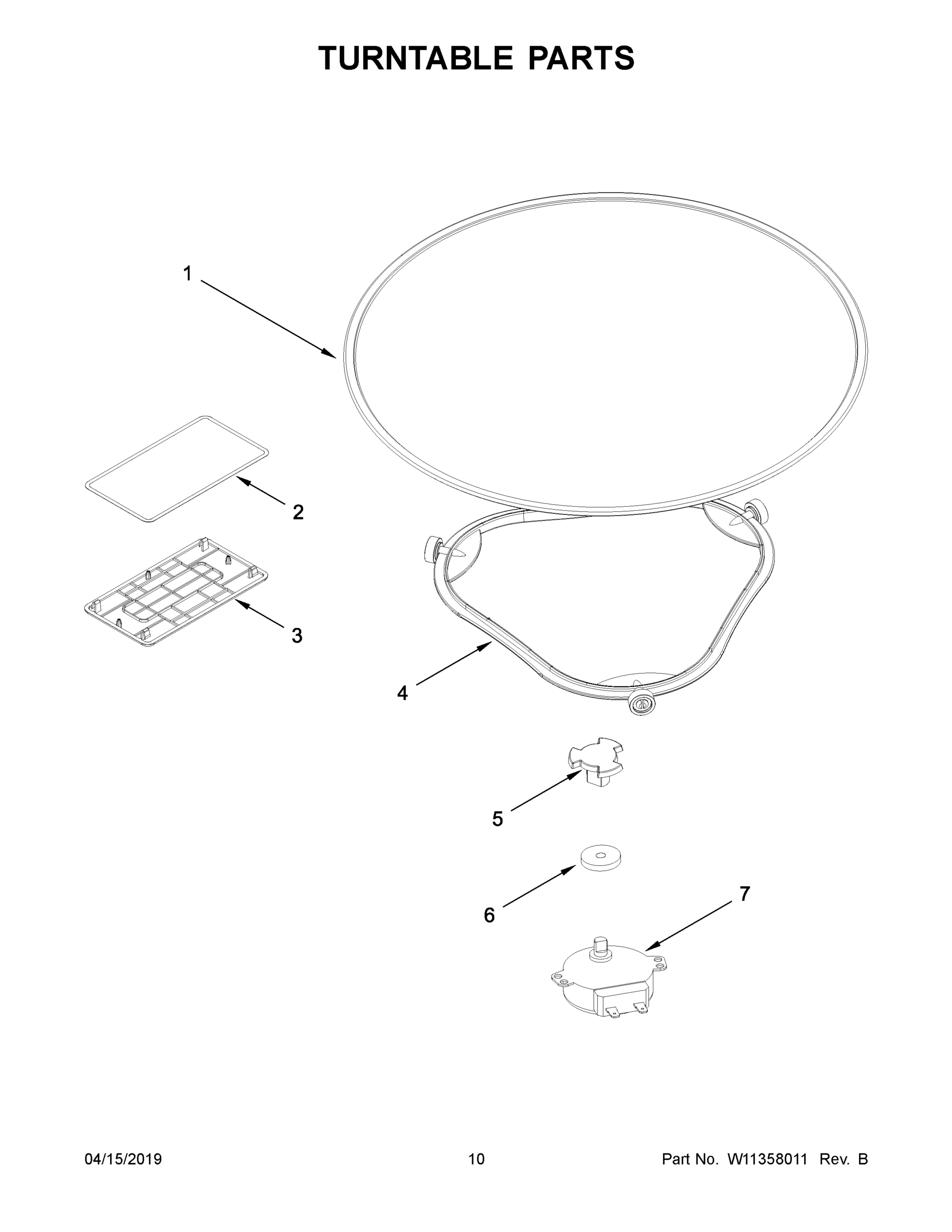

06 - TURNTABLE PARTS
Common parts from model Whirlpool KMLS311HBS5 MICROWAVE HOOD, COMPACT, 1.1 CUBIC FOOT
1
CORD, POWER WPL W11187358 Contact Us For Availability
1B
DOOR, COMPLETE (STAINLESS) WPL W11226991 Contact Us For Availability
1C
DOOR, COMPLETE (BLACK STAINLESS) WPL W11226992 Contact Us For Availability
2
SEAL, WAVEGUIDE WPL W11126541 Contact Us For Availability
2
CONTROL PANEL, LEFT (WHITE) WPL W11226999 Contact Us For Availability
2B
CONTROL PANEL, LEFT (STAINLESS) WPL W11227003 Contact Us For Availability
2C
CONTROL PANEL, LEFT (BLACK STAINLESS) WPL W11227004 Contact Us For Availability
3
COVER, WAVEGUIDE WPL W11193296 Contact Us For Availability
3
CONTROL PANEL, RIGHT (WHITE) WPL W11226994 Contact Us For Availability
3B
CONTROL PANEL, RIGHT (STAINLESS) WPL W11226997 Contact Us For Availability
3C
CONTROL PANEL, RIGHT (BLACK STAINLESS) WPL W11226998 Contact Us For Availability
4
COVER, EXHAUST (WHITE) WPL W11165209 Contact Us For Availability
4
COVER, TOP (WHITE) WPL W11109987 Contact Us For Availability
4A
COVER, TOP (BLACK) WPL W11083285 Contact Us For Availability
4A
COVER, EXHAUST (BLACK) WPL W11127064 Contact Us For Availability
4B
COVER, EXHAUST (STAINLESS) WPL W11165564 Contact Us For Availability
5
DRIVER, TURNTABLE WPL W11096343 Contact Us For Availability
5
COVER, COOLING FAN WPL W11088345 Contact Us For Availability
6
ASSEMBLY, MOUNTING NUT WPL W11122643 Contact Us For Availability
6
WHEEL, COOLING FAN WPL W11088354 Contact Us For Availability
6
SEAL, WATERPROOF WPL W11096347 Contact Us For Availability
6
BACKER, CONTROL WPL W11083284 Contact Us For Availability
7
BACKPLATE, OVEN WPL W11086259 Contact Us For Availability
8B
GRILLE, VENT (LONG) (STAINLESS) WPL W11086309 Contact Us For Availability
9
SENSOR, HUMIDITY WPL W10557536 Contact Us For Availability
9
GRILLE, VENT (LIGHT ACCESS) (WHITE) WPL W11164786 Contact Us For Availability
9B
GRILLE, VENT (LIGHT ACCESS) (STAINLESS) WPL W11095781 Contact Us For Availability
10
GRILLE, VENT (SHORT) (WHITE) WPL W11164816 Contact Us For Availability
10B
GRILLE, VENT (SHORT) (STAINLESS) WPL W11086310 Contact Us For Availability
12
BRACKET, NOISE FILTER WPL W10313274 Contact Us For Availability
15
THERMISTOR, PCBA WPL W10536989 Contact Us For Availability
16
HOUSING, CAVITY LIGHTING WPL W11086300 Contact Us For Availability
18
PLATE, BOTTOM WPL W11159942 Contact Us For Availability
23
REFLECTOR, LAMP WPL W11086295 Contact Us For Availability
23
SEAL, RUBBER WPL W11126543 Contact Us For Availability
24
THERMOSTAT, MAGNETRON WPL W11125676 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARDWARE, INSTALLATION WPL W10821385 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIR WPL W10539840 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, TURNTABLE AND H WPL W11101699 Contact Us For Availability
× ![]()
