Model Electrolux KM937LXM1 MICROWAVE – Common Parts & Diagrams
02 - CONTROL PANEL
03 - DOOR PARTS
04 - POWER CONTROL

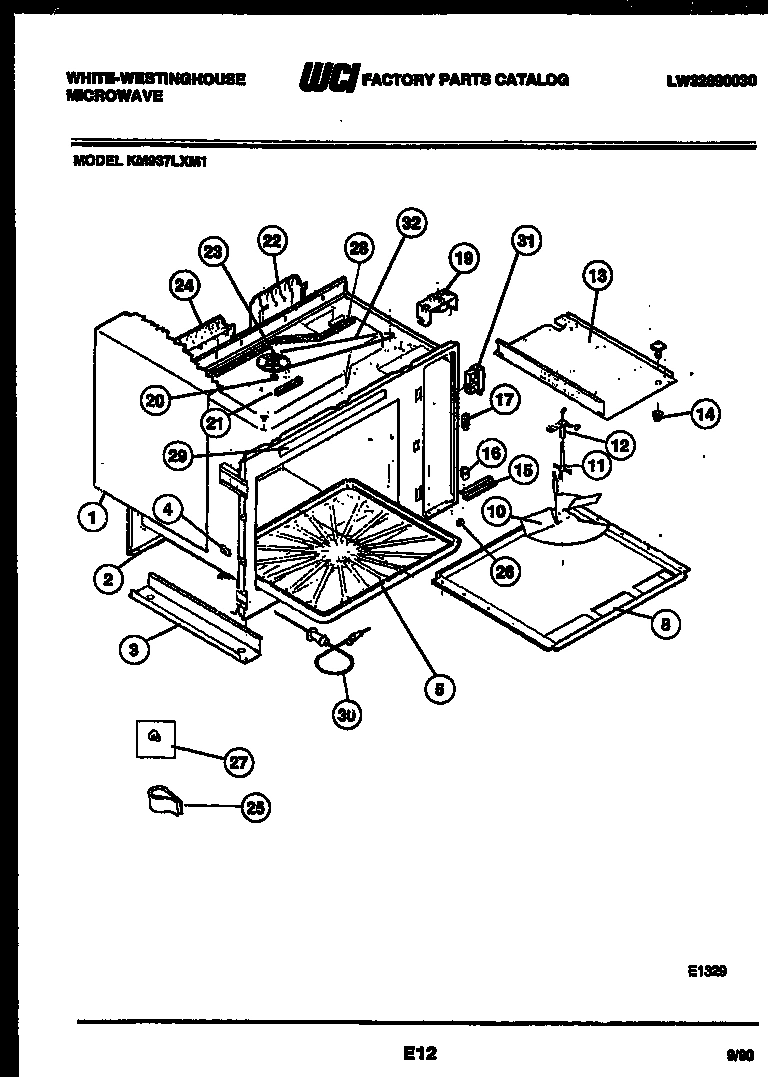

05 - BODY PARTS
Common parts from model Electrolux KM937LXM1 MICROWAVE
*34810
HARNESS-MAIN WCI 5303018251 Contact Us For Availability
*34816
SHIELD-OVEN LIGHT WCI 5303011685 Contact Us For Availability
*34816
PLUG-BUTTON (2) WCI 5303013626 Contact Us For Availability
*34816
RIVET-COVER STIRRER (8) WCI 5303013807 Contact Us For Availability
*34816
SCREW-WRAPPER WCI 5303091100 Contact Us For Availability
*34816
PLUG-BUTTON (8) WCI 5308037664 Contact Us For Availability
1
WCI 5303017082 WCI 5303017082 Contact Us For Availability
1
WCI 5303206781 WCI 5303206781 Contact Us For Availability
1
WRAPPER WCI 5303203254 Contact Us For Availability
2
SCREW-LATCH (2) WCI 5303013960 Contact Us For Availability
2
CORD-POWER WCI 5308037629 Contact Us For Availability
3
WCI 5303207449 WCI 5303207449 Contact Us For Availability
3
WCI 5303091197 WCI 5303091197 Contact Us For Availability
3
WCI 5303011773 WCI 5303011773 Contact Us For Availability
4
WCI 5303016911 WCI 5303016911 Contact Us For Availability
5
DOOR-COMPLETE WCI 5303211410 Contact Us For Availability
5
WCI 5303203192 WCI 5303203192 Contact Us For Availability
5
GLASS TRAY WCI 5303011698 Contact Us For Availability
5A
SCREW-DOOR (4) WCI 5303013882 Contact Us For Availability
6
SCREW-DOOR STRIKE WCI 5303013962 Contact Us For Availability
6
DUCT-AIR (FAN) WCI 5303012194 Contact Us For Availability
7
NUT - DOOR STRIKE WCI 5303013273 Contact Us For Availability
7
MOTOR-FAN WCI 5308037636 Contact Us For Availability
8
WCI 5308037626 WCI 5308037626 Contact Us For Availability
8
WCI 5303200554 WCI 5303200554 Contact Us For Availability
9
CLIP, WIRES WCI 5308037677 Contact Us For Availability
10
FUSE-20 AMP WCI 5303011670 Contact Us For Availability
10
WCI 5303012284 WCI 5303012284 Contact Us For Availability
11
DIODE - HV WCI 5303091303 Contact Us For Availability
11
WCI 5303202875 WCI 5303202875 Contact Us For Availability
12
CAPACITOR-HIGH V WCI 5303011660 Contact Us For Availability
12
WCI 5303011826 WCI 5303011826 Contact Us For Availability
13
WCI 5303013771 WCI 5303013771 Contact Us For Availability
13
WCI 5303210624 WCI 5303210624 Contact Us For Availability
14
FUSE-THERMAL-BLUE WCI 5303091280 Contact Us For Availability
14
FOOT (4) WCI 5303014097 Contact Us For Availability
15
BRACKET (2) WCI 5303011556 Contact Us For Availability
15
BRACKET WCI 5303011555 Contact Us For Availability
16
WCI 5303203636 WCI 5303203636 Contact Us For Availability
16
WCI 5308037644 WCI 5308037644 Contact Us For Availability
17
SWITCH-MONITOR WCI 5303201602 Contact Us For Availability
17
BEZEL LATCH-WHITE (2) WCI 5303200551 Contact Us For Availability
18
INSULATOR MAG. WCI 08037647 Contact Us For Availability
19
SEAL-FOAM CUT TO SIZE WCI 5303017864 Contact Us For Availability
19
MOTOR STIRRER W/ BELT WCI 5303091482 Contact Us For Availability
20
WASHER-PULLEY WCI 5303014620 Contact Us For Availability
21
WCI 53008014510 WCI 53008014510 Contact Us For Availability
22
WCI 5303012196 WCI 5303012196 Contact Us For Availability
23
PULLEY-STIRRER WCI 5303013647 Contact Us For Availability
24
WCI 5303201371 WCI 5303201371 Contact Us For Availability
25
WRAPPER - CLIP (2) WCI 5303012322 Contact Us For Availability
26
NUT WCI 5303013283 Contact Us For Availability
27
PLUG-BUTTON TRAY (2) WCI 5308037665 Contact Us For Availability
28
SEAL AIR DUCT WCI 5308037640 Contact Us For Availability
29
WCI 5303018849 WCI 5303018849 Contact Us For Availability
30
WCI 5303011684 WCI 5303011684 Contact Us For Availability
31
WCI 5303013702 WCI 5303013702 Contact Us For Availability
32
WCI 5303011495 WCI 5303011495 Contact Us For Availability
× ![]()
