Model Electrolux KM935LXM0 MICROWAVE – Common Parts & Diagrams

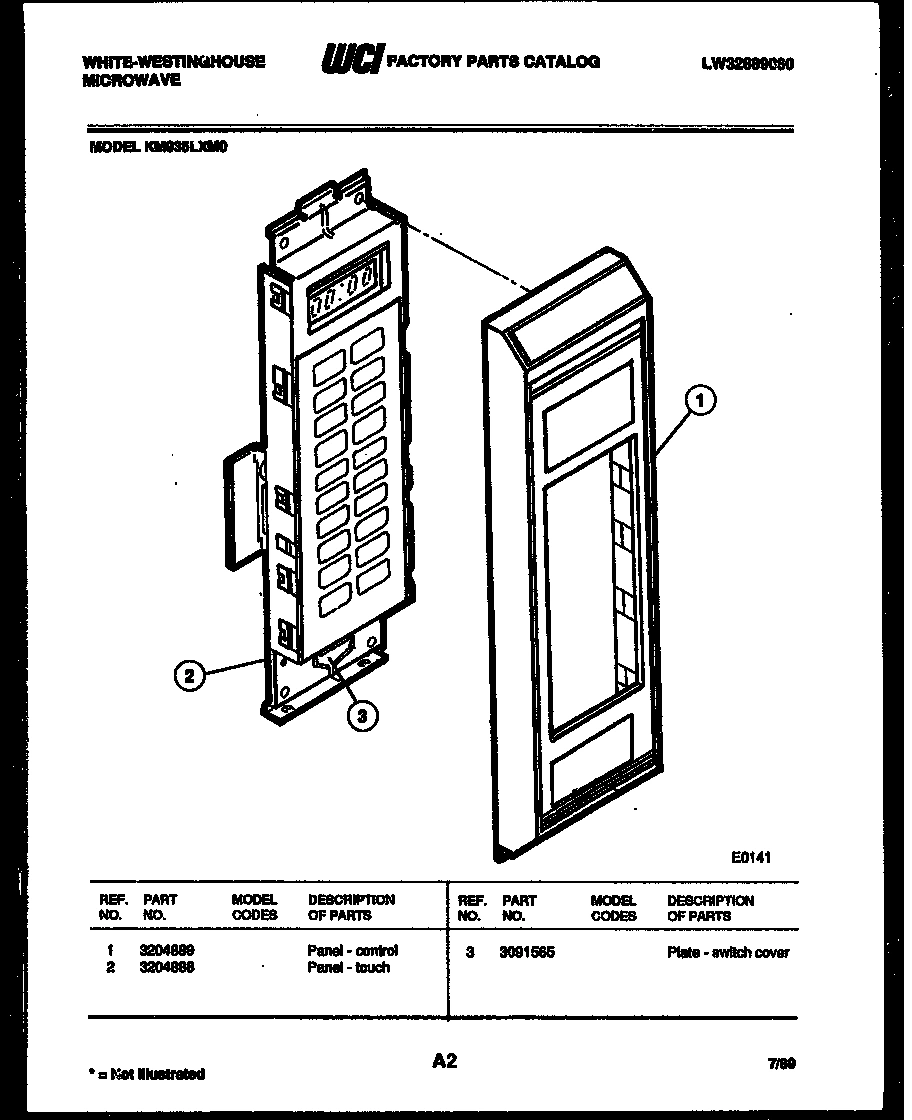

02 - CONTROL PANEL

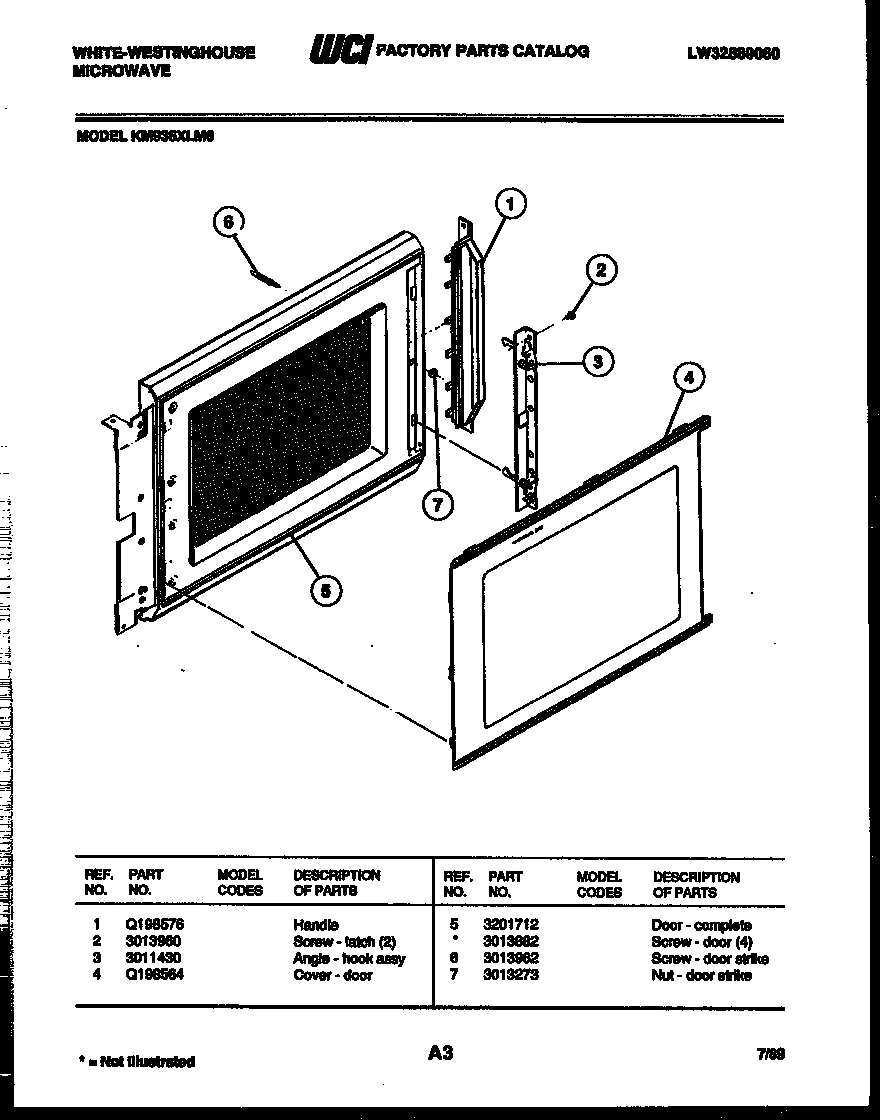

03 - DOOR PARTS
04 - POWER CONTROL
05 - BODY PARTS
Common parts from model Electrolux KM935LXM0 MICROWAVE
*20572
LABEL - COOKING GUIDE WCI 3018849 Contact Us For Availability
*20572
SHIELD-OVEN LIGHT WCI Q198544 Contact Us For Availability
1
WCI 3204889 WCI 3204889 Contact Us For Availability
1
WCI Q198576 WCI Q198576 Contact Us For Availability
1
WCI 3011673 WCI 3011673 Contact Us For Availability
2
WCI 3204888 WCI 3204888 Contact Us For Availability
2
SCREW-LATCH (2) WCI 3013960 Contact Us For Availability
2
WCI Q198485 WCI Q198485 Contact Us For Availability
2
CLIP-WRAPPER WCI Q198548 Contact Us For Availability
3
PLATE-SWITCH COVER WCI 3091565 Contact Us For Availability
3
WCI 3011430 WCI 3011430 Contact Us For Availability
3
WCI Q198568 WCI Q198568 Contact Us For Availability
3
WCI Q198562 WCI Q198562 Contact Us For Availability
4
WCI Q198564 WCI Q198564 Contact Us For Availability
4
WCI Q198580 WCI Q198580 Contact Us For Availability
4
WCI 3201366 WCI 3201366 Contact Us For Availability
5
DOOR - COMPLETE WCI 3201712 Contact Us For Availability
5
WCI Q198566 WCI Q198566 Contact Us For Availability
5
WCI 3011698 WCI 3011698 Contact Us For Availability
5A
SCREW-DOOR (4) (NON-ILLUSTRATED) WCI 3013882 Contact Us For Availability
6
WCI 3013962 WCI 3013962 Contact Us For Availability
6
DUCT, AIR WCI 211T051P03 Contact Us For Availability
6
COVER - STIRRER (WHITE) WCI Q198563 Contact Us For Availability
7
WCI 3013273 WCI 3013273 Contact Us For Availability
7
WCI Q198567 WCI Q198567 Contact Us For Availability
7
SUPPORT STIRRER KIT WCI Q198605 Contact Us For Availability
8
WCI Q198534 WCI Q198534 Contact Us For Availability
8
WCI Q198560 WCI Q198560 Contact Us For Availability
9
CLIP (3) WCI Q198507 Contact Us For Availability
9
WCI Q198546 WCI Q198546 Contact Us For Availability
10
WCI Q198578 WCI Q198578 Contact Us For Availability
10
WCI 3201365 WCI 3201365 Contact Us For Availability
11
WCI Q198624 WCI Q198624 Contact Us For Availability
11
WCI 3011555 WCI 3011555 Contact Us For Availability
12
FUSE (20 AMP) WCI Q198533 Contact Us For Availability
12
BEZEL LATCH (WHITE) WCI 3200551 Contact Us For Availability
13
DIODE - HV WCI 3091303 Contact Us For Availability
13
WCI 3012706 WCI 3012706 Contact Us For Availability
14
CAPACITOR HV WCI 3011660 Contact Us For Availability
14
WCI 3014620 WCI 3014620 Contact Us For Availability
15
WCI 612T122F01 WCI 612T122F01 Contact Us For Availability
15
MOTOR W/ BELT WCI 3091482 Contact Us For Availability
16
WCI 3091280 WCI 3091280 Contact Us For Availability
16
WCI 3011495 WCI 3011495 Contact Us For Availability
17
SPACER - WRAPPER WCI 08014510 Contact Us For Availability
18
PULLEY WCI 3013647 Contact Us For Availability
19
SWITCH-LOWER WCI 3011689 Contact Us For Availability
19
WCI Q198594 WCI Q198594 Contact Us For Availability
20
BRACKET-SWITCH WCI 3011556 Contact Us For Availability
20
WCI Q198565 WCI Q198565 Contact Us For Availability
21
WCI 3201602 WCI 3201602 Contact Us For Availability
21
WCI Q198571 WCI Q198571 Contact Us For Availability
21A
HARNESS - MAIN (NON-ILLUSTRATED) WCI 3018251 Contact Us For Availability
22
WCI 3017864 WCI 3017864 Contact Us For Availability
22
WCI Q198572 WCI Q198572 Contact Us For Availability
23
WCI 3013626 WCI 3013626 Contact Us For Availability
24
WCI 08037640 WCI 08037640 Contact Us For Availability
25
WCI 3013628 WCI 3013628 Contact Us For Availability
26
RIVET - STIRRER COVER WCI 3013807 Contact Us For Availability
27
PLUG-BUTTON WCI 08037664 Contact Us For Availability
28
SCREW - WRAPPER WCI 3091100 Contact Us For Availability
× ![]()
