Model LG KM36SW – Common Parts & Diagrams

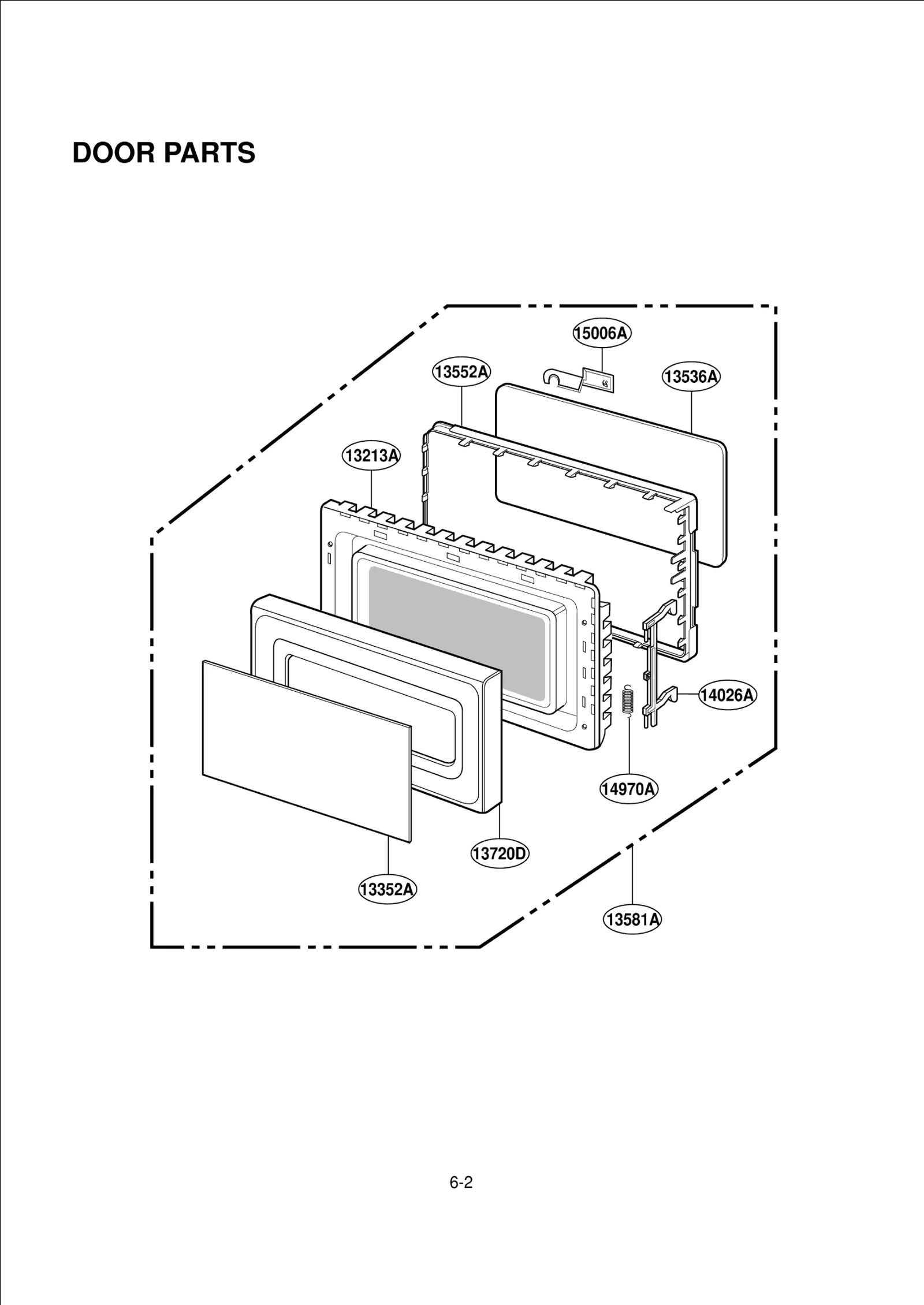

Diagram 0

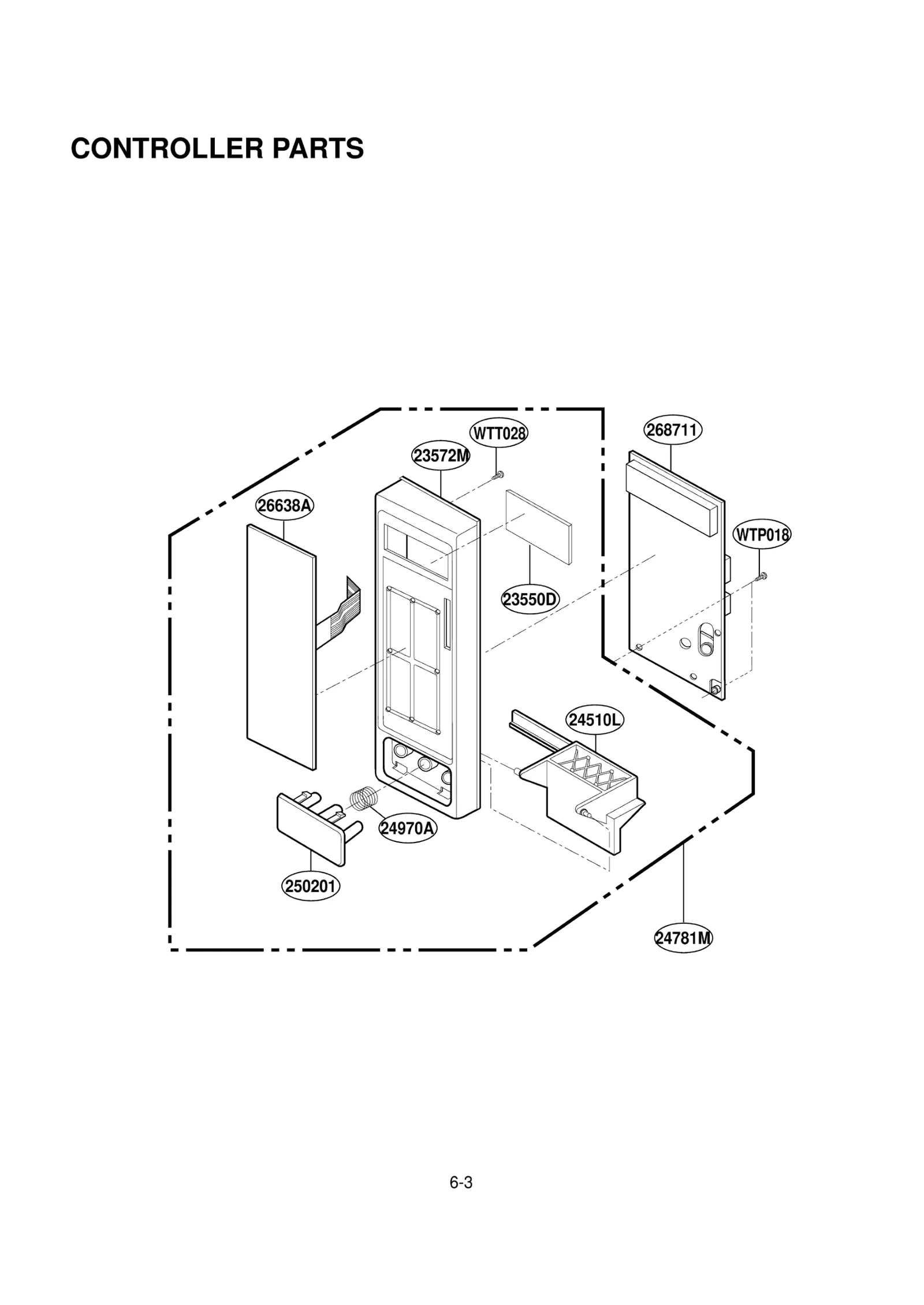

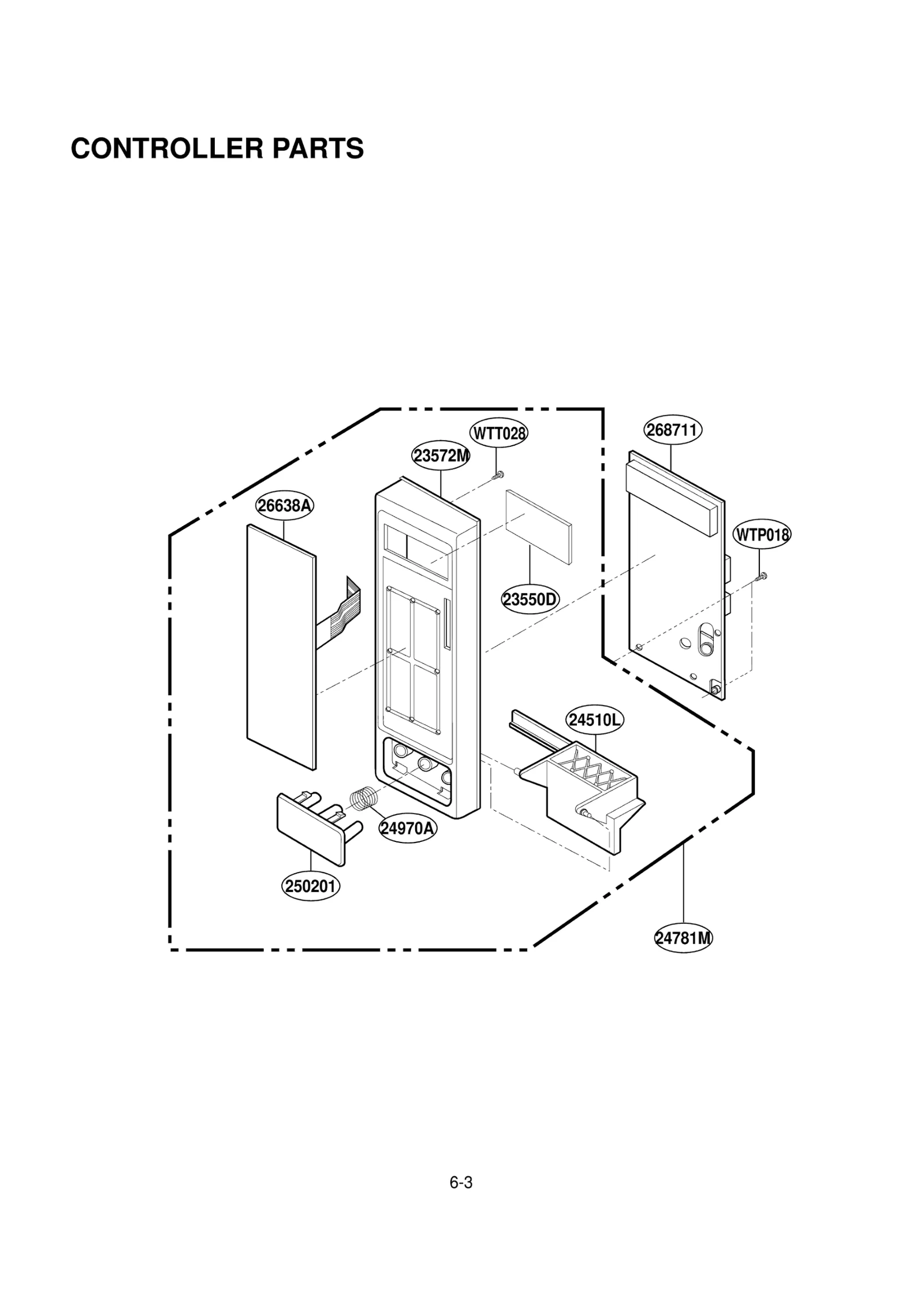

Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Diagram 7
Common parts from model LG KM36SW
*01
LGE 3828W5A1002 LGE 3828W5A1002 Contact Us For Availability
*02
LGE 3828W5S1102 LGE 3828W5S1102 Contact Us For Availability
*10
BOX,[YELLOW] LGE 3890W2Y193D Contact Us For Availability
23572A
CONTROL PANEL ALL LGE 3572W1A120D Contact Us For Availability
33052M
CANOPY MICA LGE 3052W3M008B Contact Us For Availability
33112U
OUTER CASE LGE 3112W0U006J Contact Us For Availability
33390G
TRAY GLASS LGE 3390W1G004A Contact Us For Availability
34036W
SEAL,WATER LGE 4036W3W001A Contact Us For Availability
35889A
ROTATING RING ASSY A 0.9.1.0.1 LGE 5889W2A011A Contact Us For Availability
36549S
MOTOR SYNCHRONOUS 120V,60HZ LGE 2B72754K Contact Us For Availability
43500A
BOARD LATCH MS-101 S 121 S 151 LGE 3500W1A004A Contact Us For Availability
54810C
BRACKET HVC MS-72CM,HORIZON LGE 4810W3C001A Contact Us For Availability
54974S
LGE 4974W0S010A LGE 4974W0S010A Contact Us For Availability
54974T
DUCT INTER FLOW LGE 5208W1A001A Contact Us For Availability
56170D
TRANSFORMER HIGH VOL LGE 6170W1D007A Contact Us For Availability
56411A
POWER CORD ASSY SPT-2 AWG16/3 LGE 2B72325L Contact Us For Availability
56501A
SENSOR ASSY ALL HUMIDITY SENSO LGE 6501W2A017A Contact Us For Availability
56549F
MOTOR(CIRC) FAN 120V/60HZ,10.5 LGE 6549W2F017B Contact Us For Availability
56820A
HOLDER ALL 20A,300V MAX,LITTEL LGE 4930W3B025A Contact Us For Availability
56930V
THERMOSTAT,BIMETAL LGE 6930W1A001J Contact Us For Availability
63302L
BASE PLATE ALL LEFT,1.2CU.FT J LGE 3302W1A034A Contact Us For Availability
63302R
BASE PLATE ASSY ALL LGE 3303W2A003A Contact Us For Availability
63303L
BASE PLATE ASSY,ALL LGE 3303W1A026A Contact Us For Availability
63303R
BASE PLATE ALL RIGHT,1.2CU.FT LGE 3302W1A033A Contact Us For Availability
368771
LEAD WIRE ASSY TT MS-71CM(T/T LGE 6877WRT007D Contact Us For Availability
568771
LEAD WIRE ASSY, TT LGE 6877W1T254C Contact Us For Availability
647781
LEG LGE 4B73900A Contact Us For Availability
948501
HINGE PLATE-U SCP 2.5T MV-1006 LGE 3B72244A Contact Us For Availability
948506
CUSHION LGE 4B73438A Contact Us For Availability
948507
CUSHION 30X15X100 LGE 3B72246G Contact Us For Availability
AR4
RESISTOR ARRAY LGE 0RZ1503G610 Contact Us For Availability
BZ1
LGE 6908W3YA01A LGE 6908W3YA01A Contact Us For Availability
C01
LGE 0CK2230K935 LGE 0CK2230K935 Contact Us For Availability
C02
LGE 0CE1071K638 LGE 0CE1071K638 Contact Us For Availability
C03
CAPACITOR ELECTROLYT 220UF SME LGE 0CE2272H638 Contact Us For Availability
C07
LGE 0CE4751K638 LGE 0CE4751K638 Contact Us For Availability
C40
LGE 0CK1040K518 LGE 0CK1040K518 Contact Us For Availability
C41
LGE 0CE4761K638 LGE 0CE4761K638 Contact Us For Availability
C43
LGE 0CE1061K638 LGE 0CE1061K638 Contact Us For Availability
C53
CAPACITOR CERAMIC (HIGH DIELE LGE 0CK2230H518 Contact Us For Availability
CN1
CONNECTOR (CIRC) WAF LGE 6630W5V021A Contact Us For Availability
CN2
CONNECTOR (CIRC) LGE 6630W5V013A Contact Us For Availability
CN3
LGE 6630W5YA19C LGE 6630W5YA19C Contact Us For Availability
D24
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
D40
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
DP1
DIGITRON, ALL LGE 6302W5A002A Contact Us For Availability
PT1
TRANSFORMER POWER 120V/60HZ,14 LGE 6010W2P043A Contact Us For Availability
Q02
TRANSISTOR (A1015 OR A1266)MA- LGE 0TR101509AB Contact Us For Availability
Q21
LGE 0TR181509AB LGE 0TR181509AB Contact Us For Availability
R01
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R02
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R22
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R23
Resistor,Carbon Film LGE 0RD5601F608 Contact Us For Availability
R30
LGE 0RN2003F408 LGE 0RN2003F408 Contact Us For Availability
R31
Resistor,Metal Film LGE 0RN1001F408 Contact Us For Availability
R33
LGE 0RN1002F408 LGE 0RN1002F408 Contact Us For Availability
R40
Resistor,Carbon Film LGE 0RD1000F608 Contact Us For Availability
R42
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R51
Resistor,Carbon Film LGE 0RD2701F608 Contact Us For Availability
R52
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R54
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R55
Resistor,Carbon Film LGE 0RD1503F608 Contact Us For Availability
R56
RESISTOR FIXED CARBO LGE 0RD2004F608 Contact Us For Availability
R57
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R58
Resistor,Carbon Film LGE 0RD5103F608 Contact Us For Availability
R59
LGE 0RD2703F608 LGE 0RD2703F608 Contact Us For Availability
R71
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
RY1
RELAY LGE 6920W2D010B Contact Us For Availability
RY2
Relay,Contact LGE 6920W2D014A Contact Us For Availability
U01
LGE 0IHI404339X LGE 0IHI404339X Contact Us For Availability
U04
IC KIA4558P(8DIP LIN OP-AMP/BI LGE 0IKE455800A Contact Us For Availability
U05
IC,SAMSUNG ELECTRONICS LGE 0ISS791500A Contact Us For Availability
ZD1
DIODE ZENER UZ5.1BS TP26 SM 0 LGE 0DZ510009AE Contact Us For Availability
ZD2
DIODE ZENER LGE 0DZ750009AC Contact Us For Availability
× ![]()
