Model Hotpoint KLR24DAX1 Room Air Conditioner Built In – Common Parts & Diagrams

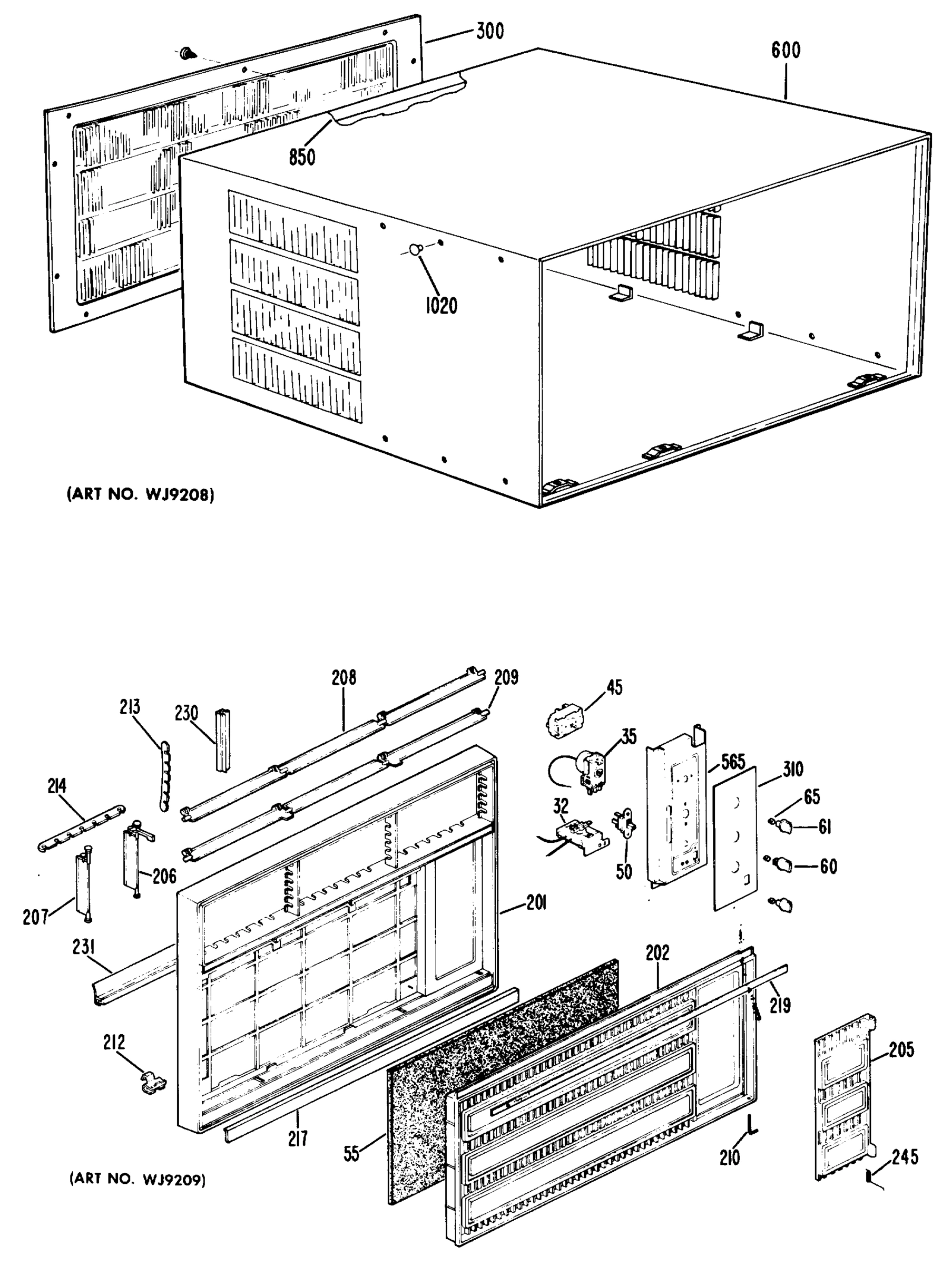

0

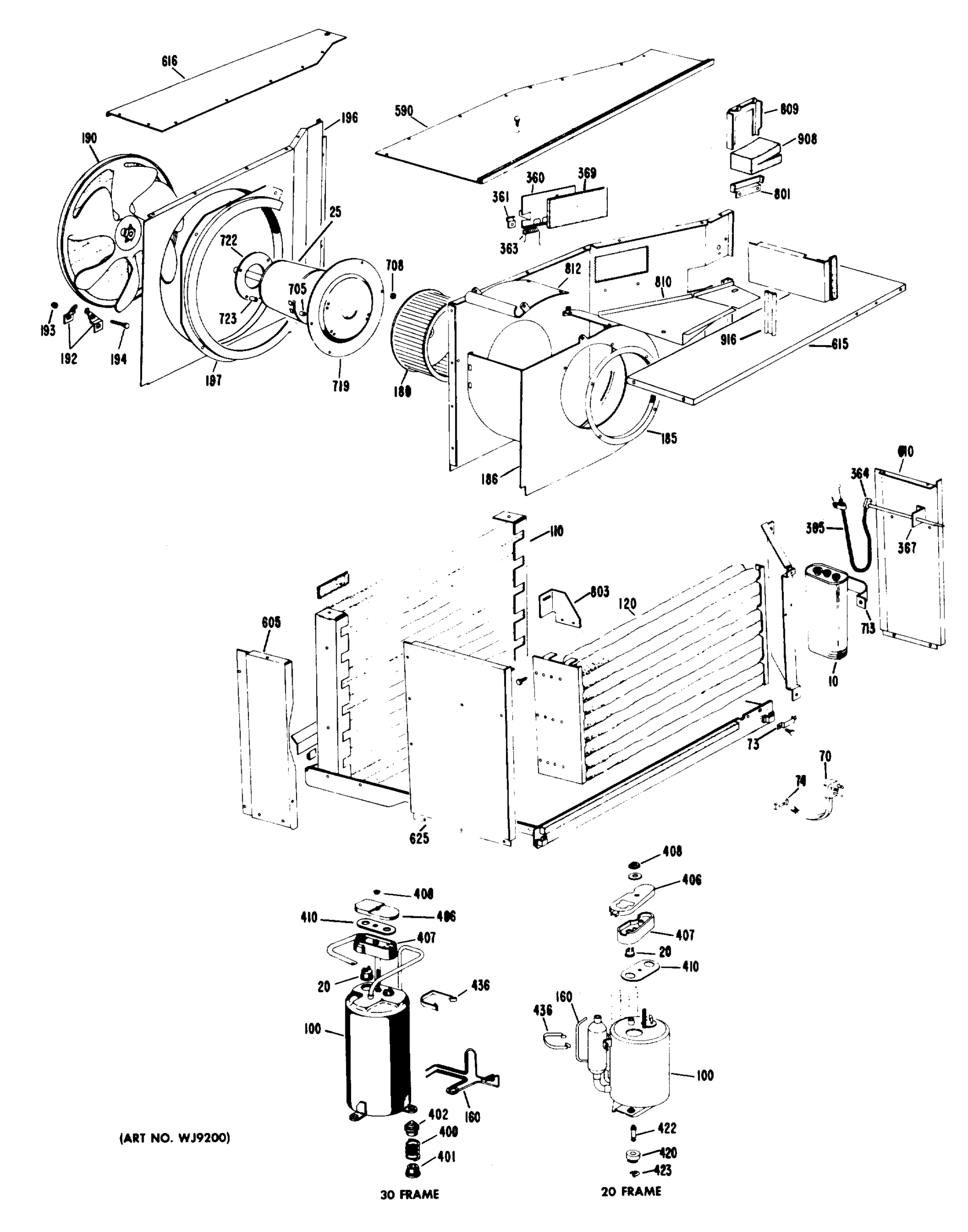

1
Common parts from model Hotpoint KLR24DAX1 Room Air Conditioner Built In
10
CAPACITOR FAN GEN WJ20X0312 Contact Us For Availability
10
GEN WJ20X0396 GEN WJ20X0396 Contact Us For Availability
25
GEN WJ94X0520 GEN WJ94X0520 Contact Us For Availability
35
GEN WJ28X0504 GEN WJ28X0504 Contact Us For Availability
45
MAIN SWITCH 7 POS ROTARY GEN WJ26X0138 Contact Us For Availability
55
GEN WJ85X0096 GEN WJ85X0096 Contact Us For Availability
60
GEN WJ12X0128 GEN WJ12X0128 Contact Us For Availability
61
GEN WJ12X0129 GEN WJ12X0129 Contact Us For Availability
65
GEN WJ02X0187 GEN WJ02X0187 Contact Us For Availability
70
GEN WJ35X0099 GEN WJ35X0099 Contact Us For Availability
73
CLAMP POWER CORD GEN WJ03X0169 Contact Us For Availability
74
GEN WJ01X0361 GEN WJ01X0361 Contact Us For Availability
75
GEN WJ70X0213 GEN WJ70X0213 Contact Us For Availability
79
GEN WJ23X0187 GEN WJ23X0187 Contact Us For Availability
100
GEN WJ98X0480 GEN WJ98X0480 Contact Us For Availability
110
GEN WJ88X0175 GEN WJ88X0175 Contact Us For Availability
120
GEN WJ87X0209 GEN WJ87X0209 Contact Us For Availability
161
GEN WJ58X0044 GEN WJ58X0044 Contact Us For Availability
162
GEN WJ56X0041 GEN WJ56X0041 Contact Us For Availability
165
GEN WJ56X0064 GEN WJ56X0064 Contact Us For Availability
180
BLOWER INDOOR GEN WJ74X0104 Contact Us For Availability
185
GEN WJ76X0221 GEN WJ76X0221 Contact Us For Availability
186
GEN WJ76X0219 GEN WJ76X0219 Contact Us For Availability
190
GEN WJ73X0043 GEN WJ73X0043 Contact Us For Availability
192
GEN WJ03X0215 GEN WJ03X0215 Contact Us For Availability
193
GEN WJ01X0508 GEN WJ01X0508 Contact Us For Availability
194
GEN WJ01X0507 GEN WJ01X0507 Contact Us For Availability
196
SHROUD OUTDOOR GEN WJ76X0236 Contact Us For Availability
197
SPLASH BAFFLE GEN WJ70X0126 Contact Us For Availability
200
GEN WJ71X0925 GEN WJ71X0925 Contact Us For Availability
201
GEN WJ71X0864 GEN WJ71X0864 Contact Us For Availability
202
GEN WJ71X0886 GEN WJ71X0886 Contact Us For Availability
205
GEN WJ71X0890 GEN WJ71X0890 Contact Us For Availability
206
GEN WJ71X0777 GEN WJ71X0777 Contact Us For Availability
207
GEN WJ71X0778 GEN WJ71X0778 Contact Us For Availability
208
GEN WJ71X0867 GEN WJ71X0867 Contact Us For Availability
209
GEN WJ71X0868 GEN WJ71X0868 Contact Us For Availability
210
GEN WJ03X0303 GEN WJ03X0303 Contact Us For Availability
212
GEN WJ02X0372 GEN WJ02X0372 Contact Us For Availability
213
GEN WJ71X0515 GEN WJ71X0515 Contact Us For Availability
214
GEN WJ71X0514 GEN WJ71X0514 Contact Us For Availability
217
GEN WJ07X0715 GEN WJ07X0715 Contact Us For Availability
219
GEN WJ07X0716 GEN WJ07X0716 Contact Us For Availability
230
GEN WJ71X0743 GEN WJ71X0743 Contact Us For Availability
231
GEN WJ71X0513 GEN WJ71X0513 Contact Us For Availability
245
GEN WJ02X0421 GEN WJ02X0421 Contact Us For Availability
300
GEN WJ71X0113 GEN WJ71X0113 Contact Us For Availability
301
GEN WJ07X0527 GEN WJ07X0527 Contact Us For Availability
302
GEN WJ02X0380 GEN WJ02X0380 Contact Us For Availability
310
GEN WJ07X0674 GEN WJ07X0674 Contact Us For Availability
360
GEN WJ70X0166 GEN WJ70X0166 Contact Us For Availability
360
GEN WJ70X0283 GEN WJ70X0283 Contact Us For Availability
361
GEN WJ02X0407 GEN WJ02X0407 Contact Us For Availability
363
GEN WJ02X0397 GEN WJ02X0397 Contact Us For Availability
364
GEN WJ14X0097 GEN WJ14X0097 Contact Us For Availability
365
GEN WJ14X0095 GEN WJ14X0095 Contact Us For Availability
401
SPACER COMPRESSOR MOUNT GEN WJ01X0519 Contact Us For Availability
402
BUMPER COMPRESSOR MOUNT GEN WJ01X0518 Contact Us For Availability
407
COVER TERMINAL GEN WJ79X0327 Contact Us For Availability
410
GEN WJ43X0352 GEN WJ43X0352 Contact Us For Availability
417
GEN WZ06X0125 GEN WZ06X0125 Contact Us For Availability
417
GEN WZ06X0128 GEN WZ06X0128 Contact Us For Availability
440
GEN WJ02X0409 GEN WJ02X0409 Contact Us For Availability
541
GEN WJ79X0242 GEN WJ79X0242 Contact Us For Availability
565
GEN WJ79X0356 GEN WJ79X0356 Contact Us For Availability
590
GEN WJ79X0231 GEN WJ79X0231 Contact Us For Availability
600
GEN WJ90X0042 GEN WJ90X0042 Contact Us For Availability
603
GEN WJ89X0080 GEN WJ89X0080 Contact Us For Availability
610
GEN WJ81X0064 GEN WJ81X0064 Contact Us For Availability
615
GEN WJ79X0347 GEN WJ79X0347 Contact Us For Availability
616
GEN WJ79X0285 GEN WJ79X0285 Contact Us For Availability
625
GEN WJ82X0064 GEN WJ82X0064 Contact Us For Availability
701
GEN WP36X0004 GEN WP36X0004 Contact Us For Availability
702
GEN WJ43X0240 GEN WJ43X0240 Contact Us For Availability
702
GEN WJ43X0351 GEN WJ43X0351 Contact Us For Availability
708
GEN WJ01X0445 GEN WJ01X0445 Contact Us For Availability
711
GEN WJ01X0662 GEN WJ01X0662 Contact Us For Availability
712
GEN WJ03X0203 GEN WJ03X0203 Contact Us For Availability
713
GEN WJ03X0230 GEN WJ03X0230 Contact Us For Availability
713
GEN WJ03X0294 GEN WJ03X0294 Contact Us For Availability
715
GEN WJ02X0410 GEN WJ02X0410 Contact Us For Availability
715
GEN WJ02X0412 GEN WJ02X0412 Contact Us For Availability
721
GEN WJ40X0028 GEN WJ40X0028 Contact Us For Availability
722
GEN WJ66X0197 GEN WJ66X0197 Contact Us For Availability
723
GEN WJ01X0417 GEN WJ01X0417 Contact Us For Availability
724
GEN WJ02X0405 GEN WJ02X0405 Contact Us For Availability
725
GEN WJ65X0323 GEN WJ65X0323 Contact Us For Availability
732
WIRE STRAP GEN WJ03X0302 Contact Us For Availability
733
GEN WJ66X0378 GEN WJ66X0378 Contact Us For Availability
800
GEN WJ65X0321 GEN WJ65X0321 Contact Us For Availability
801
GEN WJ79X0341 GEN WJ79X0341 Contact Us For Availability
809
GEN WJ79X0340 GEN WJ79X0340 Contact Us For Availability
810
GEN WJ79X0290 GEN WJ79X0290 Contact Us For Availability
812
COVER SCROLL GEN WJ76X0217 Contact Us For Availability
813
GEN WJ70X0152 GEN WJ70X0152 Contact Us For Availability
850
GEN WJ43X0285 GEN WJ43X0285 Contact Us For Availability
900
GEN WJ60X0020 GEN WJ60X0020 Contact Us For Availability
902
GEN WJ60X0008 GEN WJ60X0008 Contact Us For Availability
915
DRAIN PLUG GEN WJ01X0612 Contact Us For Availability
916
GEN WJ08X0006 GEN WJ08X0006 Contact Us For Availability
917
GEN WJ02X0263 GEN WJ02X0263 Contact Us For Availability
924
GEN WJ01X0208 GEN WJ01X0208 Contact Us For Availability
931
GEN WZ00X0006 GEN WZ00X0006 Contact Us For Availability
947
GEN WZ04X0386 GEN WZ04X0386 Contact Us For Availability
952
GEN WZ06X0083 GEN WZ06X0083 Contact Us For Availability
953
GEN WZ02X0529 GEN WZ02X0529 Contact Us For Availability
956
GEN WZ06X0108 GEN WZ06X0108 Contact Us For Availability
957
GEN WZ06X0050 GEN WZ06X0050 Contact Us For Availability
958
SCR 10-16 AB HXW 1 S GEN WZ04X0264 Contact Us For Availability
962
SCREW 12-24 X 1-1/4" HEX GEN WZ05X0154 Contact Us For Availability
967
SCREW 10-16 X 1/2" HEX GEN WZ04X0275 Contact Us For Availability
980
SCREW GEN WZ05X0145 Contact Us For Availability
994
GEN WZ04X0362 GEN WZ04X0362 Contact Us For Availability
998
GEN WJ01X0402 GEN WJ01X0402 Contact Us For Availability
1019
GEN WJ41X0092 GEN WJ41X0092 Contact Us For Availability
1020
GEN WJ01X0449 GEN WJ01X0449 Contact Us For Availability
5000
GEN WJ02X0209 GEN WJ02X0209 Contact Us For Availability
5000
GEN WJ02X0216 GEN WJ02X0216 Contact Us For Availability
5000
GEN WJ84X0029 GEN WJ84X0029 Contact Us For Availability
5000
GEN WJ84X0031 GEN WJ84X0031 Contact Us For Availability
9999
GEN 30-7643 GEN 30-7643 Contact Us For Availability
9999
GEN 30-7652 GEN 30-7652 Contact Us For Availability
9999
GEN 39-7024 GEN 39-7024 Contact Us For Availability
× ![]()
