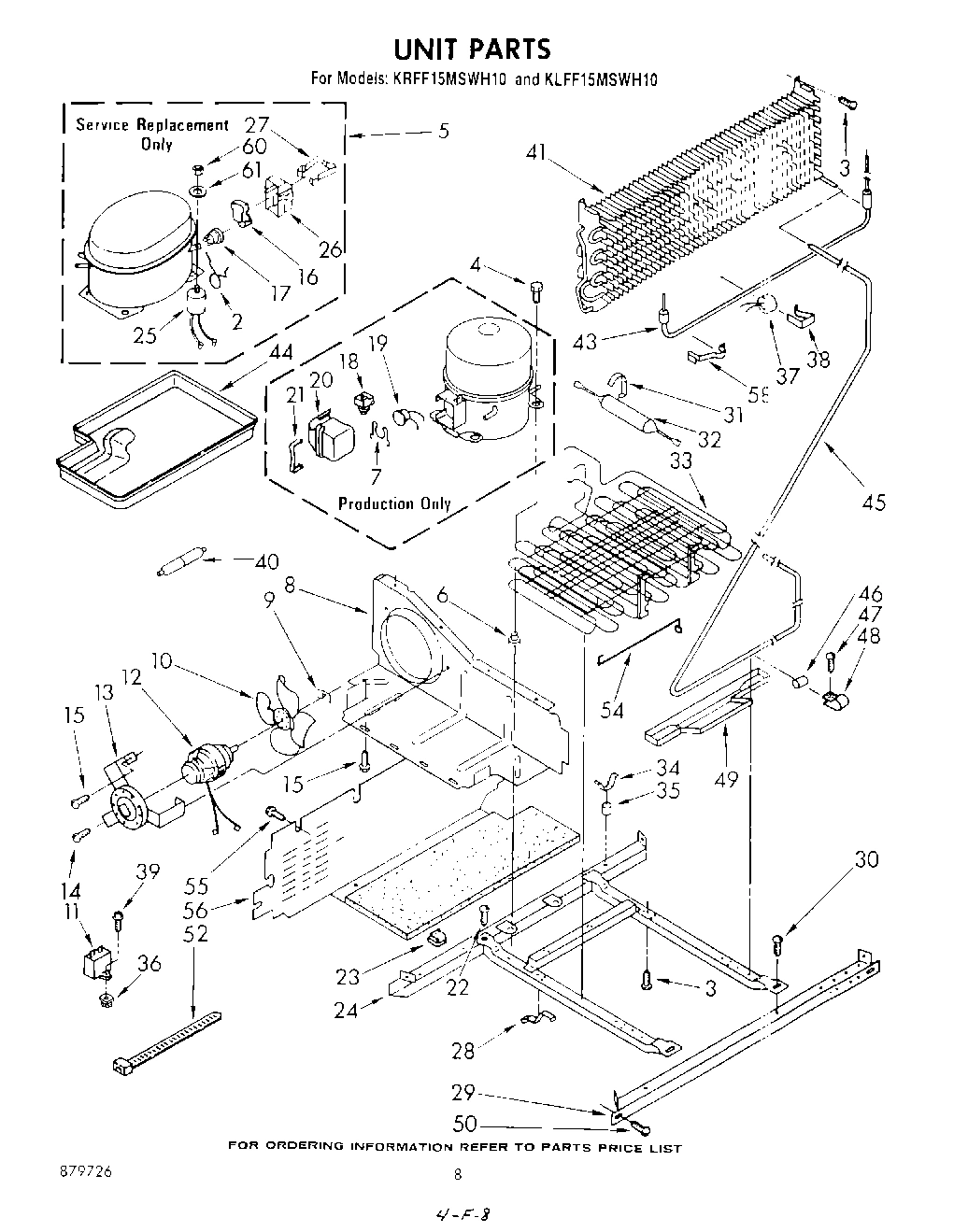

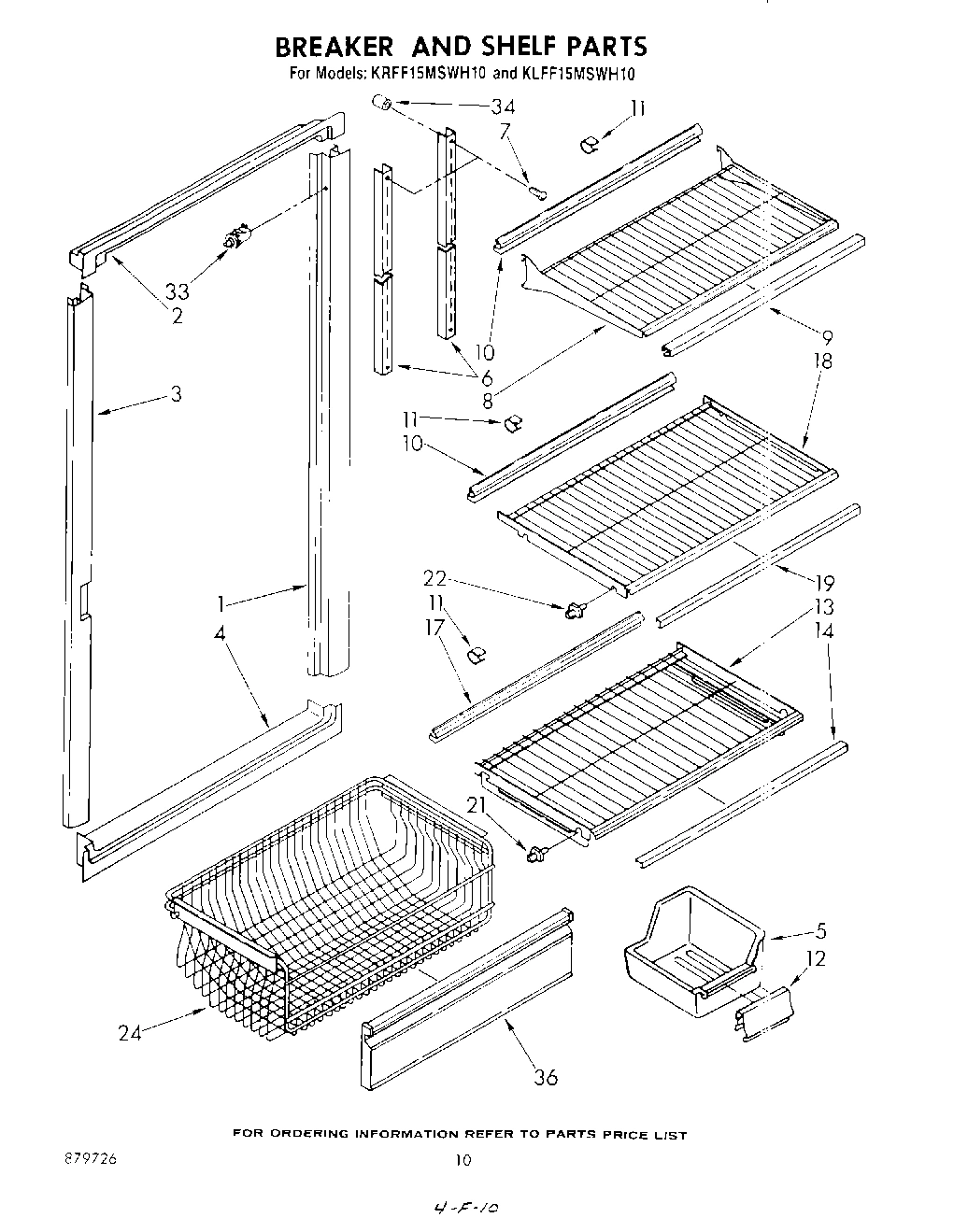

Model Whirlpool KLFF15MSWH10 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

WPL 350941 WPL 350941 Contact Us For Availability

WPL LIT1107567 WPL LIT1107567 Contact Us For Availability

WPL LIT1107608 WPL LIT1107608 Contact Us For Availability

WPL LIT1107944 WPL LIT1107944 Contact Us For Availability

WPL LIT879633 WPL LIT879633 Contact Us For Availability

1

Cabinet (Not A Serviceable Part) WPL ARI88999A4 Contact Us For Availability

1

Lever & Plate Assembly WPL 627248 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI89000A6 Contact Us For Availability

1

Freezer Door Panel R.H. (White) WPL 1107539 Contact Us For Availability

1

Freezer Door Panel R.H. (Almond Freezer Door WPL 1107689 Contact Us For Availability

1

Freezer Door Panel R.H. (White) WPL 1107737 Contact Us For Availability

1

Freezer Door Panel R.H. (Almond) WPL 1107740 Contact Us For Availability

2

939962 Whirlpool Refrigerator Rivet Backorder WPL 939962 $7.21

2

Screw, 10-12 x 3/8 WPL 487562 Contact Us For Availability

2

Cap, Hinge Sleeve (2) WPL 509929 Contact Us For Availability

3

Hinge, Top WPL 842039 Contact Us For Availability

3

Cover, Rivet WPL 1107558 Contact Us For Availability

3

Hole Plug (2) (White) WPL 534927 Contact Us For Availability

3

Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability

4

2188439A Whirlpool Refrigerator Door Gasket Backorder WPL 2188439A $145.11

4

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

4

Shim, Hinge WPL 836151 Contact Us For Availability

4

Hole, Plug WPL 519890 Contact Us For Availability

5

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

5

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

5

Receptacle Cap WPL 481658 Contact Us For Availability

6

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

6

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

6

Screw (Repair) WPL 488949 Contact Us For Availability

6

Center Shim WPL 1107651 Contact Us For Availability

7

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

7

Hinge Bottom R.H. WPL 836686 Contact Us For Availability

7

Hinge Bottom L.H. WPL 836687 Contact Us For Availability

7

Evaporator Support (2) WPL 842436 Contact Us For Availability

7

Door Handle, Center WPL 1107215 Contact Us For Availability

8

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

8

Clamp, Tube WPL 836472 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

9

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

9

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

9

Grommet WPL 842339 Contact Us For Availability

9

Screw Anchor (2) WPL 941242 Contact Us For Availability

10

Tap Plate, Bottom WPL 836162 Contact Us For Availability

10

Screw, 4-40 x 1/4 WPL 488622 Contact Us For Availability

10

Retainer, Insert (Top) WPL 1107241 Contact Us For Availability

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Reflector, Pilot, Light WPL 1107553 Contact Us For Availability

Grommet (6) WPL 848445 Contact Us For Availability

Panel, Interior Door WPL 1107120 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

Box, Junction WPL 549947 Contact Us For Availability

Stripper, Ice WPL 625840 Contact Us For Availability

Light, Lens WPL 1100466 Contact Us For Availability

Retainer, Gasket (Side) (2) WPL 836120 Contact Us For Availability

Bracket, Fan Motor WPL 548695 Contact Us For Availability

Mold & Heater Assembly (Includes Illus. 15) WPL 625856 Contact Us For Availability

Control Box WPL 1107555 Contact Us For Availability

Trim, Door Shelf WPL 1107546 Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

Insert, Control Box WPL 1107556 Contact Us For Availability

Retainer, Gasket Top & Bottom WPL 836115 Contact Us For Availability

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

Cord, Service WPL 1107603 Contact Us For Availability

Heater, Mold WPL 625843 Contact Us For Availability

16

WP2262181 Whirlpool Refrigerator Start Relay In Stock WPL WP2262181 $50.51

16

Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability

16

Grommet, Inlet Tube WPL 835649 Contact Us For Availability

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Overload (Used W/Service Compressor) WPL 483036 Contact Us For Availability

Harness, Wiring WPL 627357 Contact Us For Availability

Screw WPL 488974 Contact Us For Availability

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

Relay (Used W/Original Compressor) WPL 945507 Contact Us For Availability

Defrost Timer WPL 945486 Contact Us For Availability

Bracket, Door Stop WPL 1107202 Contact Us For Availability

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

Overload (Used W/Original Compressor) WPL 1107956 Contact Us For Availability

Screw (Repair) WPL 488930 Contact Us For Availability

Cover, Terminal (Used W/Original Compressor) WPL 1105055 Contact Us For Availability

Hole Plug (3) (White) WPL 842031 Contact Us For Availability

Hole Plug (3) (Almond) WPL 989195 Contact Us For Availability

Control Knob, Thermostat WPL 1100467 Contact Us For Availability

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Spring (Used W/Original Compressor) WPL 943322 Contact Us For Availability

Filler, Corner WPL 839178 Contact Us For Availability

Retainer, Insert (Bottom) WPL 1107617 Contact Us For Availability

22

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

22

4318047 Whirlpool Water Valve In Stock WPL 4318047 $29.77

22

End Cap, Handle (Top) WPL 1107341 Contact Us For Availability

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Clip, Wire (2) WPL 548745 Contact Us For Availability

Fan Orifice WPL 1107605 Contact Us For Availability

Screw, 10-32 x 5/8 WPL 489075 Contact Us For Availability

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

Frame WPL 945461 Contact Us For Availability

Thermostat & Barrier Assembly WPL 1107557 Contact Us For Availability

End Cap, Handle Bottom WPL 1107342 Contact Us For Availability

Capacitor WPL 483009 Contact Us For Availability

Screw, 1/4-28 x 1/2 (4) WPL 488454 Contact Us For Availability

Evaporator, Cover WPL 1107560 Contact Us For Availability

Screw, 6-32 x 1/2 WPL 488915 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

Relay Case (Used W/Service Compressor) WPL 1108115 Contact Us For Availability

Grille WPL 1107193 Contact Us For Availability

Wire Connector WPL 227991 Contact Us For Availability

Insert, Handle WPL 1107234 Contact Us For Availability

Insert, Handle (Black) WPL 1107930 Contact Us For Availability

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

Strap, Cover (Used W/Service Compressor) WPL 938384 Contact Us For Availability

Grille, End Cap (R.S) WPL 1107443 Contact Us For Availability

Clamp, Thermostat WPL 625829 Contact Us For Availability

Retainer, Door Trim WPL 1107300 Contact Us For Availability

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

Clip (2) WPL 548744 Contact Us For Availability

Grille, End Cap (L.S.) WPL 1107444 Contact Us For Availability

Screw, 8-32 x 1 WPL 488372 Contact Us For Availability

Rail, Front WPL 548663 Contact Us For Availability

Bumper, Grille (2) WPL 1107614 Contact Us For Availability

Gasket, Orifice WPL 659202 Contact Us For Availability

Ladder, Door (2) WPL 1107547 Contact Us For Availability

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

Clip, Grille WPL 989068 Contact Us For Availability

Switch, S.P.D.T. WPL 625851 Contact Us For Availability

Spacer, Shelf Ladder (4) WPL 1107352 Contact Us For Availability

Spacer, Holding Switch WPL 625834 Contact Us For Availability

Clamp WPL 548508 Contact Us For Availability

Stile Heater WPL 851778 Contact Us For Availability

Cover, Water Fill Tube WPL 1107249 Contact Us For Availability

Expansion Clip (4) WPL 537095 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

Thermostat WPL 625844 Contact Us For Availability

Air Duct WPL 1107606 Contact Us For Availability

Screw, 8-15 x 1 1/4 (4) WPL 489188 Contact Us For Availability

Condencer WPL 943480 Contact Us For Availability

Insert, Air Baffle WPL 1107271 Contact Us For Availability

Cam WPL 625913 Contact Us For Availability

Screw, 8 x 1-1/4 WPL 488357 Contact Us For Availability

Screw, 10 x 1 1/4 WPL 488623 Contact Us For Availability

Nameplate WPL 1107915 Contact Us For Availability

Clamp (4) WPL 548738 Contact Us For Availability

Mounting, Bracket Pilot Light WPL 1107551 Contact Us For Availability

Motor WPL 625846 Contact Us For Availability

Screw Grommet WPL 538532 Contact Us For Availability

Door Shelf, Cantilever WPL 1107548 Contact Us For Availability

Grommet WPL 943447 Contact Us For Availability

Light, Signal WPL 1103639 Contact Us For Availability

Gear WPL 625914 Contact Us For Availability

Support Clip WPL 538533 Contact Us For Availability

482469 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482469 $84.04

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

Grommet WPL 509812 Contact Us For Availability

Screw WPL 488957 Contact Us For Availability

37

WP4387489 Whirlpool Refrigerator Bi-Metal Def Backorder WPL WP4387489 $32.15

37

Blade, Fan WPL 992920 Contact Us For Availability

37

Screw, Shoulder WPL 627199 Contact Us For Availability

38

Clamp WPL 513584 Contact Us For Availability

38

Tube, Water Inlet WPL 836491 Contact Us For Availability

38

Fan Braket Double WPL 548263 Contact Us For Availability

39

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

39

Beraing & Inlet WPL 544304 Contact Us For Availability

40

Muffler WPL 1107672 Contact Us For Availability

40

Ejector WPL 627375 Contact Us For Availability

40

Fan, Bracket Single WPL 548264 Contact Us For Availability

41

Evaporator WPL 1107503 Contact Us For Availability

41

Arm, Shut-Off WPL 627003 Contact Us For Availability

41

Ring, Compression WPL 992953 Contact Us For Availability

42

Spring, Shut-Off Arm WPL 625832 Contact Us For Availability

42

Grommet, Fan Motor (3) WPL 548268 Contact Us For Availability

43

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

43

Heater, Defrost WPL 989613 Contact Us For Availability

43

Support WPL 625827 Contact Us For Availability

44

Tray, Evaporating WPL 842041 Contact Us For Availability

44

Screw (Used W/Motor 625846) WPL 488361 Contact Us For Availability

45

Exchanger, Heat WPL 1107507 Contact Us For Availability

45

Lever, Arm WPL 625830 Contact Us For Availability

45

Air Baffle (2) WPL 1107559 Contact Us For Availability

46

Dampener (2) WPL 510769 Contact Us For Availability

46

Screw, 4-24 x 3/4 (2) WPL 488360 Contact Us For Availability

47

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

47

Screw, 4-40 X 3/4 (2) WPL 488362 Contact Us For Availability

48

Switch, S.P.D.T. WPL 625947 Contact Us For Availability

48

Screw WPL 489175 Contact Us For Availability

49

Pan, Drip WPL 945572 Contact Us For Availability

49

Insulator, Switch WPL 627680 Contact Us For Availability

49

Cap, Screw WPL 1107633 Contact Us For Availability

50

Plate, Valve Switch WPL 627024 Contact Us For Availability

51

Plate, Mounting WPL 627740 Contact Us For Availability

52

Strap WPL 851095 Contact Us For Availability

53

Spring WPL 627163 Contact Us For Availability

54

Guard, Fan WPL 850156 Contact Us For Availability

54

Cover WPL 1107613 Contact Us For Availability

54

Fitting, Drain WPL 981147 Contact Us For Availability

55

Union WPL 512503 Contact Us For Availability

55

Drain Ferrule WPL 981148 Contact Us For Availability

56

Cover WPL 850639 Contact Us For Availability

56

Valve, Shut-Off WPL 541157 Contact Us For Availability

56

Extension, Drain WPL 841646 Contact Us For Availability

57

Filter Kit WPL 978488 Contact Us For Availability

57

Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability

58

Clip, Heater WPL 548459 Contact Us For Availability

58

Clip, Drain Extension WPL 841648 Contact Us For Availability

59

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

59

Drain Pan WPL 1107562 Contact Us For Availability

60

Nut WPL 489142 Contact Us For Availability

60

Tube, Inlet Valve WPL 627854 Contact Us For Availability

60

Gasket, Drain Pan WPL 1107954 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

WPL 978029 WPL 978029 Contact Us For Availability

Washer WPL 489143 Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability

Cover, Tube Entry WPL 839826 Contact Us For Availability

63

Screw, Ground WPL 488542 Contact Us For Availability

63

Cover, Tube WPL 981085 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

Tape, Vinyl (1/4`` x 108``) WPL 479502 Contact Us For Availability

Clamp Tube WPL 510716 Contact Us For Availability

WPL 538449 WPL 538449 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

66

Nut, Valve WPL 537588 Contact Us For Availability

67

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $28.80

68

Switch, S.P.D.T. WPL 627848 Contact Us For Availability
