Model Whirlpool KIRD862HSS1 30`` AND 36`` RETRACTABLE DOWN DRAFT VENT SYSTEM – Common Parts & Diagrams

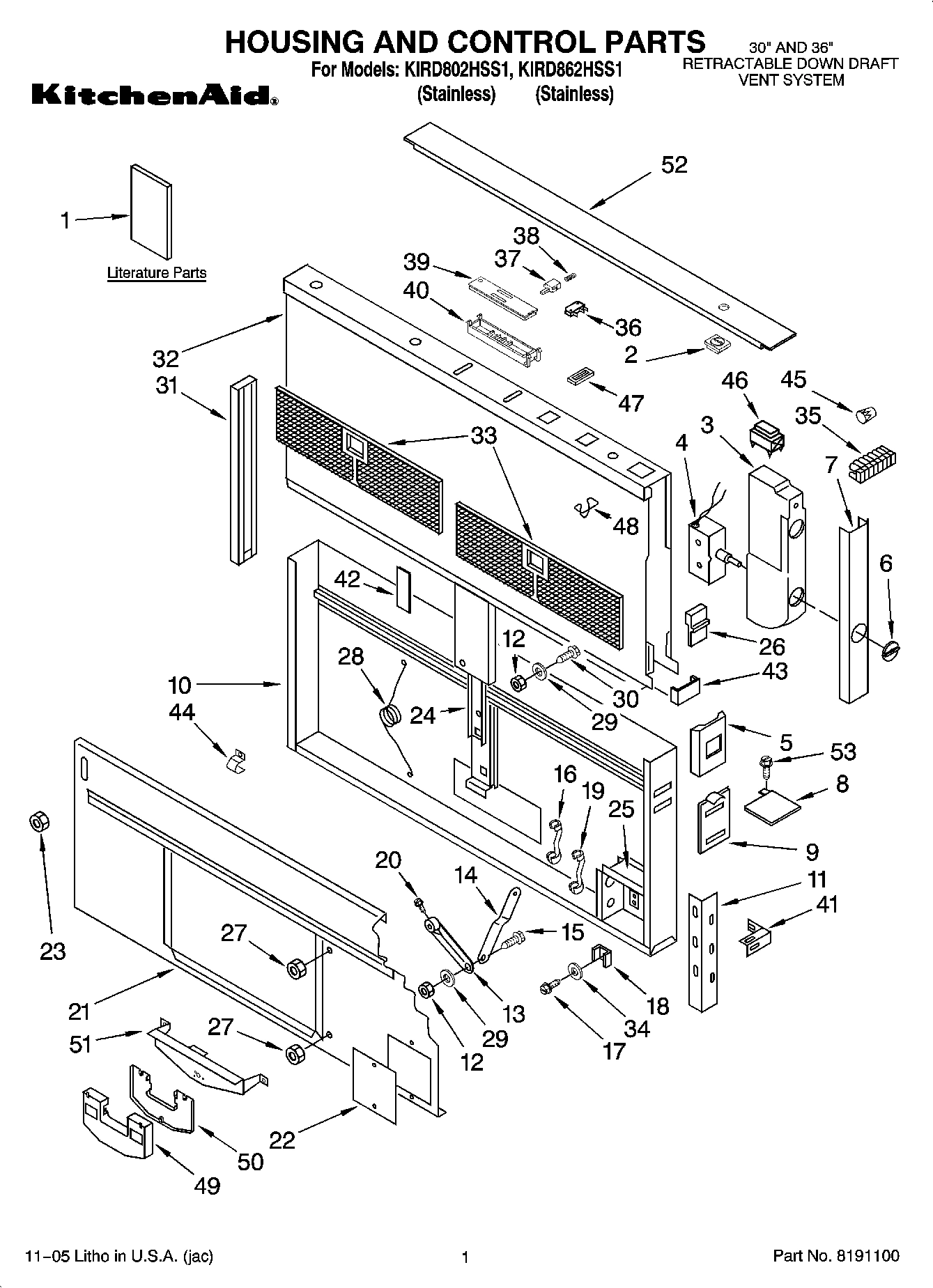

01 - HOUSING AND CONTROL PARTS

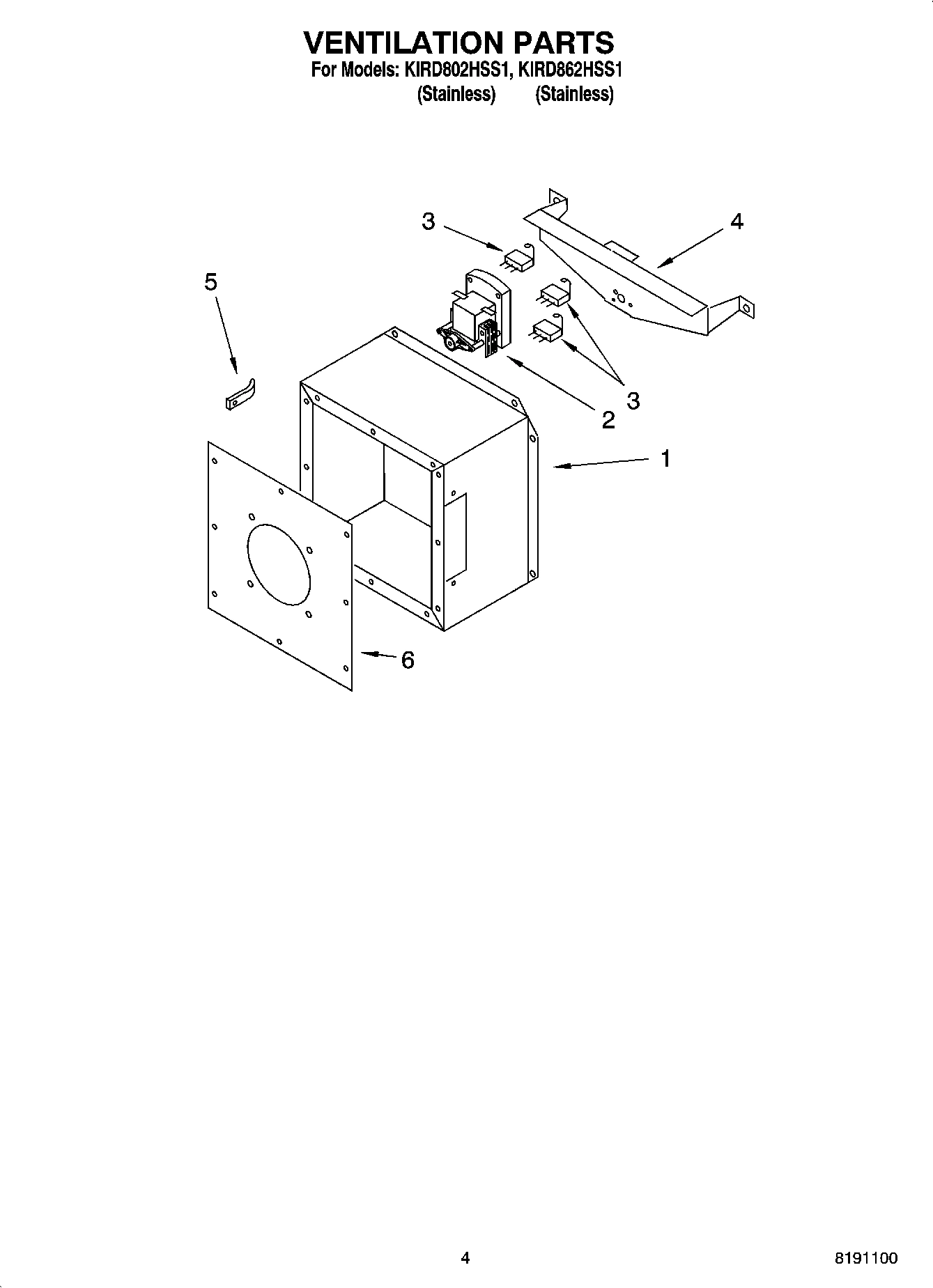

03 - VENTILATION PARTS

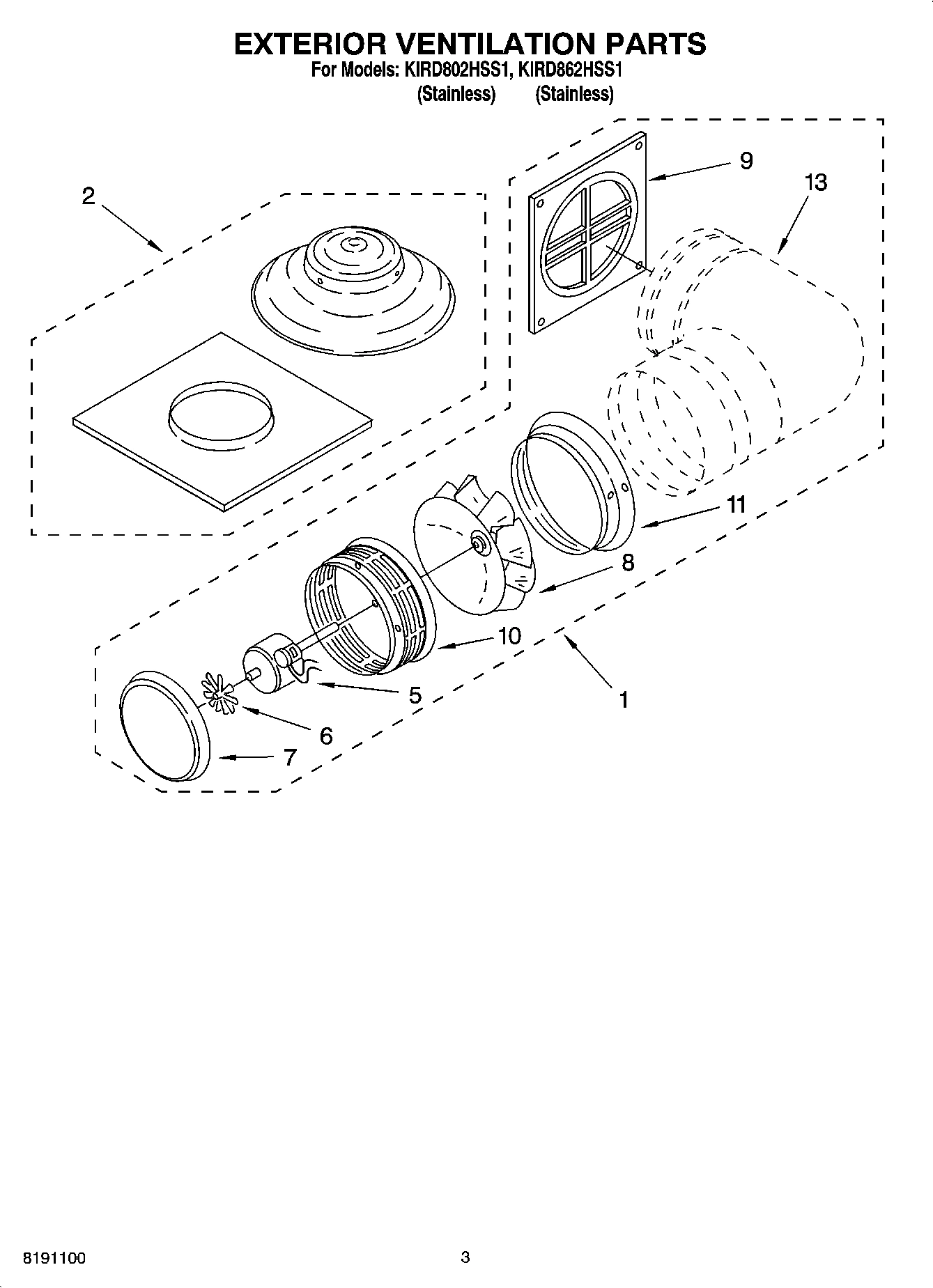

02 - EXTERIOR VENTILATION PARTS
Common parts from model Whirlpool KIRD862HSS1 30`` AND 36`` RETRACTABLE DOWN DRAFT VENT SYSTEM
1
Use & Care Guide/ Install Instructs WPL 9763381 Contact Us For Availability
1
Box, Blower WPL 4360191 Contact Us For Availability
1
Power Unit Complete Model KPED890T WPL ARI88867A2 Contact Us For Availability
2
Button, Push WPL 4360216 Contact Us For Availability
2
Motor, Gear WPL 4360154 Contact Us For Availability
2
Roof Mounting Kit (Not Serviced) WPL ARI88868A6 Contact Us For Availability
3
Housing, Switch WPL 4360134 Contact Us For Availability
4
Switch, Fan WPL 4360135 Contact Us For Availability
4
Bracket, Motor Gear WPL 4360155 Contact Us For Availability
5
Bracket, Shield (Left Hand) WPL 4360136 Contact Us For Availability
5
Bracket, Shield (Right Hand) WPL 4360387 Contact Us For Availability
5
Bracket, Capacitor WPL 4360059 Contact Us For Availability
5
Motor (Includes Capacitor & Cap) WPL 4173414 Contact Us For Availability
6
Knob WPL 4360137 Contact Us For Availability
6
Cover, Blower Box WPL 4360192 Contact Us For Availability
6
Blade, Fan WPL 4173415 Contact Us For Availability
7
Panel, Control WPL 4360138 Contact Us For Availability
7
Cover, Motor (Wall Mount) WPL 4173417 Contact Us For Availability
8
End Cap (Left Hand) WPL 4360381 Contact Us For Availability
8
End Cap (Right Hand) WPL 4360382 Contact Us For Availability
8
Impeller (Not Serviced) WPL ARI88869A6 Contact Us For Availability
9
Plate, Support (Upper) (2) WPL 4360140 Contact Us For Availability
9
Plate, Adaptor (Not Serviced) WPL ARI88870A1 Contact Us For Availability
10
Housing, Non-Serviceable WPL ARI88862A4 Contact Us For Availability
10
Housing, (Non-Serviceable) WPL ARI88871A3 Contact Us For Availability
11
Bracket, Support (Lower R.H.) WPL 4360141 Contact Us For Availability
11
Bracket, Support (Lower L.H.) WPL 4360170 Contact Us For Availability
11
Housing, Ring (Non-Serviceable) WPL ARI88872A9 Contact Us For Availability
12
Nut WPL 4360142 Contact Us For Availability
13
Arm, Gear Motor WPL 4360143 Contact Us For Availability
13
9`` Elbow (Not Included, Purchase Locally) WPL ARI88873A5 Contact Us For Availability
14
Arm, Cavity WPL 4360144 Contact Us For Availability
15
Bolt WPL 4360145 Contact Us For Availability
16
Strain Relief WPL 4360062 Contact Us For Availability
17
Screw WPL 4360006 Contact Us For Availability
18
Nut WPL 4360146 Contact Us For Availability
19
Strain Relief WPL 4360147 Contact Us For Availability
20
Screw WPL 4360148 Contact Us For Availability
21
Cover, Housing Non-Serviceable WPL ARI88863A8 Contact Us For Availability
22
Cover, Wiring Box WPL 4360149 Contact Us For Availability
23
Nut WPL 4360150 Contact Us For Availability
24
Guide, Housing Non-Serviceable WPL ARI88864A9 Contact Us For Availability
25
Box, Wiring WPL 4360152 Contact Us For Availability
26
Clamp WPL 4360153 Contact Us For Availability
28
Spring WPL 4360157 Contact Us For Availability
30
Bolt WPL 4360159 Contact Us For Availability
31
Trim, R.H. WPL 4360160 Contact Us For Availability
32
Cavity Non-Serviceable WPL ARI88865A3 Contact Us For Availability
34
Washer WPL 4360005 Contact Us For Availability
35
Terminal WPL 4360165 Contact Us For Availability
41
Support (L.H.) WPL 4360171 Contact Us For Availability
41
Support (R.H.) WPL 4360172 Contact Us For Availability
42
Guide, Housing (Back) WPL 4360173 Contact Us For Availability
43
Spacer, Cavity (2) WPL 4360174 Contact Us For Availability
44
Clamp, Cable WPL 4360044 Contact Us For Availability
45
Connection, Wire WPL 4360211 Contact Us For Availability
46
Switch WPL 4360210 Contact Us For Availability
47
Connector (3) WPL 4360385 Contact Us For Availability
48
Spring (3) WPL 4360272 Contact Us For Availability
49
Box, Microswitch WPL 4360229 Contact Us For Availability
50
Cover, Box WPL 4360230 Contact Us For Availability
52
Cover, Top (30``) WPL 4360374 Contact Us For Availability
52
Cover, Top (36``) WPL 4360375 Contact Us For Availability
53
Installation Kit WPL 4360198 Contact Us For Availability
53
Screw WPL 4360386 Contact Us For Availability
53
Kit , Motor Mount WPL 814380 Contact Us For Availability
53
Trim Kit-White (KIRD802) WPL 8171304 Contact Us For Availability
53
Trim Kit-Black (KIRD802) WPL 8171305 Contact Us For Availability
53
Trim K WPL 8171306 Contact Us For Availability
53
WPL 8171310 WPL 8171310 Contact Us For Availability
53
WPL 8171311 WPL 8171311 Contact Us For Availability
53
WPL 8171312 WPL 8171312 Contact Us For Availability
53
WPL 8171316 WPL 8171316 Contact Us For Availability
53
WPL 8171317 WPL 8171317 Contact Us For Availability
53
WPL 8171318 WPL 8171318 Contact Us For Availability
53
WPL ARI88866A8 WPL ARI88866A8 Contact Us For Availability
× ![]()
