Model Whirlpool KIRD822HSS0 – Common Parts & Diagrams

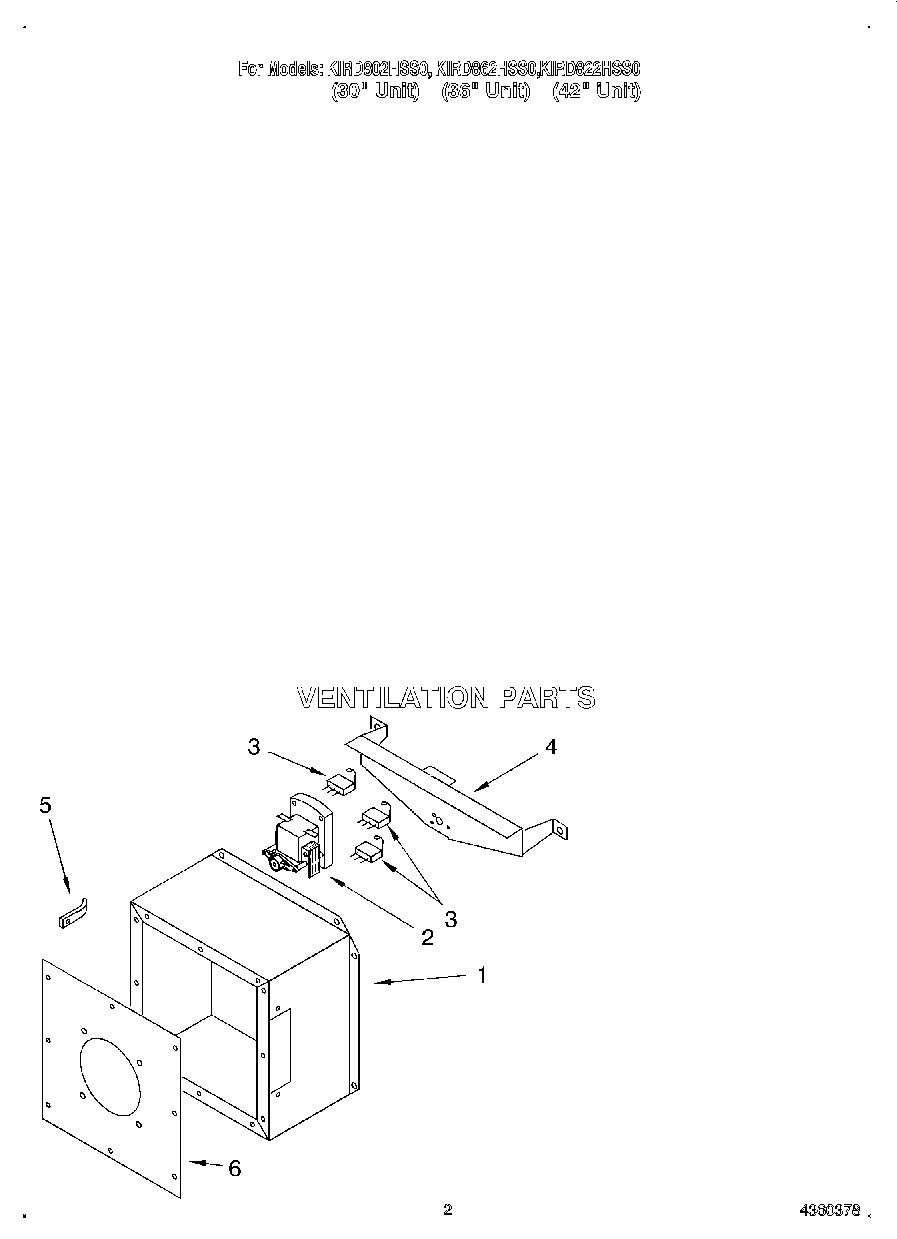

02 - SECTION

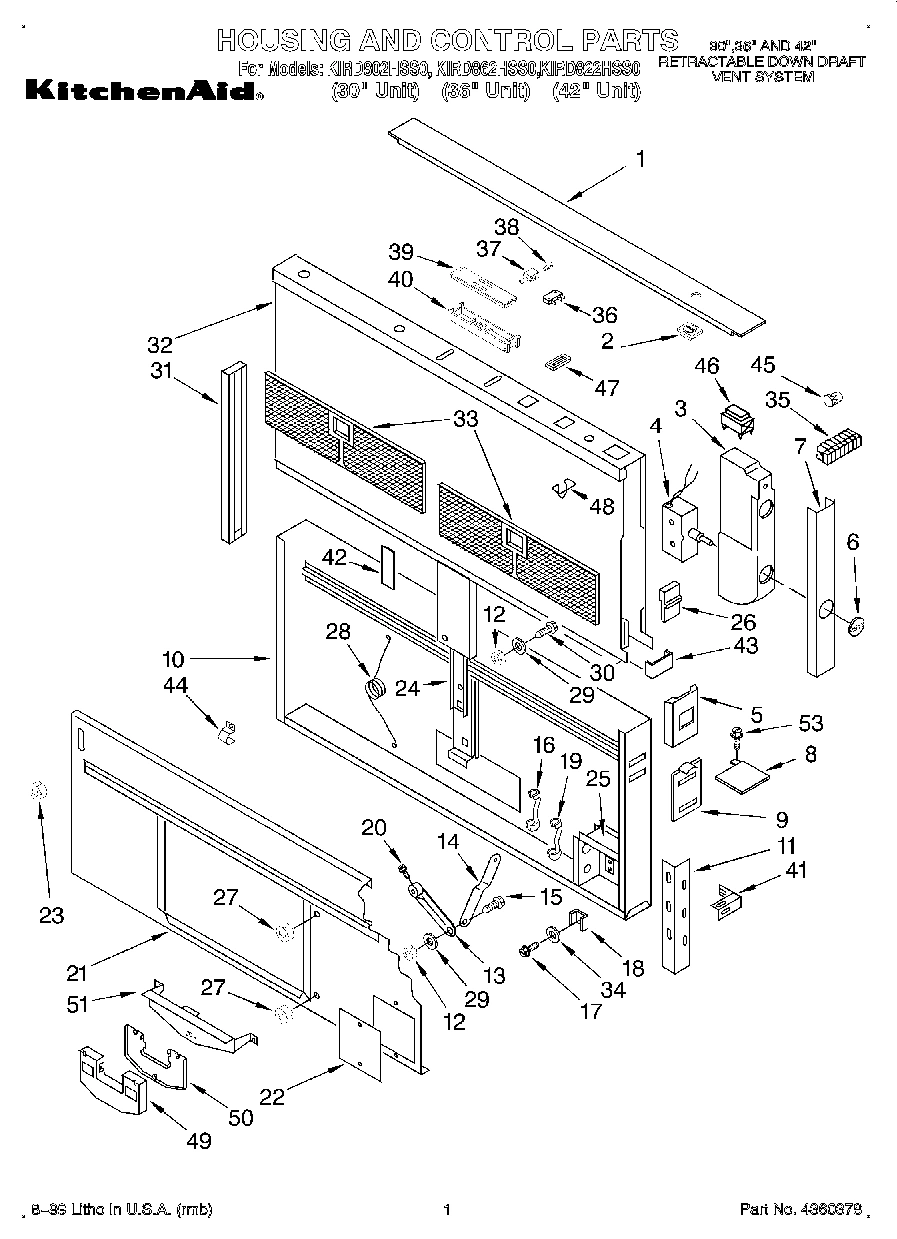

01 - SECTION

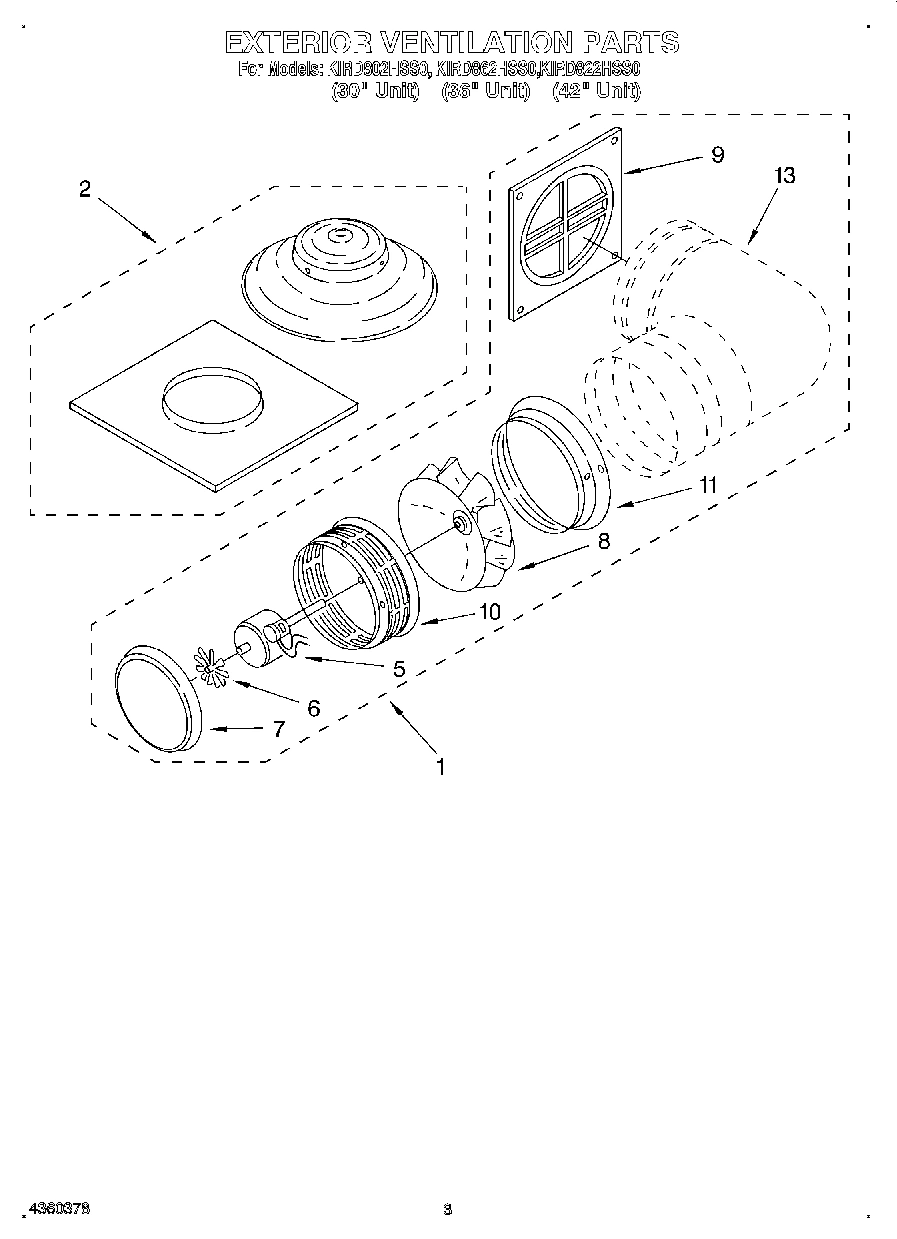

03 - SECTION
Common parts from model Whirlpool KIRD822HSS0
Installation Instructions/ Use A WPL LIT4360363 Contact Us For Availability
1
Box, Blower WPL 4360191 Contact Us For Availability
1
Cover, Controls (Top) (KIRD802) WPL 4360374 Contact Us For Availability
1
Cover, Controls (Top) (KIRD862) WPL 4360375 Contact Us For Availability
1
Cover, Controls (Top) (KIRD822) WPL 4360388 Contact Us For Availability
1
Power Unit Complete Model KPED890T WPL ARI88823A5 Contact Us For Availability
2
Motor, Gear WPL 4360154 Contact Us For Availability
2
Button, Push WPL 4360216 Contact Us For Availability
2
Roof Mounting Kit (Dome Cover And Flashing) WPL 4173296 Contact Us For Availability
3
Housing, Switch WPL 4360134 Contact Us For Availability
4
Switch, Fan WPL 4360135 Contact Us For Availability
5
Bracket, Capacitor WPL 4360059 Contact Us For Availability
5
Bracket, Shield (Left Hand) WPL 4360136 Contact Us For Availability
5
Bracket, Shield (Right Hand) WPL 4360387 Contact Us For Availability
5
Motor (Includes Capacitor & Cap) WPL 4173414 Contact Us For Availability
6
Cover, Blower Box WPL 4360192 Contact Us For Availability
6
Knob WPL 4360137 Contact Us For Availability
6
Blade, Fan WPL 4173415 Contact Us For Availability
7
Panel, Control WPL 4360138 Contact Us For Availability
7
Cover, Motor (Wall Mount) WPL 4173417 Contact Us For Availability
8
End Cap (Left) WPL 4360381 Contact Us For Availability
8
End Cap (Right) WPL 4360382 Contact Us For Availability
8
Impeller WPL 4173416 Contact Us For Availability
9
Plate, Support (Upper) (2) WPL 4360140 Contact Us For Availability
9
Plate, Adaptor (With Damper) WPL 4173456 Contact Us For Availability
10
Housing, (Not Serviceable) WPL ARI88819A1 Contact Us For Availability
10
Housing, (Not Serviceable) WPL ARI88824A4 Contact Us For Availability
11
Bracket, Support (Lower R.H.) WPL 4360141 Contact Us For Availability
11
Bracket, Support (Lower L.H.) WPL 4360170 Contact Us For Availability
11
Housing, Ring (Not Serviceable) WPL ARI88825A5 Contact Us For Availability
12
Nut WPL 4360142 Contact Us For Availability
13
Arm, Gear Motor WPL 4360143 Contact Us For Availability
13
Trim Kit-White (KIRD802) WPL 8171304 Contact Us For Availability
13
Trim Kit-Black (KIRD802) WPL 8171305 Contact Us For Availability
13
Trim Kit-Biscuit (KIRD802) WPL 8171306 Contact Us For Availability
13
Trim Kit-White (KIRD862) WPL 8171310 Contact Us For Availability
13
Trim Kit-Black (KIRD862) WPL 8171311 Contact Us For Availability
13
Trim Kit-Biscuit (KIRD862) WPL 8171312 Contact Us For Availability
13
Trim Kit-White (KIRD822) WPL 8171316 Contact Us For Availability
13
Trim Kit-Black (KIRD822) WPL 8171317 Contact Us For Availability
13
Trim Kit-Biscuit (KIRD822) WPL 8171318 Contact Us For Availability
13
9`` Elbow (Not Included, Purchase Locally) WPL ARI88826A8 Contact Us For Availability
14
Arm, Cavity WPL 4360144 Contact Us For Availability
15
Bolt WPL 4360145 Contact Us For Availability
16
Relief, Strain WPL 4360062 Contact Us For Availability
17
Screw WPL 4360006 Contact Us For Availability
18
Nut WPL 4360146 Contact Us For Availability
19
Strain Relief WPL 4360147 Contact Us For Availability
20
Screw WPL 4360148 Contact Us For Availability
21
Cover, Housing (Not Serviceable) WPL ARI88820A2 Contact Us For Availability
22
Cover, Wiring Box WPL 4360149 Contact Us For Availability
23
Nut WPL 4360150 Contact Us For Availability
24
Guide, Housing (Not Serviceable) WPL ARI88821A6 Contact Us For Availability
25
Box, Wiring WPL 4360152 Contact Us For Availability
26
Clamp WPL 4360153 Contact Us For Availability
28
Spring WPL 4360157 Contact Us For Availability
30
Bolt WPL 4360159 Contact Us For Availability
31
Trim, R.H. WPL 4360160 Contact Us For Availability
32
Cavity (Not Serviceable) WPL ARI88822A4 Contact Us For Availability
34
Washer WPL 4360005 Contact Us For Availability
35
Terminal WPL 4360165 Contact Us For Availability
41
Support (L.H.) WPL 4360171 Contact Us For Availability
41
Support (R.H.) WPL 4360172 Contact Us For Availability
42
Guide, Housing (Back) WPL 4360173 Contact Us For Availability
43
Spacer, Cavity (2) WPL 4360174 Contact Us For Availability
44
Clamp, Wiring WPL 4360044 Contact Us For Availability
45
Connection, Wire WPL 4360211 Contact Us For Availability
46
Switch WPL 4360210 Contact Us For Availability
47
Connector (3) WPL 4360385 Contact Us For Availability
48
Spring (3) WPL 4360272 Contact Us For Availability
49
Box, Microswitch WPL 4360229 Contact Us For Availability
50
Cover, Box WPL 4360230 Contact Us For Availability
51
Bracket, Motor WPL 4360155 Contact Us For Availability
53
Installation Kit WPL 4360198 Contact Us For Availability
53
Screw WPL 4360386 Contact Us For Availability
53
Kit , Motor Mount WPL 814380 Contact Us For Availability
× ![]()
