Model Whirlpool KICU465SSS0 36`` CANOPY HOOD – Common Parts & Diagrams

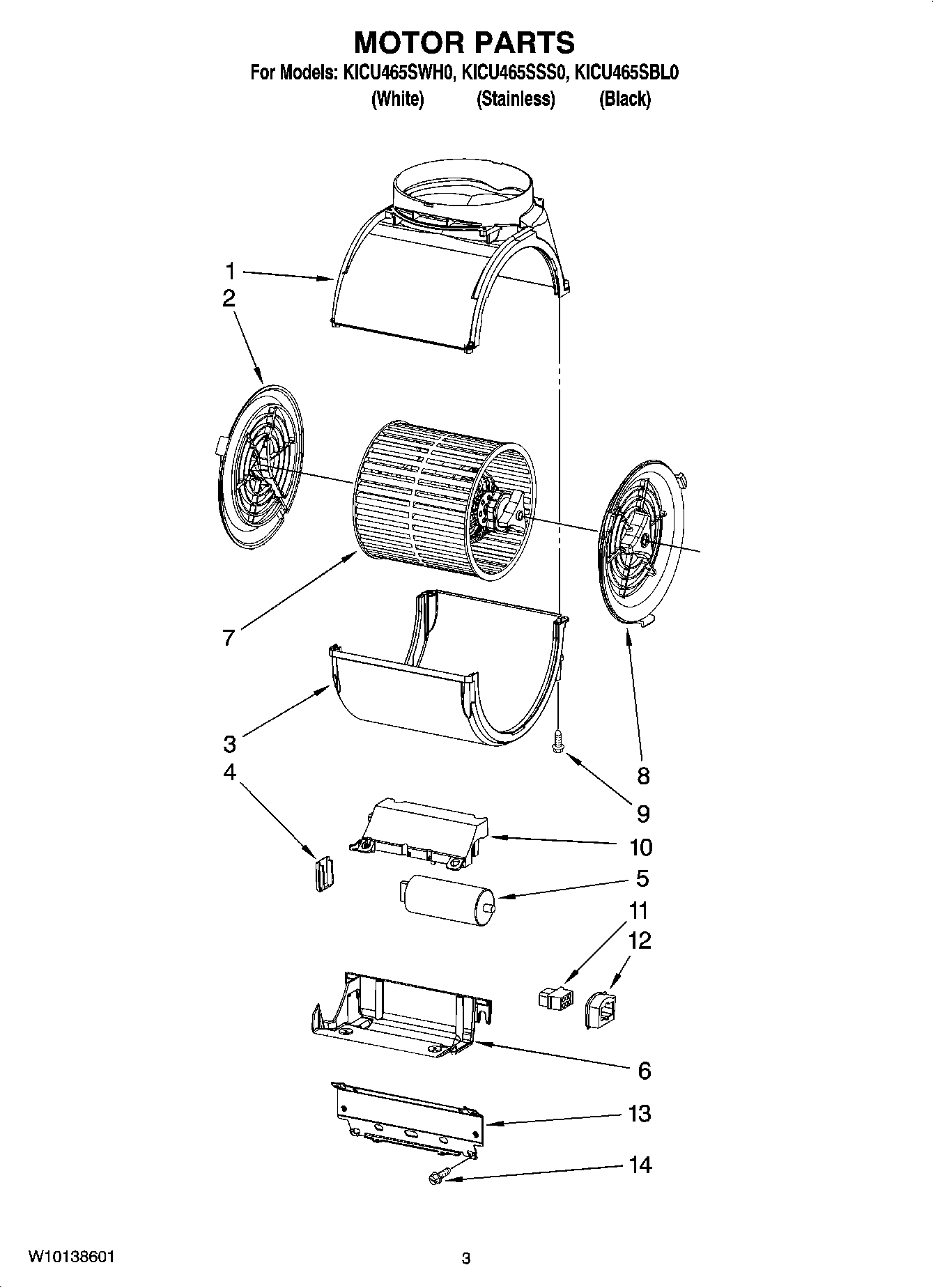

02 - MOTOR PARTS

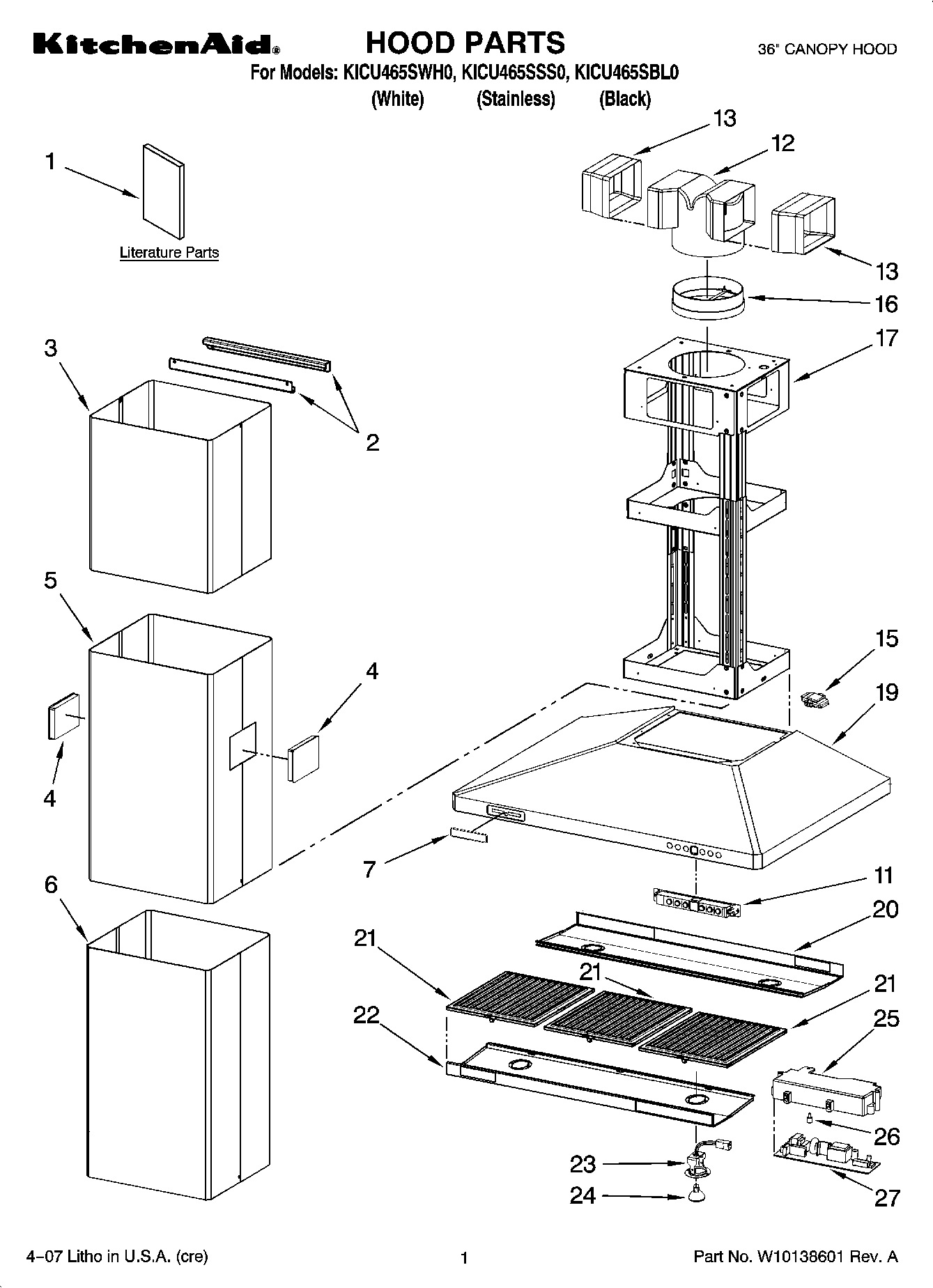

01 - HOOD PARTS
Common parts from model Whirlpool KICU465SSS0 36`` CANOPY HOOD
1
Use & Care Guide WPL W10094880 Contact Us For Availability
2
Support, Motor LH WPL 8190388 Contact Us For Availability
2
Spacer (Upper & Lower) WPL W10139307 Contact Us For Availability
2
Spacer (Center) WPL W10139308 Contact Us For Availability
3
Housing, Fan (Lower) WPL W10138388 Contact Us For Availability
3
Pipe, Fitting (Upper) (White) WPL W10139309 Contact Us For Availability
3
Pipe, Fitting (Upper) (Black) WPL W10139310 Contact Us For Availability
3
Pipe, Fitting (Upper) (S.Steel) WPL W10139311 Contact Us For Availability
4
Cover WPL 8190384 Contact Us For Availability
4
Air-Outlet (LH White) WPL 4360316 Contact Us For Availability
4
Air-Outlet (RH White) WPL 4360323 Contact Us For Availability
4
Air-Outlet (LH S.Steel) WPL 4360330 Contact Us For Availability
4
Air-Outlet (RH S.Steel) WPL 4360332 Contact Us For Availability
4
Air-Outlet (RH Black) WPL W10138372 Contact Us For Availability
4
Air-Outlet (LH Black) WPL W10138373 Contact Us For Availability
5
CAPACITOR WPL W10136368 Contact Us For Availability
5
Pipe Fitting (Ducted) (White) WPL W10139312 Contact Us For Availability
5
Pipe Fitting (Ducted) (Black) WPL W10139313 Contact Us For Availability
5
Pipe Fitting (Ducted) (S.Steel) WPL W10139314 Contact Us For Availability
6
Cover, Wiring WPL W10138387 Contact Us For Availability
6
Pipe Fitting (Ductless) (White) WPL W10139315 Contact Us For Availability
6
Pipe Fitting (Ductless) (Black) WPL W10139316 Contact Us For Availability
6
Pipe Fitting (Ductless) (S.Steel) WPL W10139317 Contact Us For Availability
7
Motor Assy WPL W10138389 Contact Us For Availability
8
Support, Motor RH WPL 8190391 Contact Us For Availability
9
SCREW WPL W10138393 Contact Us For Availability
10
Box, Electrical WPL W10138390 Contact Us For Availability
11
Connector WPL 8190393 Contact Us For Availability
11
Board, Control WPL W10138386 Contact Us For Availability
12
Connection, 6-Way WPL W10138392 Contact Us For Availability
12
Duct, Air WPL 8190355 Contact Us For Availability
13
Bracket WPL W10138391 Contact Us For Availability
13
Duct, Air Spacer WPL W10139318 Contact Us For Availability
14
Screw WPL 8190582 Contact Us For Availability
15
Box, Control WPL 8191005 Contact Us For Availability
16
Damper, Hood WPL 8190358 Contact Us For Availability
17
Casing, Motor (Not Serviced) WPL ARI88723A8 Contact Us For Availability
19
Hood (White) WPL W10139304 Contact Us For Availability
19
Hood (Black) WPL W10139305 Contact Us For Availability
19
Hood (S.Steel) WPL W10139306 Contact Us For Availability
20
Support, Rear Lt (White) WPL W10139301 Contact Us For Availability
20
Support, Rear Lt (Black) WPL W10139302 Contact Us For Availability
20
Support, Rear Lt (S.Steel) WPL W10139303 Contact Us For Availability
22
Support, Front Lt (White) WPL W10139298 Contact Us For Availability
22
Support, Front Lt (Black) WPL W10139299 Contact Us For Availability
22
Support, Front Lt (S.Steel) WPL W10139300 Contact Us For Availability
23
Socket, Light (4) WPL W10138354 Contact Us For Availability
25
Box, Control WPL W10138395 Contact Us For Availability
26
Knob, Control WPL W10138394 Contact Us For Availability
27
Control, Motor WPL W10138496 Contact Us For Availability
× ![]()
