Model Whirlpool KICU285HWH0 RANGE HOOD – Common Parts & Diagrams

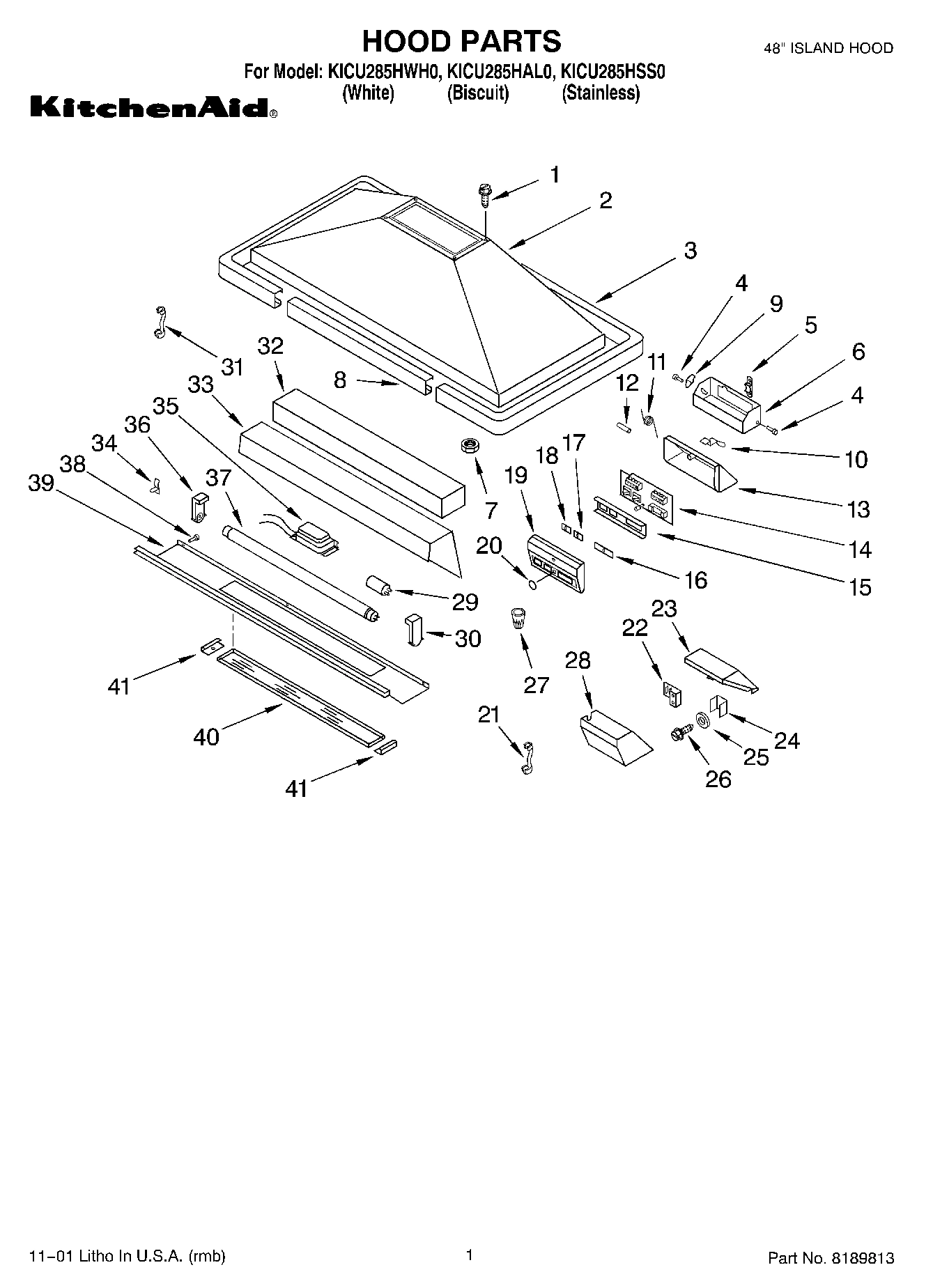

01 - SECTION

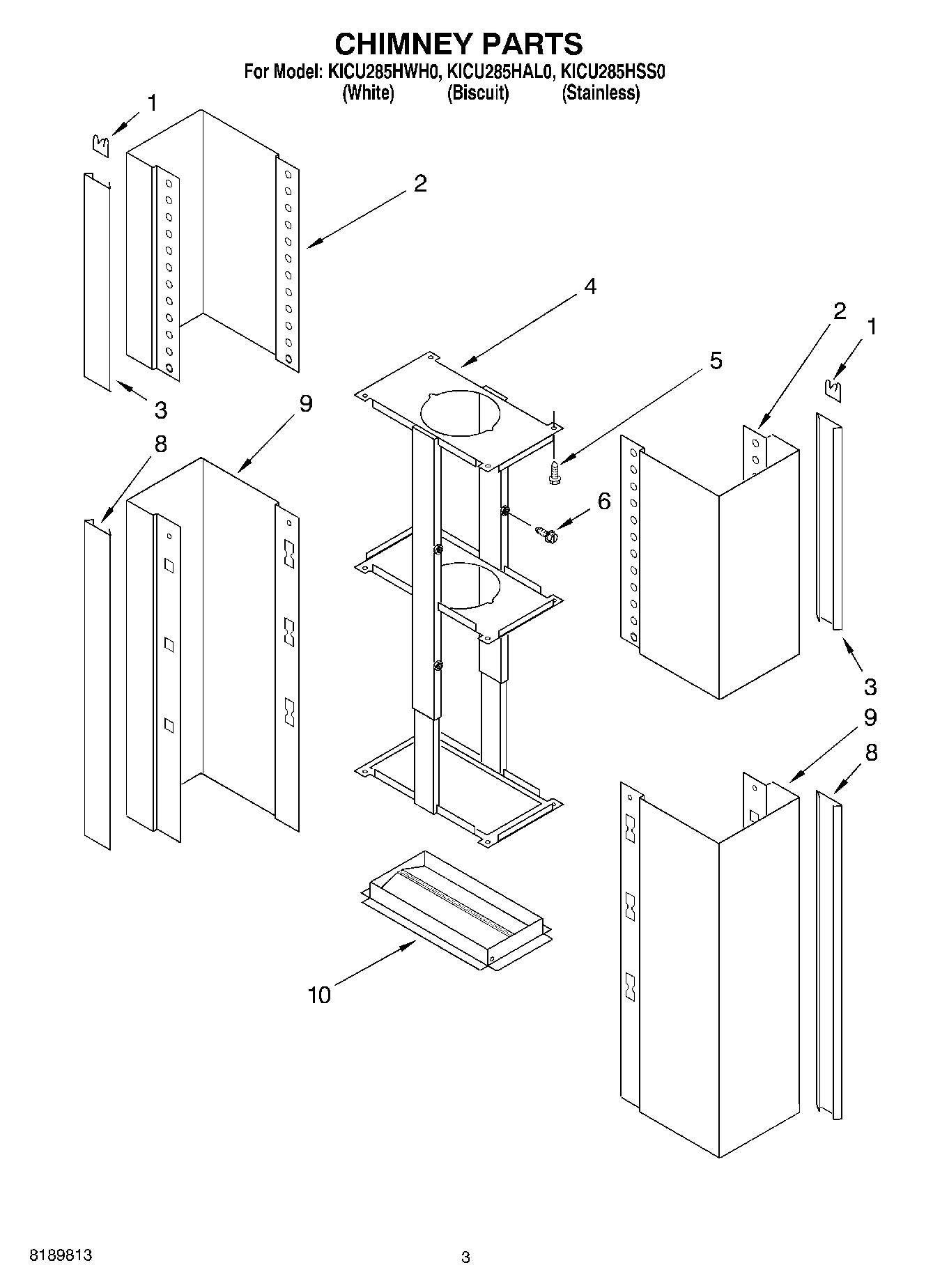

03 - SECTION

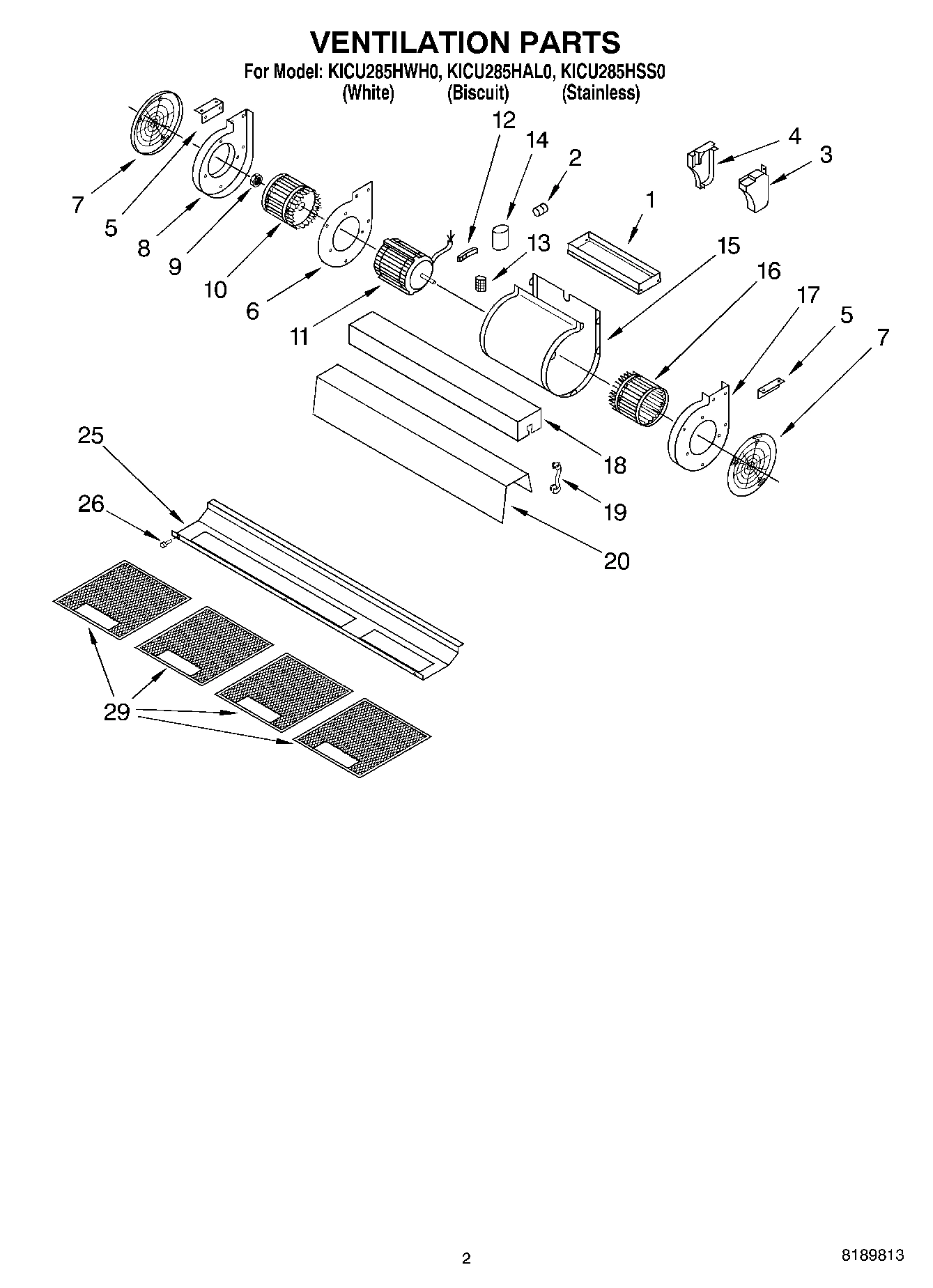

02 - SECTION
Common parts from model Whirlpool KICU285HWH0 RANGE HOOD
Backsplash WPL 4378615 Contact Us For Availability
Wire Racks WPL 4378616 Contact Us For Availability
Rack Hanger Kits WPL 4378617 Contact Us For Availability
Side WPL 4378618 Contact Us For Availability
Rear WPL 4378619 Contact Us For Availability
Filters (2-Pak) WPL 4378623 Contact Us For Availability
Stainless Model WPL 4378625 Contact Us For Availability
White Model WPL 4378626 Contact Us For Availability
Biscuit Model WPL 8171292 Contact Us For Availability
Wiring Diagram WPL LIT4360232 Contact Us For Availability
Use & Care Guide, Installation, Template WPL LIT4360369 Contact Us For Availability
1
Screw WPL 4360236 Contact Us For Availability
1
Spring, Moulding WPL 4360272 Contact Us For Availability
1
Extention, Diffuser WPL 4360255 Contact Us For Availability
2
Hood, Canopy (Not a Serviceable Part) WPL ARI88721A6 Contact Us For Availability
2
Upper Chimney (White Model) WPL 4360271 Contact Us For Availability
2
Upper Chimney (Stainless Model) WPL 4360282 Contact Us For Availability
2
Upper Chimney (Biscuit Model) WPL 4360407 Contact Us For Availability
2
Grommet WPL 4360094 Contact Us For Availability
3
Trim, Side (White Model) WPL 8189820 Contact Us For Availability
3
Trim, Side (Biscuit Model) WPL 8189821 Contact Us For Availability
3
Trim, Side (Stainless Model) WPL 8189822 Contact Us For Availability
3
Moulding, Upper (White Model) WPL 4360273 Contact Us For Availability
3
Moulding, Upper (Stainless Model) WPL 4360283 Contact Us For Availability
3
Moulding, Upper (Biscuit Model) WPL 4360408 Contact Us For Availability
3
Cover, Board WPL 4360056 Contact Us For Availability
4
Pin WPL 4360238 Contact Us For Availability
4
Frame, Telescopic WPL 4360269 Contact Us For Availability
4
Board, Electric Box WPL 4360060 Contact Us For Availability
5
Clamp, Cable WPL 4360239 Contact Us For Availability
5
Screw WPL 4360268 Contact Us For Availability
5
Bracket, Diffuser WPL 4360256 Contact Us For Availability
6
Housing, Control WPL 4360240 Contact Us For Availability
6
Screw WPL 4360270 Contact Us For Availability
6
Motor Mount WPL 4360185 Contact Us For Availability
7
Nut WPL 4360074 Contact Us For Availability
7
Support, Filter WPL 4360257 Contact Us For Availability
8
Trim, Front (White Model) WPL 8189823 Contact Us For Availability
8
Trim, Front (Biscuit Model) WPL 8189824 Contact Us For Availability
8
Trim, Front (Stainless Model) WPL 8189825 Contact Us For Availability
8
Moulding, Lower (White Model) WPL 4360274 Contact Us For Availability
8
Moulding, Lower (Stainless Model) WPL 4360284 Contact Us For Availability
8
Moulding, Lower (Biscuit Model) WPL 4360409 Contact Us For Availability
8
Cover, Blower (Left Side) WPL 4360188 Contact Us For Availability
9
Lever WPL 4360241 Contact Us For Availability
9
Lower Chimney (White Model) WPL 4360275 Contact Us For Availability
9
Lower Chimney (Stainless Model) WPL 4360285 Contact Us For Availability
9
Lower Chimney (Biscuit Model) WPL 4360410 Contact Us For Availability
9
Nut WPL 4360180 Contact Us For Availability
10
Clamp, Cable WPL 4360242 Contact Us For Availability
10
Damper WPL 4360178 Contact Us For Availability
10
Kit , Motor Mount WPL 814380 Contact Us For Availability
10
Impeller, Left WPL 4360187 Contact Us For Availability
11
Spring WPL 4360243 Contact Us For Availability
11
Motor WPL 4360212 Contact Us For Availability
12
Pin WPL 4360244 Contact Us For Availability
12
Block, Capacitor WPL 4360059 Contact Us For Availability
13
Control Box WPL 4360245 Contact Us For Availability
13
Terminal WPL 4360176 Contact Us For Availability
14
Board, Control WPL 4360246 Contact Us For Availability
14
Capacitor WPL 4360175 Contact Us For Availability
15
Support, Actuators WPL 4360247 Contact Us For Availability
15
Housing, Blower WPL 4360184 Contact Us For Availability
16
Actuator, 1-2-3 WPL 4360248 Contact Us For Availability
16
Impeller, Right WPL 4360181 Contact Us For Availability
17
Actuator, Motor WPL 4360249 Contact Us For Availability
17
Cover, Blower (Right Side) WPL 4360179 Contact Us For Availability
18
Actuator, Lights WPL 4360250 Contact Us For Availability
18
Protection, Wiring WPL 4360258 Contact Us For Availability
19
Cover, Box WPL 4360251 Contact Us For Availability
19
Strain Relief WPL 4360062 Contact Us For Availability
20
Cover, Lamp WPL 4360028 Contact Us For Availability
20
Support WPL 4360259 Contact Us For Availability
21
Strain Relief WPL 4360147 Contact Us For Availability
22
Control, Speed WPL 4360391 Contact Us For Availability
23
Box, Distribution WPL 4360253 Contact Us For Availability
24
Ground Guide WPL 4360146 Contact Us For Availability
25
Washer WPL 4360005 Contact Us For Availability
25
Support, Filter (White Model) WPL 8189826 Contact Us For Availability
25
Support, Filter (Biscuit Model) WPL 8189827 Contact Us For Availability
25
Support, Filter (Stainless Model) WPL 8189828 Contact Us For Availability
26
Screw WPL 4360006 Contact Us For Availability
26
Pin, Grille WPL 4360048 Contact Us For Availability
28
Cover, Box WPL 4360254 Contact Us For Availability
29
Starter WPL 4360260 Contact Us For Availability
30
Holder WPL 4360261 Contact Us For Availability
34
Clamp, Cable WPL 4360044 Contact Us For Availability
35
Ballast WPL 4360045 Contact Us For Availability
36
Lamp Holder WPL 4360266 Contact Us For Availability
37
Light WPL 4360014 Contact Us For Availability
39
Support, Light (White Model) WPL 8189829 Contact Us For Availability
39
Support, Light (Biscuit Model) WPL 8189830 Contact Us For Availability
39
Support, Light (Stainless Model) WPL 8189831 Contact Us For Availability
40
Glass, Light WPL 4360264 Contact Us For Availability
41
Lighting, Side WPL 4360263 Contact Us For Availability
NI
Nut, Wire WPL 4360211 Contact Us For Availability
× ![]()
