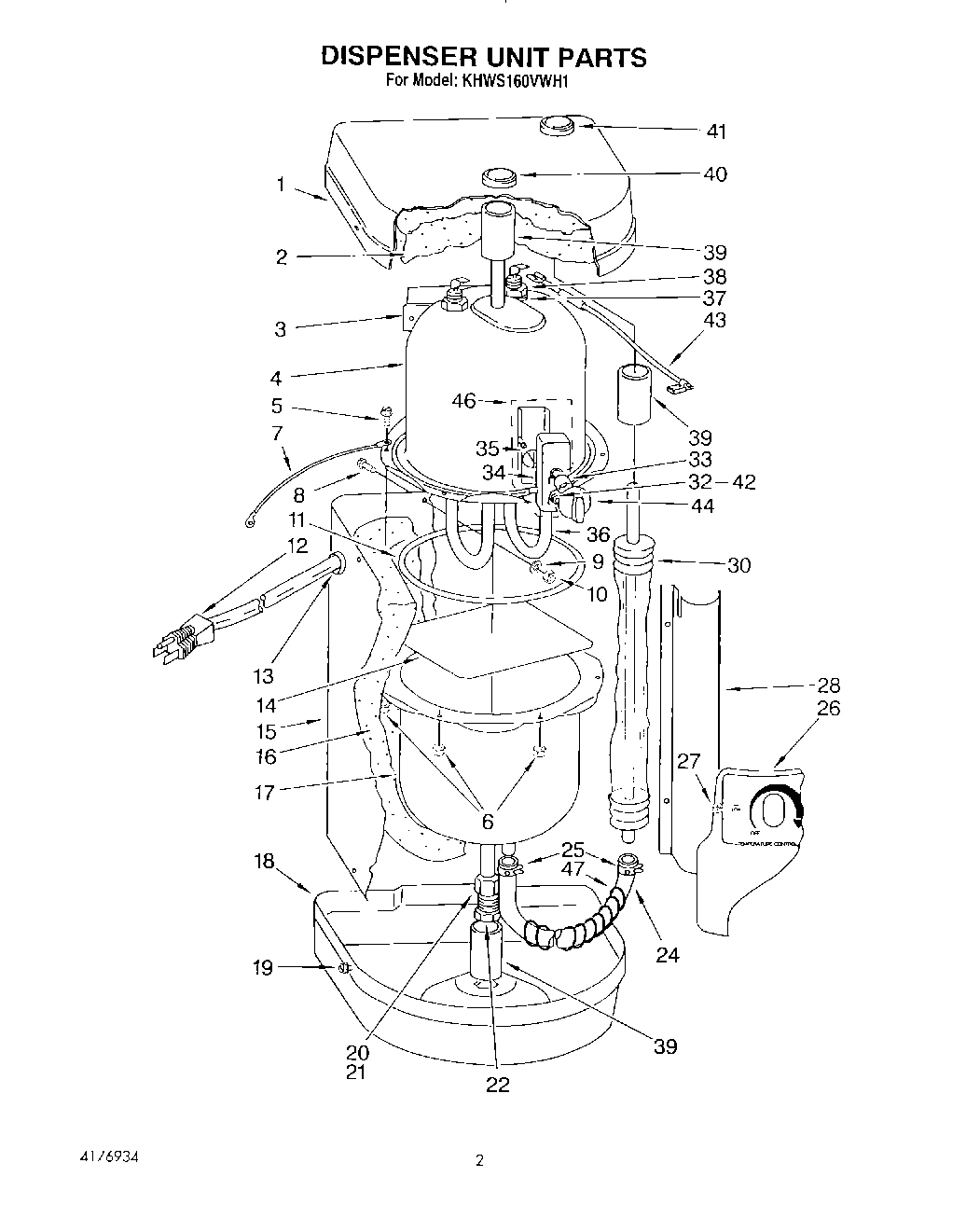

Model Whirlpool KHWS160VAL1 HOT WATER DISPENSER – Common Parts & Diagrams

Installation Instructions
Installation Instructions WPL LIT4174009 Contact Us For Availability
View on Model
Repair Parts List
Repair Parts List WPL LIT4176934 Contact Us For Availability
View on Model
Guide, Use & Care
Guide, Use & Care WPL LIT4177736 Contact Us For Availability
View on Model
1
Cap, Top
Cap, Top WPL 4176124 Contact Us For Availability
View on Model
2
Upper Insulation
Upper Insulation WPL 4162376 Contact Us For Availability
View on Model
3
Bracket, Mounting
Bracket, Mounting WPL 4162589 Contact Us For Availability
View on Model
3
Spring, Compression
Spring, Compression WPL 4163277 Contact Us For Availability
View on Model
4
Hub, Cam
Hub, Cam WPL 4162649 Contact Us For Availability
View on Model
4
Upper Tank & Tube
Upper Tank & Tube WPL 4162372 Contact Us For Availability
View on Model
5
Cap Screw, 1/4-20 X 5`` Rd.
Cap Screw, 1/4-20 X 5`` Rd. WPL 4159314 Contact Us For Availability
View on Model
6
Mechanical Valve (Includes Illus. 13 & 14)
Mechanical Valve (Includes Illus. 13 & 14) WPL 4162844 Contact Us For Availability
View on Model
7
Tube (3/8`` I.D.)
Tube (3/8`` I.D.) WPL 4161917 Contact Us For Availability
View on Model
7
Ground Wire
Ground Wire WPL 4162386 Contact Us For Availability
View on Model
8
Spout & Screen
Spout & Screen WPL 4163284 Contact Us For Availability
View on Model
9
Plate, Spout
Plate, Spout WPL 4162837 Contact Us For Availability
View on Model
10
Screw, Self Tapping (No.4-20 X 5/16``) Phil.
Screw, Self Tapping (No.4-20 X 5/16``) Phil. WPL 4159425 Contact Us For Availability
View on Model
11
O-Ring
O-Ring WPL 4159824 Contact Us For Availability
View on Model
12
Sleeve, Compression
Sleeve, Compression WPL 4159058 Contact Us For Availability
View on Model
12
Cord & Plug
Cord & Plug WPL 4162195 Contact Us For Availability
View on Model
13
Screen, Inlet
Screen, Inlet WPL 4162185 Contact Us For Availability
View on Model
13
Strain Relief
Strain Relief WPL 4159032 Contact Us For Availability
View on Model
14
Deflector
Deflector WPL 4176126 Contact Us For Availability
View on Model
15
Shell Cover
Shell Cover WPL 4176123 Contact Us For Availability
View on Model
16
Insulation Tank
Insulation Tank WPL 4162374 Contact Us For Availability
View on Model
17
Valve, Self- Drilling
Valve, Self- Drilling WPL 4161200 Contact Us For Availability
View on Model
17
Lower Tank
Lower Tank WPL 4162370 Contact Us For Availability
View on Model
18
Cap, Bottom
Cap, Bottom WPL 4176125 Contact Us For Availability
View on Model
19
Clamp, Tube (3/8`` Tubing)
Clamp, Tube (3/8`` Tubing) WPL 4161147 Contact Us For Availability
View on Model
20
Machine Nut 1/4-20 Sq.
Machine Nut 1/4-20 Sq. WPL 4159067 Contact Us For Availability
View on Model
20
Nut, Tube Fitting (3/8``)
Nut, Tube Fitting (3/8``) WPL 4159056 Contact Us For Availability
View on Model
21
Bracket, Spout Mounting
Bracket, Spout Mounting WPL 4162384 Contact Us For Availability
View on Model
21
Sleeve, Tube Fitting (3/8``)
Sleeve, Tube Fitting (3/8``) WPL 4159055 Contact Us For Availability
View on Model
22
Seal, Sink
Seal, Sink WPL 4162831 Contact Us For Availability
View on Model
22
Plug, Drain
Plug, Drain WPL 4162591 Contact Us For Availability
View on Model
23
Spout Body (White)
Spout Body (White) WPL 3179883 Contact Us For Availability
View on Model
23
Spout Body (Almond)
Spout Body (Almond) WPL 3179884 Contact Us For Availability
View on Model
23
Spout Body (Chrome)
Spout Body (Chrome) WPL 4162382 Contact Us For Availability
View on Model
24
Hose, Clear
Hose, Clear WPL 4162381 Contact Us For Availability
View on Model
25
Clamp, Tube (9/16`` Tube)
Clamp, Tube (9/16`` Tube) WPL 4161148 Contact Us For Availability
View on Model
26
Spout Assembly (Chrome)
Spout Assembly (Chrome) WPL 3180241 Contact Us For Availability
View on Model
26
Spout Assembly (White)
Spout Assembly (White) WPL 3180242 Contact Us For Availability
View on Model
26
Spout Assembly (Almond)
Spout Assembly (Almond) WPL 3180243 Contact Us For Availability
View on Model
26
Cover, Front
Cover, Front WPL 4162681 Contact Us For Availability
View on Model
27
Flow Screen
Flow Screen WPL 4161255 Contact Us For Availability
View on Model
28
Cover, Aspirator
Cover, Aspirator WPL 4162590 Contact Us For Availability
View on Model
29
Clamp, Hose
Clamp, Hose WPL 3177799 Contact Us For Availability
View on Model
30
Displacer
Displacer WPL 4162380 Contact Us For Availability
View on Model
32
Machine Nut No.8-32 Hex
Machine Nut No.8-32 Hex WPL 4159072 Contact Us For Availability
View on Model
33
Bushing, Thermostat
Bushing, Thermostat WPL 4162379 Contact Us For Availability
View on Model
34
Thermostat
Thermostat WPL 3183056 Contact Us For Availability
View on Model
35
Cover, Dust (Thermostat)
Cover, Dust (Thermostat) WPL 4162378 Contact Us For Availability
View on Model
36
Heater Element (Includes Illus. 38)
Heater Element (Includes Illus. 38) WPL 4162387 Contact Us For Availability
View on Model
37
``O`` Ring (2)
``O`` Ring (2) WPL 4159825 Contact Us For Availability
View on Model
38
Nut, (2) Heater Element
Nut, (2) Heater Element WPL 4160076 Contact Us For Availability
View on Model
39
Spacer (3)
Spacer (3) WPL 4162375 Contact Us For Availability
View on Model
40
Bushing, Water Outlet Tube
Bushing, Water Outlet Tube WPL 4161909 Contact Us For Availability
View on Model
41
Bushing, Water Inlet Tube
Bushing, Water Inlet Tube WPL 4161910 Contact Us For Availability
View on Model
43
Fuse, Thermal
Fuse, Thermal WPL 4162641 Contact Us For Availability
View on Model
44
Knob, Thermostat
Knob, Thermostat WPL 3183057 Contact Us For Availability
View on Model
46
Thermostat & Dust Cover (Includes Illus. No.3
Thermostat & Dust Cover (Includes Illus. No.3 WPL 3183055 Contact Us For Availability
View on Model
47
Kit, Installation
Kit, Installation WPL 4162385 Contact Us For Availability
View on Model
47
Upper Tank (Includes Illus. 4 & 36)
Upper Tank (Includes Illus. 4 & 36) WPL 4162361 Contact Us For Availability
View on Model
47
Spring, Hose (Anti-Kink)
Spring, Hose (Anti-Kink) WPL 4176042 Contact Us For Availability
View on Model
