Model Whirlpool KHWS160JWH2 HOT WATER DISPENSER – Common Parts & Diagrams

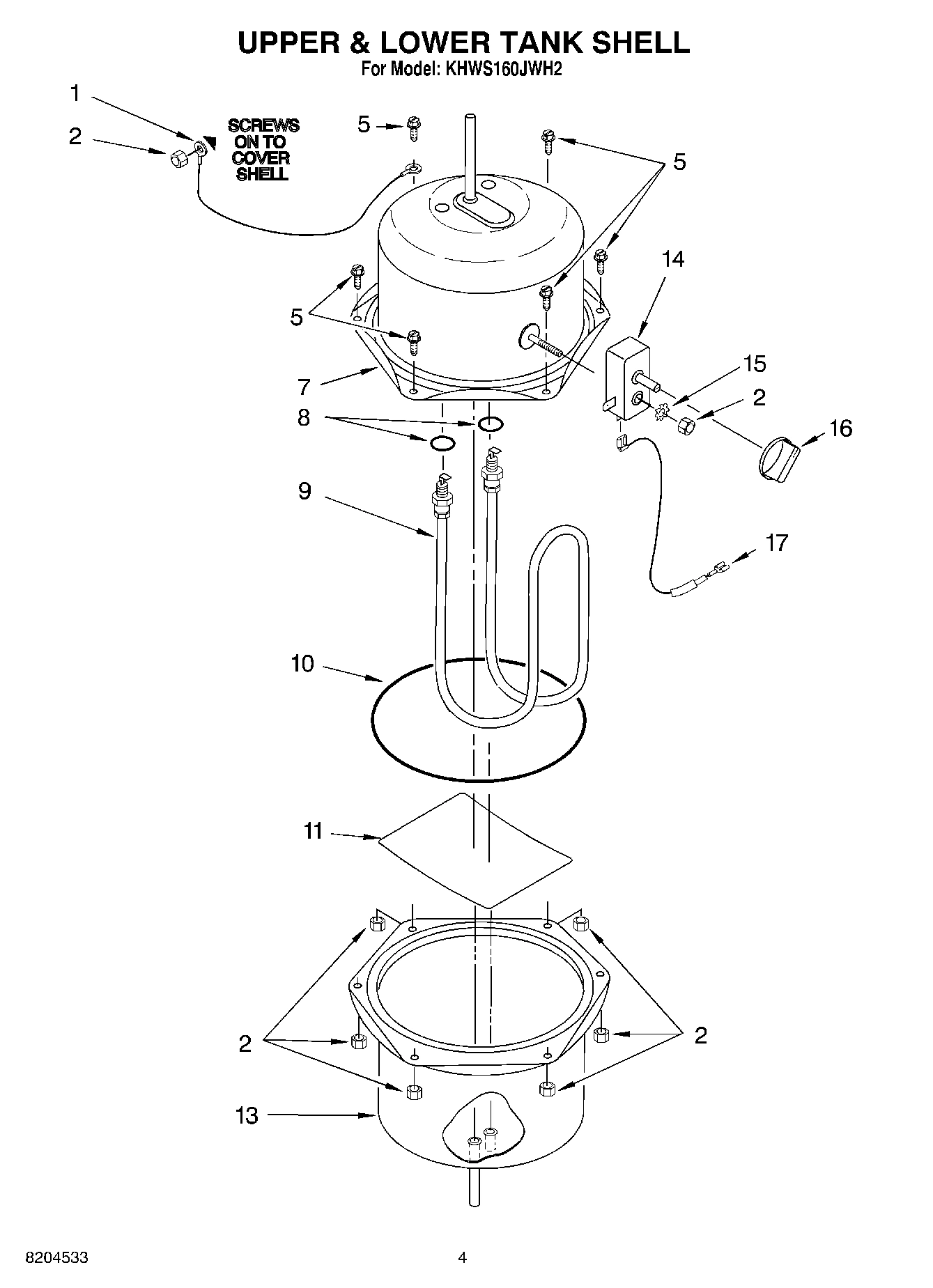

02 - UPPER & LOWER TANK SHELL

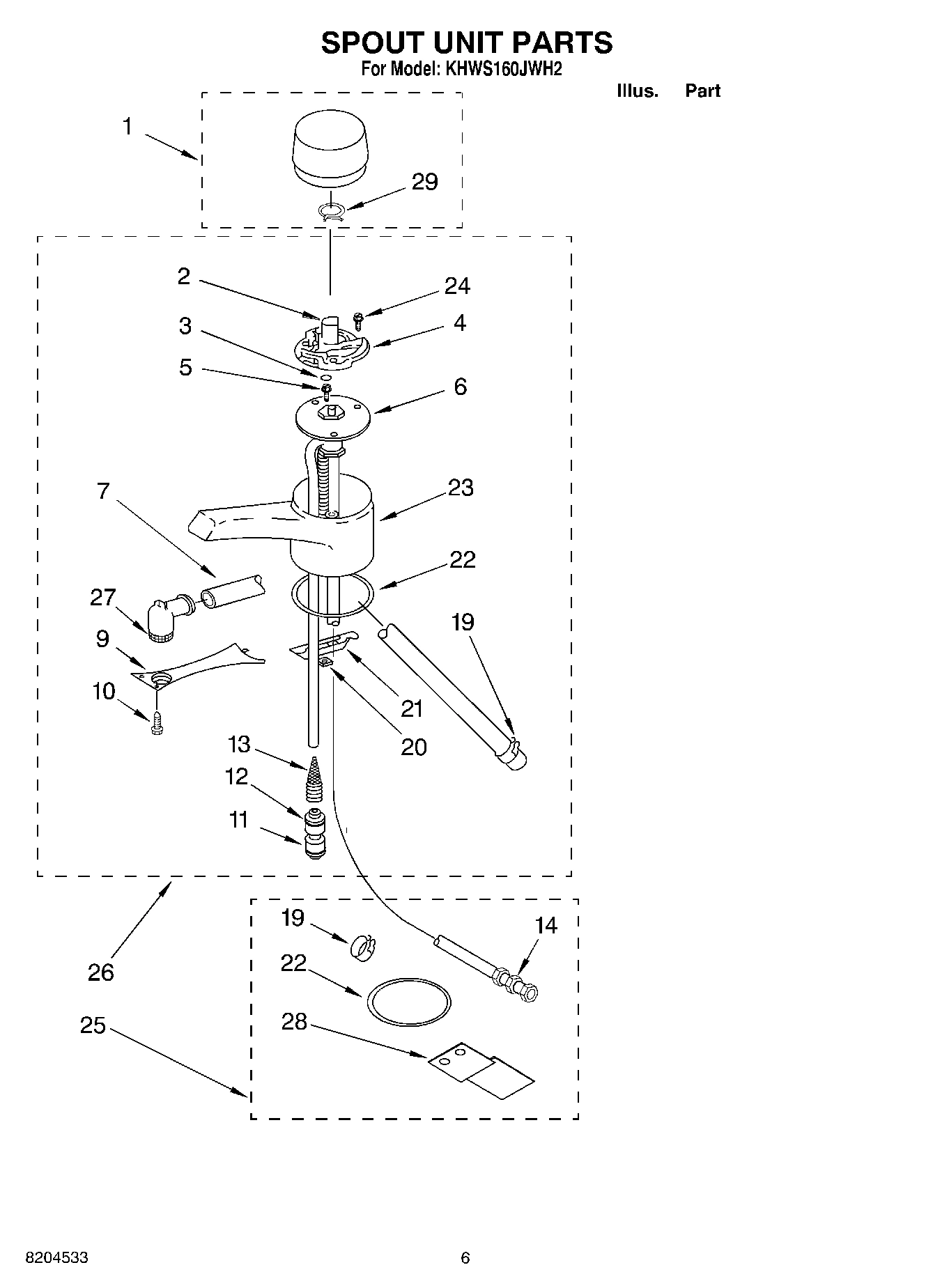

03 - SPOUT UNIT PARTS

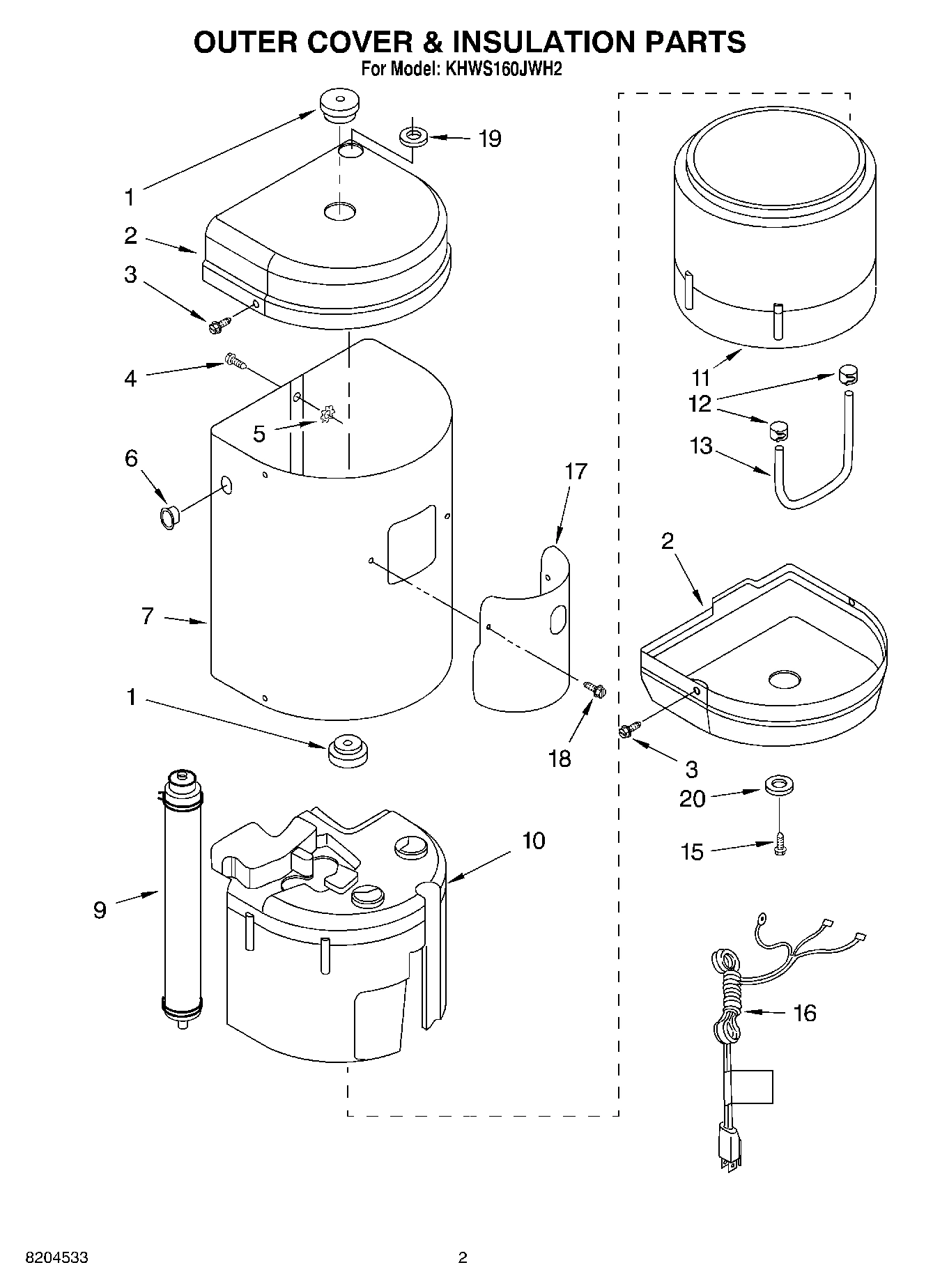

01 - OUTER COVER & INSULATION PARTS
Common parts from model Whirlpool KHWS160JWH2 HOT WATER DISPENSER
1
Knob (Black) WPL 3193047 Contact Us For Availability
1
Knob (White) WPL 3193048 Contact Us For Availability
1
Knob (Almond) WPL 3193049 Contact Us For Availability
1
Knob (Biscuit) WPL 3193050 Contact Us For Availability
1
Knob (Cobalt Blue) WPL 3193304 Contact Us For Availability
1
Knob (Empire Red) WPL 3193305 Contact Us For Availability
1
Knob (Majestic Yellow) WPL 3193306 Contact Us For Availability
1
Knob (Empire Green) WPL 3193307 Contact Us For Availability
1
Bushing, Molded WPL 2036932 Contact Us For Availability
2
Hub, Valve Drive WPL 3192270 Contact Us For Availability
2
End Cap WPL 3192031 Contact Us For Availability
3
Spring, Compression WPL 3192262 Contact Us For Availability
4
Cam WPL 3192137 Contact Us For Availability
6
Mechanical Valve (Includes Illus. 13 & 14) WPL 3192899 Contact Us For Availability
6
Strain Releif, Power Cord WPL 3191431 Contact Us For Availability
7
Tube (3/8`` I.D.) WPL 8541030 Contact Us For Availability
7
Shell WPL 3193265 Contact Us For Availability
8
``O``, Ring WPL 4159825 Contact Us For Availability
9
Element, Heating WPL 3191376 Contact Us For Availability
9
Plate, Spout WPL 4162837 Contact Us For Availability
9
Displacer WPL 3192006 Contact Us For Availability
10
O-Ring WPL 4159824 Contact Us For Availability
10
Screw, Self Tapping (4-20 X 5/16``) Phil. Fla WPL 3400403 Contact Us For Availability
10
Insulation, Top WPL 3192011 Contact Us For Availability
11
Deflector WPL 4176126 Contact Us For Availability
11
Insulation, Bottom WPL 3192012 Contact Us For Availability
12
Cover, Collet WPL 3191385 Contact Us For Availability
12
Clamp, Hose WPL 4161147 Contact Us For Availability
13
Shell, Tank Lower WPL 3193069 Contact Us For Availability
13
Screen, Inlet WPL 3193133 Contact Us For Availability
13
Hose, Clear WPL 8541031 Contact Us For Availability
14
THERMOSTAT WPL 3193512 Contact Us For Availability
15
Screw, 8-32X.5 (stainless) WPL 3192294 Contact Us For Availability
16
Knob, Thermostat WPL 3192538 Contact Us For Availability
16
Cord, Power WPL 3192352 Contact Us For Availability
17
Fuse, Thermo WPL 3193190 Contact Us For Availability
17
Front Cover WPL 3192317 Contact Us For Availability
19
Grommet WPL 3192013 Contact Us For Availability
20
Machine Nut 1/4-20 Sq. WPL 4159067 Contact Us For Availability
20
O-Ring WPL 3192295 Contact Us For Availability
20
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI88696A2 Contact Us For Availability
20
LITERATURE PARTS WPL ARI88697A8 Contact Us For Availability
20
Literature Parts (Instructions, Installation WPL LIT3193348 Contact Us For Availability
20
Literature Parts (Repair Parts List) WPL LIT8204533 Contact Us For Availability
21
Bracket, Spout Mounting WPL 4162384 Contact Us For Availability
22
Seal, Sink WPL 4162831 Contact Us For Availability
23
Spout Body (Chrome) WPL 3193336 Contact Us For Availability
23
Spout Body (White) WPL 3193337 Contact Us For Availability
23
Spout Body (Almond) WPL 3193338 Contact Us For Availability
23
Spout Body (Biscuit) WPL 3193339 Contact Us For Availability
23
Spout Body (Cobalt Blue) WPL 3193340 Contact Us For Availability
23
Spout Body (Empire Red) WPL 3193341 Contact Us For Availability
23
Spout Body (Majestic Yellow) WPL 3193342 Contact Us For Availability
23
Spout Body (Empire Green) WPL 3193343 Contact Us For Availability
25
Installation Kit WPL 3191594 Contact Us For Availability
26
Spout Assembly (Chrome) WPL 3193353 Contact Us For Availability
26
Spout Assembly (White) WPL 3193354 Contact Us For Availability
26
Spout Assembly (Almond) WPL 3193355 Contact Us For Availability
26
Spout Assembly (Biscuit) WPL 3193356 Contact Us For Availability
26
Spout Assembly (Cobalt Blue) WPL 3193357 Contact Us For Availability
26
Spout Assembly (Empire Red) WPL 3193358 Contact Us For Availability
26
Spout Assembly (Majestic Yellow) WPL 3193359 Contact Us For Availability
26
Spout Assembly (Empire Green) WPL 3193360 Contact Us For Availability
27
Flow Screen WPL 4161255 Contact Us For Availability
28
Bracket, Mounting WPL 4162589 Contact Us For Availability
29
Clamp, Hose WPL 3177799 Contact Us For Availability
× ![]()
