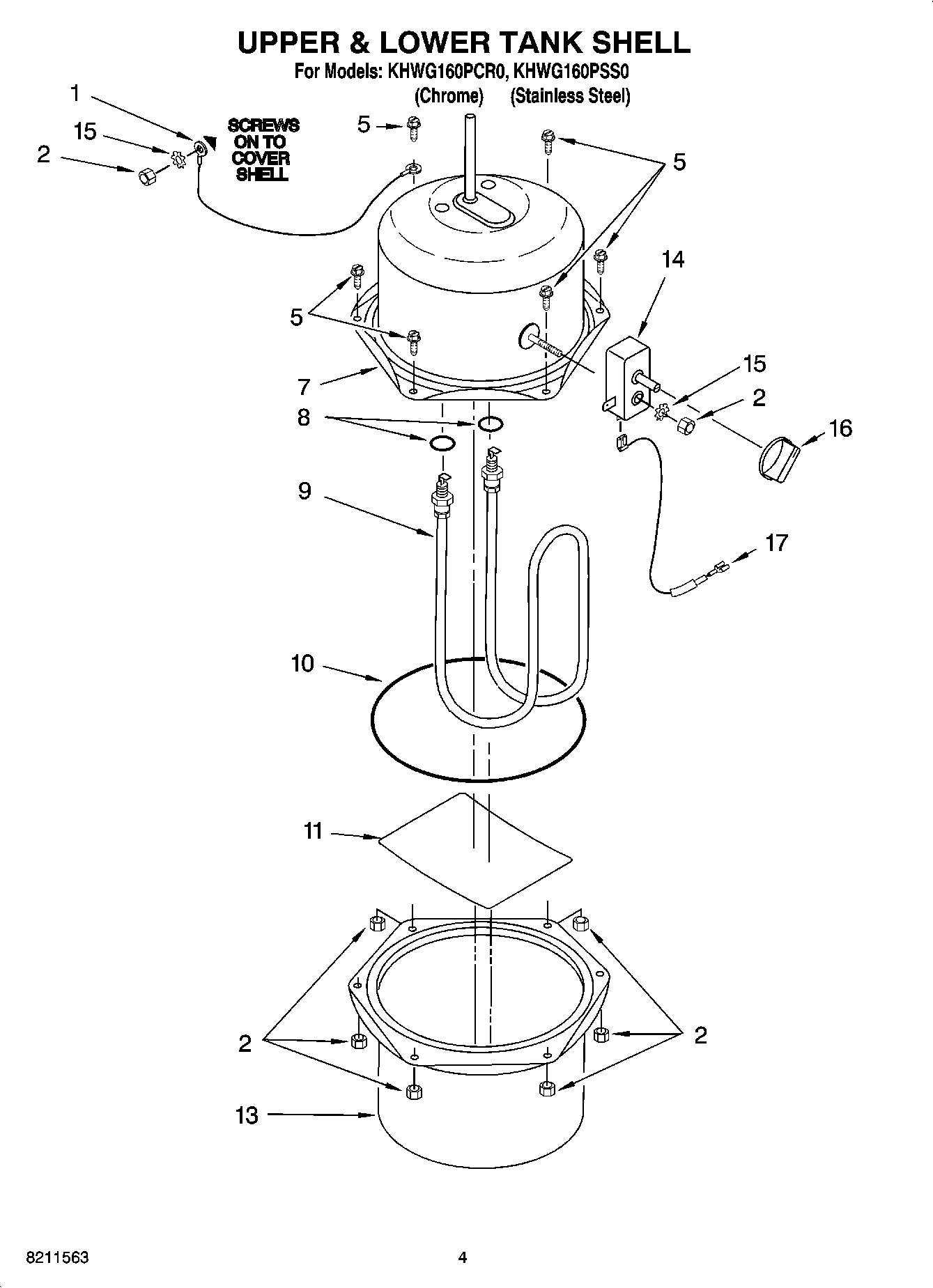

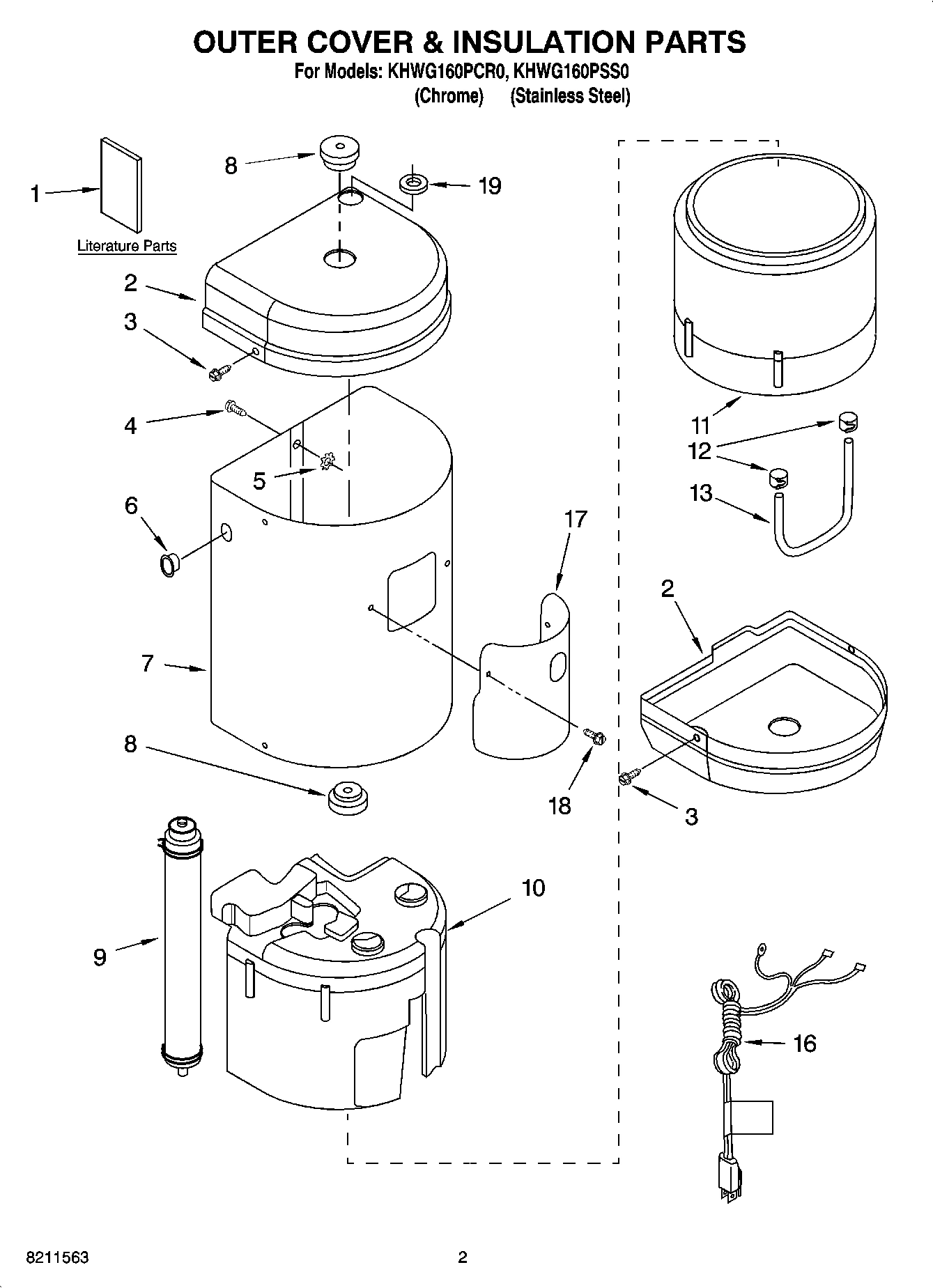

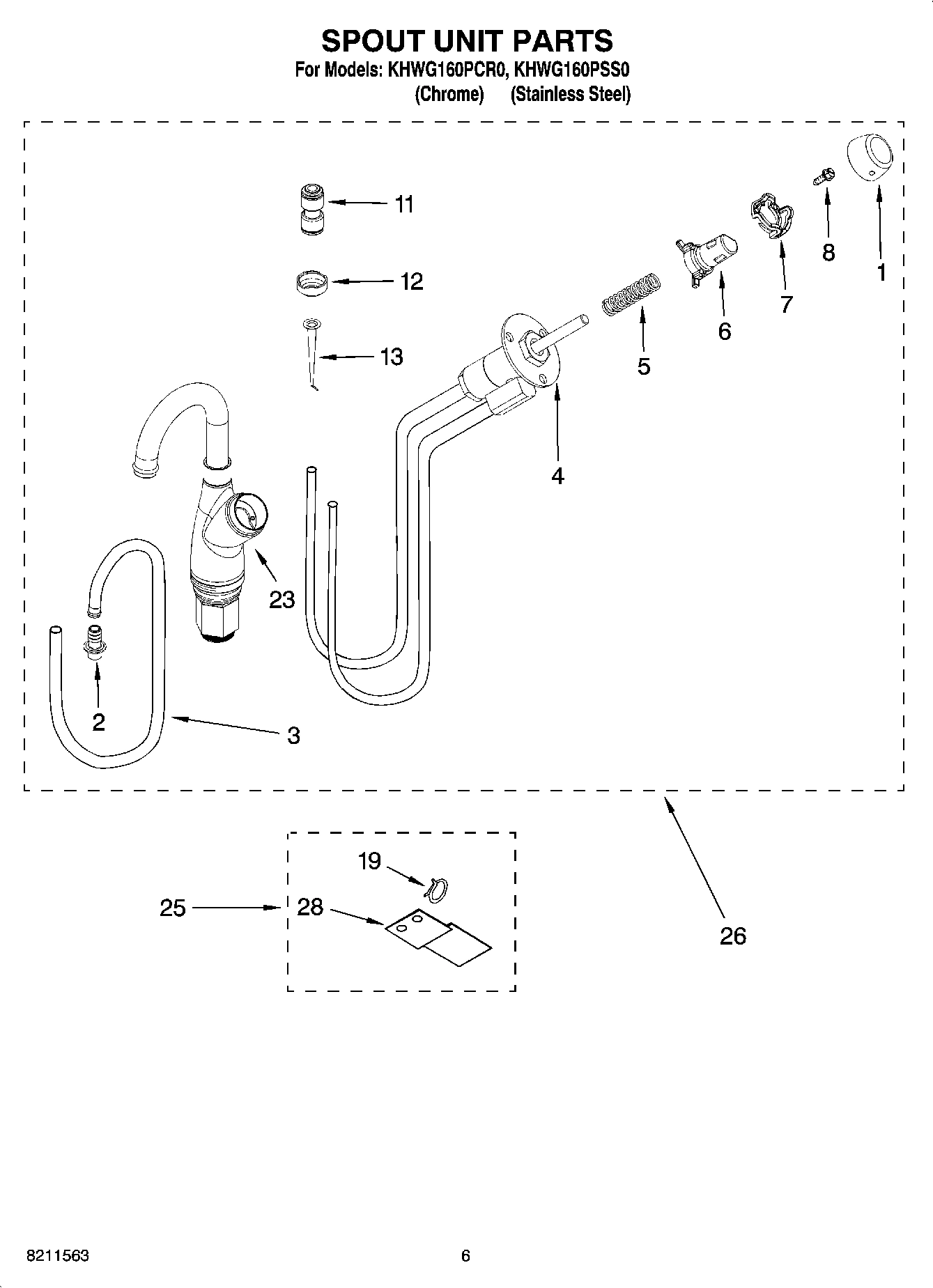

Model Whirlpool KHWG160PCR0 HOT WATER DISPENSER – Common Parts & Diagrams

1
Instructions, Installation & Use & Care Guide
Instructions, Installation & Use & Care Guide WPL 8538287 Contact Us For Availability
View on Model
1
Knob (Chrome)
Knob (Chrome) WPL 8557913 Contact Us For Availability
View on Model
1
Knob (Stainless)
Knob (Stainless) WPL 8557914 Contact Us For Availability
View on Model
2
End Cap
End Cap WPL 3192031 Contact Us For Availability
View on Model
2
Adapter, Hose
Adapter, Hose WPL 8558165 Contact Us For Availability
View on Model
3
Tube
Tube WPL 8558433 Contact Us For Availability
View on Model
4
Screw, Machine
Screw, Machine WPL 3192294 Contact Us For Availability
View on Model
4
Valve Assembly (Small)
Valve Assembly (Small) WPL 8557791 Contact Us For Availability
View on Model
5
Spring
Spring WPL 8557546 Contact Us For Availability
View on Model
6
Strain Releif, Power Cord
Strain Releif, Power Cord WPL 3191431 Contact Us For Availability
View on Model
6
Cam, Follower
Cam, Follower WPL 8557545 Contact Us For Availability
View on Model
7
Shell
Shell WPL 3193265 Contact Us For Availability
View on Model
7
Cam
Cam WPL 8557544 Contact Us For Availability
View on Model
8
``O``, Ring
``O``, Ring WPL 4159825 Contact Us For Availability
View on Model
8
Bushing, Molded
Bushing, Molded WPL 8534011 Contact Us For Availability
View on Model
9
Element, Heating
Element, Heating WPL 3191376 Contact Us For Availability
View on Model
9
Displacer
Displacer WPL 3192006 Contact Us For Availability
View on Model
10
O-Ring
O-Ring WPL 4159824 Contact Us For Availability
View on Model
10
Insulation, Top
Insulation, Top WPL 3192011 Contact Us For Availability
View on Model
11
Deflector
Deflector WPL 4176126 Contact Us For Availability
View on Model
11
Insulation, Bottom
Insulation, Bottom WPL 3192012 Contact Us For Availability
View on Model
12
Cover, Collet
Cover, Collet WPL 3191385 Contact Us For Availability
View on Model
13
Shell, Tank Lower
Shell, Tank Lower WPL 8565547 Contact Us For Availability
View on Model
13
Hose, Clear
Hose, Clear WPL 8541031 Contact Us For Availability
View on Model
13
Screen, Inlet
Screen, Inlet WPL 3193133 Contact Us For Availability
View on Model
14
THERMOSTAT
THERMOSTAT WPL 3193512 Contact Us For Availability
View on Model
16
Knob, Thermostat
Knob, Thermostat WPL 3192538 Contact Us For Availability
View on Model
16
Cord, Power
Cord, Power WPL 3192352 Contact Us For Availability
View on Model
17
Fuse, Thermo
Fuse, Thermo WPL 3193190 Contact Us For Availability
View on Model
17
Front Cover
Front Cover WPL 3192317 Contact Us For Availability
View on Model
19
Grommet
Grommet WPL 3192013 Contact Us For Availability
View on Model
19
Clamp, Tube
Clamp, Tube WPL 3400975 Contact Us For Availability
View on Model
23
Spout Body (Chrome)
Spout Body (Chrome) WPL 8557894 Contact Us For Availability
View on Model
23
Spout Body (Stainless)
Spout Body (Stainless) WPL 8557895 Contact Us For Availability
View on Model
25
Installation Kit
Installation Kit WPL 8538300 Contact Us For Availability
View on Model
26
Spout Assembly (Stainless)
Spout Assembly (Stainless) WPL 8557912 Contact Us For Availability
View on Model
28
Bracket, Mounting
Bracket, Mounting WPL 4162589 Contact Us For Availability
