Model Whirlpool KHTU765SSS0 30`` or 36`` RANGE HOOD – Common Parts & Diagrams

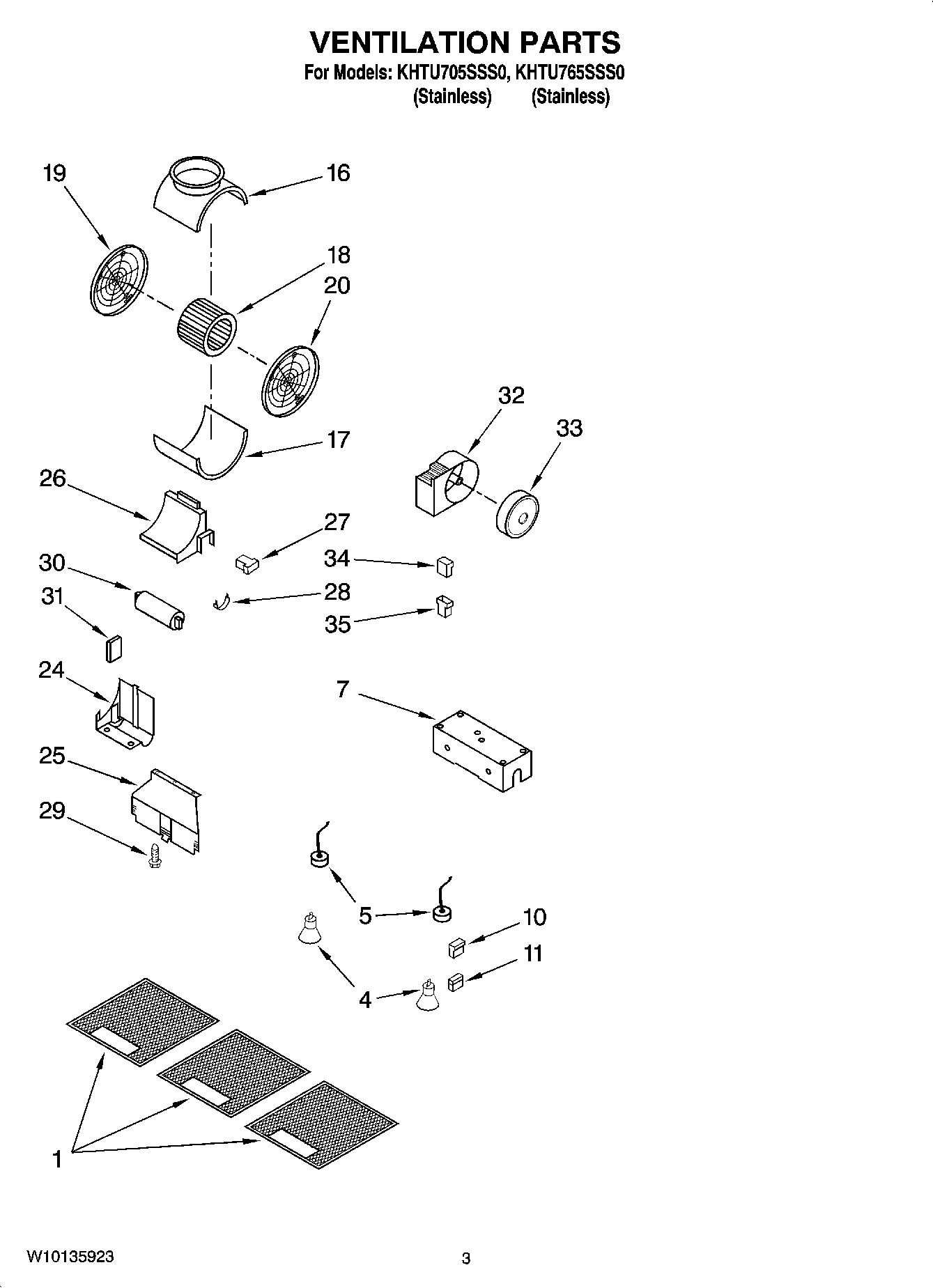

02 - VENTILATION PARTS, OPTIONAL PARTS (NOT INCLUDED)

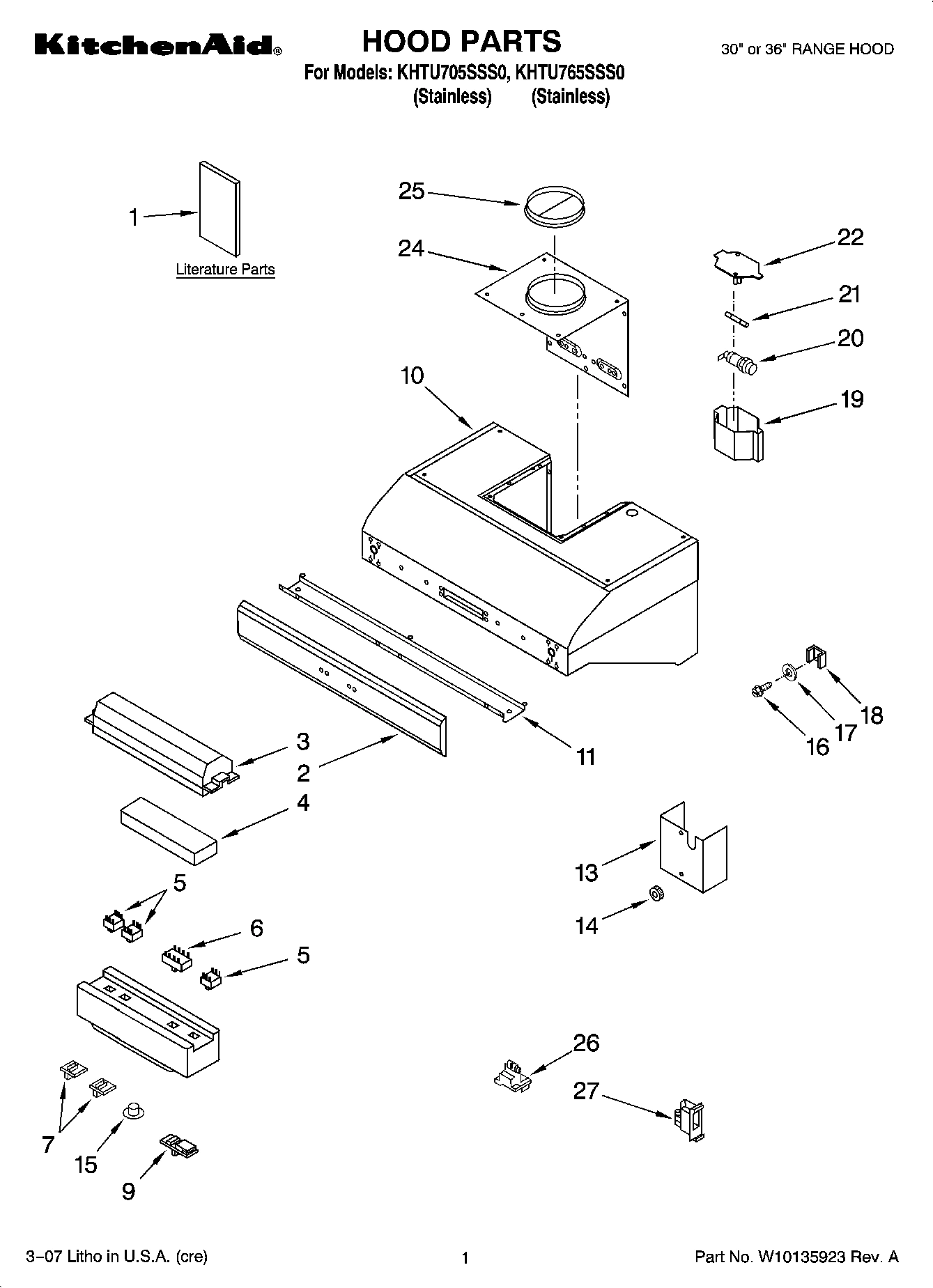

01 - HOOD PARTS
Common parts from model Whirlpool KHTU765SSS0 30`` or 36`` RANGE HOOD
Trim, Front (30`` Meteorite Pro) WPL 8212465 Contact Us For Availability
Trim, Front (36`` Biscuit) WPL 8212466 Contact Us For Availability
Trim, Front (36`` White) WPL 8212467 Contact Us For Availability
Trim, Front (36`` Black) WPL 8212468 Contact Us For Availability
Trim, Front (36`` Stainless Pro) WPL 8212469 Contact Us For Availability
Trim, Front (36`` Meteorite Pro) WPL 8212470 Contact Us For Availability
1
Filter, Grease (30`` (2)) WPL 8191039 Contact Us For Availability
1
Filter, Grease (36`` (3)) WPL 8191043 Contact Us For Availability
1
Wiring Diagram WPL 8191028 Contact Us For Availability
1
Owners Manual WPL 8191029 Contact Us For Availability
2
Trim, Decorative (30``) WPL 8191030 Contact Us For Availability
2
Trim, Decorative (36``) WPL 8191041 Contact Us For Availability
3
Cover, Switch WPL 8189624 Contact Us For Availability
4
Bulb, 20W WPL 8191031 Contact Us For Availability
4
Support, Switch WPL 8190566 Contact Us For Availability
5
Holder, Bulb WPL 8190542 Contact Us For Availability
7
Button, On/Off WPL 8189618 Contact Us For Availability
7
Cover, Light (2) WPL 8191032 Contact Us For Availability
8
Box, Control WPL 8191040 Contact Us For Availability
9
Button, Mtr Speed WPL 8189620 Contact Us For Availability
10
Connector, Male WPL 4360161 Contact Us For Availability
10
Casing Assembly (Not Serviced) WPL ARI88631A1 Contact Us For Availability
11
Connector, Female WPL 4360162 Contact Us For Availability
11
Support, Filter (30``) WPL 8191038 Contact Us For Availability
11
Support, Filter (36``) WPL 8191042 Contact Us For Availability
12
Cover WPL 8190359 Contact Us For Availability
13
Box, Wiring WPL 8189614 Contact Us For Availability
14
Clamp-Stran Relief WPL 4360062 Contact Us For Availability
15
Lens, Indicator WPL 4360028 Contact Us For Availability
16
Housing, Upper WPL 8190389 Contact Us For Availability
16
Screw (2) WPL 4360006 Contact Us For Availability
17
Housing, Lower WPL 8190387 Contact Us For Availability
17
Washer (2) WPL 4360005 Contact Us For Availability
18
Motor, Blower WPL 8190390 Contact Us For Availability
18
Nut, Grnd Guide (2) WPL 4360146 Contact Us For Availability
19
Support, Motor-SX WPL 8190388 Contact Us For Availability
19
Cover, Term Board WPL 8191033 Contact Us For Availability
20
Block, Fuse WPL 8191034 Contact Us For Availability
20
Support, Motor-DX WPL 8190391 Contact Us For Availability
21
Fuse WPL 8191035 Contact Us For Availability
22
Base, Terminal Cov WPL 8191036 Contact Us For Availability
24
Cover, Wire WPL 8190383 Contact Us For Availability
24
Cover, Blower WPL 8191037 Contact Us For Availability
25
Bracket, Mounting WPL 8191023 Contact Us For Availability
25
Damper WPL 8190358 Contact Us For Availability
26
Cover, Wire WPL 8190392 Contact Us For Availability
26
Connector WPL 8190381 Contact Us For Availability
27
Connector WPL 8190393 Contact Us For Availability
27
Connector, Wire WPL 8191006 Contact Us For Availability
28
Cover, Wire WPL 8190386 Contact Us For Availability
29
Screw (2) WPL 8190582 Contact Us For Availability
30
CAPACITOR WPL W10136368 Contact Us For Availability
31
Cover, Box WPL 8190384 Contact Us For Availability
32
Support WPL 8191022 Contact Us For Availability
34
Connector, Female WPL 8190409 Contact Us For Availability
35
Connector, Male WPL 8190408 Contact Us For Availability
× ![]()
