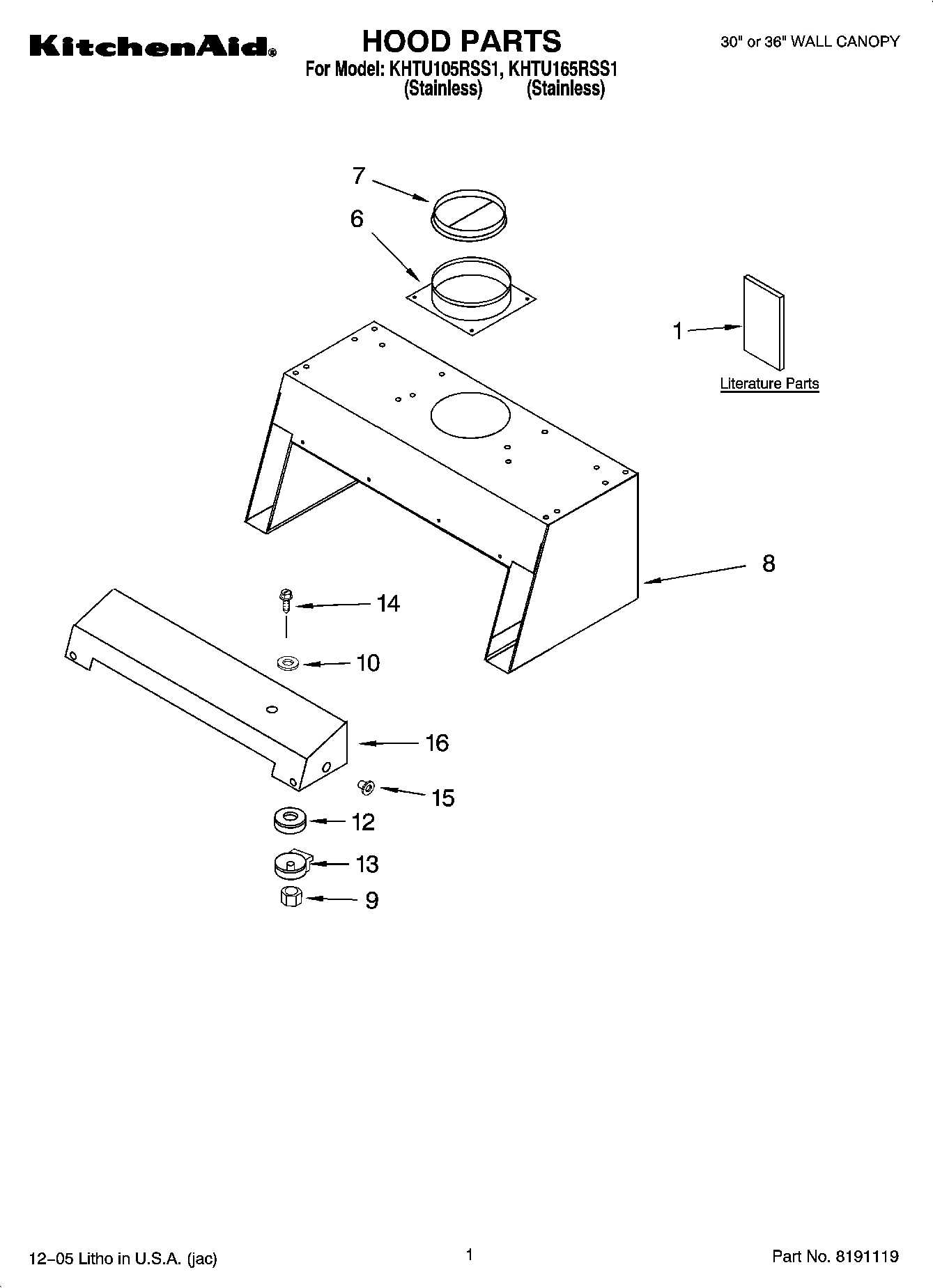

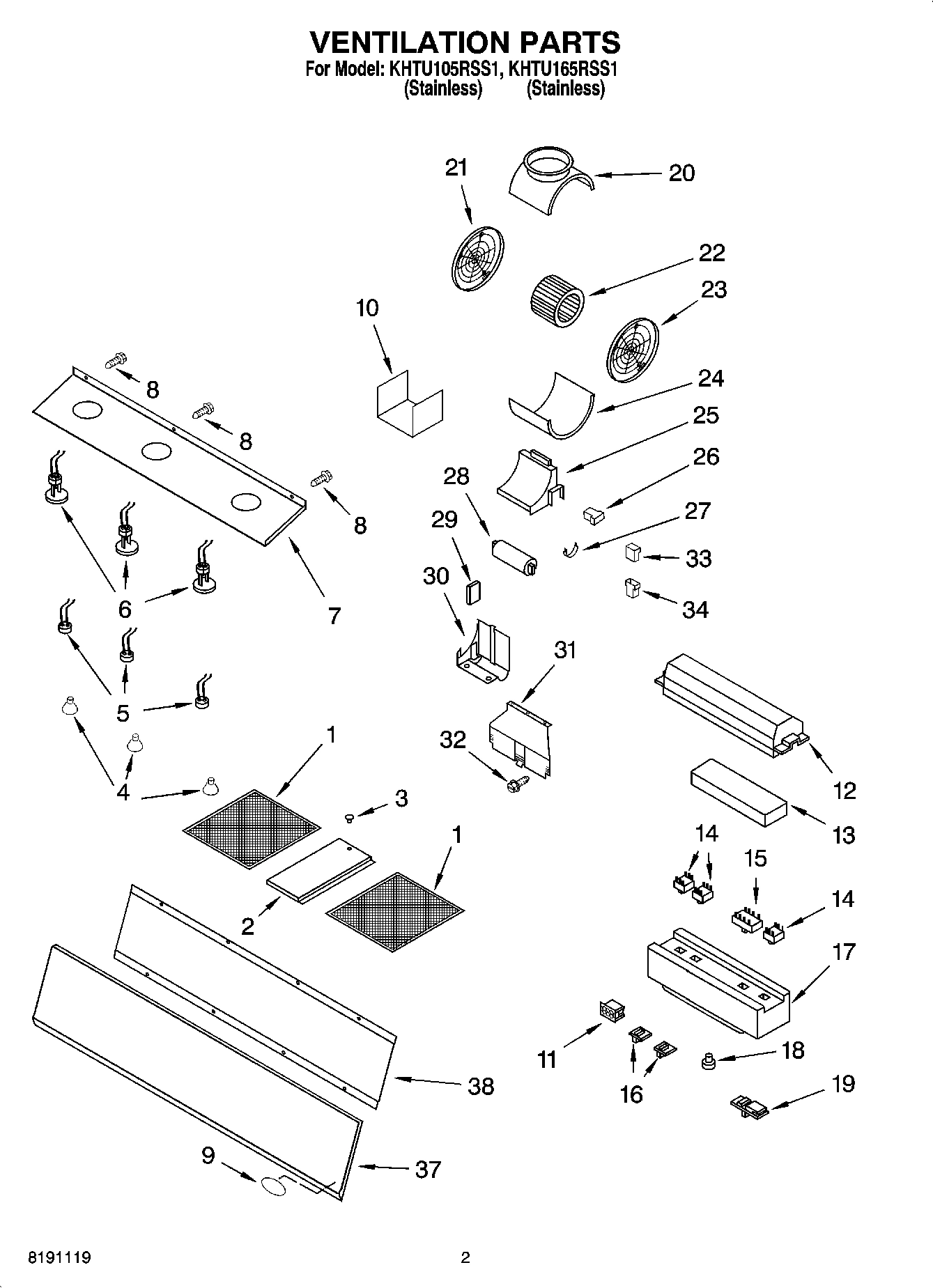

Model Whirlpool KHTU165RSS1 30`` or 36`` WALL CANOPY – Common Parts & Diagrams

2
Panel, Spacer (30`` Model Only)
Panel, Spacer (30`` Model Only) WPL 8190557 Contact Us For Availability
View on Model
3
Button, Plug
Button, Plug WPL 8190555 Contact Us For Availability
View on Model
5
Holder, Bulb
Holder, Bulb WPL 8190542 Contact Us For Availability
View on Model
6
Damper
Damper WPL 8190560 Contact Us For Availability
View on Model
6
Support, Bulb
Support, Bulb WPL 8189854 Contact Us For Availability
View on Model
7
Damper, Hood
Damper, Hood WPL 8190358 Contact Us For Availability
View on Model
7
Support, Light (30`` Model)
Support, Light (30`` Model) WPL 8190558 Contact Us For Availability
View on Model
7
Support, Light (36`` Model)
Support, Light (36`` Model) WPL 8191026 Contact Us For Availability
View on Model
8
Hood (30`` Model)
Hood (30`` Model) WPL 8190559 Contact Us For Availability
View on Model
8
Hood (36`` Model)
Hood (36`` Model) WPL 8191027 Contact Us For Availability
View on Model
8
Screw (3) (Hinge Pin)
Screw (3) (Hinge Pin) WPL 4360048 Contact Us For Availability
View on Model
9
Nameplate
Nameplate WPL 8189616 Contact Us For Availability
View on Model
10
Washer
Washer WPL 4360005 Contact Us For Availability
View on Model
10
Cover, Inlet
Cover, Inlet WPL 8189614 Contact Us For Availability
View on Model
11
Connector
Connector WPL 8190381 Contact Us For Availability
View on Model
12
Cover, Switch
Cover, Switch WPL 8190567 Contact Us For Availability
View on Model
13
Support
Support WPL 8191022 Contact Us For Availability
View on Model
13
Support, Switch
Support, Switch WPL 8190566 Contact Us For Availability
View on Model
14
SCREW
SCREW WPL 8190403 Contact Us For Availability
View on Model
15
Relief, Strain (2)
Relief, Strain (2) WPL 4360062 Contact Us For Availability
View on Model
16
Cover, Wire
Cover, Wire WPL 8190562 Contact Us For Availability
View on Model
16
Button, On/Off
Button, On/Off WPL 8190563 Contact Us For Availability
View on Model
17
Box, Control
Box, Control WPL 8190564 Contact Us For Availability
View on Model
18
Lens, Indicator
Lens, Indicator WPL 4360028 Contact Us For Availability
View on Model
19
Button, Mtr Speed
Button, Mtr Speed WPL 8190565 Contact Us For Availability
View on Model
20
Housing, Upper
Housing, Upper WPL 8190389 Contact Us For Availability
View on Model
21
Support, Motor-SX
Support, Motor-SX WPL 8190388 Contact Us For Availability
View on Model
22
Motor, Blower
Motor, Blower WPL 8190390 Contact Us For Availability
View on Model
23
Support, Motor-DX
Support, Motor-DX WPL 8190391 Contact Us For Availability
View on Model
24
Housing, Lower
Housing, Lower WPL 8190387 Contact Us For Availability
View on Model
25
Cover, Wire
Cover, Wire WPL 8190392 Contact Us For Availability
View on Model
26
Connector
Connector WPL 8190393 Contact Us For Availability
View on Model
27
Cover, Wire
Cover, Wire WPL 8190386 Contact Us For Availability
View on Model
28
Capacitor
Capacitor WPL 8190385 Contact Us For Availability
View on Model
29
Cover, Box
Cover, Box WPL 8190384 Contact Us For Availability
View on Model
30
Cover, Wire
Cover, Wire WPL 8190383 Contact Us For Availability
View on Model
31
Bracket, Mounting
Bracket, Mounting WPL 8191023 Contact Us For Availability
View on Model
32
Screw (2)
Screw (2) WPL 8190582 Contact Us For Availability
View on Model
33
Connector, Female
Connector, Female WPL 8190409 Contact Us For Availability
View on Model
34
Connector, Male
Connector, Male WPL 8190408 Contact Us For Availability
View on Model
37
Panel, Bottom (30`` Model)
Panel, Bottom (30`` Model) WPL 8190553 Contact Us For Availability
View on Model
37
Panel, Bottom (36`` Model)
Panel, Bottom (36`` Model) WPL 8191024 Contact Us For Availability
View on Model
38
Filters w/Grate Ductless Operation
Filters w/Grate Ductless Operation WPL 4396565 Contact Us For Availability
View on Model
38
Cover, Front (30`` Model)
Cover, Front (30`` Model) WPL 8190554 Contact Us For Availability
View on Model
38
Cover, Front (36`` Model)
Cover, Front (36`` Model) WPL 8191025 Contact Us For Availability
View on Model
38
ACCESSORY PARTS
ACCESSORY PARTS WPL ARI88617A6 Contact Us For Availability
View on Model
