Model Whirlpool KHTU100KBL0 30`` RANGE HOOD TRADITIONAL SERIES VENTED AND NON- – Common Parts & Diagrams

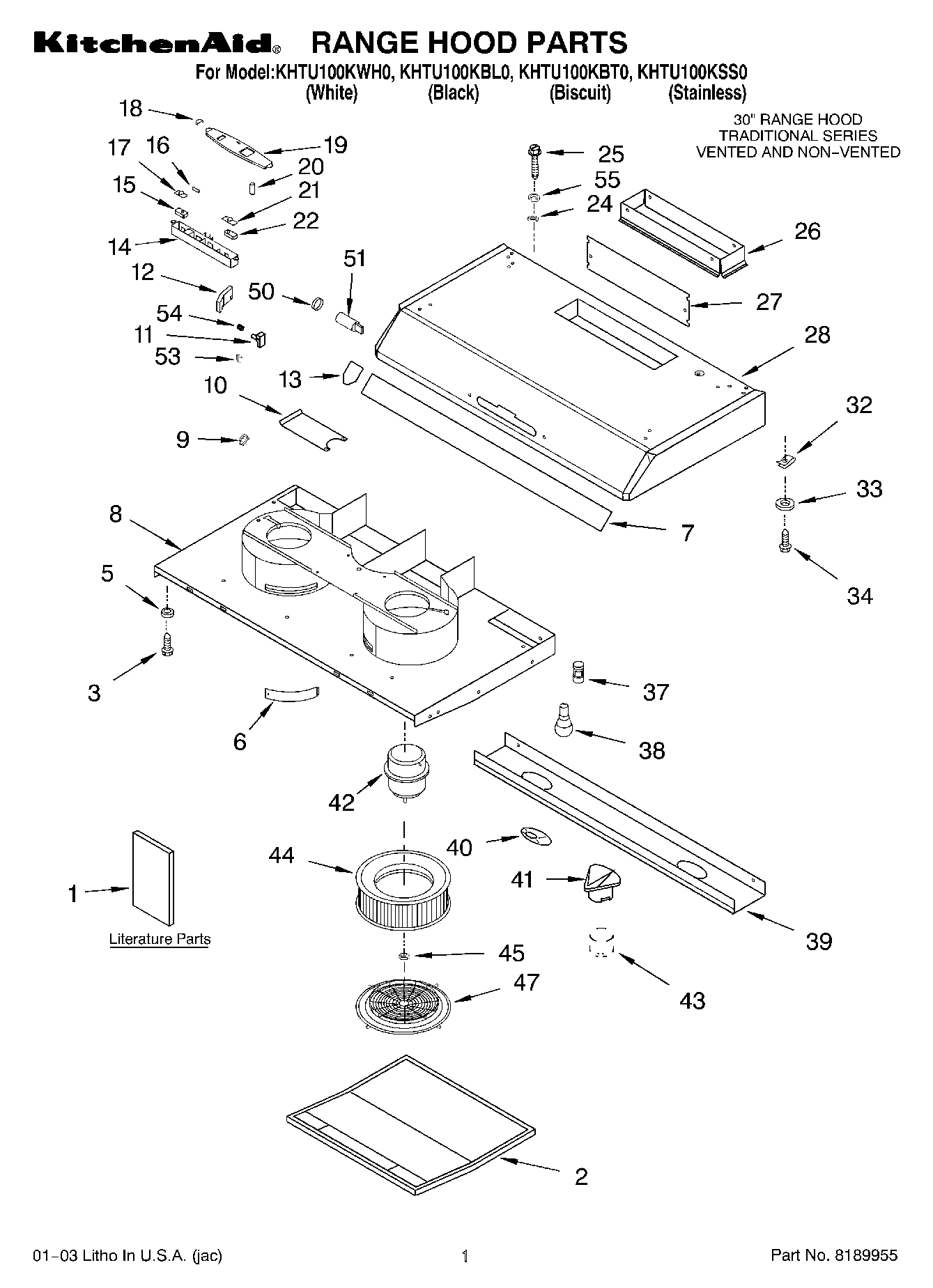

01 - RANGE HOOD PARTS
Common parts from model Whirlpool KHTU100KBL0 30`` RANGE HOOD TRADITIONAL SERIES VENTED AND NON-
1
HOOD PARTS WPL ARI88589A8 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT8190057 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT8190058 Contact Us For Availability
2
Filter, Metal WPL 8189911 Contact Us For Availability
3
SCREW WPL 8189914 Contact Us For Availability
5
Grommet WPL 8189916 Contact Us For Availability
6
Cover / Bracket WPL 8189917 Contact Us For Availability
7
Glass, Visor WPL 8189918 Contact Us For Availability
8
Housing, Fan Motor (Black) WPL 8189919 Contact Us For Availability
8
Housing, Fan Motor (Biscuit) WPL 8189920 Contact Us For Availability
8
Housing, Fan Motor (Stainless) WPL 8189921 Contact Us For Availability
8
Housing, Fan Motor (White) WPL 8189922 Contact Us For Availability
9
Grommet WPL 4360094 Contact Us For Availability
10
Cover, Wire Left (Black) WPL 8189923 Contact Us For Availability
10
Cover, Wire Left (Biscuit) WPL 8189924 Contact Us For Availability
10
Cover, Wire Left (Stainless) WPL 8189925 Contact Us For Availability
10
Cover, Wire Left (White) WPL 8189926 Contact Us For Availability
10
Cover, Wire Right (Black) WPL 8189965 Contact Us For Availability
10
Cover, Wire Right (Biscuit) WPL 8189966 Contact Us For Availability
10
Cover, Wire Right (Stainless) WPL 8189967 Contact Us For Availability
10
Cover, Wire Right (White) WPL 8189968 Contact Us For Availability
11
Pin, Pivot Left (Black) WPL 8189927 Contact Us For Availability
11
Pin, Pivot Left (Biscuit) WPL 8189928 Contact Us For Availability
11
Pin, Pivot Left (White) WPL 8189929 Contact Us For Availability
11
Pin, Pivot Right (Black) WPL 8189982 Contact Us For Availability
11
Pin, Pivot Right (Biscuit) WPL 8189983 Contact Us For Availability
11
Pin, Pivot Right (White) WPL 8189984 Contact Us For Availability
12
Support, Visor Left (Black) WPL 8189930 Contact Us For Availability
12
Support, Visor Left (Biscuit) WPL 8189931 Contact Us For Availability
12
Support, Visor Left (White) WPL 8189932 Contact Us For Availability
12
Support, Visor Right (Black) WPL 8189962 Contact Us For Availability
12
Support, Visor Right (Biscuit) WPL 8189963 Contact Us For Availability
12
Support, Visor Right (White) WPL 8189964 Contact Us For Availability
13
Endcap Left (Black) WPL 8189933 Contact Us For Availability
13
Endcap Left (Biscuit) WPL 8189934 Contact Us For Availability
13
Endcap Left (White) WPL 8189935 Contact Us For Availability
13
Endcap Right (Black) WPL 8189952 Contact Us For Availability
13
Endcap Right (Biscuit) WPL 8189953 Contact Us For Availability
13
Endcap Right (White) WPL 8189954 Contact Us For Availability
14
Support, Switch WPL 8189936 Contact Us For Availability
16
Lens, Light WPL 8189937 Contact Us For Availability
17
Button, Control (Black) WPL 8189940 Contact Us For Availability
17
Button, Contro WPL 8189941 Contact Us For Availability
17
WPL 8189942 WPL 8189942 Contact Us For Availability
18
WPL 8189943 WPL 8189943 Contact Us For Availability
18
WPL 8189944 WPL 8189944 Contact Us For Availability
18
WPL 8189945 WPL 8189945 Contact Us For Availability
19
WPL 8189946 WPL 8189946 Contact Us For Availability
19
WPL 8189947 WPL 8189947 Contact Us For Availability
19
WPL 8189948 WPL 8189948 Contact Us For Availability
20
WPL 4360359 WPL 4360359 Contact Us For Availability
21
WPL 8189949 WPL 8189949 Contact Us For Availability
21
WPL 8189950 WPL 8189950 Contact Us For Availability
21
WPL 8189951 WPL 8189951 Contact Us For Availability
24
WPL 4360150 WPL 4360150 Contact Us For Availability
25
WPL 8190044 WPL 8190044 Contact Us For Availability
26
WPL 4360001 WPL 4360001 Contact Us For Availability
27
WPL 4360190 WPL 4360190 Contact Us For Availability
28
WPL 8189956 WPL 8189956 Contact Us For Availability
28
WPL 8189957 WPL 8189957 Contact Us For Availability
28
WPL 8189958 WPL 8189958 Contact Us For Availability
28
WPL 8189959 WPL 8189959 Contact Us For Availability
32
WPL 4360146 WPL 4360146 Contact Us For Availability
33
WPL 4360005 WPL 4360005 Contact Us For Availability
34
WPL 4360006 WPL 4360006 Contact Us For Availability
37
WPL 8189960 WPL 8189960 Contact Us For Availability
39
WPL 8189969 WPL 8189969 Contact Us For Availability
39
WPL 8189970 WPL 8189970 Contact Us For Availability
39
WPL 8189971 WPL 8189971 Contact Us For Availability
39
WPL 8189972 WPL 8189972 Contact Us For Availability
40
WPL 8189973 WPL 8189973 Contact Us For Availability
41
WPL 8189974 WPL 8189974 Contact Us For Availability
42
WPL 8189915 WPL 8189915 Contact Us For Availability
42
WPL 8189975 WPL 8189975 Contact Us For Availability
43
WPL 8189976 WPL 8189976 Contact Us For Availability
44
WPL 8189913 WPL 8189913 Contact Us For Availability
44
WPL 8189977 WPL 8189977 Contact Us For Availability
45
WPL 8189978 WPL 8189978 Contact Us For Availability
47
WPL 8189979 WPL 8189979 Contact Us For Availability
50
WPL 8189980 WPL 8189980 Contact Us For Availability
51
WPL 8189981 WPL 8189981 Contact Us For Availability
53
WPL 8189985 WPL 8189985 Contact Us For Availability
54
WPL 4396273 WPL 4396273 Contact Us For Availability
54
WPL 8189986 WPL 8189986 Contact Us For Availability
54
WPL ARI88590A3 WPL ARI88590A3 Contact Us For Availability
× ![]()
