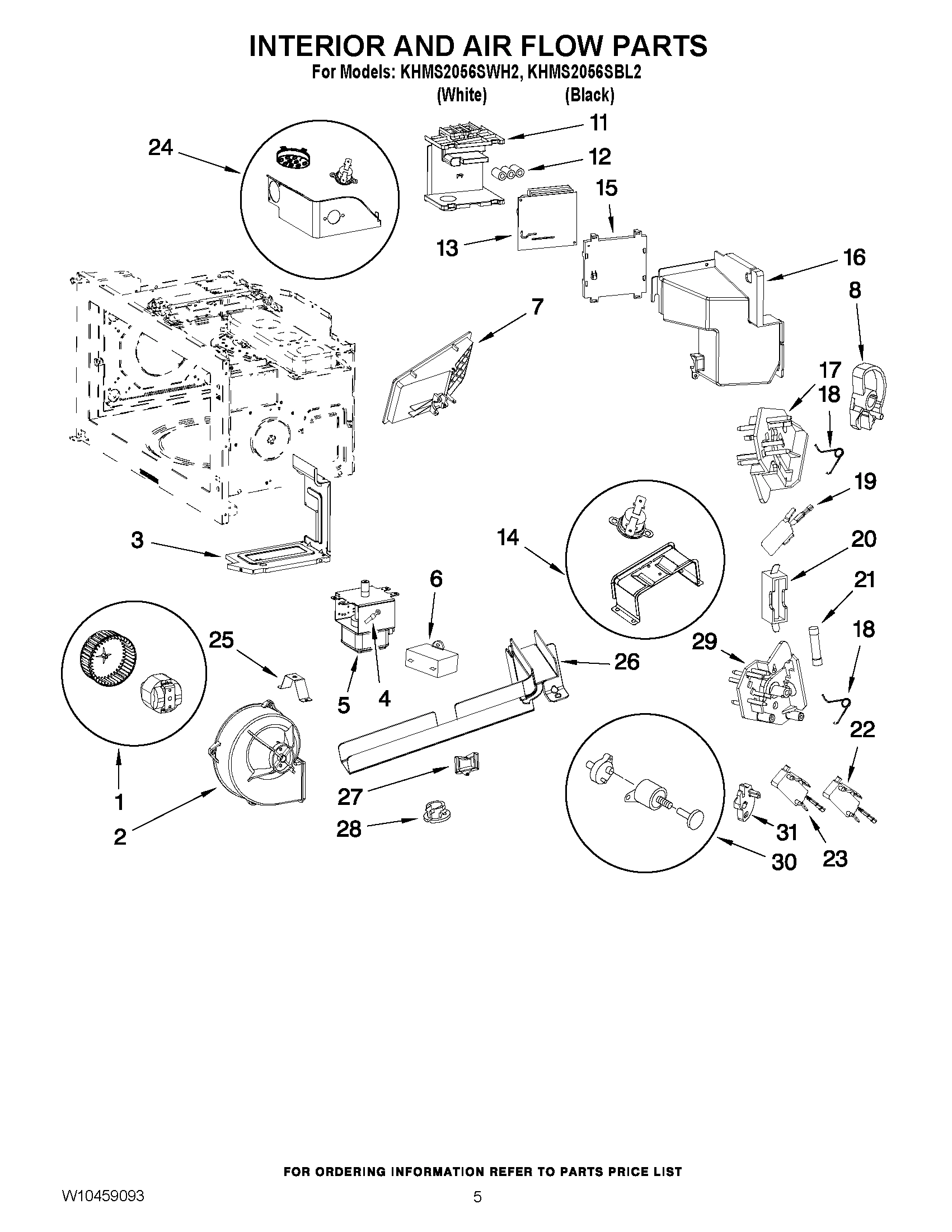

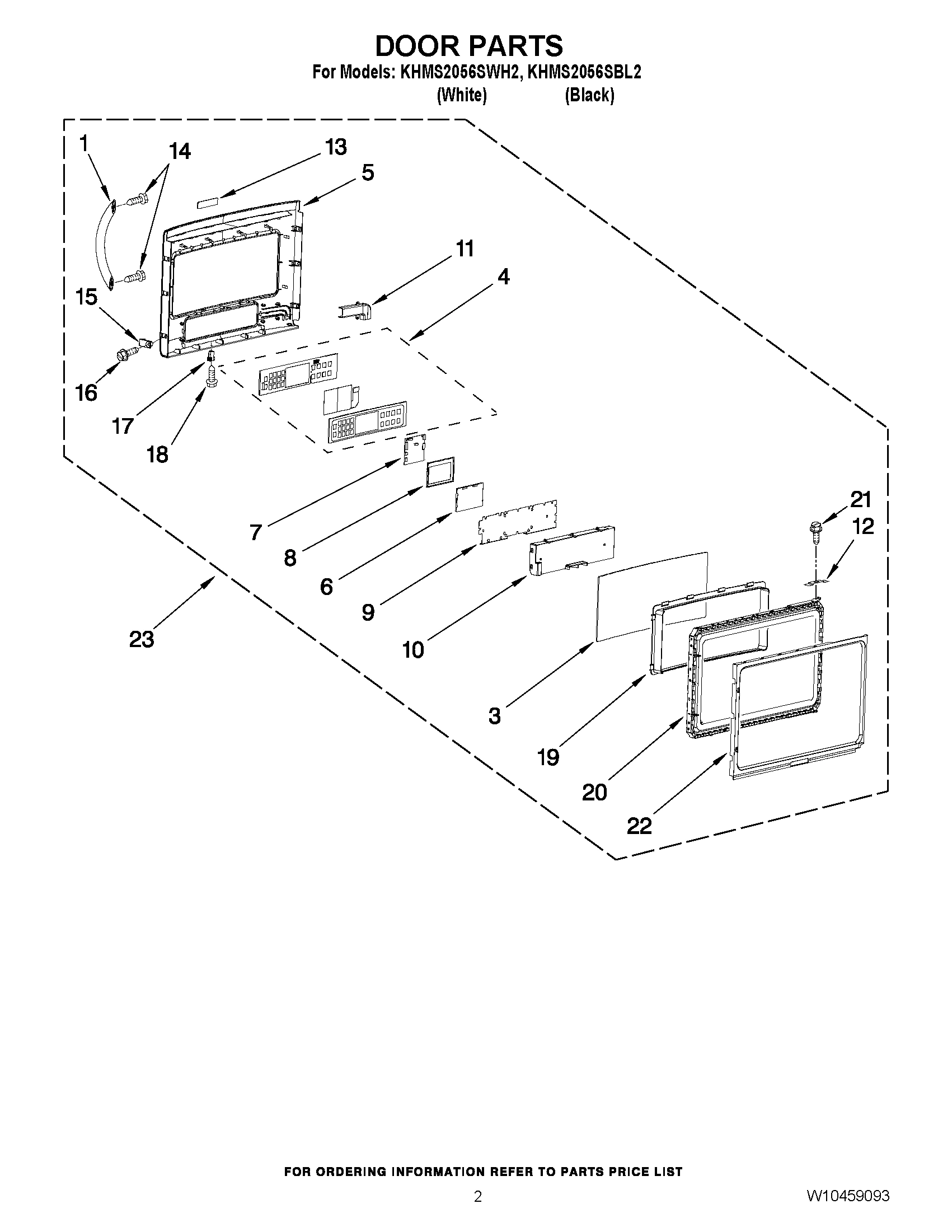

Model Whirlpool KHMS2056SWH2 MICROWAVE HOOD COMBINATION – Common Parts &amp; Diagrams

1

W10110267 Whirlpool Microwave Door Handle Backorder WPL W10110267 $102.90

1

Housing, Blower (Left) WPL 8206092 Contact Us For Availability

1

Handle (White) WPL 8206501 Contact Us For Availability

1

QUICK REFERENCE WPL W10121320 Contact Us For Availability

1

TECH SHEET WPL W10132017 Contact Us For Availability

1

USE & CARE GUIDE WPL W10170438 Contact Us For Availability

2

W10843943 Whirlpool Microwave Vent Damper In Stock WPL W10843943 $55.48

2

Support, Cavity (Left) WPL 8206039 Contact Us For Availability

3

8204670 Whirlpool Microwave Halogen Lamp 10W In Stock WPL 8204670 $10.58

3

Plate, Protection (Left) WPL 8206040 Contact Us For Availability

4

W10115577 Whirlpool Microwave Sensor Backorder WPL W10115577 $56.29

4

W10143958 Whirlpool Microwave Light Socket Ho Backorder WPL W10143958 $6.09

4

Control Panel WPL 8206635 Contact Us For Availability

4

CONTROL BOARD, (RELAY) WPL 8206488 Contact Us For Availability

4

Holder, Lamp WPL W10113781 Contact Us For Availability

5

8206079 Whirlpool Microwave Magnetron In Stock WPL 8206079 $148.65

5

Outer Door Frame (White) WPL 8206518 Contact Us For Availability

5

Plate, Protection (Right) WPL 8206061 Contact Us For Availability

6

W11405831 Whirlpool Microwave Capacitor Backorder WPL W11405831 $16.25

6

Support, Vent Screen (White) WPL 8206011 Contact Us For Availability

6

LCD Frame WPL W10116269 Contact Us For Availability

6

Support, Vent Screen (Stainless) WPL W10116263 Contact Us For Availability

6

Plate, Chassis WPL W10113785 Contact Us For Availability

7

Ring, Turntable WPL 8206222 Contact Us For Availability

7

Vent Screen (Left) WPL 8206207 Contact Us For Availability

7

Support, Cavity (Right) WPL 8206065 Contact Us For Availability

8

8205994 Whirlpool Microwave Support Backorder WPL 8205994 $11.93

8

WP8206493 Whirlpool Microwave Electronic Cont In Stock WPL WP8206493 $113.87

8

CAM PLATE, UPPER WPL W10113786 Contact Us For Availability

8

LCD Module WPL W10143962 Contact Us For Availability

9

Plate, Bottom WPL W10222517 Contact Us For Availability

9

HOLDER, MICROCOMPUTER WPL W10282647 Contact Us For Availability

9

Cntrl Panel Plate WPL 8206511 Contact Us For Availability

10

Cntrl Panel Cover WPL 8206512 Contact Us For Availability

10

AC Line Filter WPL 8206062 Contact Us For Availability

11

4393836 Whirlpool Microwave Screw Backorder WPL 4393836 $2.73

11

Holder, Filter WPL 8206060 Contact Us For Availability

Motor, Turntable WPL W10143959 Contact Us For Availability

Vent Screen (Right) WPL 8206206 Contact Us For Availability

FERRITE RING WPL W10252581 Contact Us For Availability

CLIP,HINGE SCREW WPL W10143965 Contact Us For Availability

13

4393832 Whirlpool Microwave Screw Backorder WPL 4393832 $9.59

13

W10113783 Whirlpool Microwave Resistor Backorder WPL W10113783 $37.06

8206035 Whirlpool Microwave Thermostat In Stock WPL 8206035 $45.57

PLATE, MICA WPL W10282660 Contact Us For Availability

Side Panel Sup.(2) WPL W10143976 Contact Us For Availability

Spacer (6) WPL W10113784 Contact Us For Availability

8206525 Whirlpool Microwave Spacer Backorder WPL 8206525 $2.51

Spacer, Side (6) (White) WPL 8206522 Contact Us For Availability

Spacer, Side (6) (Black) WPL 8206523 Contact Us For Availability

Lid, Lamp WPL 8206476 Contact Us For Availability

Glass, Lamp WPL W10189668 Contact Us For Availability

16

Air Guide, Magnetron WPL 8206494 Contact Us For Availability

16

Frame, Glass WPL 8169646 Contact Us For Availability

17

W10143956 Whirlpool Microwave Interlock Backorder WPL W10143956 $3.70

17

Spacer, Bottom (2) WPL 8206178 Contact Us For Availability

17

Seal, Foam WPL W10143955 Contact Us For Availability

18

Spring, Interlock WPL 8206091 Contact Us For Availability

18

Support & Base Thermostat Assy WPL 8206212 Contact Us For Availability

19

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $32.67

19

COVER, CHOKE WPL W10282799 No Longer Available

19

Connector Shaft WPL 8206263 Contact Us For Availability

20

Door Plate Assy WPL W10112215 Contact Us For Availability

20

Holder, Fuse WPL W10117908 Contact Us For Availability

20

SPRING WPL 8206499 Contact Us For Availability

21

W10565483 Whirlpool Microwave Screw Backorder WPL W10565483 $9.59

21

W11707984 Whirlpool Thermal Fuse In Stock WPL W11707984 $19.18

21

Housing, Blower (Right) WPL 8206112 Contact Us For Availability

22

W10269458 Whirlpool Microwave Door Switch In Stock WPL W10269458 $15.87

22

Deflector, Air WPL 8205980 Contact Us For Availability

22

Dr Innr Frm Assy WPL W10143964 Contact Us For Availability

23

W10211974 Whirlpool Microwave Door Interlock In Stock WPL W10211974 $24.34

23

DOOR, COMPLETE (WHITE) WPL W10282800 Contact Us For Availability

23

DOOR, COMPLETE (BLACK) WPL W10282801 Contact Us For Availability

24

Humidity Sensor & Thermostat Assy WPL 8206026 No Longer Available

24

Spring, Hook WPL W10113792 Contact Us For Availability

29

8206209 Whirlpool Microwave Interlock Switch Backorder WPL 8206209 $3.70

30

Piston Assembly WPL 8206210 Contact Us For Availability

31

CAM PLATE, LOWER WPL W10244759 Contact Us For Availability

W10470173 Whirlpool Microwave Wire Harness Backorder WPL W10470173 $8.02

W10470175 Whirlpool Microwave Wire Harness Backorder WPL W10470175 $7.69

W10470176 Whirlpool Microwave Wire Harness Backorder WPL W10470176 $7.47

W10470191 Whirlpool Microwave Wire Harness As Backorder WPL W10470191 $54.55

W10570206 Whirlpool Microwave Wire Harness Backorder WPL W10570206 $59.57

INSTALLATION, HARDWARE WPL W10128803 Contact Us For Availability

Template, Upper WPL 8205274 Contact Us For Availability

HARNS-WIRE,No.71 RCB WPL W10112290 Contact Us For Availability

Harns-Wire, RCB - Inverter WPL W10113777 Contact Us For Availability

HARNS-WIRE No.75 P64 RCB WPL W10113779 Contact Us For Availability

HARNS-WIRE No.76 P2 RCB WPL W10113780 Contact Us For Availability

WPL W10244770 WPL W10244770 Contact Us For Availability

WPL W10253657 WPL W10253657 Contact Us For Availability
