Model Whirlpool KHMS2056SWH0 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

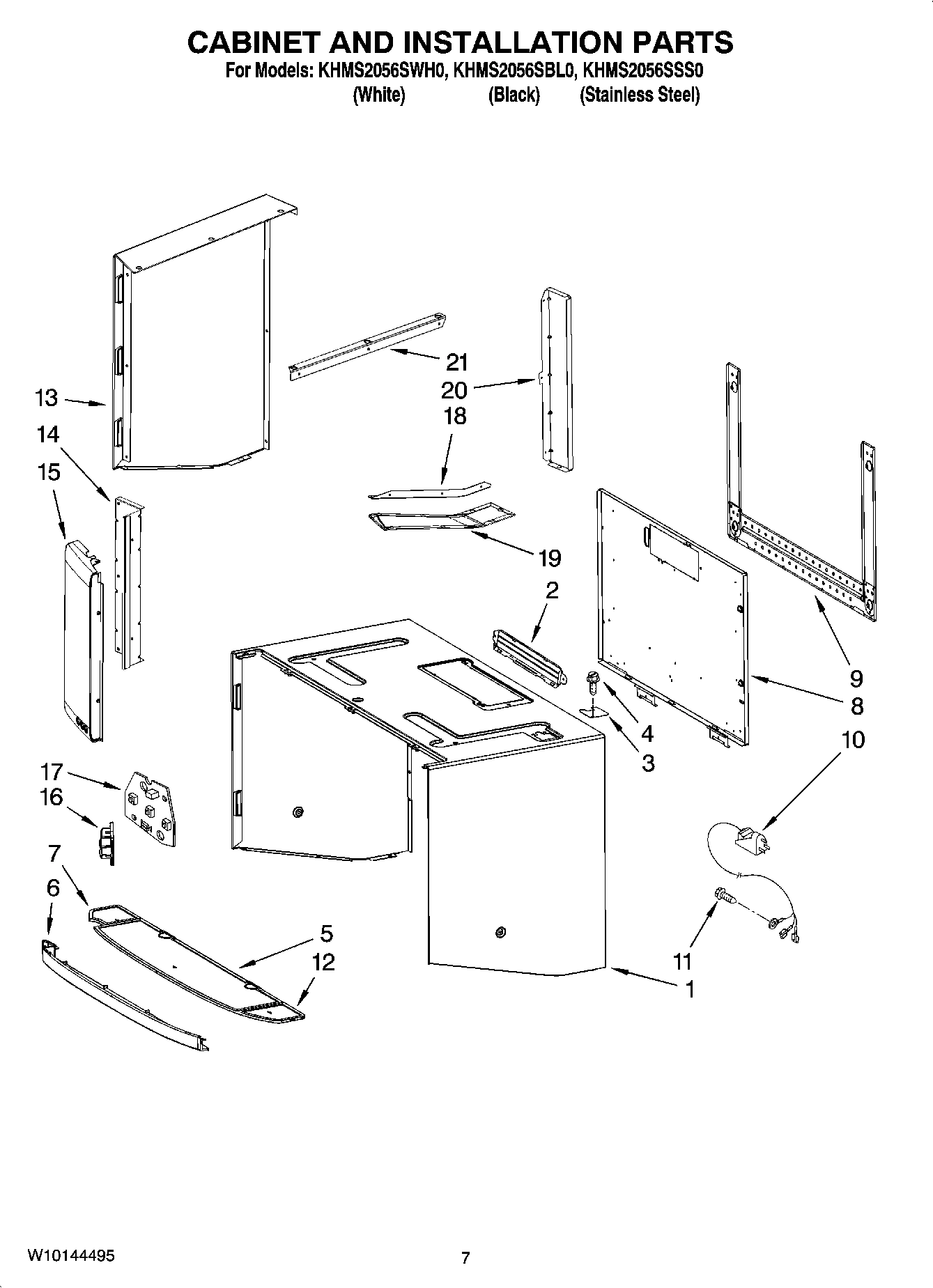

WPL W10128803
WPL W10128803 WPL W10128803 Contact Us For Availability
View on Model
1

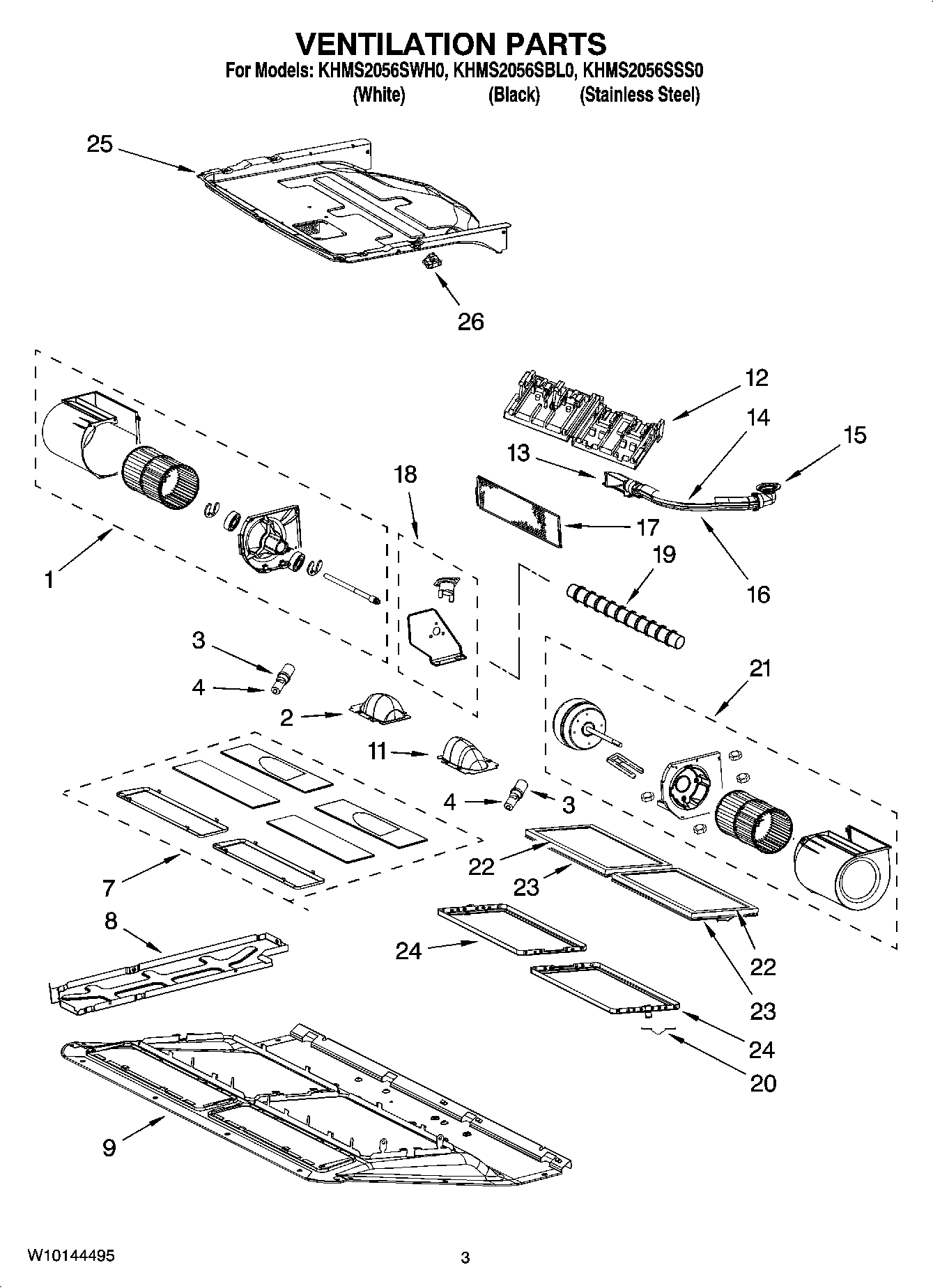

Housing, Blower (Left)
Housing, Blower (Left) WPL 8206092 Contact Us For Availability
View on Model
1

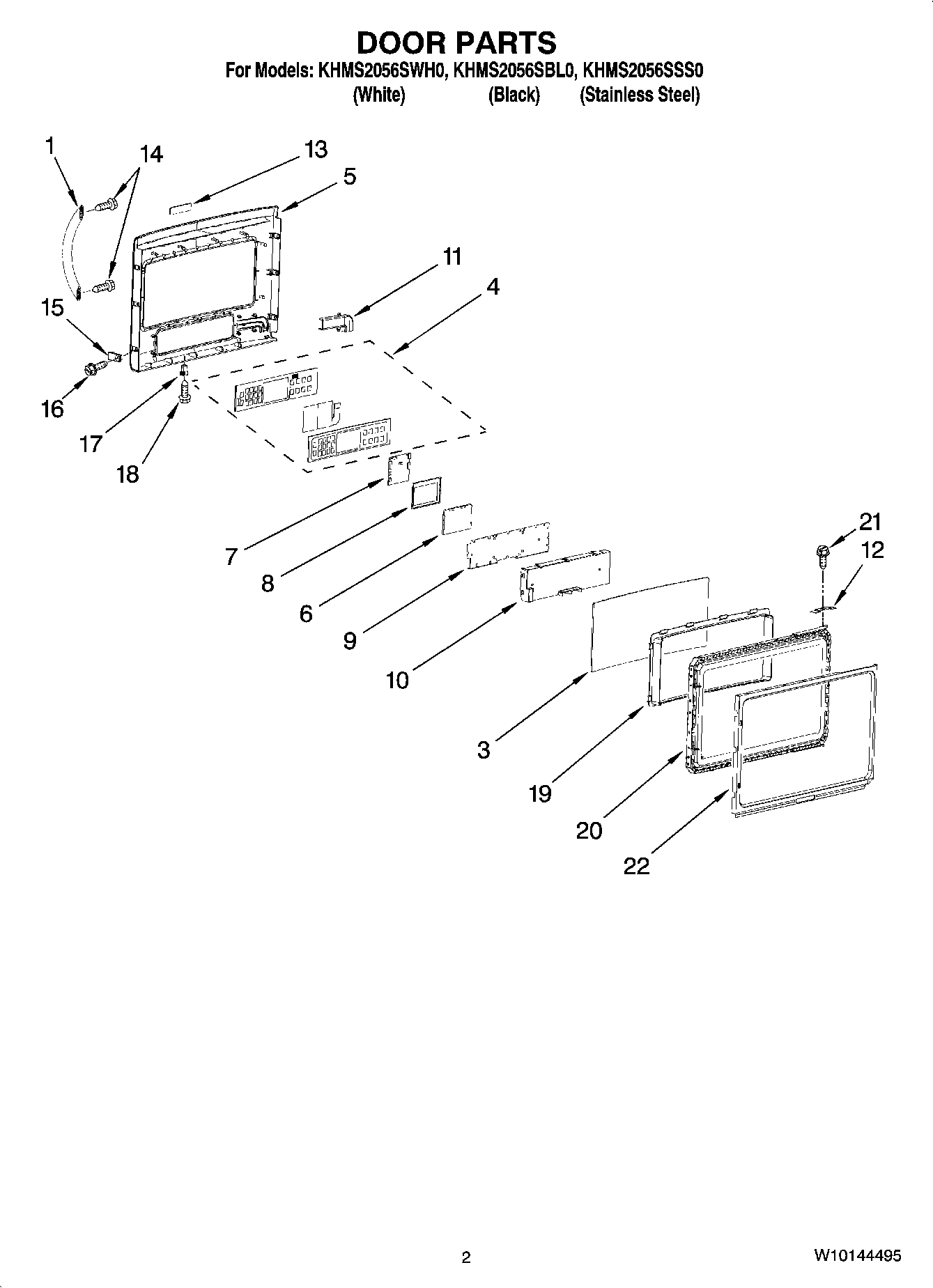

Handle (White)
Handle (White) WPL 8206501 Contact Us For Availability
View on Model
1
Handle (Stainless Steel)
Handle (Stainless Steel) WPL W10116265 Contact Us For Availability
View on Model
2

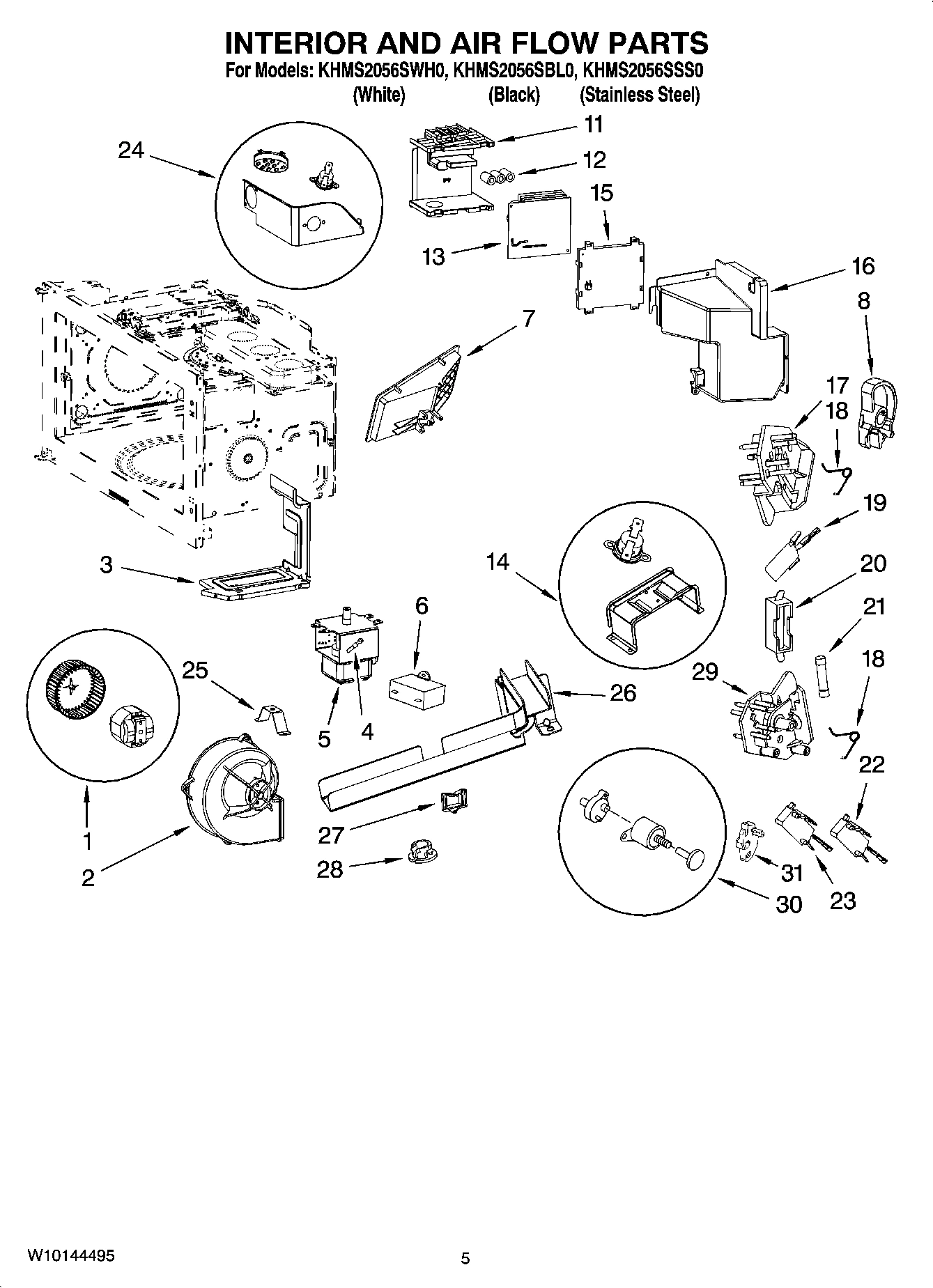

Housing, Fan
Housing, Fan WPL 8206076 Contact Us For Availability
View on Model
3
Plate, Divider
Plate, Divider WPL 8206077 Contact Us For Availability
View on Model
4
Control Panel
Control Panel WPL 8206635 Contact Us For Availability
View on Model
5
Outer Door Frame (White)
Outer Door Frame (White) WPL 8206518 Contact Us For Availability
View on Model
5
Holder, Lamp
Holder, Lamp WPL W10113781 Contact Us For Availability
View on Model
5
Outer Door Frame (Black)
Outer Door Frame (Black) WPL 8206519 Contact Us For Availability
View on Model
5
Outer Door Frame (Stainless Steel)
Outer Door Frame (Stainless Steel) WPL 8206521 Contact Us For Availability
View on Model
6
Motor, Capacitor
Motor, Capacitor WPL 8206080 Contact Us For Availability
View on Model
6
Support, Vent Screen (White)
Support, Vent Screen (White) WPL 8206011 Contact Us For Availability
View on Model
6
LCD Frame
LCD Frame WPL W10116269 Contact Us For Availability
View on Model
6
Support, Vent Screen (Stainless)
Support, Vent Screen (Stainless) WPL W10116263 Contact Us For Availability
View on Model
7
Vent Screen (Left)
Vent Screen (Left) WPL 8206207 Contact Us For Availability
View on Model
7
Board, User (Interface)
Board, User (Interface) WPL W10143961 Contact Us For Availability
View on Model
7
Housing, Valve
Housing, Valve WPL 8206081 Contact Us For Availability
View on Model
8
CAM PLATE, UPPER
CAM PLATE, UPPER WPL W10113786 Contact Us For Availability
View on Model
8
LCD Module
LCD Module WPL W10143962 Contact Us For Availability
View on Model
8
Plate, Back
Plate, Back WPL 8206051 Contact Us For Availability
View on Model
9
Cntrl Panel Plate
Cntrl Panel Plate WPL 8206511 Contact Us For Availability
View on Model
9
Plate, Mounting
Plate, Mounting WPL 8206319 Contact Us For Availability
View on Model
10
Cntrl Panel Cover
Cntrl Panel Cover WPL 8206512 Contact Us For Availability
View on Model
10
Cord, Power
Cord, Power WPL 8206182 Contact Us For Availability
View on Model
11
Holder, Filter
Holder, Filter WPL 8206060 Contact Us For Availability
View on Model
11
Cable Cover, Door
Cable Cover, Door WPL 8206527 Contact Us For Availability
View on Model
11
Cover, Inverter
Cover, Inverter WPL 8206085 Contact Us For Availability
View on Model
12
Vent Screen (Right)
Vent Screen (Right) WPL 8206206 Contact Us For Availability
View on Model
12
CLIP,HINGE SCREW
CLIP,HINGE SCREW WPL W10143965 Contact Us For Availability
View on Model
12
Resistor (50W)
Resistor (50W) WPL W10113782 Contact Us For Availability
View on Model
12
Ferrite Ring
Ferrite Ring WPL 8206086 Contact Us For Availability
View on Model
13
Panel, Side (White, Left)
Panel, Side (White, Left) WPL W10143968 Contact Us For Availability
View on Model
13
Panel, Side (Black, Left)
Panel, Side (Black, Left) WPL W10143969 Contact Us For Availability
View on Model
13
Panel, Side (Stainless, Left)
Panel, Side (Stainless, Left) WPL W10143975 Contact Us For Availability
View on Model
13
Panel, Side (White, Right)
Panel, Side (White, Right) WPL W10143991 Contact Us For Availability
View on Model
13
Panel, Side (Black, Right)
Panel, Side (Black, Right) WPL W10143992 Contact Us For Availability
View on Model
13
Panel, Side (Stainless, Right)
Panel, Side (Stainless, Right) WPL W10143993 Contact Us For Availability
View on Model
14
Ring, Turntable
Ring, Turntable WPL 8206222 Contact Us For Availability
View on Model
14
Side Panel Sup.(2)
Side Panel Sup.(2) WPL W10143976 Contact Us For Availability
View on Model
15
Spacer, Side (6) (White)
Spacer, Side (6) (White) WPL 8206522 Contact Us For Availability
View on Model
15
Spacer, Side (6) (Black)
Spacer, Side (6) (Black) WPL 8206523 Contact Us For Availability
View on Model
15
Holder, Inverter
Holder, Inverter WPL 8206089 Contact Us For Availability
View on Model
15
Panel, Front (White, Left)
Panel, Front (White, Left) WPL W10143977 Contact Us For Availability
View on Model
15
Panel, Front (Black, Left)
Panel, Front (Black, Left) WPL W10143978 Contact Us For Availability
View on Model
15
Panel, Front (Stnls. Left)
Panel, Front (Stnls. Left) WPL W10143979 Contact Us For Availability
View on Model
15
Panel, Front (White, Right)
Panel, Front (White, Right) WPL W10143986 Contact Us For Availability
View on Model
15
Panel, Front (Black, Right)
Panel, Front (Black, Right) WPL W10143987 Contact Us For Availability
View on Model
15
Panel, Front (Stnls. Right)
Panel, Front (Stnls. Right) WPL W10143988 Contact Us For Availability
View on Model
16
Button (Stainless)
Button (Stainless) WPL W10143982 Contact Us For Availability
View on Model
16
Air Guide, Magnetron
Air Guide, Magnetron WPL 8206494 Contact Us For Availability
View on Model
16
Frame, Glass
Frame, Glass WPL 8169646 Contact Us For Availability
View on Model
16
Button (White)
Button (White) WPL W10143980 Contact Us For Availability
View on Model
16
Button (Black)
Button (Black) WPL W10143981 Contact Us For Availability
View on Model
17
Spacer, Bottom (2)
Spacer, Bottom (2) WPL 8206178 Contact Us For Availability
View on Model
17
Hood/Light Switch Board
Hood/Light Switch Board WPL W10143983 Contact Us For Availability
View on Model
18
Spring, Interlock
Spring, Interlock WPL 8206091 Contact Us For Availability
View on Model
18
Support & Base Thermostat Assy
Support & Base Thermostat Assy WPL 8206212 Contact Us For Availability
View on Model
18
Bracket (Lower Left)
Bracket (Lower Left) WPL W10143984 Contact Us For Availability
View on Model
18
Bracket (Lower Right)
Bracket (Lower Right) WPL W10143990 Contact Us For Availability
View on Model
19
Motor, Turntable
Motor, Turntable WPL W10143959 Contact Us For Availability
View on Model
19
Connector Shaft
Connector Shaft WPL 8206263 Contact Us For Availability
View on Model
19
Plate (Co.) (Bottom, Left)
Plate (Co.) (Bottom, Left) WPL W10143985 Contact Us For Availability
View on Model
19
Plate (Co.) (Bottom, Right)
Plate (Co.) (Bottom, Right) WPL W10143989 Contact Us For Availability
View on Model
19
Cover, Choke
Cover, Choke WPL 8206529 Contact Us For Availability
View on Model
20
Door Plate Assy
Door Plate Assy WPL W10112215 Contact Us For Availability
View on Model
20
SPRING
SPRING WPL 8206499 Contact Us For Availability
View on Model
20
Plate, Back (Right)
Plate, Back (Right) WPL W10143994 Contact Us For Availability
View on Model
20
Plate, Back (Left)
Plate, Back (Left) WPL W10143996 Contact Us For Availability
View on Model
20
Holder, Fuse
Holder, Fuse WPL 8184312 Contact Us For Availability
View on Model
21
Housing, Blower (Right)
Housing, Blower (Right) WPL 8206112 Contact Us For Availability
View on Model
21
Bracket, Upper (Right)
Bracket, Upper (Right) WPL W10143995 Contact Us For Availability
View on Model
21
Bracket, Upper (Left)
Bracket, Upper (Left) WPL W10143997 Contact Us For Availability
View on Model
22
Dr Innr Frm Assy
Dr Innr Frm Assy WPL W10143964 Contact Us For Availability
View on Model
24
Humidity Sensor & Thermostat Assy
Humidity Sensor & Thermostat Assy WPL 8206026 Contact Us For Availability
View on Model
24
Spring, Hook
Spring, Hook WPL W10113792 Contact Us For Availability
View on Model
25
Lid, Lamp
Lid, Lamp WPL 8206476 Contact Us For Availability
View on Model
25
Support, Air Guide
Support, Air Guide WPL 8206031 Contact Us For Availability
View on Model
26
Protector, Wire
Protector, Wire WPL 8206477 Contact Us For Availability
View on Model
27
Clip, Saddle
Clip, Saddle WPL 8206037 Contact Us For Availability
View on Model
30
Piston Assembly
Piston Assembly WPL 8206210 Contact Us For Availability
View on Model
31
Cam Plate (Lower)
Cam Plate (Lower) WPL W10113787 Contact Us For Availability
View on Model
