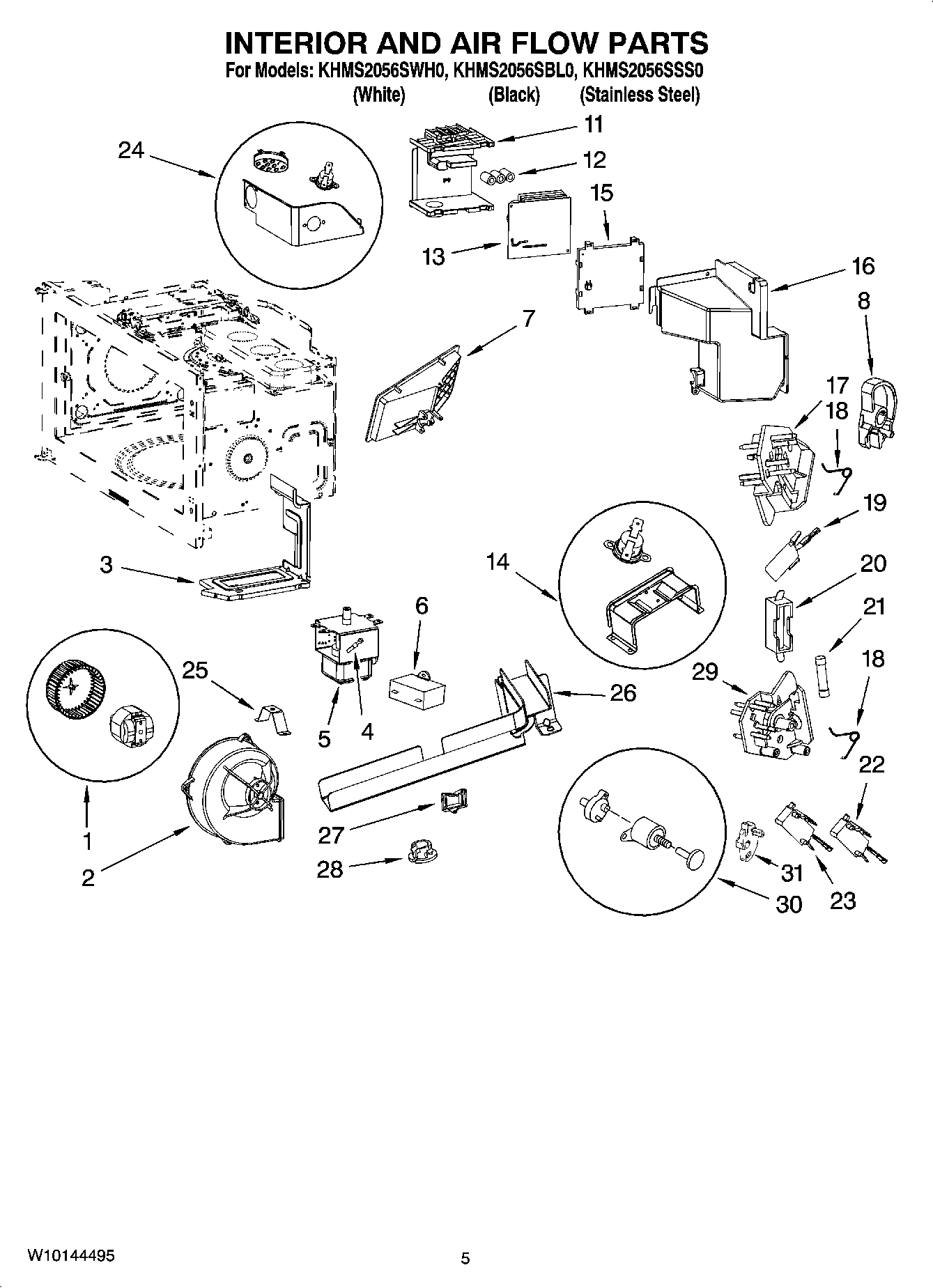

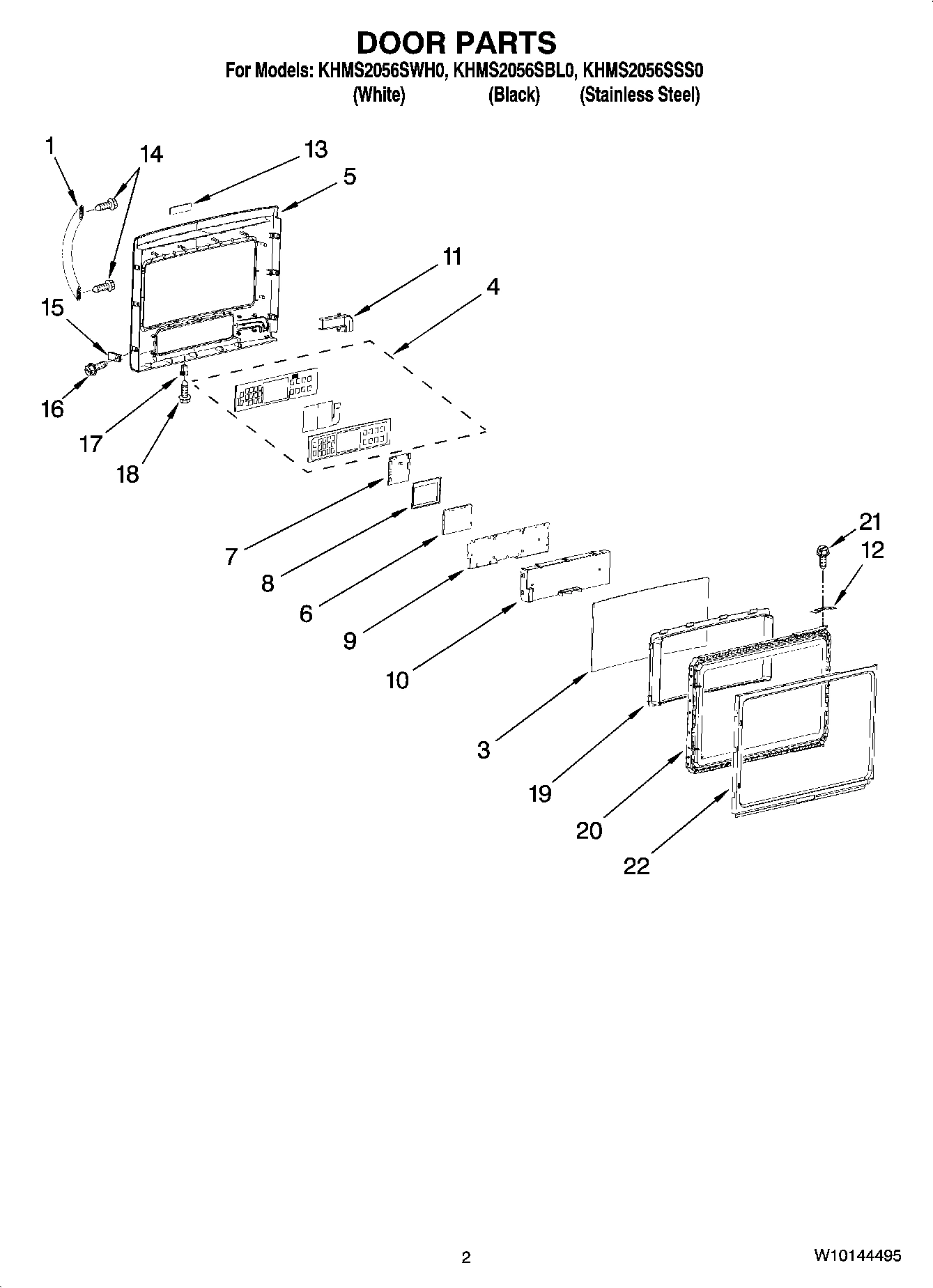

Model Whirlpool KHMS2056SBL0 MICROWAVE HOOD COMBINATION – Common Parts &amp; Diagrams

W10470173 Whirlpool Microwave Wire Harness Backorder WPL W10470173 $8.02

W10470175 Whirlpool Microwave Wire Harness Backorder WPL W10470175 $7.69

W10470176 Whirlpool Microwave Wire Harness Backorder WPL W10470176 $7.47

W10470191 Whirlpool Microwave Wire Harness As Backorder WPL W10470191 $52.52

W10570206 Whirlpool Microwave Wire Harness Backorder WPL W10570206 $56.73

WPL W10128803 WPL W10128803 Contact Us For Availability

Template, Upper WPL 8205274 Contact Us For Availability

Ground Wire (Mag) WPL 8206186 Contact Us For Availability

Miscellaneous WPL ARI88586A2 Contact Us For Availability

Harns WPL W10112290 Contact Us For Availability

WPL W10113062 WPL W10113062 Contact Us For Availability

WPL W10113777 WPL W10113777 Contact Us For Availability

WPL W10113779 WPL W10113779 Contact Us For Availability

WPL W10113780 WPL W10113780 Contact Us For Availability

1

8206075 Whirlpool Microwave Fan Motor Backorder WPL 8206075 $129.71

1

W10110267 Whirlpool Microwave Door Handle Backorder WPL W10110267 $97.99

1

Housing, Blower (Left) WPL 8206092 Contact Us For Availability

1

Handle (White) WPL 8206501 Contact Us For Availability

1

Case, Outer (White) WPL W10143952 Contact Us For Availability

1

Case, Outer (Black) WPL W10143953 Contact Us For Availability

1

Case, Outer (Apollo Grey) WPL W10143954 Contact Us For Availability

2

W10843943 Whirlpool Microwave Vent Damper In Stock WPL W10843943 $44.05

2

Rack WPL 8206117 Contact Us For Availability

3

W10315274 Whirlpool Microwave Meal Rack Backorder WPL W10315274 $19.22

3

Lid, Power Cord WPL 8184897 Contact Us For Availability

4

8204670 Whirlpool Microwave Halogen Lamp 10W In Stock WPL 8204670 $10.07

4

W10143958 Whirlpool Microwave Light Socket Ho Backorder WPL W10143958 $3.70

4

W11380570 Whirlpool Microwave Screw In Stock WPL W11380570 $9.86

4

Control Panel WPL 8206635 Contact Us For Availability

5

8206079 Whirlpool Microwave Magnetron Backorder WPL 8206079 $148.65

5

Outer Door Frame (White) WPL 8206518 Contact Us For Availability

5

Holder, Lamp WPL W10113781 Contact Us For Availability

5

Vent Screen (Middle) WPL 8206475 Contact Us For Availability

6

8205980 Whirlpool Microwave Air Deflector Backorder WPL 8205980 $28.80

6

Motor, Capacitor WPL 8206080 Contact Us For Availability

6

Support, Vent Screen (White) WPL 8206011 Contact Us For Availability

6

LCD Frame WPL W10116269 Contact Us For Availability

6

Support, Vent Screen (Stainless) WPL W10116263 Contact Us For Availability

6

Support, Vent Screen (Black) WPL W10143735 Contact Us For Availability

7

Vent Screen (Left) WPL 8206207 Contact Us For Availability

8

WP8206493 Whirlpool Microwave Electronic Cont Backorder WPL WP8206493 $113.87

8

CAM PLATE, UPPER WPL W10113786 Contact Us For Availability

8

LCD Module WPL W10143962 Contact Us For Availability

8

Plate, Back WPL 8206051 Contact Us For Availability

9

Cntrl Panel Plate WPL 8206511 Contact Us For Availability

9

Plate, Mounting WPL 8206319 Contact Us For Availability

10

Cntrl Panel Cover WPL 8206512 Contact Us For Availability

10

Cord, Power WPL 8206182 Contact Us For Availability

11

4393836 Whirlpool Microwave Screw Backorder WPL 4393836 $2.73

11

Holder, Filter WPL 8206060 Contact Us For Availability

W10748097 Whirlpool Microwave Crisp Pan In Stock WPL W10748097 $31.42

Vent Screen (Right) WPL 8206206 Contact Us For Availability

CLIP,HINGE SCREW WPL W10143965 Contact Us For Availability

Resistor (50W) WPL W10113782 Contact Us For Availability

8205992 Whirlpool Microwave Cook Tray Backorder WPL 8205992 $43.48

W10113783 Whirlpool Microwave Resistor Backorder WPL W10113783 $35.30

Panel, Side (White, Left) WPL W10143968 Contact Us For Availability

Panel, Side (Black, Left) WPL W10143969 Contact Us For Availability

Panel, Side (Stainless, Left) WPL W10143975 Contact Us For Availability

Panel, Side (White, Right) WPL W10143991 Contact Us For Availability

Panel, Side (Black, Right) WPL W10143992 Contact Us For Availability

Panel, Side (Stainless, Right) WPL W10143993 Contact Us For Availability

14

8206035 Whirlpool Microwave Thermostat In Stock WPL 8206035 $43.39

14

Ring, Turntable WPL 8206222 Contact Us For Availability

14

Side Panel Sup.(2) WPL W10143976 Contact Us For Availability

8205994 Whirlpool Microwave Support In Stock WPL 8205994 $11.93

8206525 Whirlpool Microwave Spacer Backorder WPL 8206525 $2.51

Spacer, Side (6) (White) WPL 8206522 Contact Us For Availability

Holder, Inverter WPL 8206089 Contact Us For Availability

Spacer, Side (6) (Black) WPL 8206523 Contact Us For Availability

Panel, Front (White, Left) WPL W10143977 Contact Us For Availability

Panel, Front (Black, Left) WPL W10143978 Contact Us For Availability

Panel, Front (Stnls. Left) WPL W10143979 Contact Us For Availability

Panel, Front (White, Right) WPL W10143986 Contact Us For Availability

Panel, Front (Black, Right) WPL W10143987 Contact Us For Availability

Panel, Front (Stnls. Right) WPL W10143988 Contact Us For Availability

W10851464 Whirlpool Microwave Handle Panel In Stock WPL W10851464 $8.45

Button (Stainless) WPL W10143982 Contact Us For Availability

Air Guide, Magnetron WPL 8206494 Contact Us For Availability

Frame, Glass WPL 8169646 Contact Us For Availability

Button (White) WPL W10143980 Contact Us For Availability

Button (Black) WPL W10143981 Contact Us For Availability

W10143956 Whirlpool Microwave Interlock Backorder WPL W10143956 $3.70

Spacer, Bottom (2) WPL 8206178 Contact Us For Availability

Hood/Light Switch Board WPL W10143983 Contact Us For Availability

Clip, Cavity Lamp WPL 8206034 Contact Us For Availability

8184109 Whirlpool Microwave Spacer In Stock WPL 8184109 $3.70

Spring, Interlock WPL 8206091 Contact Us For Availability

Support & Base Thermostat Assy WPL 8206212 Contact Us For Availability

Bracket (Lower Left) WPL W10143984 Contact Us For Availability

Bracket (Lower Right) WPL W10143990 Contact Us For Availability

W11661547 Whirlpool Turntable Motor In Stock WPL W11661547 $44.76

Connector Shaft WPL 8206263 Contact Us For Availability

Plate (Co.) (Bottom, Left) WPL W10143985 Contact Us For Availability

Plate (Co.) (Bottom, Right) WPL W10143989 Contact Us For Availability

4393832 Whirlpool Microwave Screw Backorder WPL 4393832 $9.59

Door Plate Assy WPL W10112215 Contact Us For Availability

SPRING WPL 8206499 Contact Us For Availability

Plate, Back (Right) WPL W10143994 Contact Us For Availability

Plate, Back (Left) WPL W10143996 Contact Us For Availability

W10565483 Whirlpool Microwave Screw Backorder WPL W10565483 $9.59

Housing, Blower (Right) WPL 8206112 Contact Us For Availability

Bracket, Upper (Right) WPL W10143995 Contact Us For Availability

Bracket, Upper (Left) WPL W10143997 Contact Us For Availability

22

Dr Innr Frm Assy WPL W10143964 Contact Us For Availability

23

Spacer WPL 8206116 Contact Us For Availability

24

Humidity Sensor & Thermostat Assy WPL 8206026 Contact Us For Availability

24

Spring, Hook WPL W10113792 Contact Us For Availability

24

Cover, Inlet WPL 8206066 Contact Us For Availability

25

Lid, Lamp WPL 8206476 Contact Us For Availability

29

8206209 Whirlpool Microwave Interlock Switch Backorder WPL 8206209 $3.70

30

Piston Assembly WPL 8206210 Contact Us For Availability
