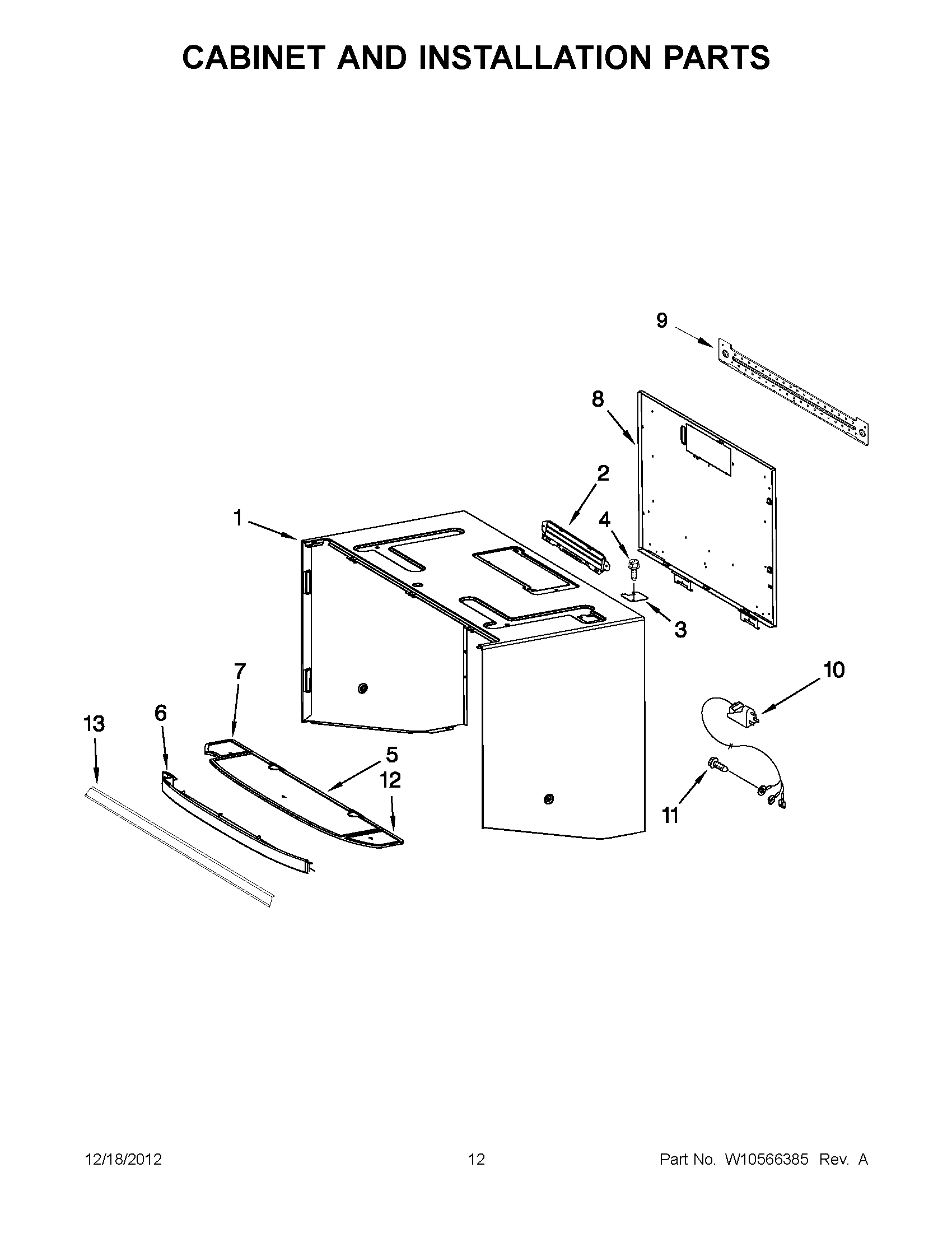

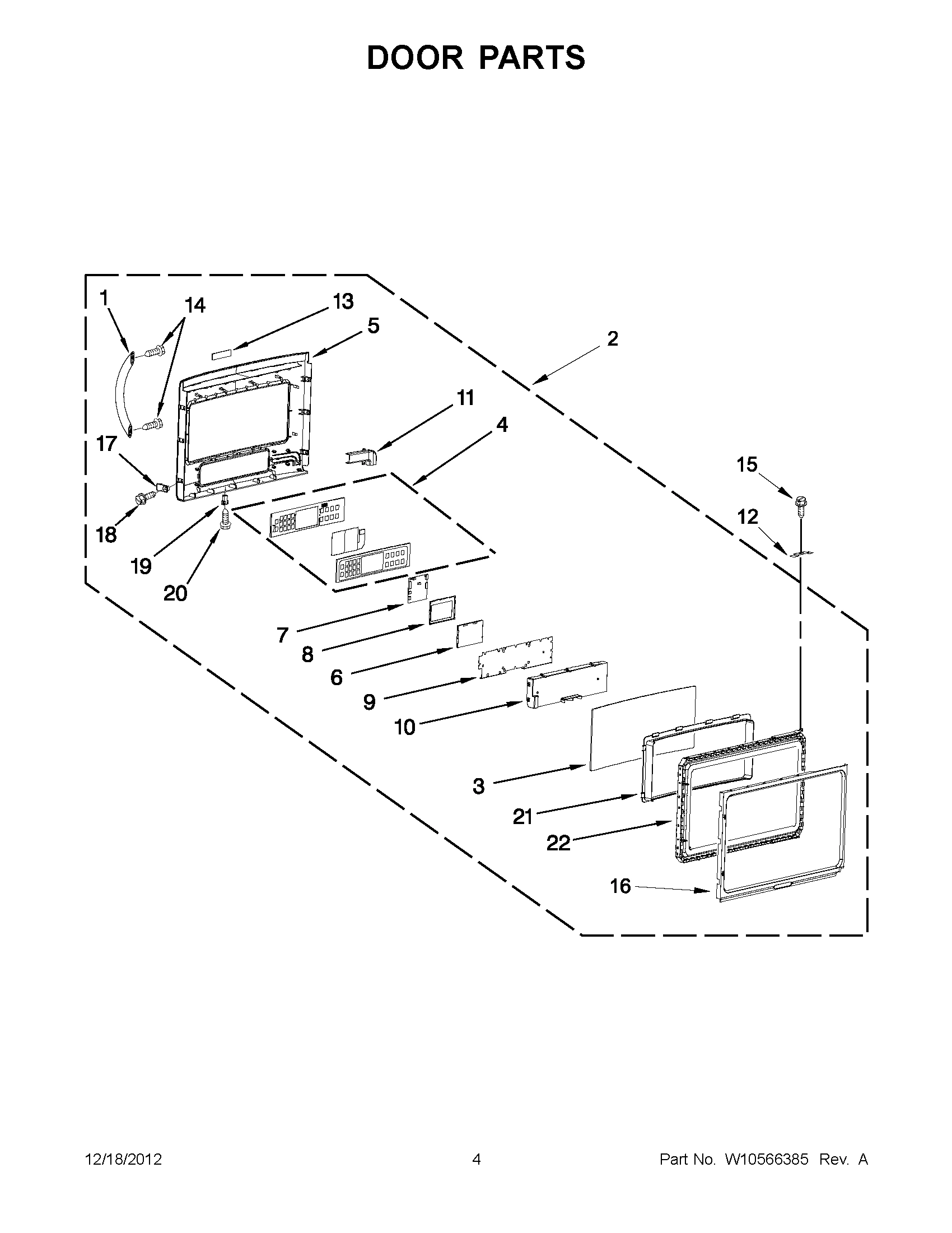

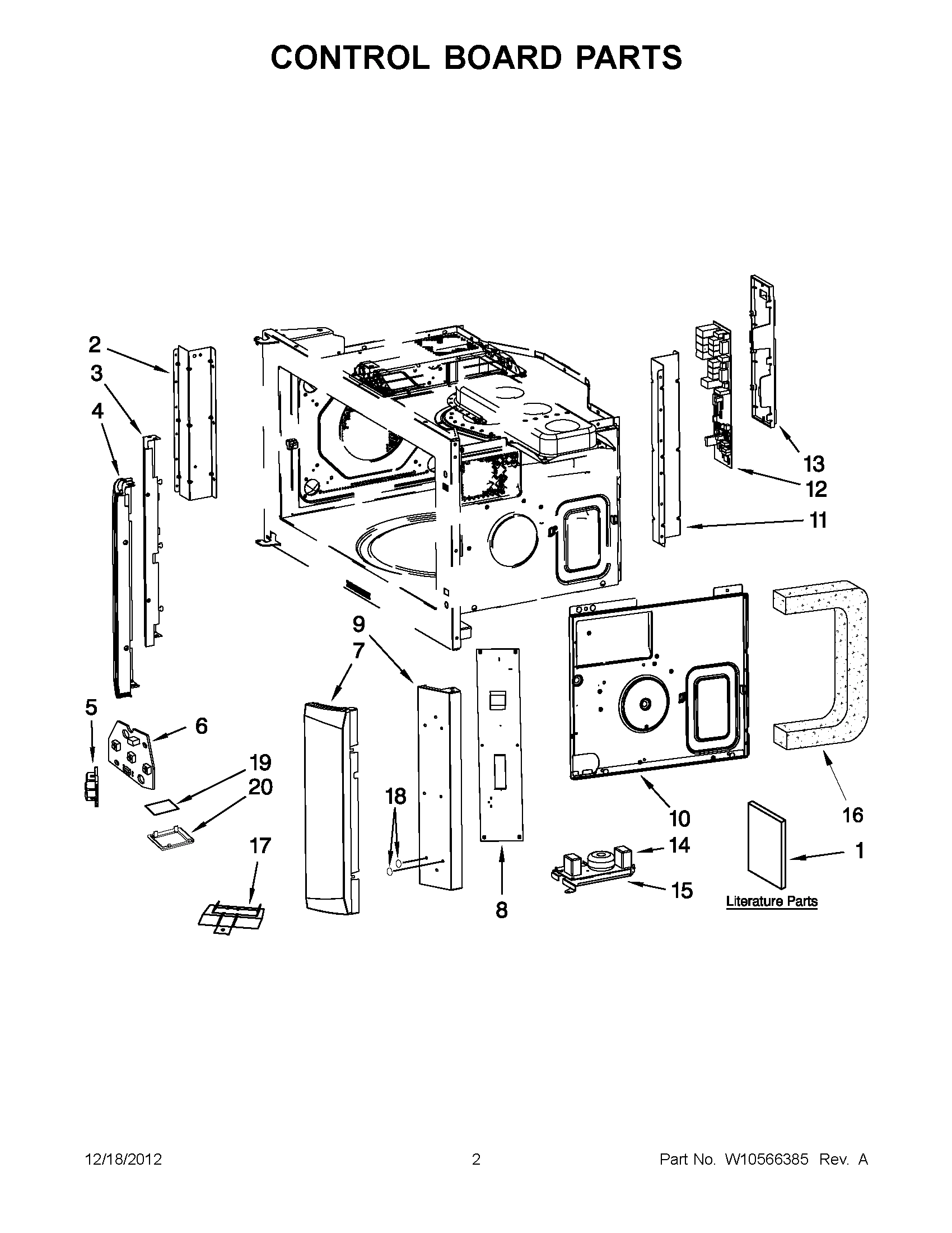

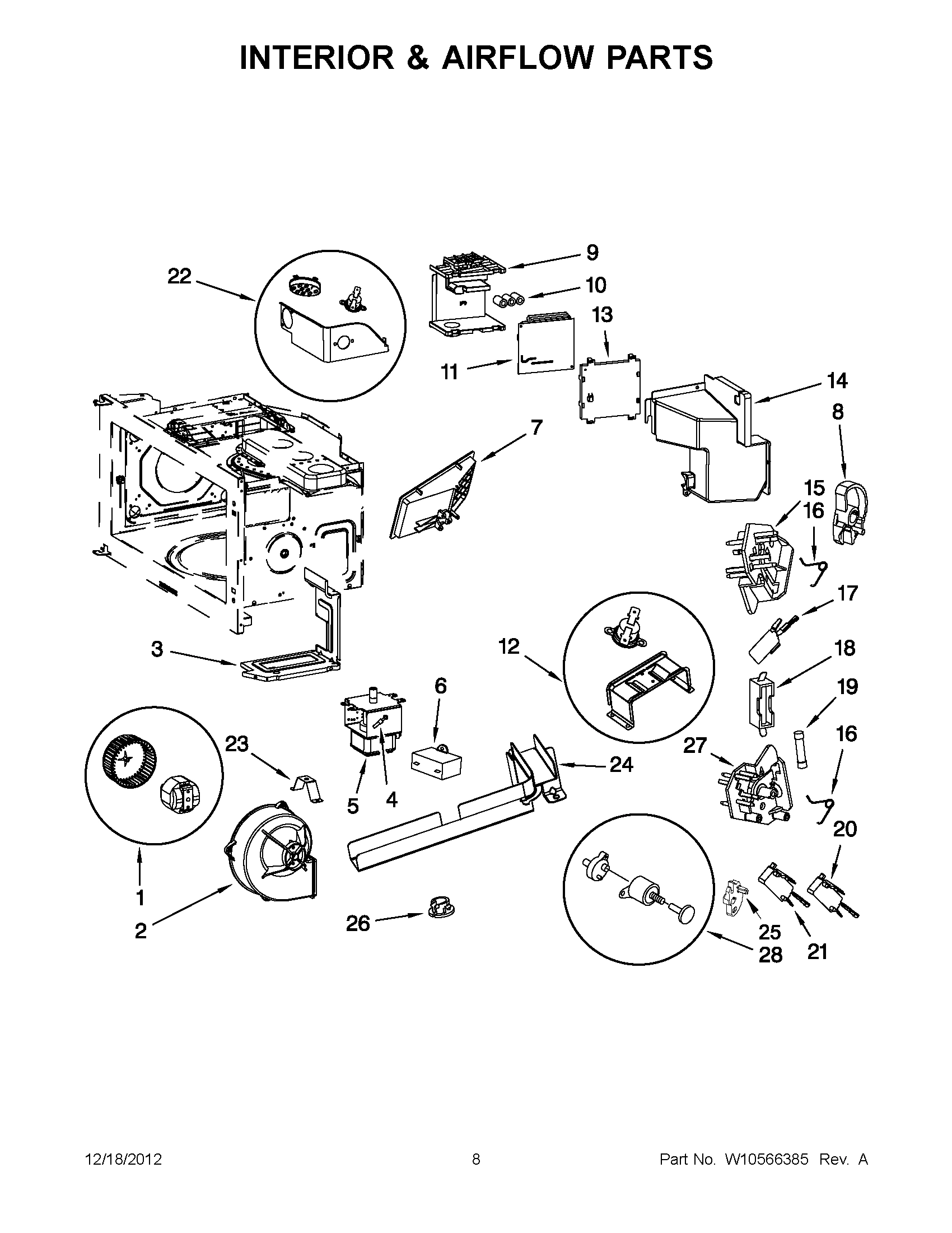

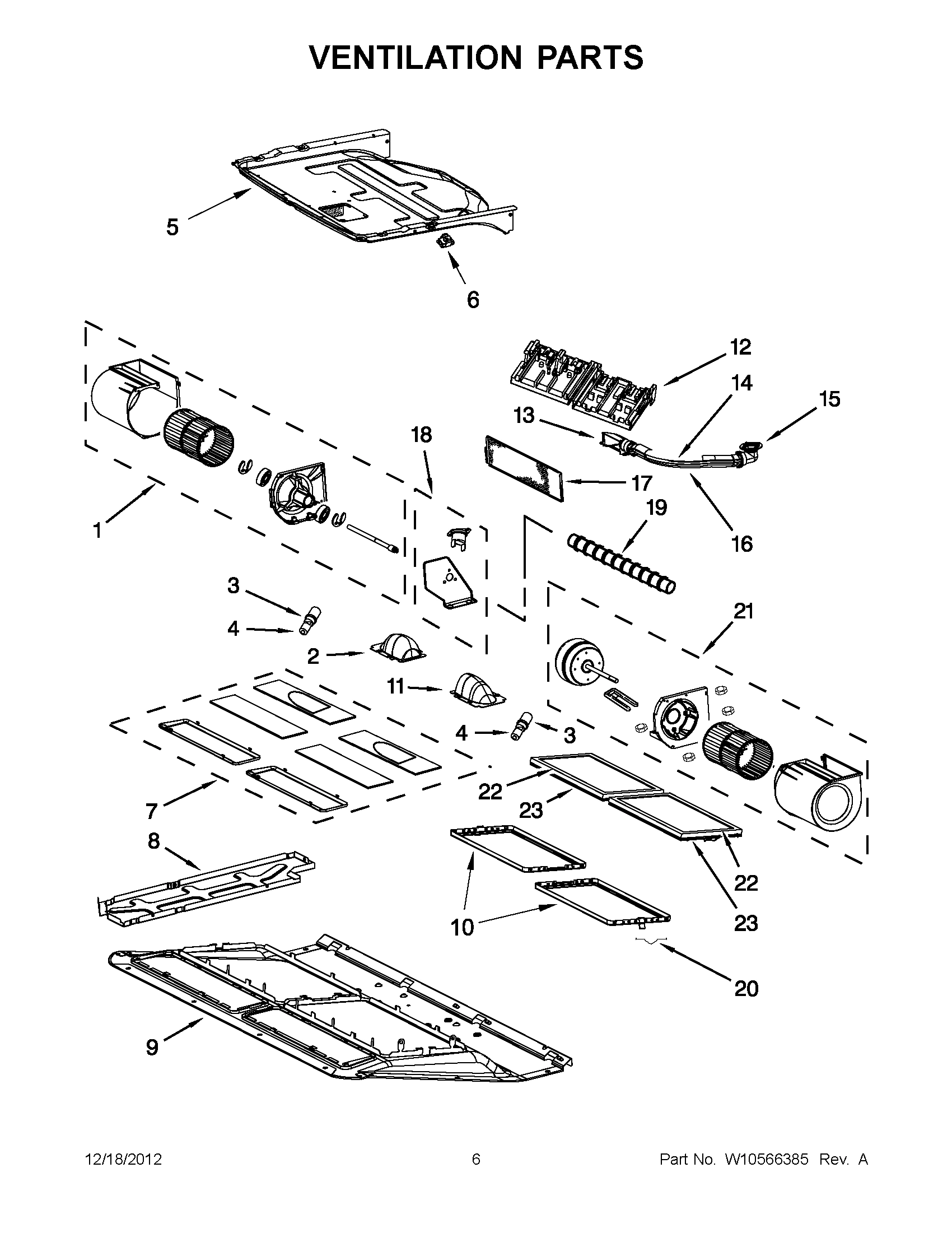

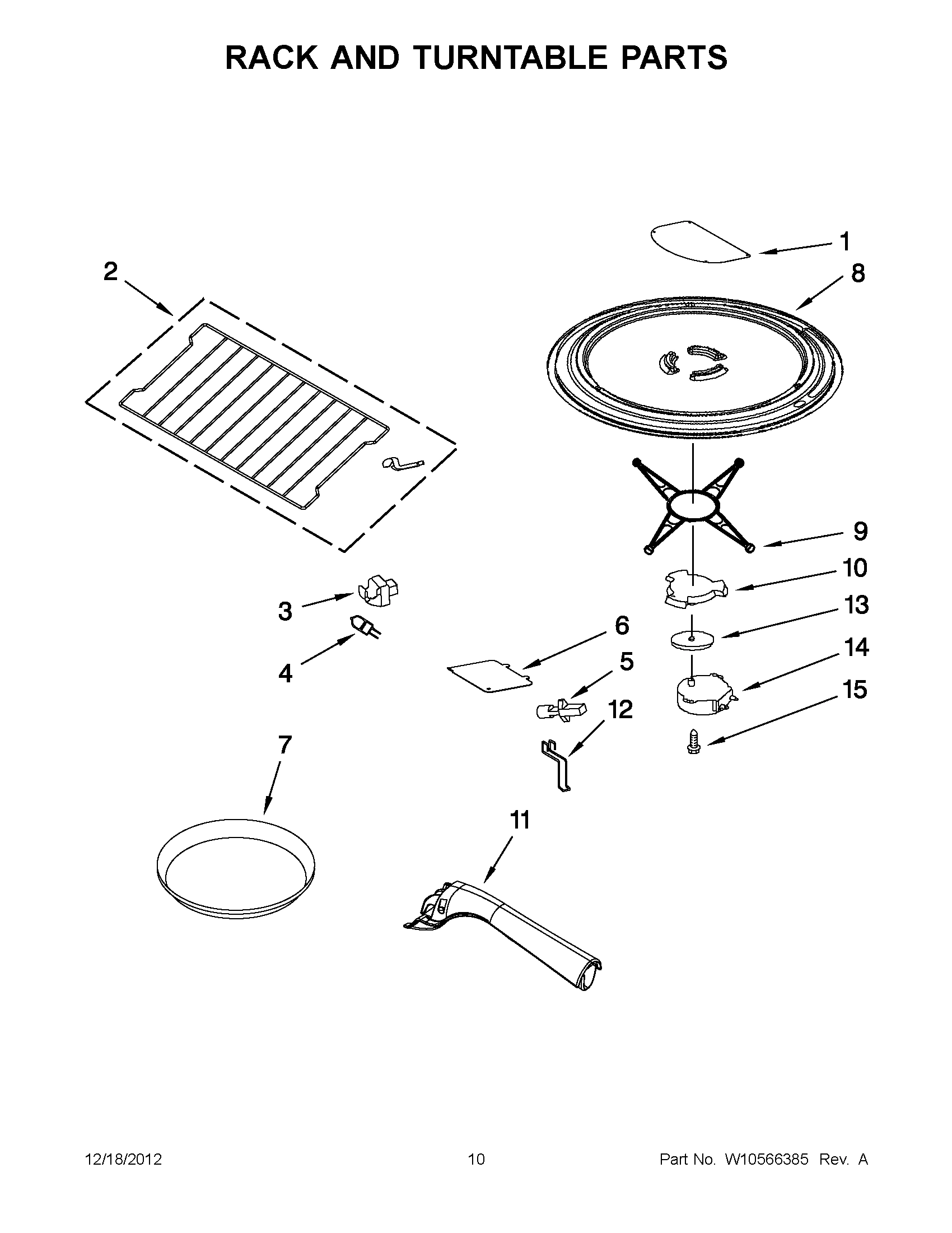

Model Whirlpool KHMS2050SSS4 MICROWAVE HOOD COMBINATION – Common Parts &amp; Diagrams

1

HANDLE (STAINLESS) WPL 8206504 Contact Us For Availability

1

HOUSING, BLOWER LEFT SIDE WPL 8206092 Contact Us For Availability

1

PLATE, MICA WPL W10282660 Contact Us For Availability

2

W10843943 Whirlpool Microwave Vent Damper In Stock WPL W10843943 $44.05

2

DOOR, COMPLETE (STAINLESS) WPL W10282802 Contact Us For Availability

4

8204670 Whirlpool Microwave Halogen Lamp 10W In Stock WPL 8204670 $10.07

4

W10115577 Whirlpool Microwave Sensor Backorder WPL W10115577 $54.20

4

W10143958 Whirlpool Microwave Light Socket Ho Backorder WPL W10143958 $3.70

4

Control Panel WPL 8206635 Contact Us For Availability

4

SIDE PANEL, LEFT (STAINLESS) WPL W10245709 Contact Us For Availability

5

8206079 Whirlpool Microwave Magnetron Backorder WPL 8206079 $148.65

5

BUTTON (STAINLESS) WPL 8206485 Contact Us For Availability

5

OUTER DOOR FRAME (STAINLESS) WPL W10245711 Contact Us For Availability

5

HOLDER, LAMP GRILL WPL W10113781 Contact Us For Availability

6

W11405831 Whirlpool Microwave Capacitor Backorder WPL W11405831 $16.25

6

LCD Frame WPL W10116269 Contact Us For Availability

6

Support, Vent Screen (Stainless) WPL W10116263 Contact Us For Availability

6

Lid, Lamp WPL 8206476 Contact Us For Availability

7

VENT SCREEN LEFT SIDE WPL 8206207 Contact Us For Availability

8

CONTROL BOARD, (RELAY) WPL 8206488 Contact Us For Availability

8

CAM PLATE, UPPER WPL W10113786 Contact Us For Availability

8

LCD Module WPL W10143962 Contact Us For Availability

9

RING, TURNTABLE SOFTSTART WPL 8206222 Contact Us For Availability

9

Plate, Bottom WPL W10222517 Contact Us For Availability

9

PLATE, CONTROL PANEL WPL 8206511 Contact Us For Availability

8205994 Whirlpool Microwave Support In Stock WPL 8205994 $11.93

FRAME, FILTERS WPL W10113792 Contact Us For Availability

FERRITE RING WPL W10252581 Contact Us For Availability

COVER, CONTROL PANEL WPL 8206512 Contact Us For Availability

11

4393836 Whirlpool Microwave Screw Backorder WPL 4393836 $2.73

11

Support, Cavity (Right) WPL 8206065 Contact Us For Availability

8206035 Whirlpool Microwave Thermostat In Stock WPL 8206035 $43.39

WP8206493 Whirlpool Microwave Electronic Cont Backorder WPL WP8206493 $113.87

VENT SCREEN RIGHT SIDE WPL 8206206 Contact Us For Availability

CLIP, HINGE SCREW ( NOT INCLUDED WITH DOOR AS WPL W10143965 Contact Us For Availability

13

8205980 Whirlpool Microwave Air Deflector Backorder WPL 8205980 $28.80

13

HOLDER, MICROCOMPUTER WPL W10282647 Contact Us For Availability

14

W11661547 Whirlpool Turntable Motor In Stock WPL W11661547 $44.76

14

Air Guide, Magnetron WPL 8206494 Contact Us For Availability

14

AC Line Filter WPL 8206062 Contact Us For Availability

4393832 Whirlpool Microwave Screw Backorder WPL 4393832 $9.59

W10143956 Whirlpool Microwave Interlock Backorder WPL W10143956 $3.70

W10565483 Whirlpool Microwave Screw Backorder WPL W10565483 $9.59

Holder, Filter WPL 8206060 Contact Us For Availability

16

Spring, Interlock WPL 8206091 Contact Us For Availability

16

FRAME, INNER DOOR WPL W10143964 Contact Us For Availability

16

Seal, Foam WPL W10143955 Contact Us For Availability

17

8206525 Whirlpool Microwave Spacer Backorder WPL 8206525 $2.51

17

W10113783 Whirlpool Microwave Resistor Backorder WPL W10113783 $35.30

17

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $28.44

18

SUPPORT & BASE THERMOSTAT ASSEMBLY WPL 8206212 Contact Us For Availability

18

Holder, Fuse WPL W10117908 Contact Us For Availability

18

SPACER WPL W10113784 Contact Us For Availability

W11707984 Whirlpool Thermal Fuse In Stock WPL W11707984 $19.18

Connector Shaft WPL 8206263 Contact Us For Availability

SPACER, BOTTOM WPL 8206178 Contact Us For Availability

Glass, Lamp WPL W10189668 Contact Us For Availability

20

W10269458 Whirlpool Microwave Door Switch In Stock WPL W10269458 $15.87

20

SPRING, FILTER FRAME WPL 8206499 Contact Us For Availability

20

Frame, Glass WPL 8169646 Contact Us For Availability

21

W10211974 Whirlpool Microwave Door Interlock In Stock WPL W10211974 $24.34

21

HOUSING, BLOWER RIGHT SIDE WPL 8206112 Contact Us For Availability

21

COVER, CHOKE WPL W10282799 Contact Us For Availability

22

DOOR, PLATE ASSEMBLY WPL W10112215 Contact Us For Availability

22

HUMIDITY SENSOR & THERMOSTAT ASSEMBLY WPL 8206026 Contact Us For Availability

25

CAM PLATE, LOWER WPL W10244759 Contact Us For Availability

27

8206209 Whirlpool Microwave Interlock Switch Backorder WPL 8206209 $3.70

28

PISTON ASSEMBLY TEMPERATURE WPL 8206210 Contact Us For Availability

NI

MISCELLANEOUS, TEMPLATE, BACK WALL WPL W10517169 Contact Us For Availability
