Model Whirlpool KHMS1850SWH0 MICROWAVE HOOD COMBINATION 1.8 CU. FT. – Common Parts & Diagrams
03 - INTERIOR AND VENTILATION PARTS
01 - CONTROL PANEL PARTS

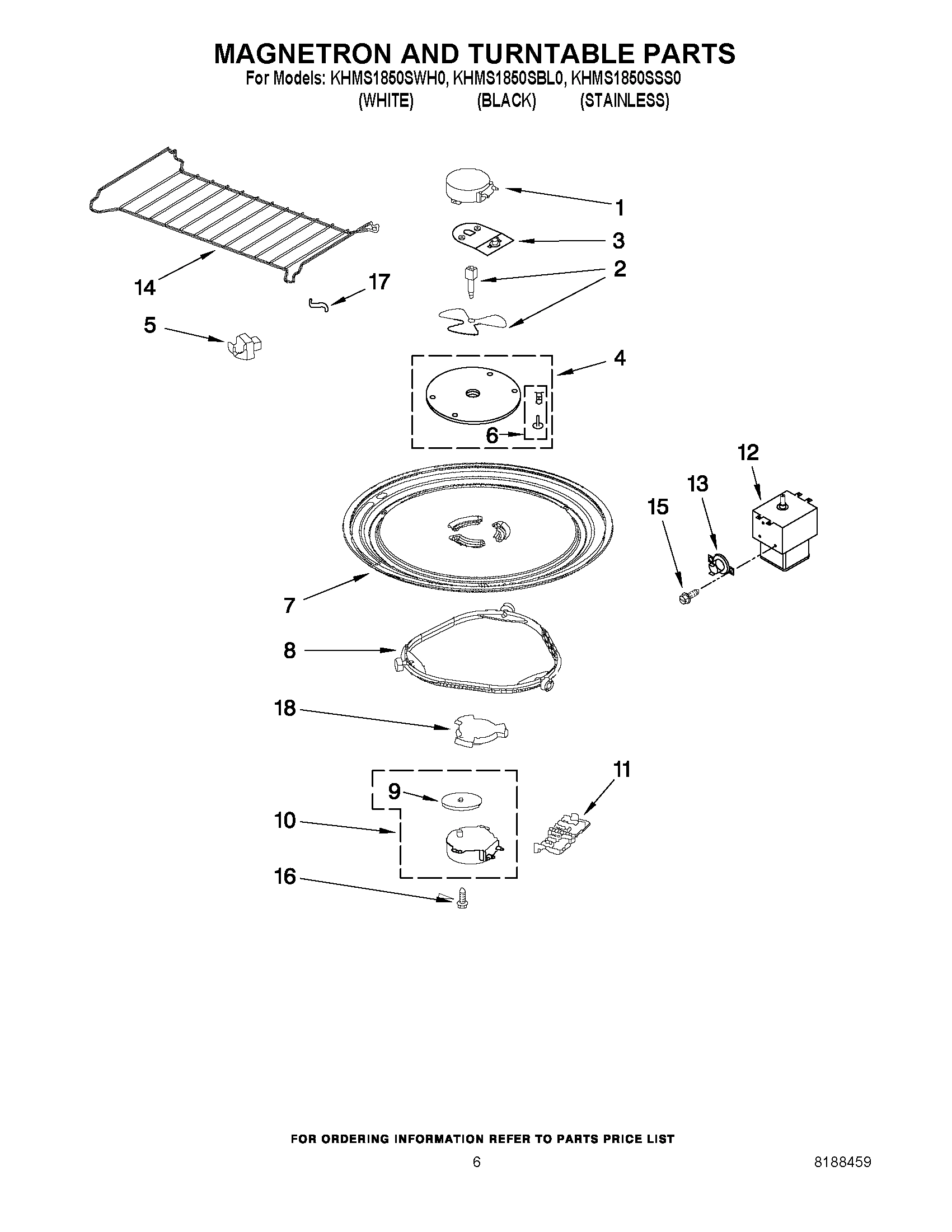

05 - MAGNETRON AND TURNTABLE PARTS

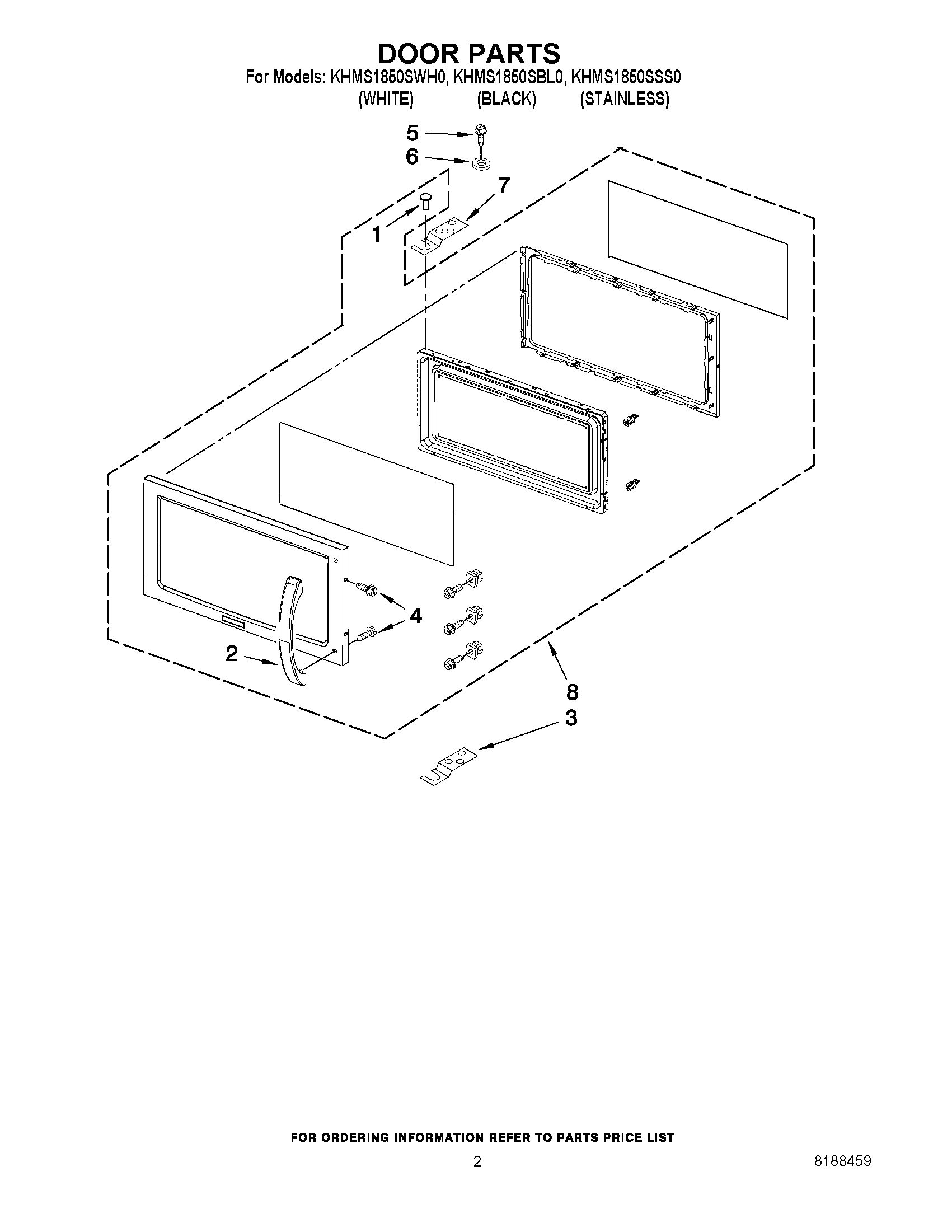

02 - DOOR PARTS

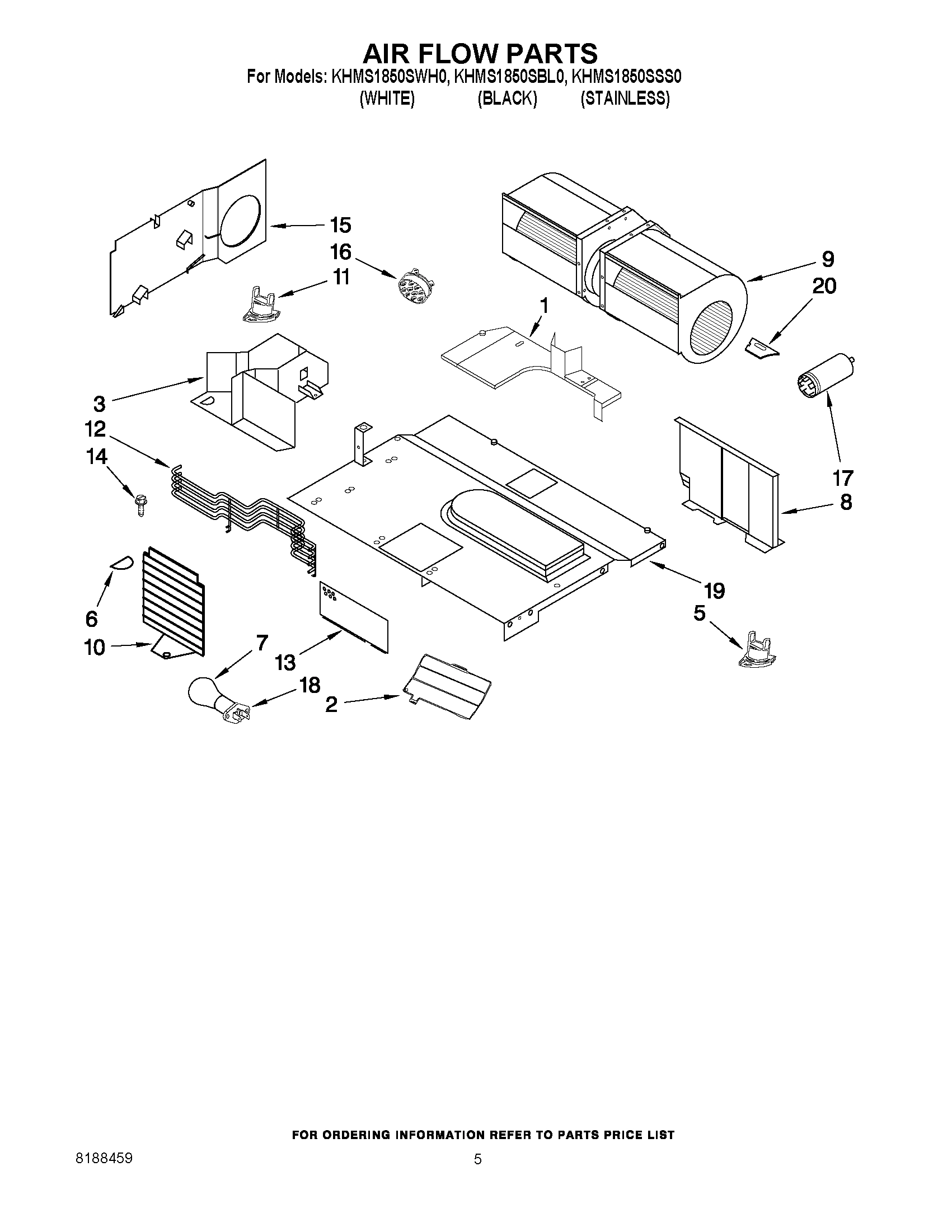

04 - AIR FLOW PARTS

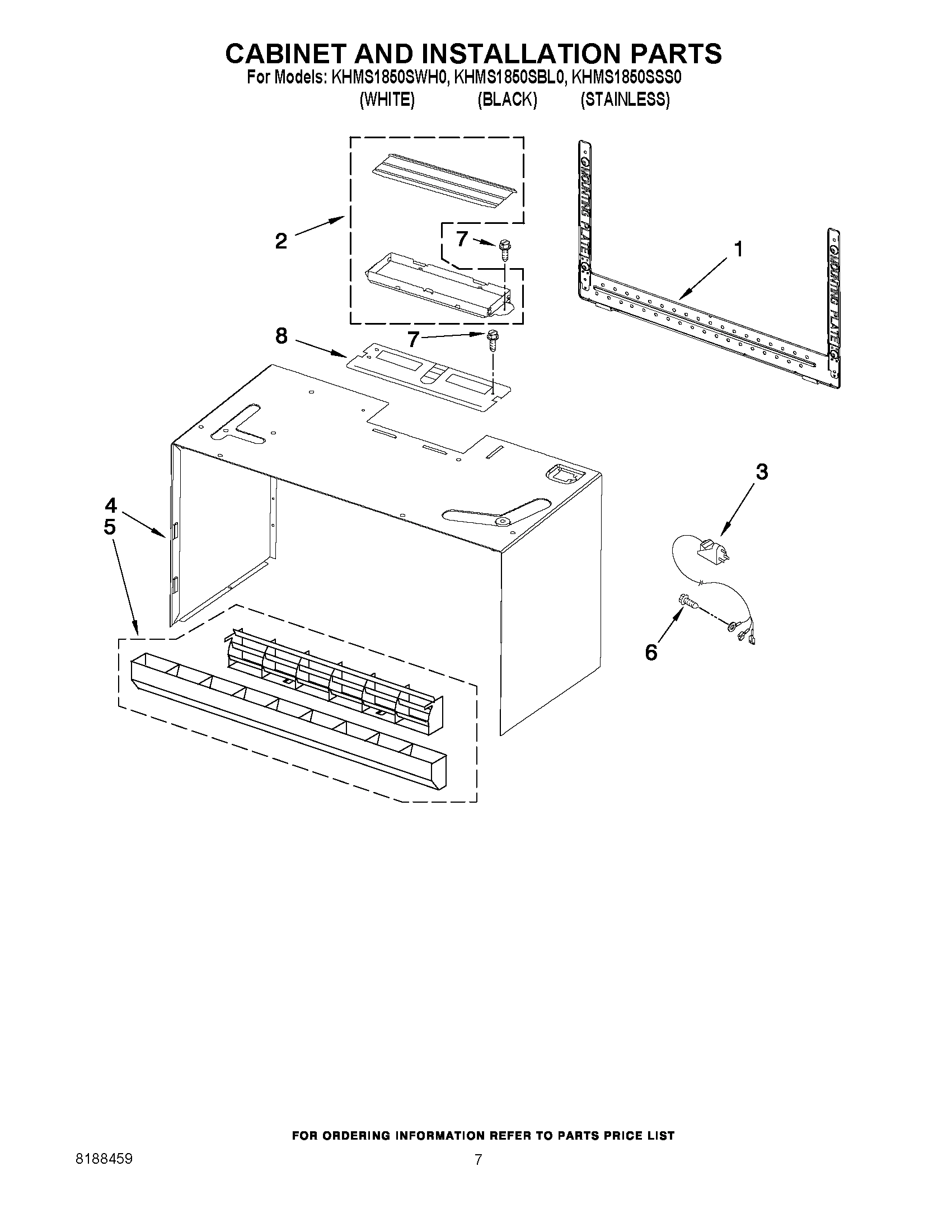

06 - CABINET AND INSTALLATION PARTS
Common parts from model Whirlpool KHMS1850SWH0 MICROWAVE HOOD COMBINATION 1.8 CU. FT.
1
Pivot, Door WPL 8184922 Contact Us For Availability
1
U & C Guide WPL 8206647 Contact Us For Availability
1
Tech Sheet WPL 8206648 Contact Us For Availability
1
Cook Guide Label WPL 8206649 Contact Us For Availability
1
INST. INSTRUCTIONS WPL W10117796 Contact Us For Availability
1
Motor, Stirrer WPL 8205044 Contact Us For Availability
1
Deflector, Air WPL 8205350 Contact Us For Availability
2
Handle, Door (White) WPL 8206501 Contact Us For Availability
2
Panel Asy, Control Includes Lens and Membrane WPL W10117923 Contact Us For Availability
2
Panel Asy, Control Includes Lens and Membrane WPL W10117924 Contact Us For Availability
2
Panel Asy, Control Includes Lens and Membrane WPL W10117925 Contact Us For Availability
2
Stirrer Shaft/Blade WPL 8205202 Contact Us For Availability
2
HANDLE, DOOR (STAINLESS) WPL W10116265 Contact Us For Availability
2
Cover, Lamp WPL W10117848 Contact Us For Availability
3
Bracket, Control WPL W10117927 Contact Us For Availability
3
Thermostat/Bracket WPL 8206454 Contact Us For Availability
3
Lower Hinge WPL W10114254 Contact Us For Availability
3
Duct, Air WPL 8205368 Contact Us For Availability
4
Microcomputer WPL W10117928 Contact Us For Availability
4
Cover, Inlet Includes Nails and Bushings WPL 8184476 Contact Us For Availability
4
Case, Outer (White) WPL W10117844 Contact Us For Availability
4
Case, Outer (Black) WPL W10117845 Contact Us For Availability
5
Thrmst, Exh.Fan WPL 8183703 Contact Us For Availability
5
Grille, Vent (White) WPL W10117917 Contact Us For Availability
5
Grille, Vent (Black) WPL W10117918 Contact Us For Availability
5
Grille, Vent (Stainless Steel) WPL W10117919 Contact Us For Availability
6
Nails/Bushings (4 of each) WPL 8184549 Contact Us For Availability
6
Cover WPL 8204676 Contact Us For Availability
7
Turntable WPL 4393799 Contact Us For Availability
7
Upper Hinge WPL W10114255 Contact Us For Availability
8
Complete Door (White) WPL W10117920 Contact Us For Availability
8
Complete Door (Stainless) WPL W10117921 Contact Us For Availability
8
Complete Door (Black) WPL W10117922 Contact Us For Availability
8
Air Guide, Back WPL 8205354 Contact Us For Availability
8
Plate, Damper WPL 8206452 Contact Us For Availability
9
Motor, Fan Assy WPL W10117942 Contact Us For Availability
10
Shield (Left) WPL 8206460 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
11
Thrmst, Cavity WPL 8183999 Contact Us For Availability
11
Cover, Terminal WPL W10110598 Contact Us For Availability
12
Plate, Cam WPL 8183824 Contact Us For Availability
12
Shield (Middle) WPL W10117915 Contact Us For Availability
13
Thermostat WPL 8184951 Contact Us For Availability
13
Shield (Right) WPL W10117916 Contact Us For Availability
14
Screw WPL 8169474 Contact Us For Availability
14
Rack WPL 8205549 Contact Us For Availability
15
Screw WPL 4393838 Contact Us For Availability
15
Air Guide (Right) WPL 8205352 Contact Us For Availability
15
Air Guide (Left) WPL 8205367 Contact Us For Availability
16
Humidity, Sensor WPL 8206446 Contact Us For Availability
17
Filter WPL 8206624 Contact Us For Availability
17
SPACER WPL W10117929 Contact Us For Availability
18
Holder, Lamp WPL 8169539 Contact Us For Availability
18
DRIVER,TURNTABLE WPL W10155348 Contact Us For Availability
19
Rod-Locking Link WPL 8185190 Contact Us For Availability
19
Base Plate, Air Guide WPL 8205351 Contact Us For Availability
20
Socket, Motor Wire WPL W10117846 Contact Us For Availability
21
Spring, Interlock WPL W10117911 Contact Us For Availability
27
Holder, Fuse WPL W10117908 Contact Us For Availability
29
SCREW WPL 8184199 Contact Us For Availability
31
SCREW WPL 8184200 Contact Us For Availability
33
HOLDER, LAMP WPL W10270797 Contact Us For Availability
35
Transformer, H.V. WPL 8206456 Contact Us For Availability
36
Bracket, Capacitor WPL 8206457 Contact Us For Availability
37
Capacitor, H.V. WPL W10117913 Contact Us For Availability
39
Chassis WPL W10117914 Contact Us For Availability
NI
Template, Upper WPL 8184731 Contact Us For Availability
NI
Main Wire Assy WPL W10117930 Contact Us For Availability
NI
Lamp/TT Wire Assy. WPL W10117931 Contact Us For Availability
NI
H.V. Wire Assembly WPL W10117932 Contact Us For Availability
NI
Therm. Harns-Wire WPL W10117933 Contact Us For Availability
NI
Wire-Grnd, AC Line WPL W10117934 Contact Us For Availability
× ![]()
